T-Line

43BDL3651T/00

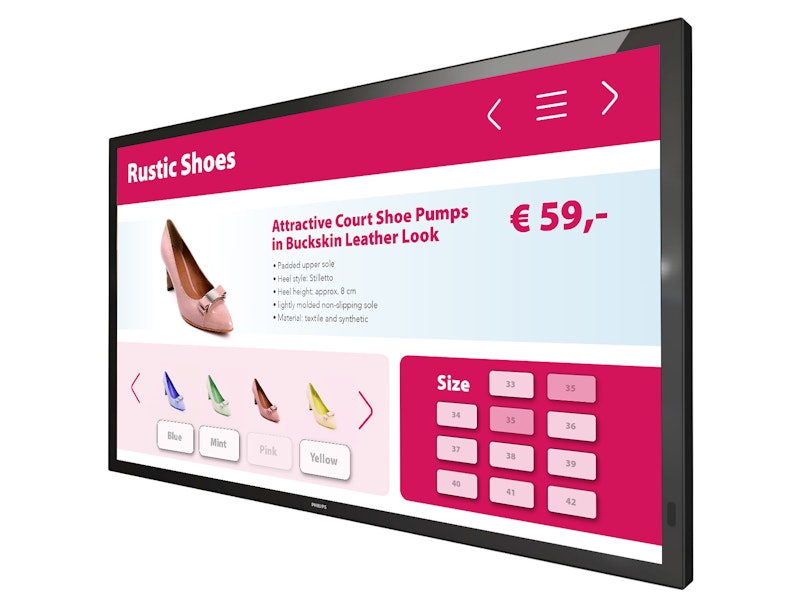

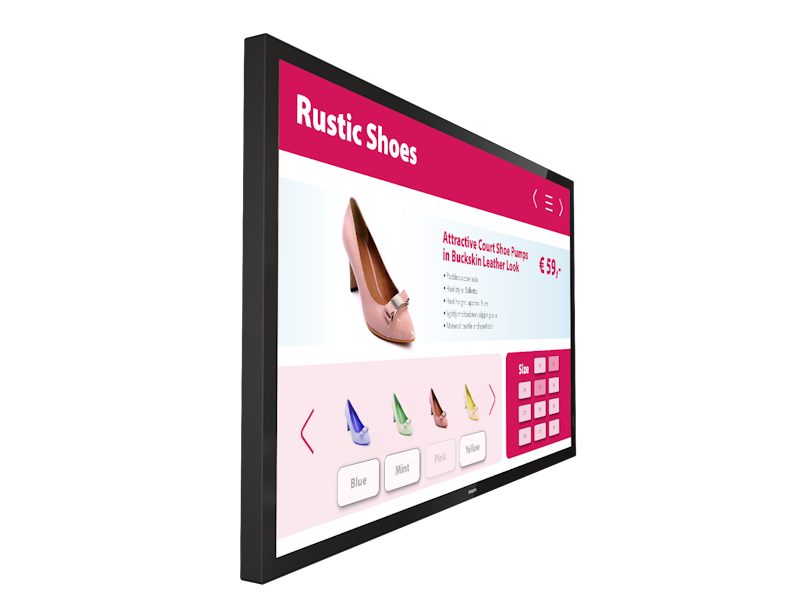

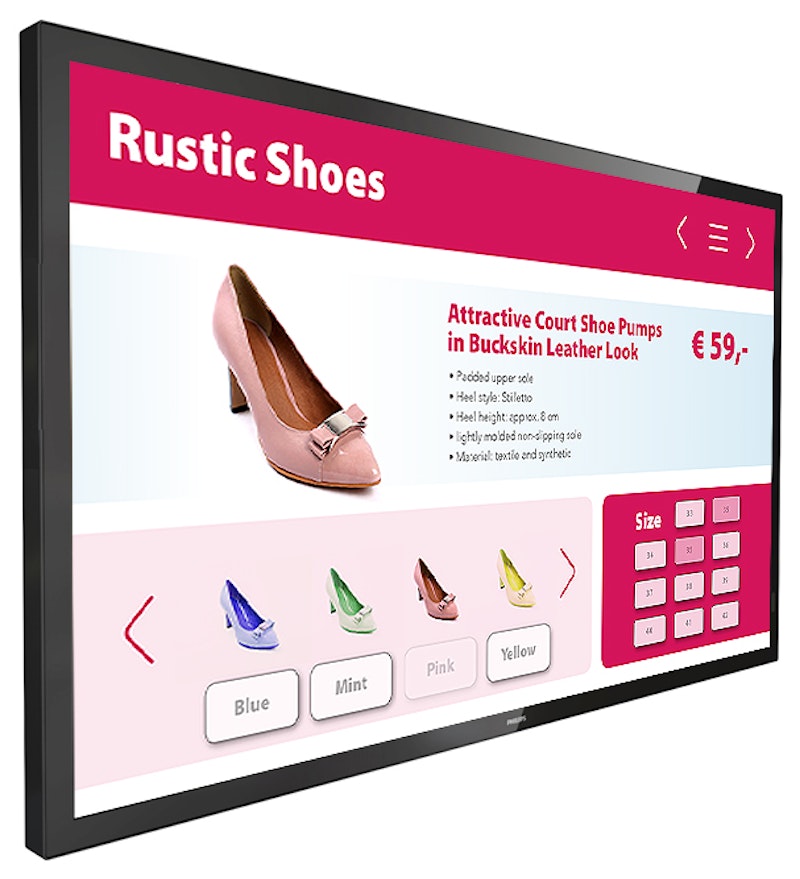

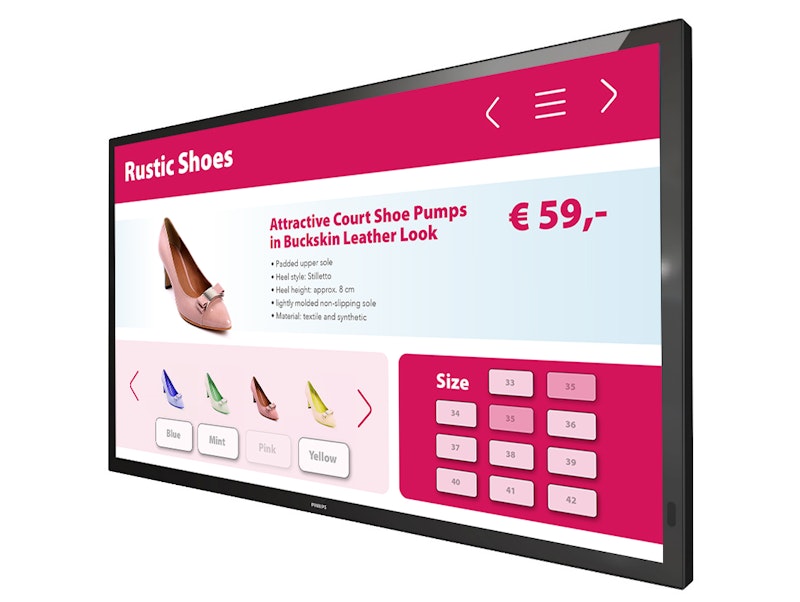

Inspire collaboration. Deliver information. This responsive Philips Multi-Touch Professional UHD Display is ideal for multi-finger, multi-user applications, from wayfinding to presentations. Up to 10 touch points can be active at once.

Features

Technical Specifications

Picture/Display

Diagonal screen size (metric) 108.0
Diagonal screen size (inch) 43
Panel resolution 3840 x 2160
Optimum resolution 3840 x 2160 @ 60 Hz
Brightness 400
Contrast ratio (typical) 1200:1
Surface treatment Anti-Glare coating
Aspect ratio 16:9
Response time (typical) 8
Pixel pitch 0.2451 (H) x 0.2451 (V) mm
Display colours 1.07 B
Viewing angle (horizontal) 178
Viewing angle (vertical) 178
Picture enhancement 3/2 - 2/2 motion pull down
3D Combfilter
Motion compens. deinterlacing
Progressive scan
3D MA deinterlacing
Dynamic contrast enhancement
Panel technology IPS
Operating system Android 8.0

Interactivity

Multi-touch technology Projected capacitive
Touch points 10 simultaneous touch points
Plug and play HID compliant
Protection glass 3 mm tempered safety glass

Connectivity

Video input DVI-D (x 1)
HDMI 2.0 (x 2)
USB 2.0 Type A (x 2)
USB 2.0 Type B (x 1)
VGA (Analogue D-Sub) (x 1)
Audio input 3.5 mm jack
Audio output 3.5 mm jack
External control RJ45
IR (in/out) 3.5 mm jack
RS232C (in/out) 2.5 mm jack
Other connections micro SD
OPS

Supported Display Resolution

Computer formats 640 x 480, 60, 67, 72, 75 Hz
800 x 600, 56, 60, 72, 75 Hz
1024 x 768, 60 Hz
1280 x 768, 60 Hz
1280 x 800, 60 Hz
1280 x 1024, 60 Hz
1360 x 768, 60 Hz
1366 x 768, 60 Hz
1440 x 900, 60 Hz
1600 x 1200, 60 Hz
1920 x 1080, 60 Hz
1920 x 1200, 60 Hz
3840 x 2160, 60 Hz, 50 Hz
720 x 400, 70 Hz
800 x 600, 60, 72, 75 Hz
Video formats 480i, 60 Hz
480p, 60 Hz
576p, 50 Hz
576i, 50 Hz
720p, 50, 60 Hz
1080i, 50, 60 Hz
1080p, 50, 60 Hz
1080i, 25, 30 Hz
3840 x 2160, 24, 25 Hz
3840 x 2160, 30Hz
480i, 30, 60 Hz
576i, 25, 50 Hz

Convenience

Placement Landscape (18/7)
Portrait (18/7)
Network controllable RS232
RJ45
Screen-saving functions Pixel Shift, Low Brightness
Keyboard control Hidden
Lockable
Remote control signal Lockable
Energy-saving functions Smart Power
Signal loop through IR Loop through
RS232

Dimensions

Set Width 990.0
Set Height 578.2
Set Depth 70.2 (D@Wall mount)/102.7 (D@External OPS box)
Set Width (inch) 38.98
Set Height (inch) 22.76
Set Depth (inch) 2.76 (D@Wall mount)/4.04 (D@External OPS box)
Product weight 17.9
Product weight (lb) 39.46
Bezel width 2.0 mm (T/R/L/B)
Wall Mount 200mm x 200mm, M6

Sound

Built-in speakers 2 x 10 W

Operating conditions

Temperature range (operation) 0 ~ 40
MTBF 50,000
Altitude 0 ~ 3000 m
Temperature range (storage) -20 ~ 60
Humidity range (operation)[RH] 20–80% (without condensation)
Humidity range (storage) [RH] 5–95% (without condensation)

Power

Mains power 100 ~ 240 VAC, 50/60 Hz
Standby power consumption <0.5 W
Consumption (Typical) 100
Power Saving Features Smart Power
Consumption (Max) 220 W
Energy Label Class G

Accessories

Stand BM05922 (Optional)
Included Accessories Cleaning cloth (x 1)
IR sensor cable (1.8 m) (x 1)
Philips logo (x 1)
Power supply cable (3 m)
Quick start guide (x 1)
Remote control and AAA batteries
RS232 cable (3 m) (x 1)
RS232 daisy chain cable (x 1)
USB Cover and screw x 1

Miscellaneous

On-Screen Display Languages Arabic
English
French
German
Italian
Japanese
Polish
Spanish
Turkish
Russian
Simplified Chinese
Traditional Chinese
Danish
Dutch
Finnish
Norwegian
Portuguese
Swedish
Regulatory approvals CE
CB
BSMI
FCC, Class A
CU
ETL
IMDA
PSB
RoHS
Warranty 3 year warranty

Multimedia Applications

USB Playback Audio AAC
AIF
AIFF
ASF
LPCM
M3U
M4A
MP3
MP4
WAV
WMA
USB Playback Picture BMP
GIF
JPEG
JPG
PDF
USB Playback Video M2TS
M4V
MK3D
MKV
MP4
MPEG
MPG
MTS
TS
TTS
VOB
WMV

Internal Player

CPU 2 x A53 + 2 x A73
GPU ARM Mali G51
Memory 2 GB DDR3
8 GB
Wi-Fi 2.4 G
5 G
