T-Line

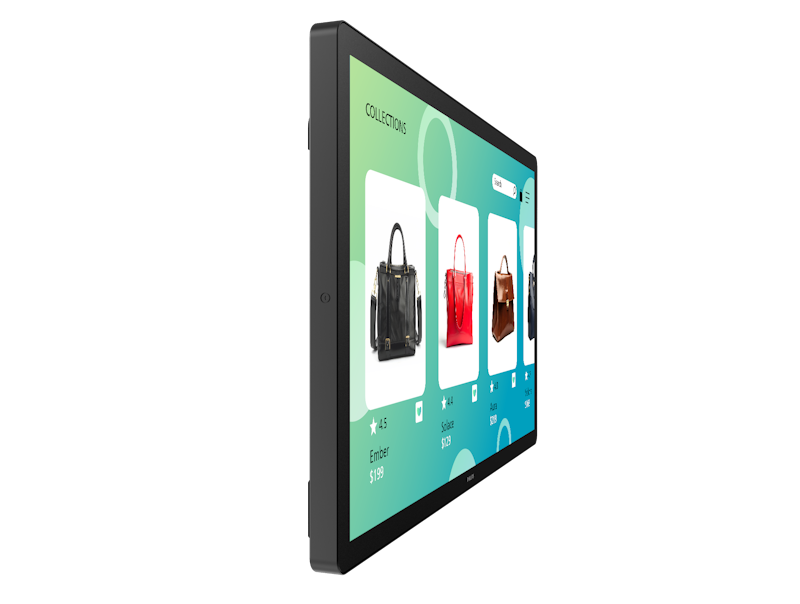

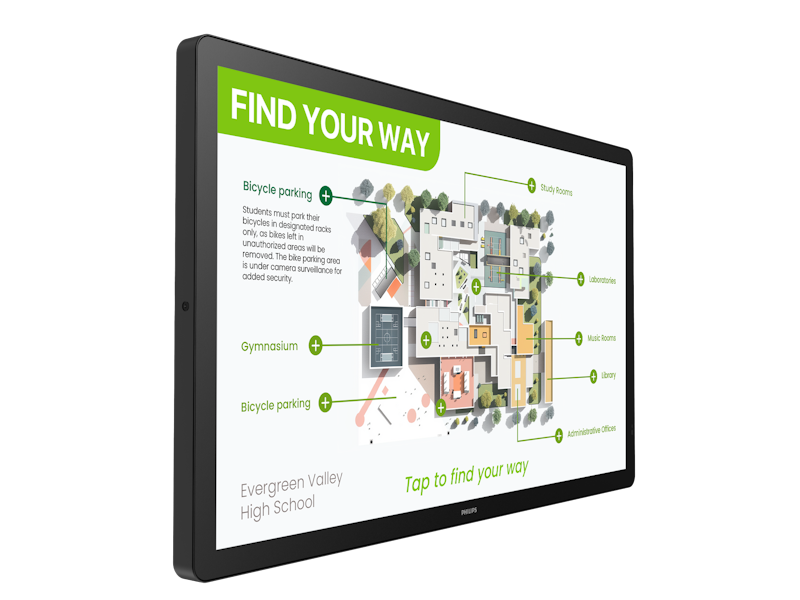

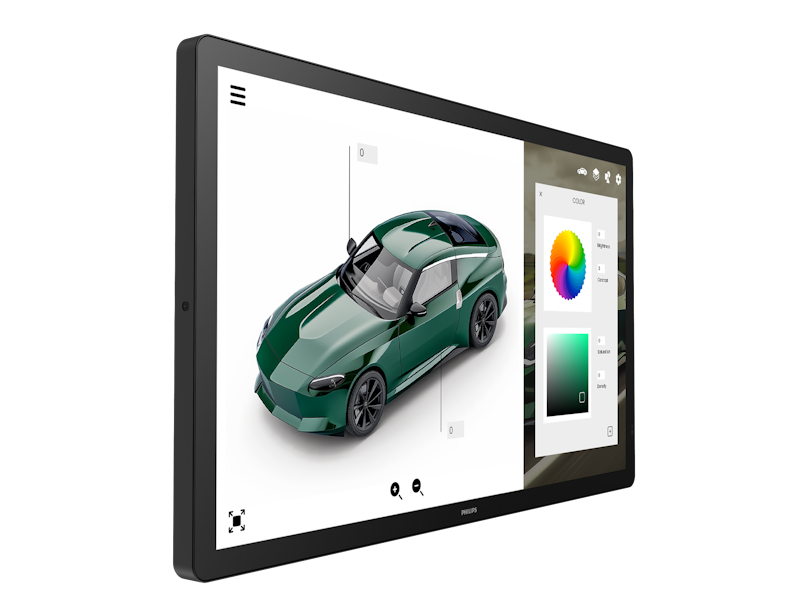

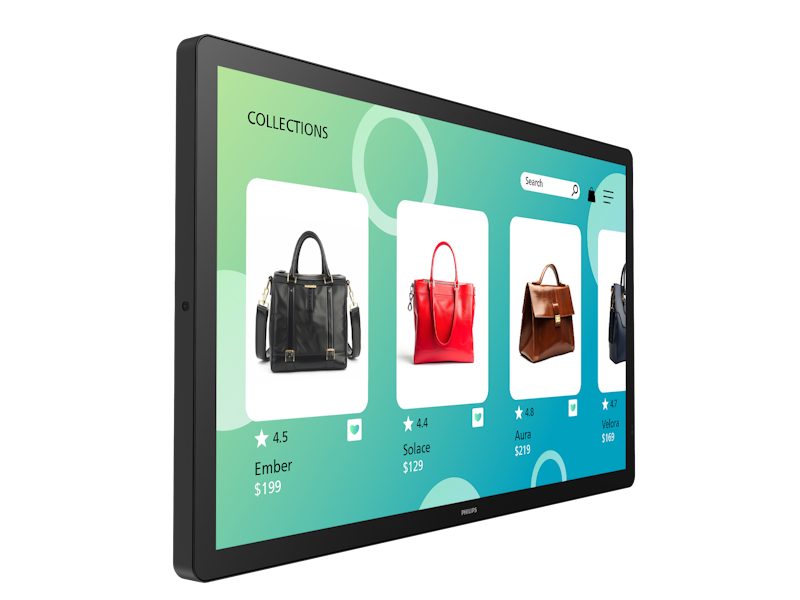

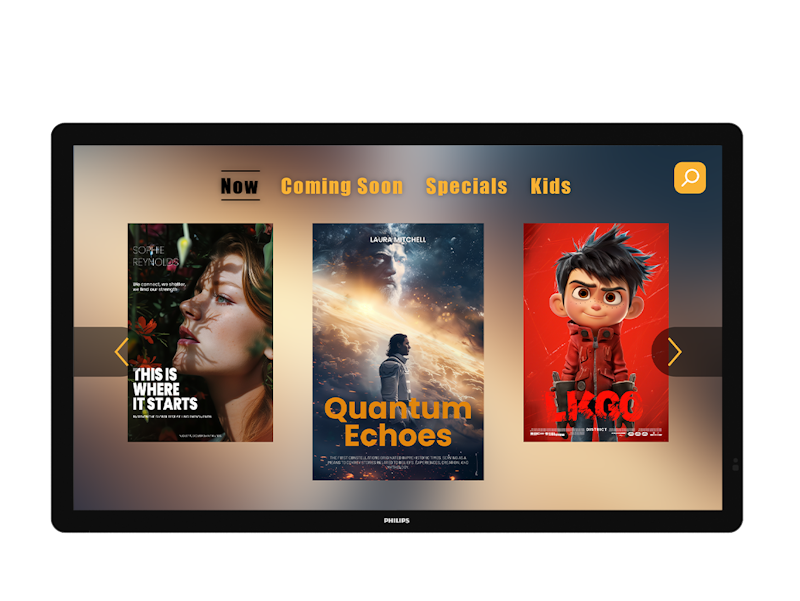

32BDL3751T/00

Energy Label: g

Delivering 24/7 operation with 350 nits of brightness, this versatile PCAP display is also designed to reduce energy consumption across the range. Engage. Inspire. Connect. With Android 13, Wave ready and no need for an external media player.

Get a quote

Technical Specifications

Miscellaneous

Regulatory approvalsCB
CE
FCC, Class A
RoHS
BSMI
CU
ETL
IMDA
PSB
Energy Star 8.0
Warranty3 year warranty
On-Screen Display LanguagesArabic
English
French
German
Italian
Japanese
Polish
Spanish
Turkish
Russian
Simplified Chinese
Traditional Chinese
Danish
Dutch
Finnish
Norwegian
Portuguese
Swedish

Operating conditions

Temperature range (storage)-20~60 °C
MTBF50,000 hour(s)
Humidity range (storage) [RH]5–95% (without condensation)
Humidity range (operation)[RH]20–80% (without condensation)
Temperature range (operation)0 ~ 40 °C
Altitude0 ~ 3000 m

Weight

Product without packaging (lb)18.32 lb
Product with packaging (kg)10.75 kg
Product with packaging (lb)23.70 lb
Product without packaging (kg)8.31 kg

Picture/Display

Response time (typical)8 ms
Panel technologyIPS
Surface treatmentsAnti-Glare coating
Anti-Fingerprint coating
Operating systemAndroid 13
Panel resolution1920 x 1080p
Pixel pitch0.364 mm
Aspect ratio16:9
Viewing angle (horizontal)178 degree
OS UI resolutionFHD
Picture enhancement3/2 - 2/2 motion pull down
3D Combfilter
3D MA deinterlacing
Dynamic contrast enhancement
Motion compens. deinterlacing
Progressive scan
Display colours16.7 M
Brightness (after glass)350 cd/m²
Brightness (before glass)400 cd/m²
Optimum resolution1920 x 1080 @ 60 Hz
Diagonal screen size (inch)31.5" inch
Contrast ratio (typical)1200:1
Viewing angle (vertical)178 degree
Diagonal screen size (metric)80 cm

Supported Display Resolution

Computer formats720 x 400, 70 Hz
640 x 480, 60, 67, 75 Hz
800 x 600, 60 Hz
832 x 624, 75 Hz
1024 x 768, 60 Hz
1152 x 870, 75 Hz
1280 x 720, 60 Hz
1920 x 1080, 60 Hz
1680 x 1050, 60 Hz
3840 x 2160, 30, 60 Hz
Video formats480i, 60 Hz
480p, 60 Hz
576p, 50 Hz
576i, 50 Hz
720p, 50, 60 Hz
1080i, 50, 60 Hz
1080p, 50, 60 Hz
3840 x 2160, 30, 60 Hz

Interactivity

Plug and playHID compliant
Multi-touch technologyProjected capacitive
Touchpoints10 simultaneous touch points
Protection glass2 mm tempered safety glass

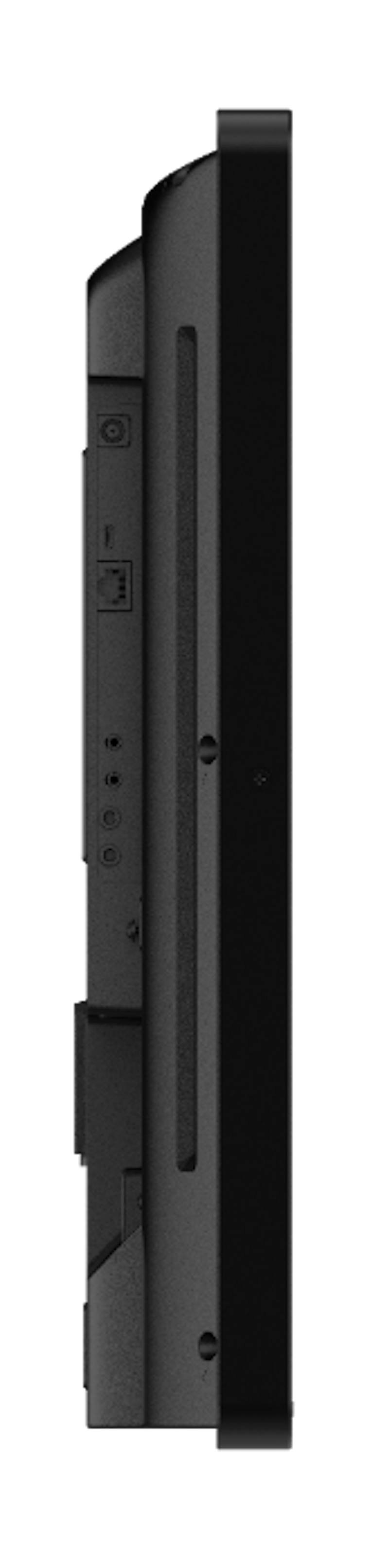

Connectivity

External controlGigabit LAN RJ45
IR (in/out) 3.5 mm jack
RS232 (in/out) 2.5 mm jack
Video inputHDMI 2.0 (x 2)
Display Port1.3 (x 1)
USB-C (with 15 W power delivery)
Other connectionsMicro USB (x 1) (OTG)
USB 3.0 A (x 2)
USB 3.0 B (x 1)
Wi-Fi: 2 T/2 R 2.4/5/6 GHz
Bluetooth 5.2
Audio output3.5 mm jack

Convenience

Remote control signalLockable
Network controllableRS232
RJ45
Screen-saving functionsPixel Shift, Low Brightness
PlacementLandscape (24/7)

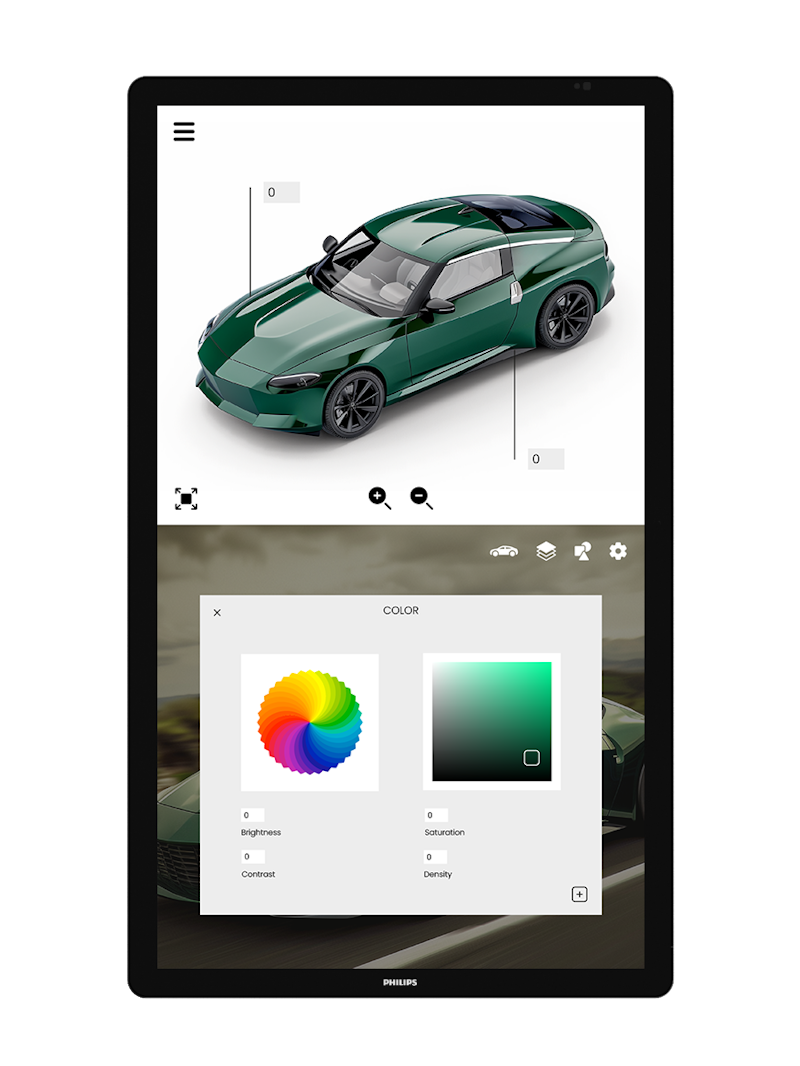

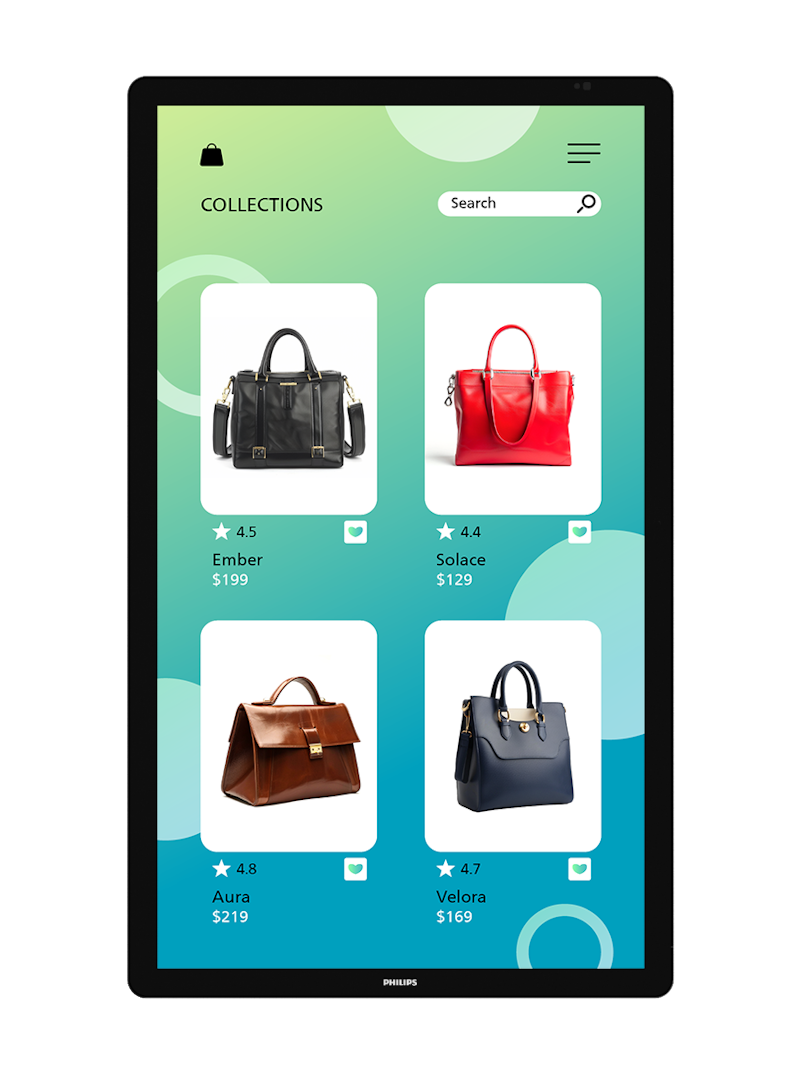

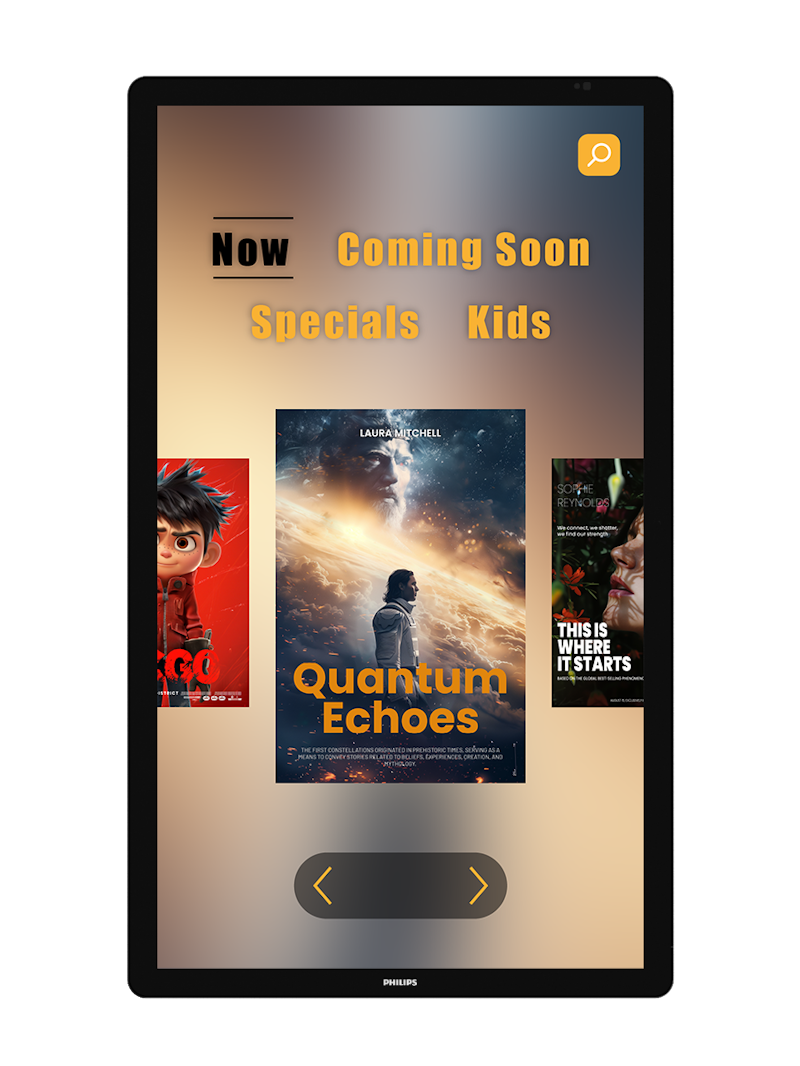

Portrait (24/7)
Tilted installation up to 30° backwards

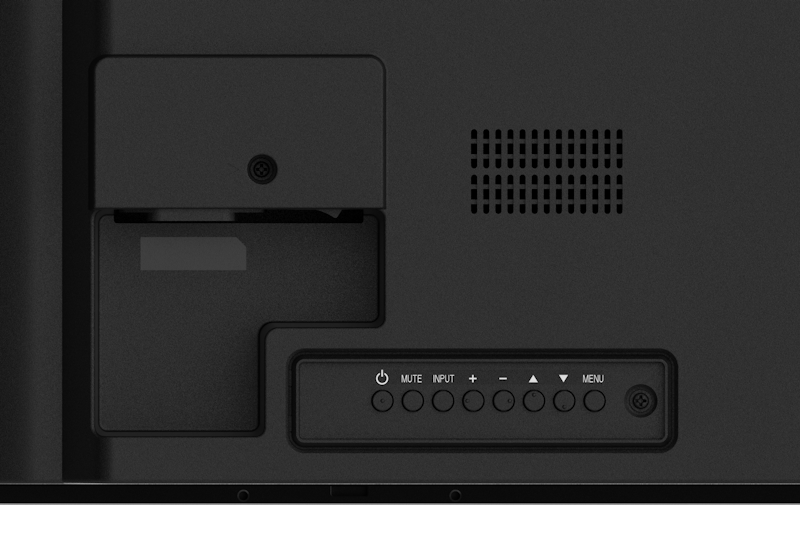

Keyboard controlHidden
Lockable
Signal loop throughIR Loop through
RS232

Accessories

Included AccessoriesPhilips logo (x 1)
Power supply cable (3 m)
Quick start guide (x 1)
Remote control and AAA batteries
RS232 cable (3 m) (x 1)
USB A to B cable (3 m) (x 1)
StandBM05911 (Optional)
Optional accessoriesOpen frame kit (BM03752)

Internal Player

Storage32 GB eMMc
GPUMulti-Core Mali-G52
Memory4 GB DDR3
CPUQuad-Core Cortex A55

Dimensions

Set Depth (inch)2.74" (Wall mount) / 2.89" (AC connector) inch
Bezel width24.4 mm touch black border (T/R/L/B)
Set Depth69.5 mm (Wall mount)/73.5 mm (AC connector) mm
Set Width749.1 mm
Set Width (inch)29.49" inch
Set Height (inch)17.46" inch
Set Height443.6 mm

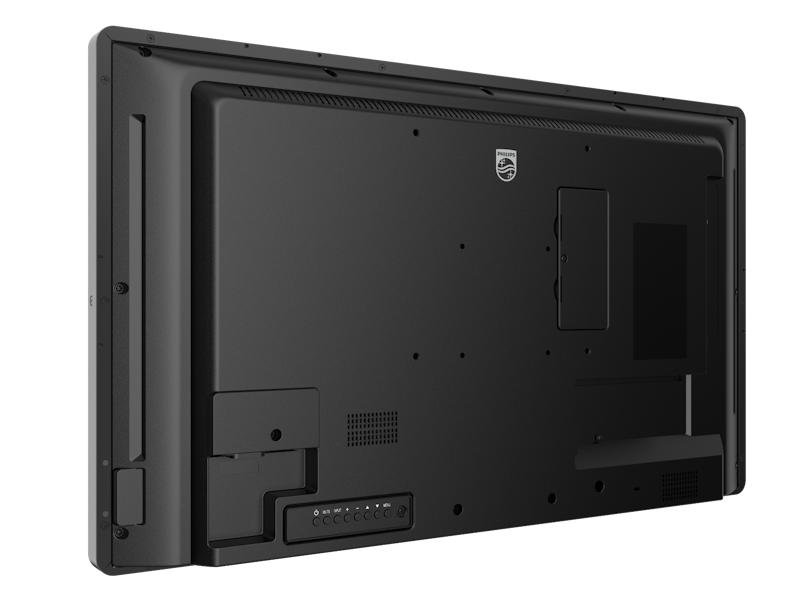

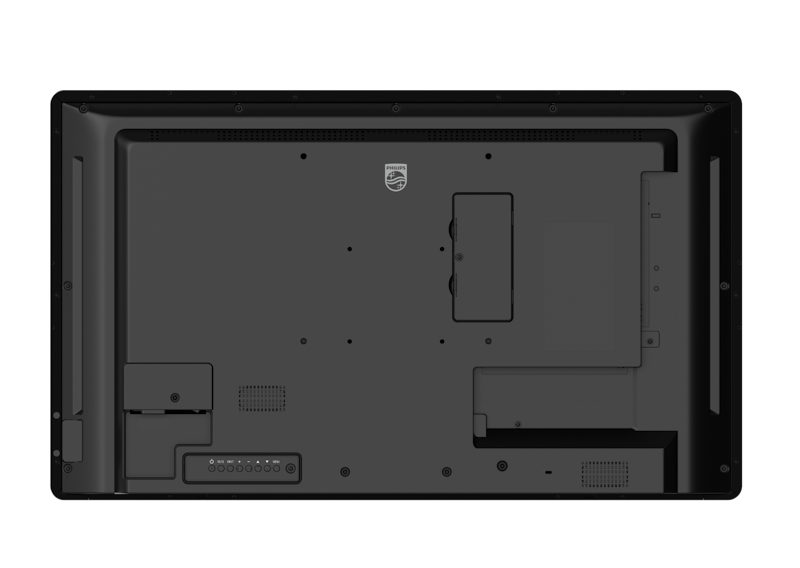

Wall Mount100 mm x 100 mm, 200 mm x 200 mm, M4

Sound

Built-in speakers2 x 10 W

Power

Consumption (Max)87 W
Mains power100 ~ 240 VAC, 50/60 Hz
Consumption (Typical)35 W
Energy Label ClassG
Standby power consumption<0.5 W

Multimedia Applications

USB Playback PictureJPEG
PNG
BMP
WEBP
USB Playback VideoMPEG 1/2 (1080p 60 Hz)
MPEG 4 (1080p 60 Hz)
H.263 (1080p 60 Hz)
H.264 (4K2K 120 Hz)
H.265 (4K2K 120 Hz)
VP8 (1080p 60 Hz)
VP9 (4K2K 120 Hz)
USB Playback AudioAAC
HEAAC
MPEG 1/2/2.5 Layer 3
MPEG 1/2 Layer 1
MPEG 1/2 Layer 2
