T-Line

10BDL3351T/00

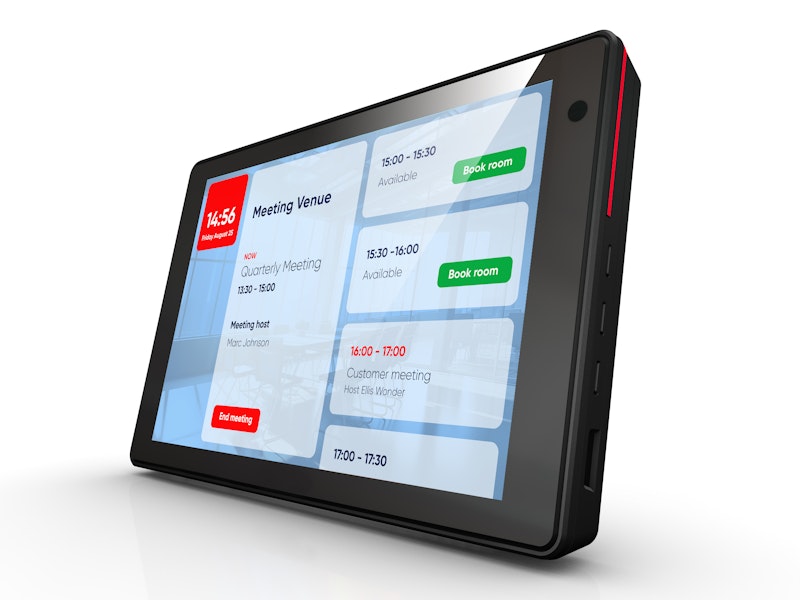

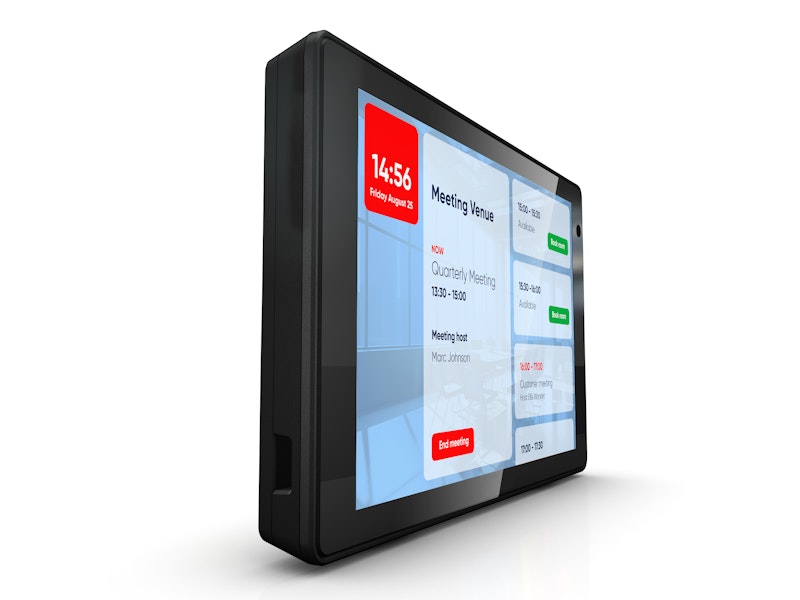

From room bookings and wayfinding to shelf advertising, this ultra-clear multi-touch smart display is ideal when space is at a premium. Power over Ethernet allows for flexible placement while the Android SoC enables versatile solutions.

Get a quote

Technical Specifications

Connectivity

External control	RJ45
Video output	HDMI
Audio output	3.5 mm jack
Other connections	micro SD
	USB 2.0 (x 1)
	USB C

Convenience

Other convenience	G sensor
	Kensington lock
Network controllable	Wi-Fi
	BT 5.0
	Ethernet
Energy-saving functions	Smart Power
Picture performance	Advanced colour control
Screen-saving functions	Low brightness
Placement	Landscape (24/7)
	Portrait (24/7)
Programmable side LED	No
Keyboard control	Hidden
	Lockable

Accessories

Included Accessories	AC power adapter
	Quick start guide (x 1)

Dimensions

Set Depth (inch)	0.97 inch
Product weight	0.8 kg
Product weight (lb)	1.63 lb
Set Depth	24.75 mm
Bezel width (L/R, T/B)	22 (L/R), 14 (T/B)
Set Width	262 mm
Set Width (inch)	10.32 inch

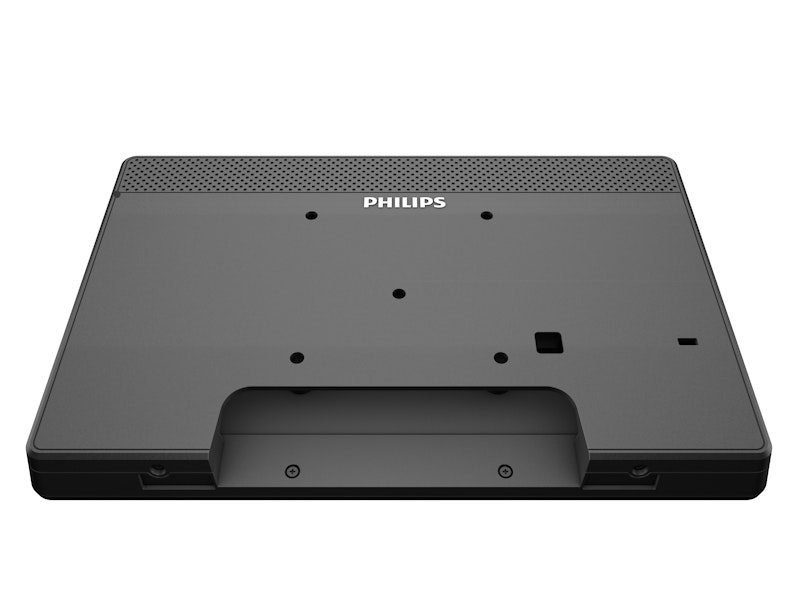

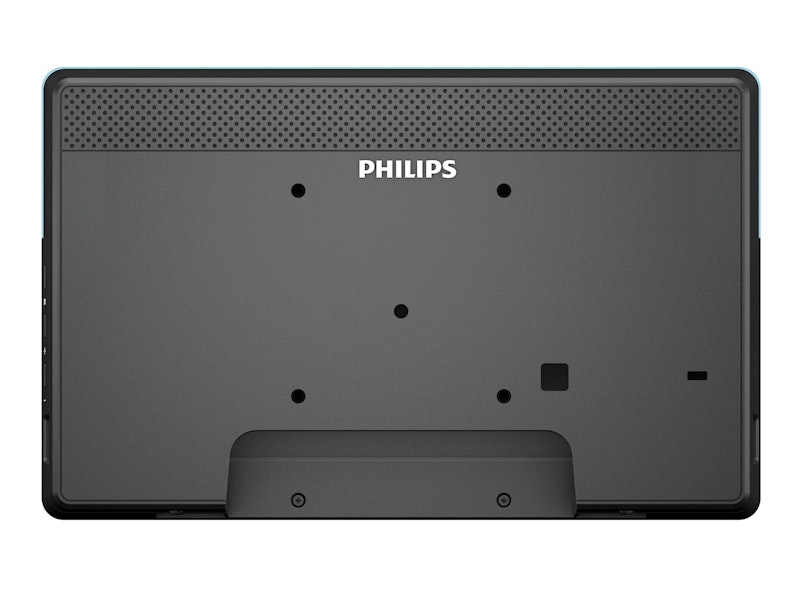

Wall Mount	75 x 75 mm
Set Height	164 mm
Set Height (inch)	6.46 inch

Internal Player

Wi-Fi	802.11 ac/a/b/g/n
	2.4/5 GHz
Storage	8 GB eMMC
Memory	2 GB DDR4
CPU	RK3568

Power

Mains power	DC12V +/- 5%, 2A, IEEE 802.03at PoE+
Consumption (Max)	13 W
Consumption (Typical)	4 W
Standby power consumption	<0.5 W

Miscellaneous

Regulatory approvals	CB
	CE
	RoHS
	FCC, Class A
	ETL
On-Screen Display Languages	Arabic
	English
	French
	German
	Italian
	Japanese
	Polish
	Spanish
	Turkish
	Russian
	Simplified Chinese
	Traditional Chinese
	Danish
	Dutch
	Finnish
	Norwegian
	Portuguese
	Swedish
Warranty	3 year warranty

Operating conditions

Temperature range (storage)	-10 ~ 60 °C
MTBF	50,000 hour(s)
Humidity range (operation)[RH]	30-80% (without condensation)
Temperature range (operation)	0 ~ 40 °C
Humidity range (storage) [RH]	10-85% (without condensation)
Altitude	0 ~ 3000 m

Picture/Display

Operating system	Android 13
Response time (typical)	35 ms
Panel resolution	1280 x 800
Viewing angle (horizontal)	160 degree
Aspect ratio	16:10
Display colours	16.7 million
Optimum resolution	1280 x 800
Diagonal screen size (metric)	25.6 cm
Brightness	350 cd/m²
Contrast ratio (typical)	1000:1
Diagonal screen size (inch)	10.1'' inch
Viewing angle (vertical)	160 degree

Interactivity

Multi-touch technology	Projected capacitive
Protection glass	0.7 mm tempered safety glass
	Tempered safety glass 7 MOHS
Touchpoints	10 simultaneous touch points
