T-Line

10BDL5051T/00

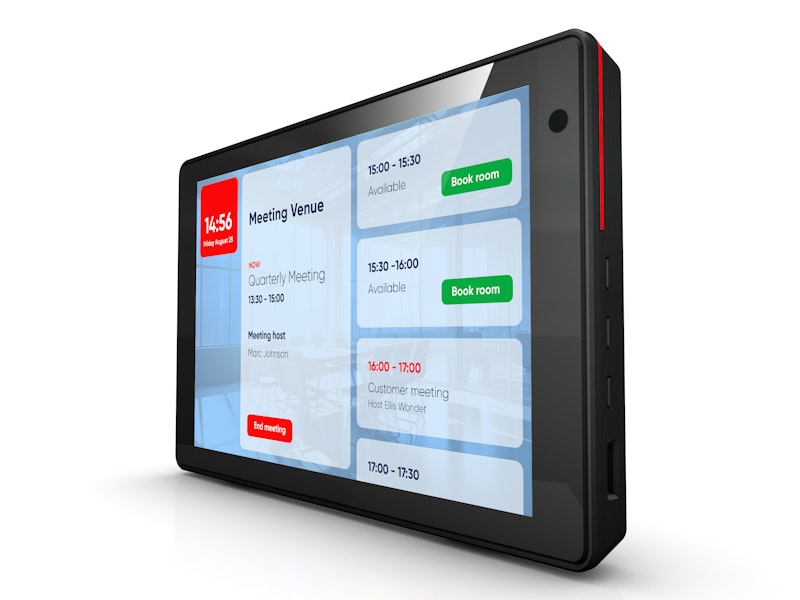

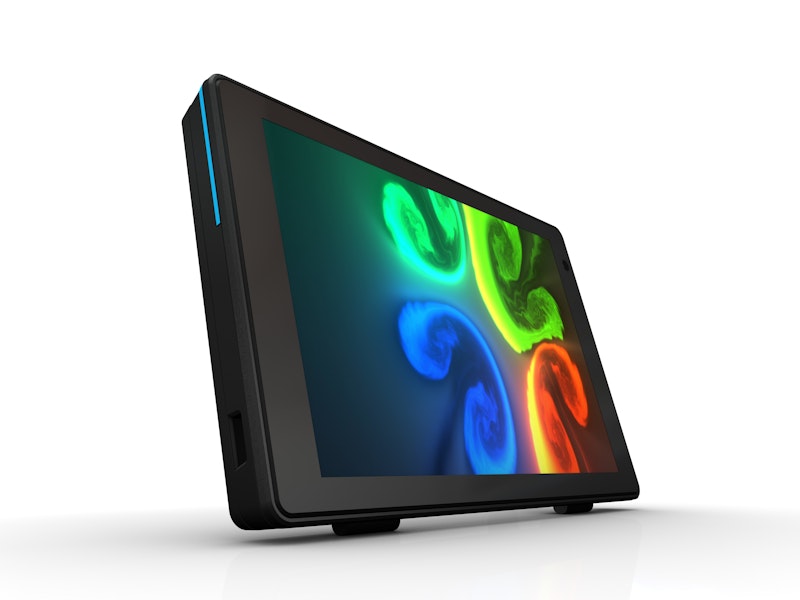

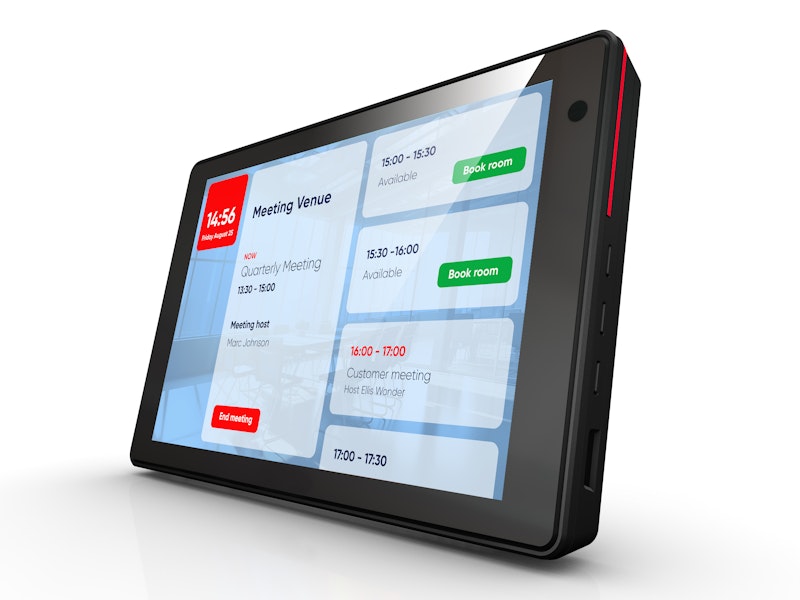

From room bookings and wayfinding to shelf advertising, this ultra-clear multi-touch smart display is ideal when space is at a premium. Power over Ethernet allows for flexible placement while the Android SoC enables versatile solutions.

Get a quote

Technical Specifications

Connectivity

External control	RJ45
Video output	HDMI
Audio output	3.5 mm jack
Other connections	micro SD
	USB 2.0 (x 1)
	USB C

Convenience

Other convenience	G sensor
	NFC
	Kensington lock
Network controllable	Wi-Fi
	BT 5.0
	Ethernet
Picture performance	Advanced colour control
Placement	Landscape (24/7)

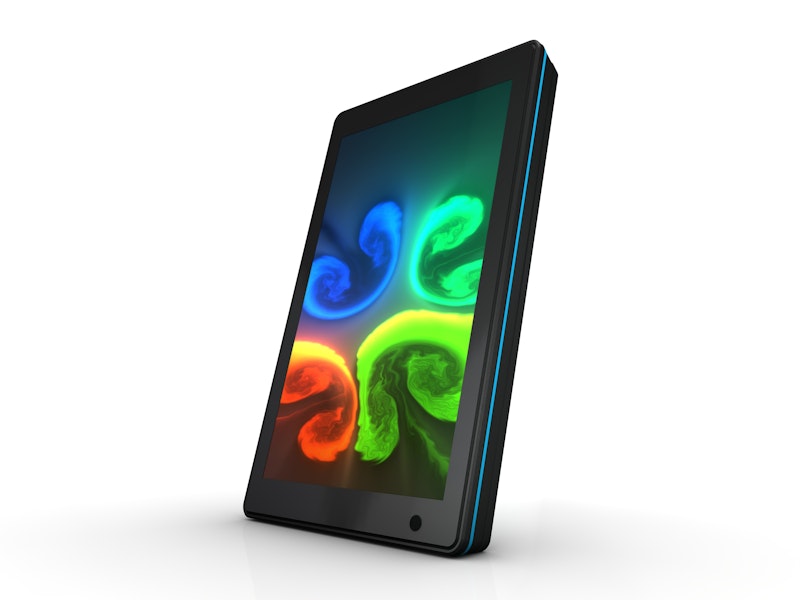

	Portrait (24/7)
Screen-saving functions	Low brightness

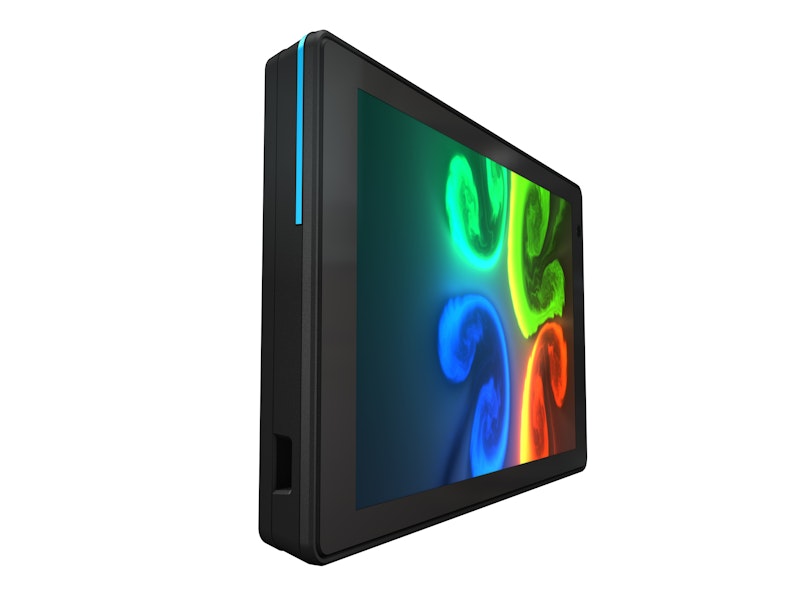

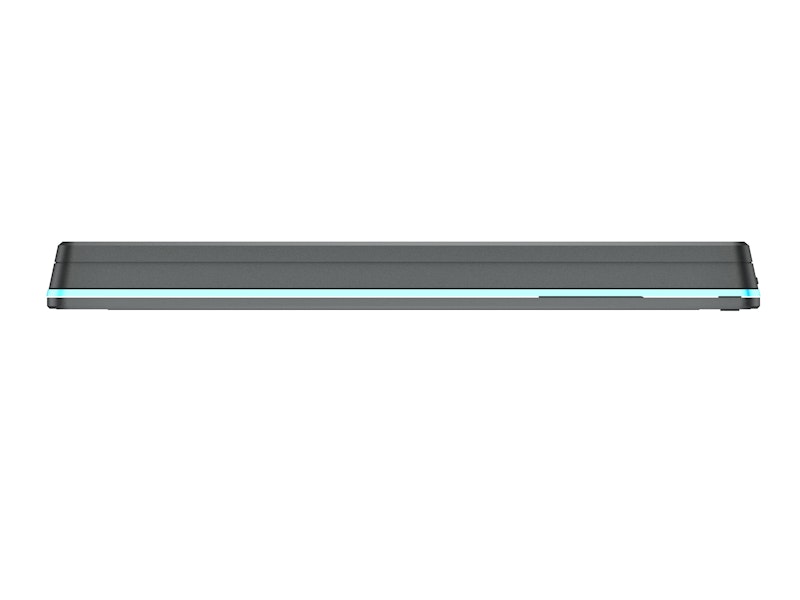

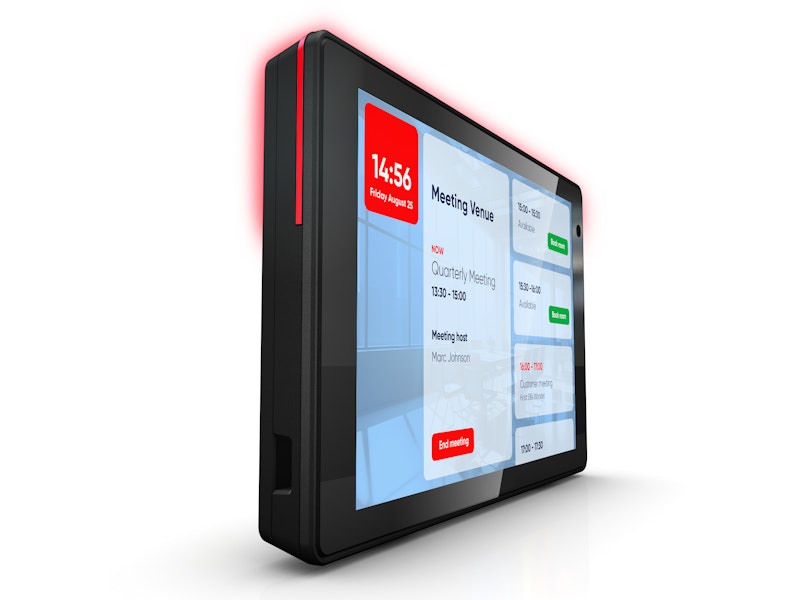

Programmable side LED	3 sides
Keyboard control	Hidden
	Lockable

Accessories

Included Accessories	AC power adapter
	Quick start guide (x 1)
	USB A to C cable
	HDMI cable

Dimensions

Set Depth (inch)	0.97 inch
Product weight	0.8 kg
Product weight (lb)	1.63 lb
Set Depth	24.75 mm
Bezel width (L/R, T/B)	22 (L/R), 14 (T/B)
Set Width	262 mm
Set Width (inch)	10.32 inch
Set Height	164 mm

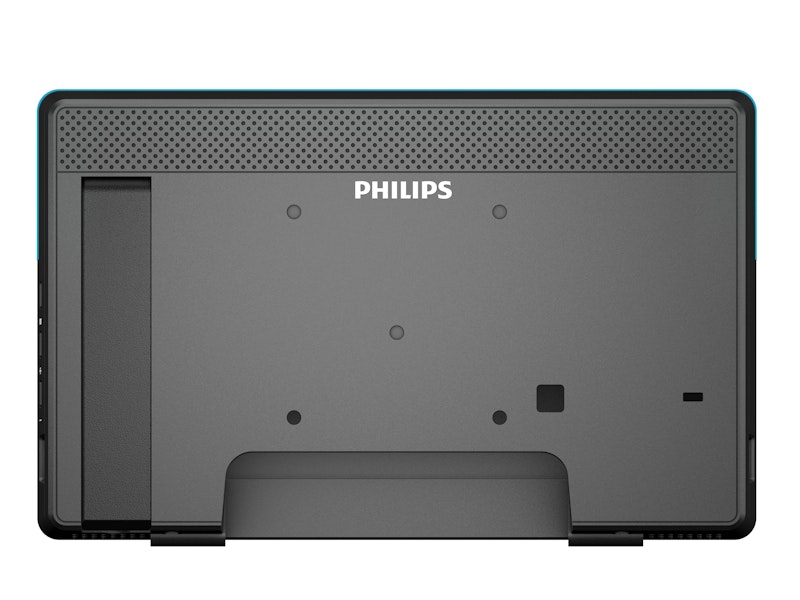

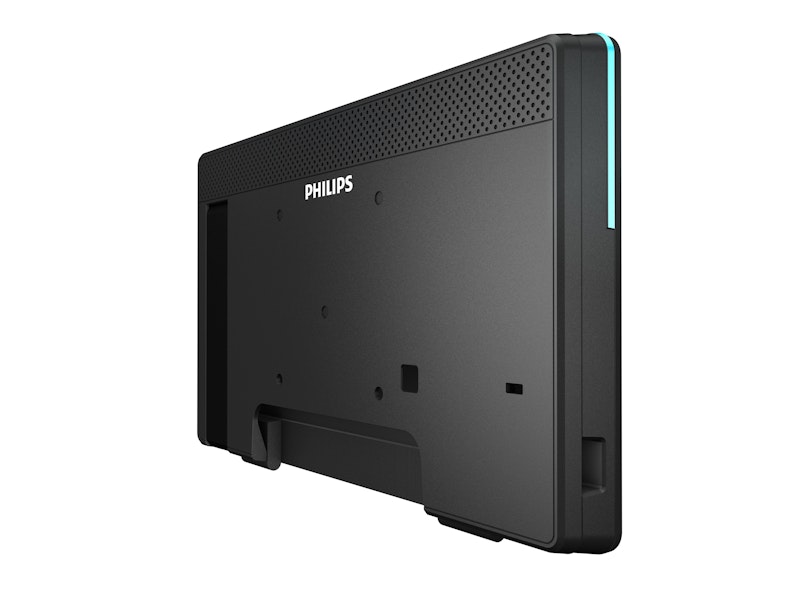

Wall Mount	75 x 75 mm
Set Height (inch)	6.46 inch

Internal Player

Wi-Fi	802.11 ac/a/b/g/n
	2.4/5 GHz
Storage	16 GB EMMC
Memory	2 GB DDR4
CPU	RK3568

Sound

Built-in speakers	2 x 1.5 W

Power

Consumption (Max)	18 W
Mains power	DC12V +/- 5%, 2A, IEEE 802.03at PoE+
Consumption (Typical)	4 W
Standby power consumption	<0.5 W

Miscellaneous

Regulatory approvals	CE
	FCC, Class A
	RoHS
	CB
	ETL
On-Screen Display Languages	Arabic
	Dutch
	Danish
	English
	French
	Finnish
	German
	Italian
	Japanese
	Norwegian
	Polish
	Portuguese
	Russian
	Spanish
	Swedish
	Simplified Chinese
	Turkish
	Traditional Chinese
Warranty	3 year warranty

Operating conditions

Temperature range (storage)	-10 ~ 60 °C
MTBF	50,000 hour(s)
Humidity range (storage) [RH]	10-85% (without condensation)
Humidity range (operation)[RH]	30-80% (without condensation)
Temperature range (operation)	0 ~ 40 °C
Altitude	0 ~ 3000 m

Picture/Display

Operating system	Android 13
Response time (typical)	35 ms
Panel resolution	1280 x 800
Aspect ratio	16:10
Viewing angle (horizontal)	160 degree
Display colours	16.7 million
Optimum resolution	1280 x 800
Diagonal screen size (metric)	25.6 cm
Brightness	350 cd/m²
Diagonal screen size (inch)	10.1'' inch
Viewing angle (vertical)	160 degree
Contrast ratio (typical)	1000:1

Interactivity

Multi-touch technology	Projected capacitive
Protection glass	0.7 mm tempered safety glass
	Tempered safety glass 7 MOHS
Touchpoints	10 simultaneous touch points
