Q-Line
Q-Line
Versatile signage
CMND & Control
Run your display network over a local (LAN or RF) connection. CMND & Control allows you to perform vital functions like updating software and settings, as well as monitoring display status. Whether you’re in charge of one TV or more, CMND & Control makes managing your fleet easy.
FailOver
From waiting room to meeting room, never show a blank screen. FailOver lets your Philips professional display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.
CMND & Create
Take control of your content with CMND and Create. A drag-and-drop interface makes it simple to publish your own content, whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure that your stills, text and video will be up and running in no time.
Integrated Media Player
Easily schedule content to play from USB. Your Philips professional display will wake from standby to play the content you want, and then return to standby once playback has finished.
Powered by Android
Android-powered Philips professional displays are fast, versatile and easy to navigate. All displays are optimized for native Android apps and you can install web apps directly to the display too. Automatic updates ensure apps stay up to date.
Integrated HTML5 browser
Connect and control your content over the internet with the integrated HTML5 browser. Using the Chromium-based browser, design your content online and connect a single display or your complete network. Show content in both landscape and portrait mode, with full-HD resolution. Streaming content can also be shown in a PIP (picture-in-picture) window. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlist
Ultimate attention
Q-Line makes your content the focal point in any space.
Features
Technical Specifications
Picture/Display
| Diagonal screen size (metric) | 80 |
|---|---|
| Diagonal screen size (inch) | 31.5 |
| Panel resolution | 1920x1080p |
| Optimum resolution | 1920 x 1080 @ 60 Hz |
| Brightness | 350 |
| Contrast ratio (typical) | 4000:1 |
| Dynamic contrast ratio | 500,000:1 |
| Response time (typical) | 8 |
| Aspect ratio | 16:9 |
| Viewing angle (horizontal) | 178 |
| Viewing angle (vertical) | 178 |
| Pixel pitch | 0.36375 x 0.36375 mm |
| Display colors | 16.7 Million |
| Panel technology | VA |
| Picture enhancement | 3/2 - 2/2 motion pull down |
| 3D Combfilter | |
| 3D MA deinterlacing | |
| Dynamic contrast enhancement | |
| Motion compens. deinterlacing | |
| Progressive scan | |
| Operating system | Android 8.0 |
| Clinical image | D-Image preset (dicom part 14 compatible) |
Supported Display Resolution
| Computer formats | 1920 x 1080, 60Hz |
|---|---|
| 1680 x 1050, 60Hz | |
| 1600 x 1200, 60Hz | |
| 1440 x 900, 60Hz | |
| 1280 x 1024, 60Hz | |
| 1280 x 800, 60Hz | |
| 1280 x 720, 60Hz | |
| 1152 x 870, 75Hz | |
| 1024 x 768, 60, 70, 75Hz | |
| 800 x 600, 56, 60, 72, 75Hz | |
| 720 x 400, 70Hz | |
| 640 x 480, 60, 67, 72, 75Hz | |
| 1152 x 864, 75Hz | |
| 832 x 624, 75Hz | |
| Video formats | 576p, 50Hz |
| 576i, 50Hz | |
| 480p, 60Hz | |
| 480i, 60Hz | |
| 1080p, 50, 60Hz | |
| 1080i, 50, 60Hz | |
| 3840 x 2160, 30Hz | |
| 3840 x 2160, 60Hz | |
| 720p, 50,60 Hz |
Connectivity
| Video input | HDMI 2.0 (x2) |
|---|---|
| USB 2.0 (x2) | |
| DVI-I (x 1) | |
| Audio input | 3.5 mm jack |
| Audio output | 3.5mm jack |
| External control | RJ45 |
| RS232C (in/out) 2.5 mm jack | |
| IR (in/out) 3.5 mm jack |
Convenience
| Energy saving functions | Smart Power |
|---|---|
| Tiled Matrix | Up to 15 x 15 |
| Start-up | Switch on delay |
| Switch on status | |
| Boot on source | |
| Start-up window | enable / disable Philips logo |
| Keyboard control | Lockable |
| Hidden | |
| Network controllable | RS232 |
| RJ45 | |
| Signal loop through | RS232 |
| IR Loopthrough | |
| Placement | Landscape (18/7) |
| Portrait (18/7) | |
| Remote control signal | Lockable |
Dimensions
| Bezel width | 11.9 (TLR) / 17.2 (B) mm |
|---|---|
| Set Width | 726.5 |
| Set Height | 425.4 |
| Set Depth | 69.1(D@Handle) / 65.1(D@Wall mount) |
| Set Width (inch) | 28.6 |
| Set Height (inch) | 16.75 |
| Set Depth (inch) | 2.72 (D@Handle) / 2.56 (D@Wall mount)f |

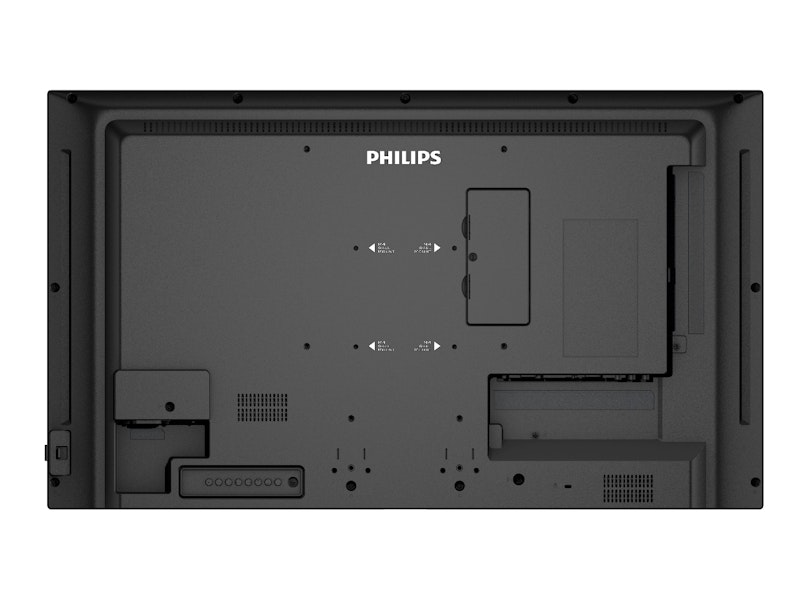

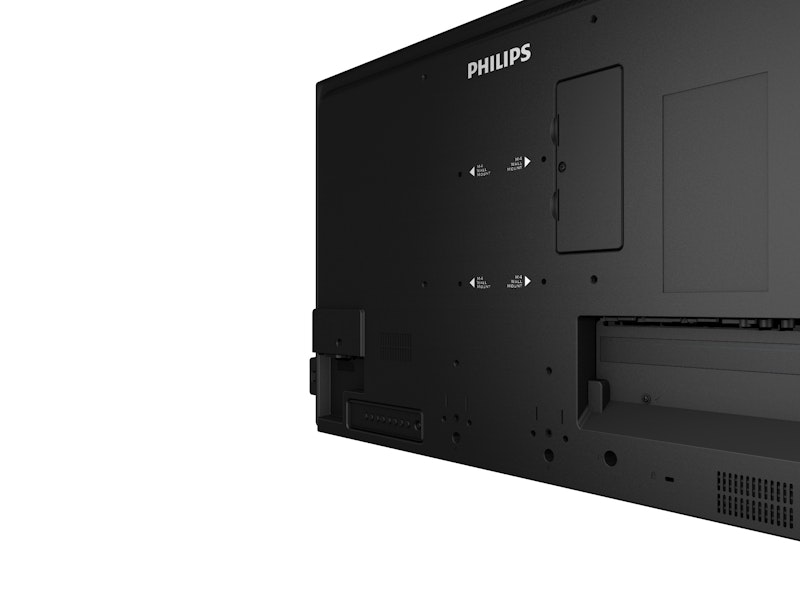

| Wall Mount | 100mm x100mm, 200mm x 200mm ,M4 |
| Product weight | 5.31 |
| Product weight (lb) | 11.71 |
Operating conditions
| Temperature range (operation) | 0 ~ 40 |
|---|---|
| Temperature range (storage) | -20 ~ 60 |
| MTBF | 30,000 |
| Altitude | 0 ~ 3000 m |
| Humidity range (operation)[RH] | 20 ~ 80% RH (No condensation) |
| Humidity range (storage) [RH] | 5 ~ 95% RH (No condensation) |
Power
| Mains power | 100 - 240V~, 50-60Hz, 1.5A |
|---|---|
| Standby power consumption | <0.5 W |
| Consumption (Max) | 80 W |
| Consumption (Typical) | 50 |
| Power Saving Features | Smart Power |
| Energy Label Class | G |
Sound
| Built-in speakers | 2 x 10W RMS |
|---|
Multimedia Applications
| USB Playback Video | MPEG |
|---|---|
| H.264 | |
| H.263 | |
| H.265 | |
| USB Playback Picture | BMP |
| JPEG | |
| PNG | |
| USB Playback Audio | AAC |
| HEAAC | |
| MPEG |
Accessories
| Included accessories | AC Power Cord |
|---|---|
| RS232 cable | |
| Remote Control | |
| Batteries for remote control | |
| Quick start guide | |
| Included Accessories | IR sensor cable (1.8 m) (x1) |
| RS232 daisy-chain cable | |
| Philips logo (x1) | |
| USB Cover and screw (x2) | |
| Stand | BM02541/BM05911(optional) |
Miscellaneous
| Warranty | 3 year warranty |
|---|---|
| On-Screen Display Languages | English |
| French | |
| German | |
| Italian | |
| Polish | |
| Turkish | |
| Russian | |
| Simplified Chinese | |
| Spanish | |
| Traditional Chinese | |
| Arabic | |
| Japanese | |
| Regulatory approvals | CB |
| CE | |
| BSMI | |
| CU | |
| EPA | |
| ETL | |
| FCC, Class A | |
| VCCI | |
| J-Moss |
Internal Player
| CPU | Dual core cortex A53 1.1G Hz |
|---|---|
| Dual core cortex A73 1.15G Hz | |
| GPU | ARM Mali G51 |
| Memory | 2GB DDR3 |
| 8GB |
