Q-Line

75BDL3650Q/00

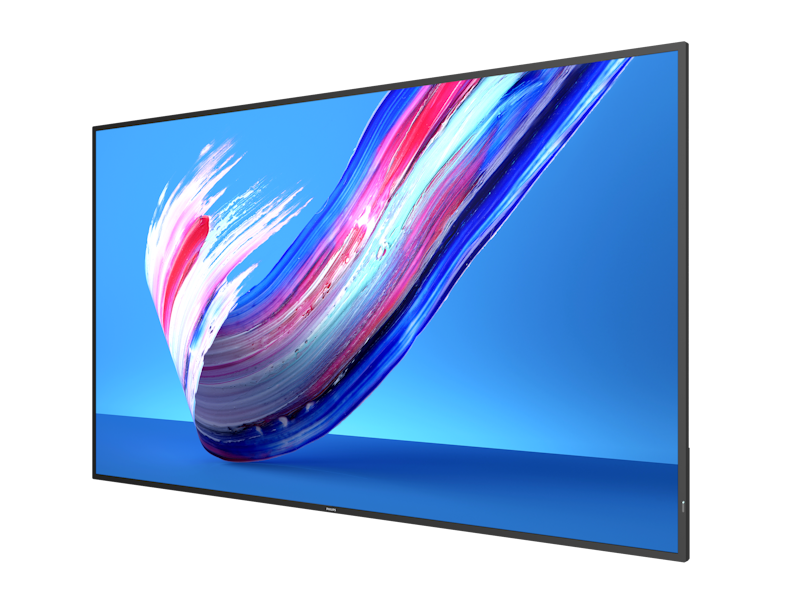

Inform and enthral with a Philips Q-Line 4K Ultra HD digital display. This reliable, easy-to-install, Android powered signage solution is Wave-ready for remote management, putting you in full control, any time, anywhere.

Get a quote

Technical Specifications

Connectivity

Audio output	3.5mm jack
Video input	USB 2.0 (x2)
	DVI-I (x 1)
	HDMI 2.0 (x2)
	USB 3.0 (x1)
Audio input	3.5 mm jack
External control	RS232C (in/out) 2.5 mm jack
	IR (in/out) 3.5 mm jack
	RJ45
Other connections	micro SD
	OPS

Convenience

Network controllable	RS232
	RJ45
Energy saving functions	Smart Power
Tiled Matrix	Up to 3 x 3
Ease of installation	Smart Insert
Placement	Landscape (18/7)
	Portrait (18/7)
Signal loop through	RS232
	IR Loopthrough
Keyboard control	Hidden
	Lockable
Remote control signal	Lockable

Accessories

Included Accessories	IR sensor cable (1.8 m) (x1)
	RS232 daisy-chain cable
	Philips logo (x1)
	AC Power Cord
	AC Switch Cover
	Cable clip (x2)
	HDMI cable (1.8 m) (x1)
	Quick start guide
	Remote control & AAA batteries
	RS232 cable
	USB Cover (x1)

Internal Player

Memory	16GB
	3GB DDR
CPU	Quad Core Cortex A55
GPU	G52 MC1

Dimensions

Bezel width	14.9 mm (Even bezel)
Set Width (inch)	66.28 inch
Set Depth	69.5mm(D@wall mount) / 91.8mm(D@handle) mm
Product weight	35.75 kg
Set Width	1683.5 mm
Set Height	961.7 mm
Set Depth (inch)	2.74(@ wall mount)/ 3.61(@ handle) inch
Wall Mount	600 mm x 400 mm, M8
Product weight (lb)	78.82 lb
Set Height (inch)	37.86 inch

Sound

Built-in speakers	2 x 10W RMS

Power

Power Saving Features	Smart Power
Standby power consumption	<0.5W
Mains power	100 - 240V~, 50/60Hz
Consumption (Typical)	144 W
Energy Label Class	G

Multimedia Applications

USB Playback Audio	AAC
	HEAAC
	MPEG
USB Playback Picture	BMP
	JPEG
	PNG
USB Playback Video	H.264
	H.263
	H.265
	MPEG1/2
	MPEG4
	VP8
	VP9

Miscellaneous

On-Screen Display Languages	Simplified Chinese
	Traditional Chinese
	English
	French
	German
	Italian
	Polish
	Russian
	Spanish
	Turkish
	Japanese
	Arabic
Warranty	3 year warranty
Regulatory approvals	CE
	CB
	FCC, Class A
	VCCI
	RoHS
	UL

Picture/Display

Pixel pitch	0.4296 x 0.4296 mm
Panel technology	ADS
Viewing angle (horizontal)	178 degree
Panel resolution	3840 x 2160
Haze	2%
Aspect ratio	16:9
Dynamic contrast ratio	500,000:1
Optimum resolution	3840 x 2160 @ 60 Hz
Diagonal screen size (inch)	74.5 inch
Operating system	Android 10
Display colors	1.07 Billion
Diagonal screen size (metric)	189.3 cm
Brightness	400 cd/m²
Contrast ratio (typical)	1200:1
Picture enhancement	3/2 - 2/2 motion pull down
	Progressive scan
	Dynamic contrast enhancement
Viewing angle (vertical)	178 degree
Response time (typical)	8 ms

Operating conditions

Temperature range (operation)	0 ~ 40 °C
Humidity range (storage) [RH]	5 ~ 95% RH (No condensation)
MTBF	50,000 hour(s)
Altitude	0 ~ 3000 m
Humidity range (operation)[RH]	20 ~ 80% RH (No condensation)
Temperature range (storage)	-20 ~ 60 °C

Supported Display Resolution

Computer formats	1920 x 1080, 60Hz
	1680 x 1050, 60Hz
	1600 x 1200, 60Hz
	1440 x 900, 60Hz
	1280 x 1024, 60Hz
	1280 x 800, 60Hz
	1280 x 720, 60Hz
	1024 x 768, 60, 70, 75Hz
	1152 x 864, 75Hz
	3840 x 2160, 60 Hz, 50 Hz
	720 x 400, 70Hz
	800 x 600, 56, 60, 72, 75Hz
	800 x 600, 56,60,72 Hz
	832 x 624, 75Hz
Video formats	1080i, 50, 60Hz
	720p, 50,60 Hz
	1080p, 50, 60Hz
	2160p, 50, 60Hz
