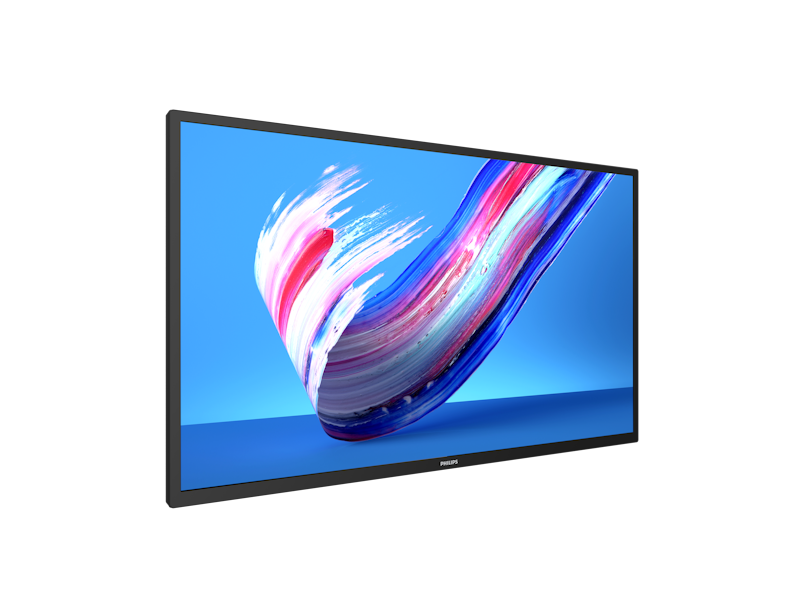

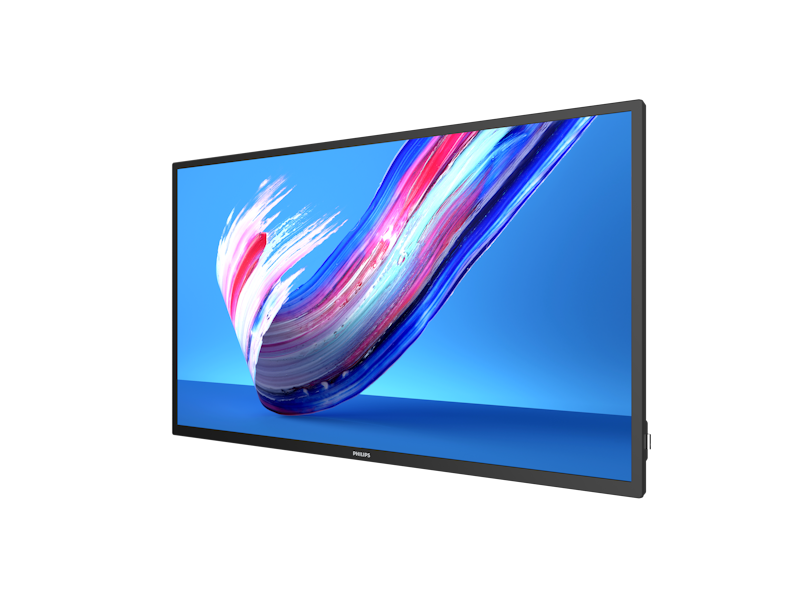

Q-Line

32BDL3650Q/00

Inform and enthral with a Philips Q-Line digital display. This reliable, easy-to-install, Android powered signage solution is Wave-ready for remote management, putting you in full control, any time, anywhere.

Get a quote

Technical Specifications

Connectivity

Audio output	3.5mm jack
Video input	HDMI 2.0 (x2)
	USB 2.0 (x2)
	DVI-I (x 1)
	USB 3.0 (x1)
Audio input	3.5 mm jack
External control	RJ45
	RS232C (in/out) 2.5 mm jack
	IR (in/out) 3.5 mm jack
Other connections	micro SD

Convenience

Network controllable	RS232
	RJ45
Energy saving functions	Smart Power
Tiled Matrix	Up to 3 x 3
Placement	Landscape (18/7)
	Portrait (18/7)
Signal loop through	RS232
	IR Loopthrough
Keyboard control	Lockable
	Hidden
Remote control signal	Lockable

Accessories

Included Accessories	IR sensor cable (1.8 m) (x1)
	RS232 daisy-chain cable
	Philips logo (x1)
	AC Power Cord
	Quick start guide
	Remote control & AAA batteries
	RS232 cable
	USB cover and screws
	Wire Clamper (x3)

Internal Player

Memory	16GB
	3GB DDR
CPU	Quad Core Cortex A55
GPU	G52 MC1

Dimensions

Bezel width	11.9 mm (L/R/T) 17.2 (B)
Set Width (inch)	28.6 inch
Set Depth	69.1(D@Handle) / 65.1(D@Wall mount) mm
Product weight	5.31 kg
Set Width	726.5 mm
Set Height	425.4 mm
Set Depth (inch)	2.72 (D@Handle) / 2.56 (D@Wall mount inch
Wall Mount	100 mm x 100 mm, 200 mm x 200 mm, M4
Product weight (lb)	11.71 lb
Set Height (inch)	16.75 inch

Sound

Built-in speakers	2 x 10W RMS

Power

Power Saving Features	Smart Power
Standby power consumption	<0.5 W
Mains power	100 - 240V~, 50-60Hz, 1.5A
Consumption (Typical)	41 W
Energy Label Class	G

Multimedia Applications

USB Playback Audio	AAC
	HEAAC
	MPEG
USB Playback Picture	BMP
	JPEG
	PNG
USB Playback Video	MPEG
	H.264
	H.263
	H.265
	AVI
	MP4
	VP8

Miscellaneous

On-Screen Display Languages	English
	French
	German
	Italian
	Polish
	Turkish
	Russian
	Simplified Chinese
	Spanish
	Traditional Chinese
	Arabic
	Japanese
Warranty	3 year warranty
Regulatory approvals	CB
	CE
	FCC, Class A
	VCCI
	RoHS
	UL

Picture/Display

Pixel pitch	0.36375 x 0.36375 mm
Panel technology	VA
Viewing angle (horizontal)	178 degree
Panel resolution	1920x1080p
Haze	2%
Aspect ratio	16:9
Dynamic contrast ratio	500,000:1
Optimum resolution	1920 x 1080 @ 60 Hz
Diagonal screen size (inch)	31.5 inch
Operating system	Android 10
Display colors	16.7 Million
Diagonal screen size (metric)	80 cm
Brightness	350 cd/m²
Contrast ratio (typical)	4000:1
Picture enhancement	3/2 - 2/2 motion pull down
	Dynamic contrast enhancement
	Progressive scan
Viewing angle (vertical)	178 degree
Response time (typical)	8 ms

Operating conditions

Temperature range (operation)	0 ~ 40 °C
Humidity range (storage) [RH]	5 ~ 95% RH (No condensation)
MTBF	50,000 hour(s)
Altitude	0 ~ 3000 m
Humidity range (operation)[RH]	20 ~ 80% RH (No condensation)
Temperature range (storage)	-20 ~ 60 °C

Supported Display Resolution

Computer formats	1920 x 1080, 60Hz
	1680 x 1050, 60Hz
	1600 x 1200, 60Hz
	1440 x 900, 60Hz
	1280 x 1024, 60Hz
	1280 x 800, 60Hz
	1280 x 720, 60Hz
	1024 x 768, 60, 70, 75Hz
Video formats	1080p, 50, 60Hz
	1080i, 50, 60Hz
	720p, 50,60 Hz
