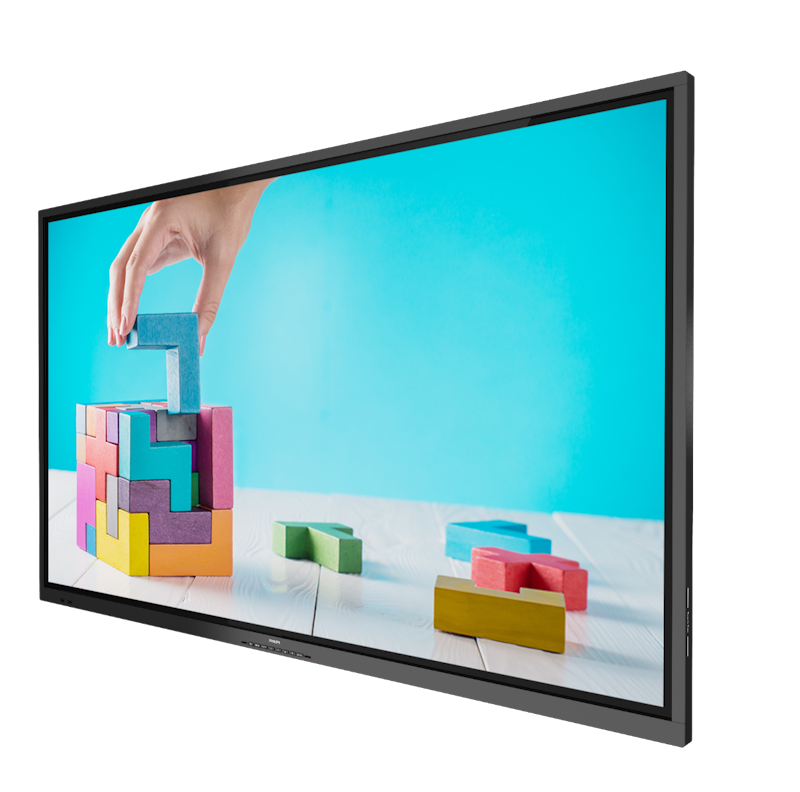

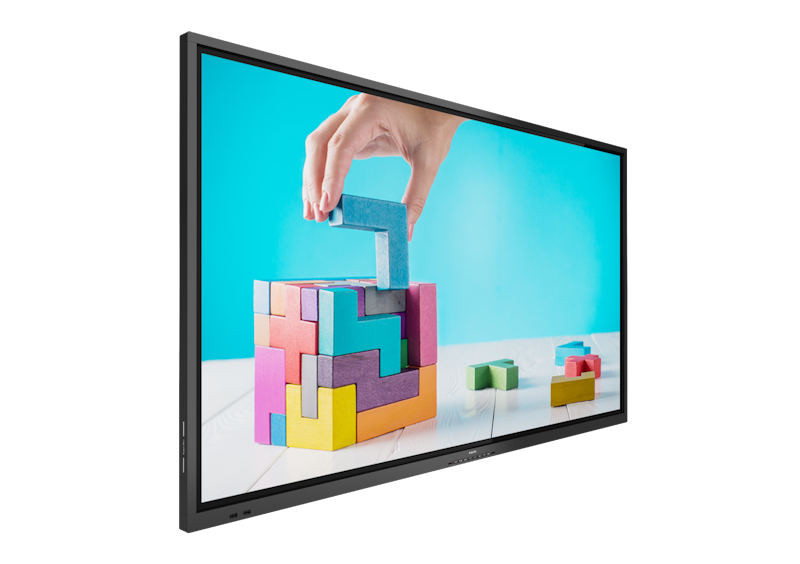

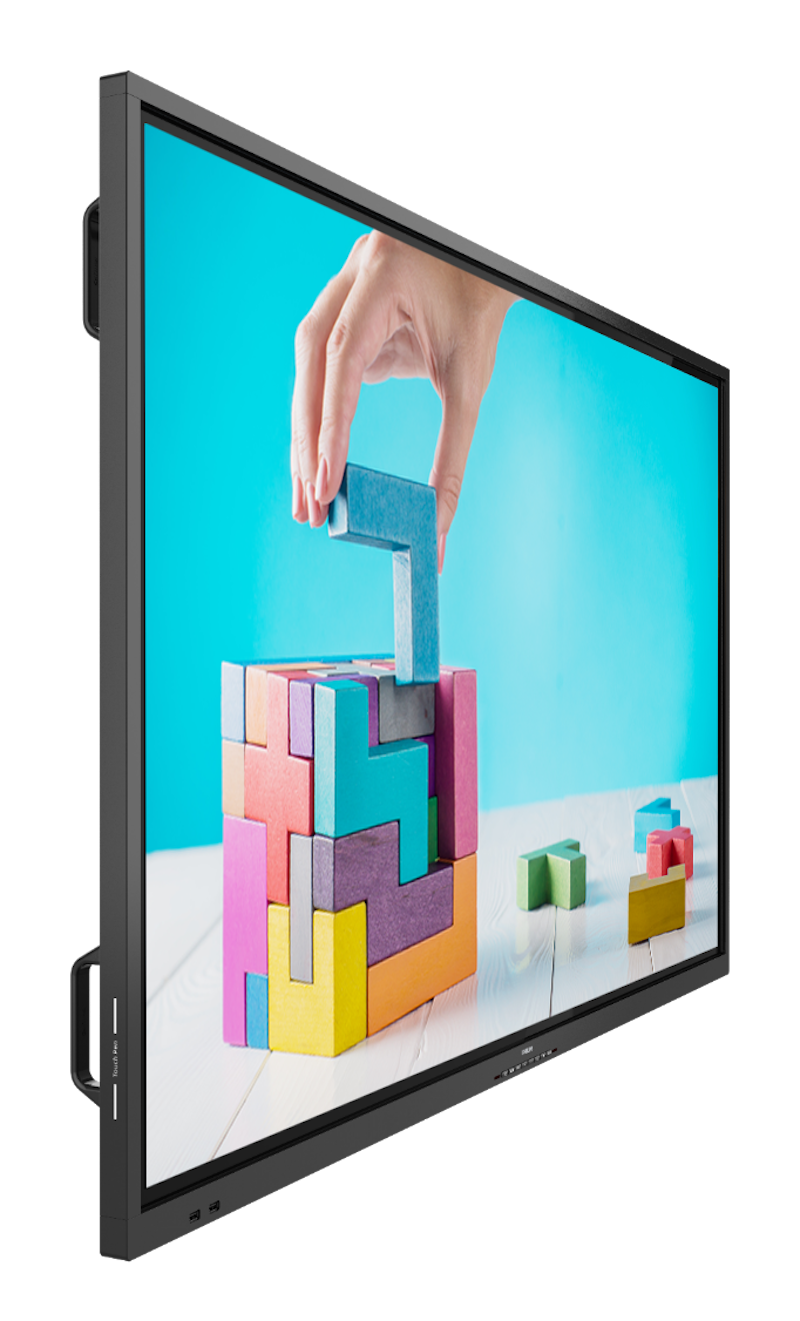

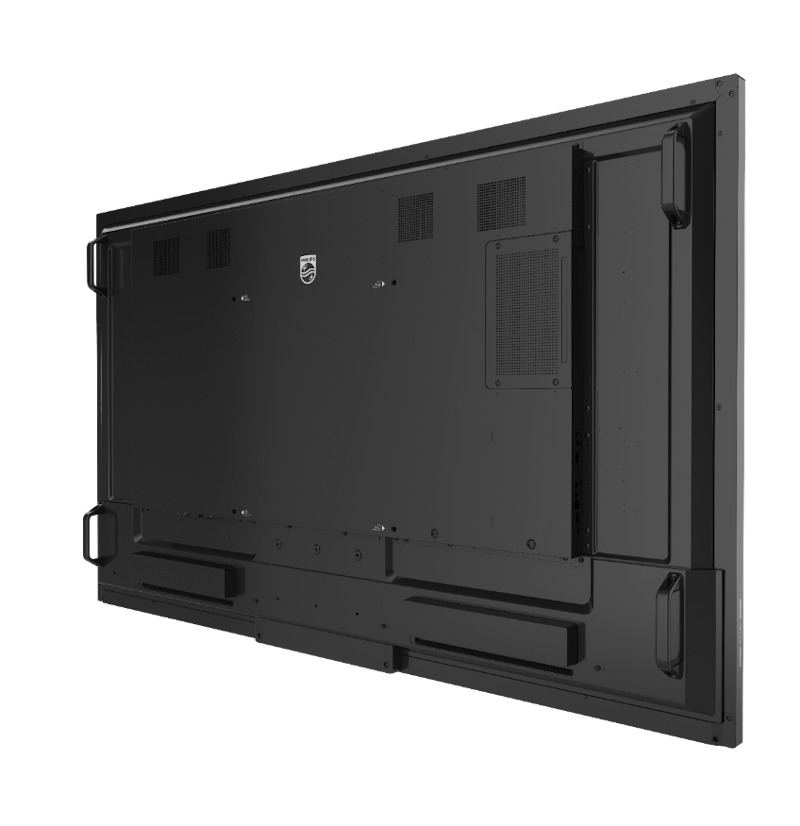

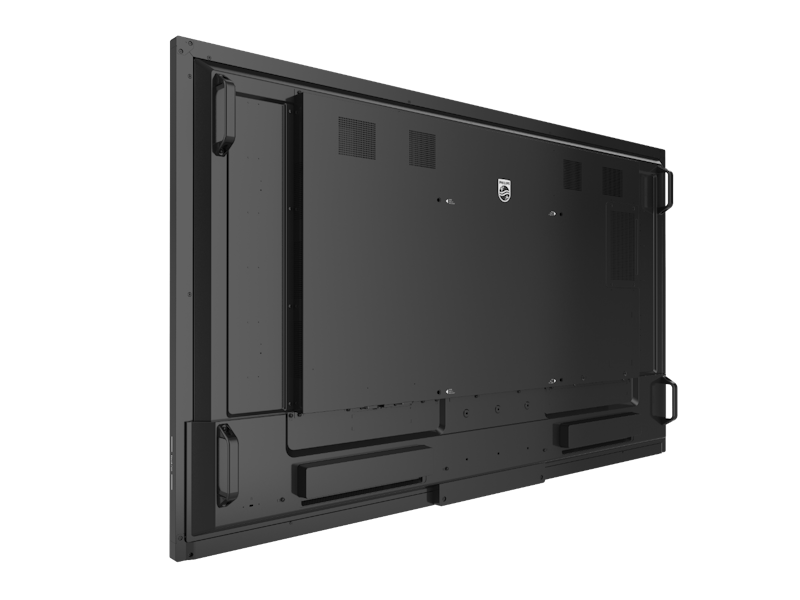

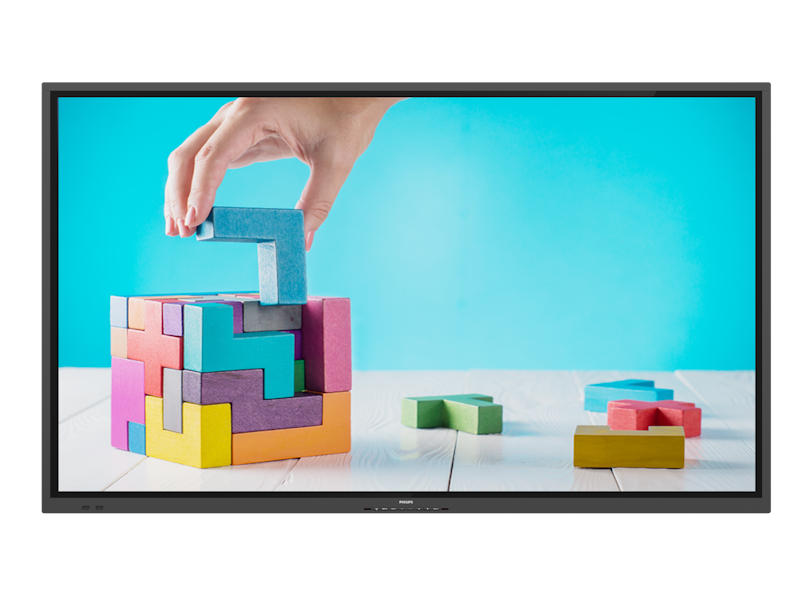

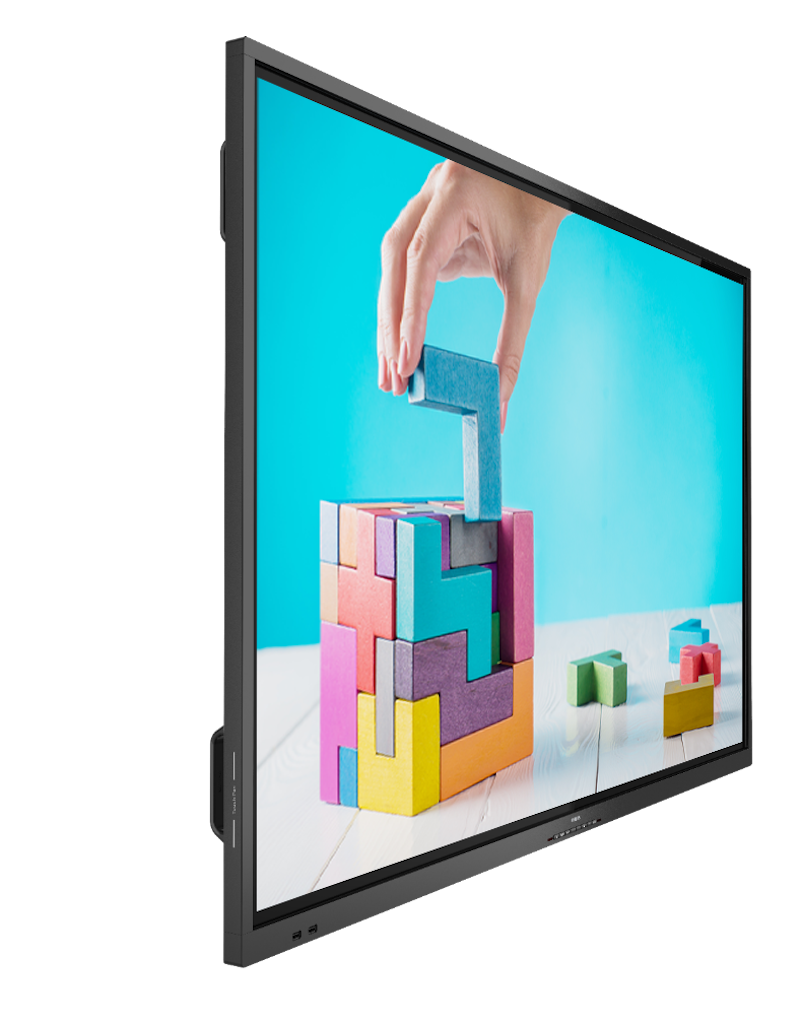

E-Line

65BDL3052E/00

The Philips E-Line touch display maximises engagement and inspires collaboration with up to 20 touchpoints. Powered by Android and featuring a toughened anti-glare glass, it’s made to withstand heavy daily usage in the classroom.

Features

Technical Specifications

Picture/Display

Diagonal screen size (metric) 163.9
Diagonal screen size (inch) 65
Panel resolution 3840 x 2160
Optimum resolution 3840 x 2160 @ 60 Hz
Brightness 350
Response time (typical) 10
Aspect ratio 16:9
Viewing angle (horizontal) 178
Viewing angle (vertical) 178
Pixel pitch 0.372(H) x 0.372 (V) [mm]
Display colors 1.07 B
Picture enhancement 3/2 - 2/2 motion pull down
3D Combfilter
Motion compens. deinterlacing
Progressive scan
3D MA deinterlacing
Dynamic contrast enhancement
Panel technology ADS
Contrast ratio (typical) 1200:1
Operating system Android 8.0
OS UI resolution 1920 x 1080 @ 60 Hz

Supported Display Resolution

Computer formats 720 x 400, 70Hz
832 x 624, 75Hz
1440 x 900, 60Hz
1600 x 900, 60Hz
1680 x 1050, 60Hz
1920 x 1080, 60Hz
1024 x 768, 60Hz
1152 x 870, 75Hz
1280 x 1024, 60Hz
1280 x 720, 60Hz
3840 x 2160, 30, 60Hz
640 x 480, 60,67,75Hz
800 x 600, 60Hz
Video formats 480i, 60Hz
480p, 60Hz
720p, 50, 60Hz
1080i, 50, 60Hz
1080p, 50, 60Hz
2160p, 30, 60Hz
576i, 50Hz
576p, 50Hz

Connectivity

Video input DVI-D (x1)
HDMI 2.0 (x3)
VGA (Analog D-Sub) (x1)
USB 2.0 (x4)
USB-C (up to 65W)
Audio input 3.5 mm mini jack (x1)
Audio output 3.5 mm Mini Jack (x1)
External control IR (in/out) 3.5 mm jack
RJ45
RS232C (in/out) 2.5 mm jack
Other connections OPS
micro SD
USB-B (x3)

Convenience

Placement Landscape (18/7)
Screen saving functions Pixel Shift, Low Brightness
Signal loop through RS232
IR Loopthrough
Ease of installation AC Out
Smart Insert
Network controllable RS232
RJ45

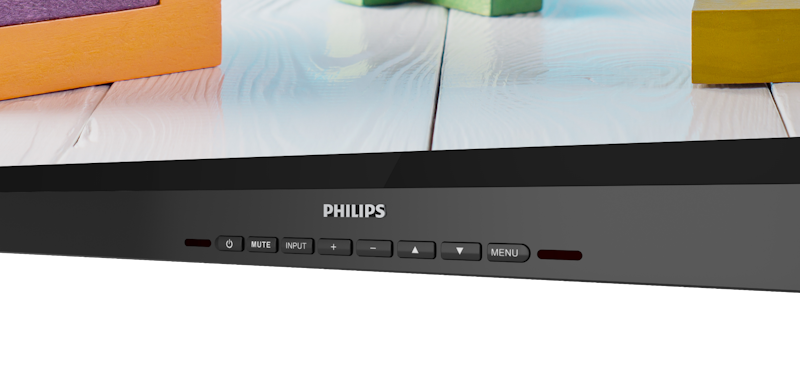

Keyboard control Lockable
Remote control signal Lockable

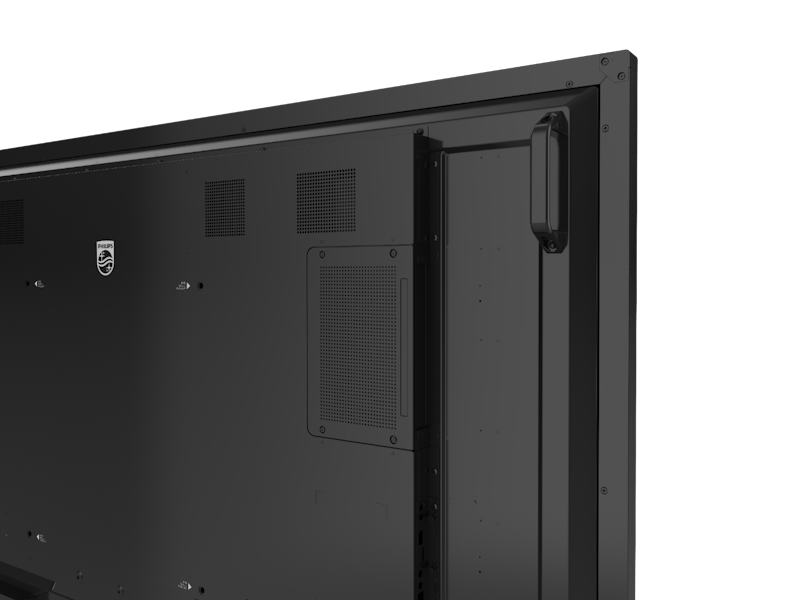

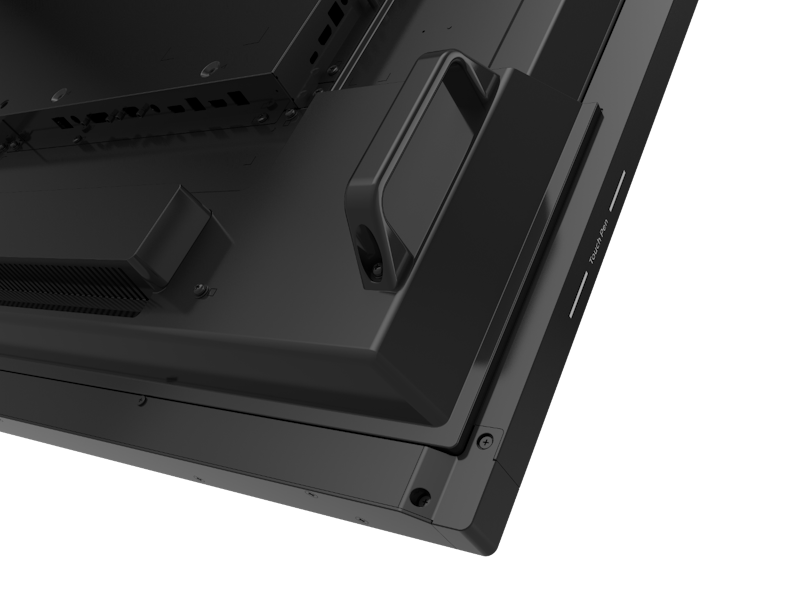

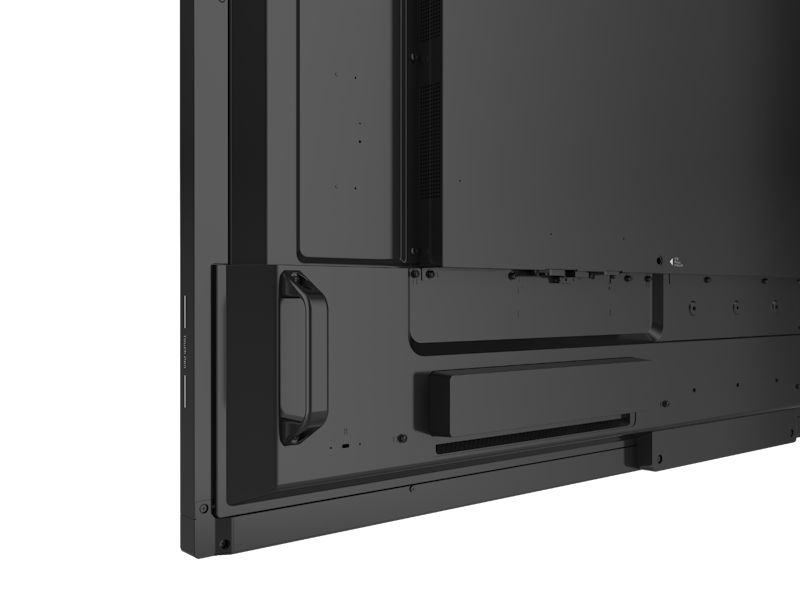

Other convenience Carrying handles

Operating conditions

Temperature range (operation) 0 ~ 40
Temperature range (storage) -20~60
Altitude 0 ~ 3000 m
MTBF 50,000
Humidity range (operation)[RH] 20 ~ 80% (without condensation)
Humidity range (storage) [RH] 5 ~ 95% (without condensation)

Power

Consumption (Typical) 155
Consumption (Max) 376 W
Standby power consumption <0.5W
Mains power 100 ~ 240 VAC, 50/60Hz
Power Saving Features Smart Power
Energy Label Class G

Sound

Built-in speakers 2 x15 W

Accessories

Optional accessories Interact dongles
Included Accessories Cleaning cloth (x1)
HDMI Cable (3m) (x1)
IR sensor cable (1.8 m) (x1)
Philips logo (x1)
Quick start guide (x1)
Remote control & AAA batteries
RS232 daisy chain cable (x1)
Touch Pen (x2)
USB A to B cable (3m) (x1)
RS232 cable
AC Power Cord
Cable clip (x3)
AC switch cover & Screw x1
DVI-D cable
USB cover and screws

Miscellaneous

On-Screen Display Languages Arabic
Dutch
Danish
English
French
Finnish
German
Italian
Japanese
Norwegian
Polish
Portuguese
Russian
Spanish
Swedish
Simplified Chinese
Turkish
Traditional Chinese
Regulatory approvals CE
FCC, Class A
RoHS
CB
EAC
EMF
ETL
Warranty 5 year warranty

Multimedia Applications

USB Playback Video H.263
H.264
H.265
MPEG1/2
MPEG4
VP9
USB Playback Picture BMP
JPEG
PNG
USB Playback Audio AAC
MPEG
HEAAC

Interactivity

Multi-touch technology 0-gap Infrared touch
Touch points 20 simultaneous touch points
Plug and play HID compliant
Protection glass Anti-Glare
Tempered safety glass 7MOHS

Weight

Product with packaging (kg) 52.7
Product with packaging (lb) 116.18
Product without stand (kg) 43.15
Product without stand (lb) 95.13

Internal Player

CPU 2 x A53 + 2 x A73
GPU ARM Mali G51
Memory 3GB DDR3
Storage 16GB EMMC

Dimensions

Smart Insert mount 100x100mm, 6xM4L6
Set Width 1494.3
Set Height 883.2

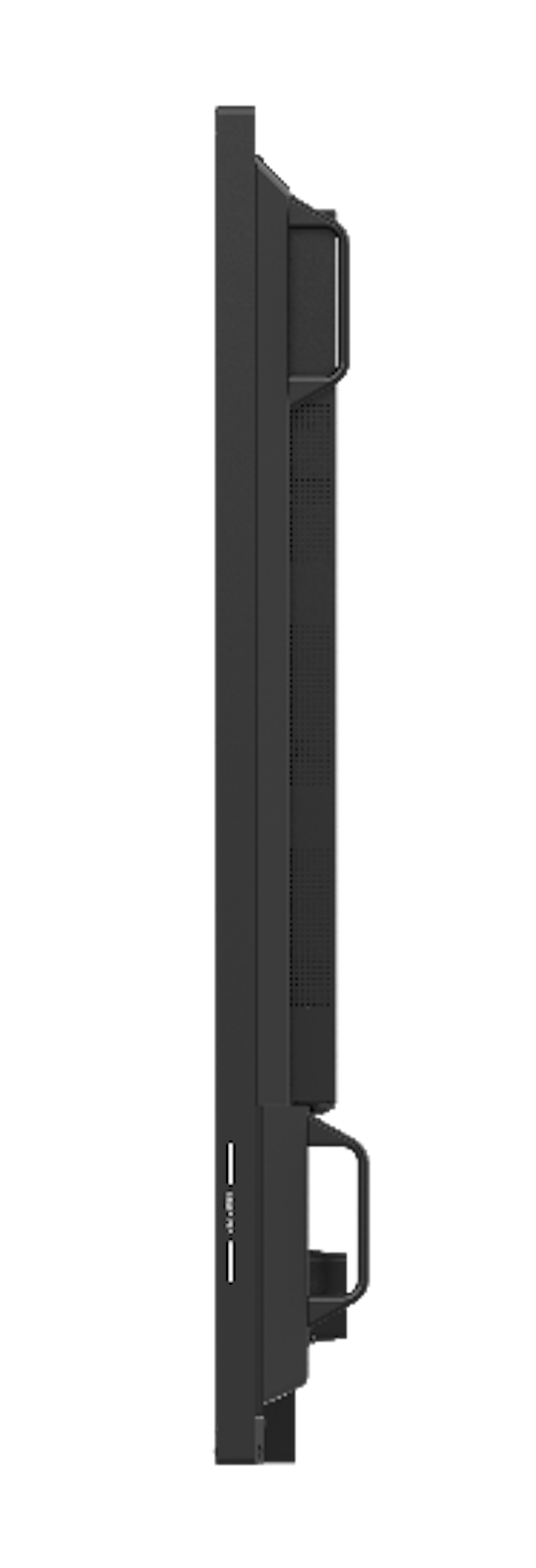

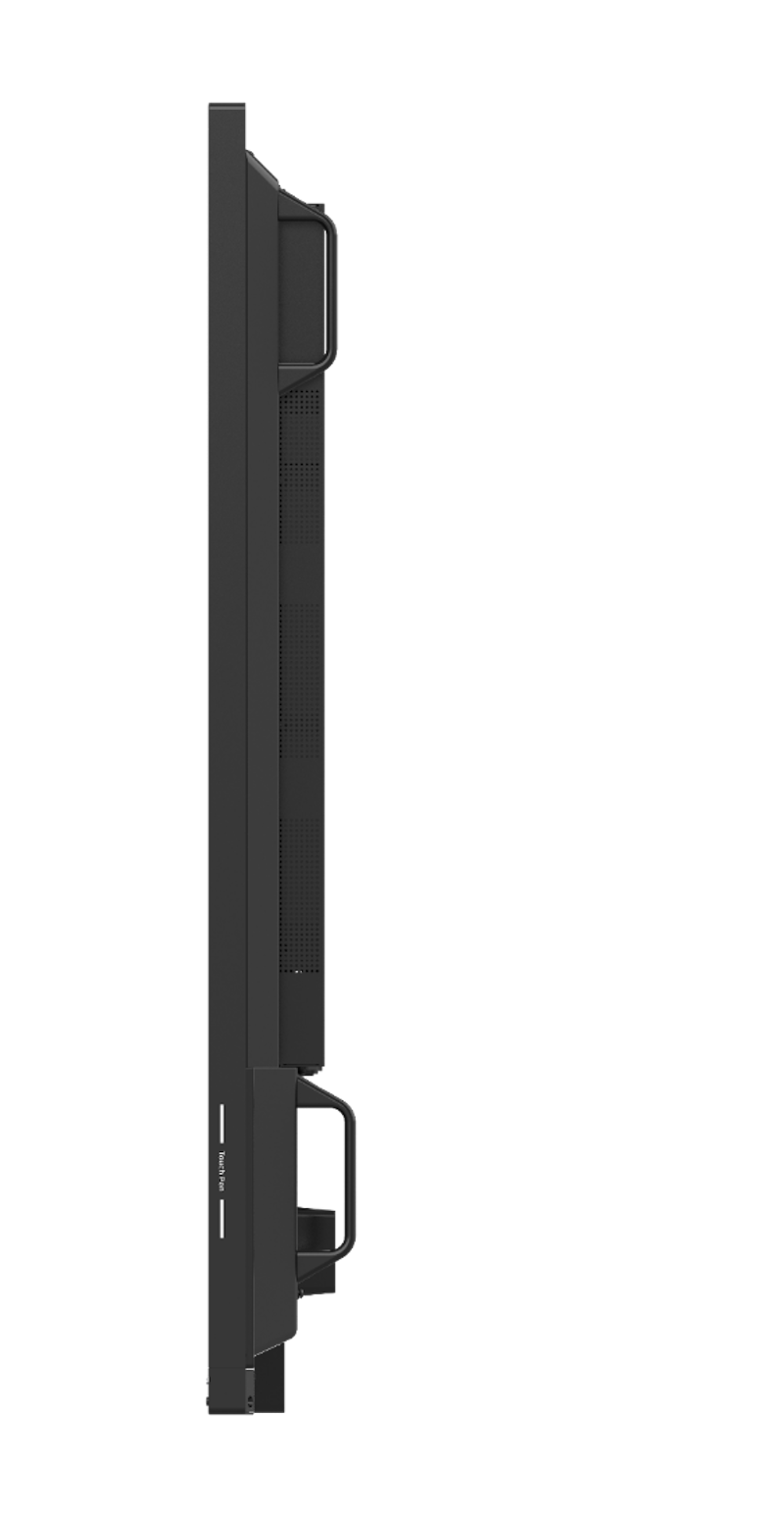

Set Depth 99.5mm(D_Max)/78.5mm(D_Wallmount)
Set Width (inch) 58.83
Set Height (inch) 34.77
Set Depth (inch) 3.92 (D_Max)/3.09(D_Wallmount)
Bezel width 17.8mm(T/R/L) x 31.7mm(B)
Wall Mount 400 x 400 mm, M8
Weight 43.15
