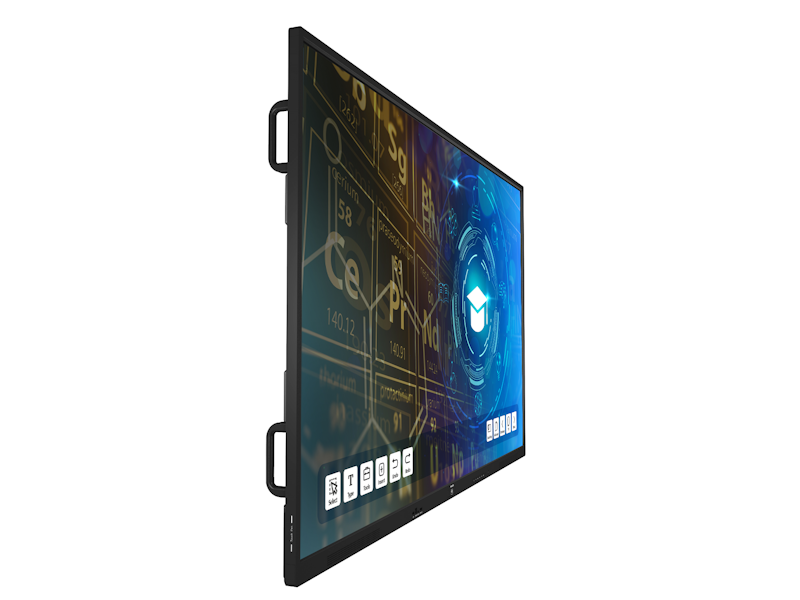

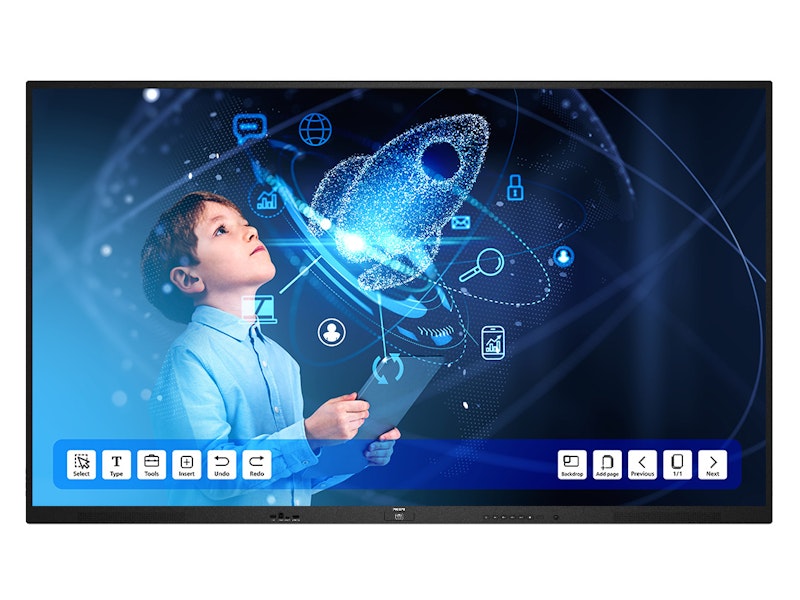

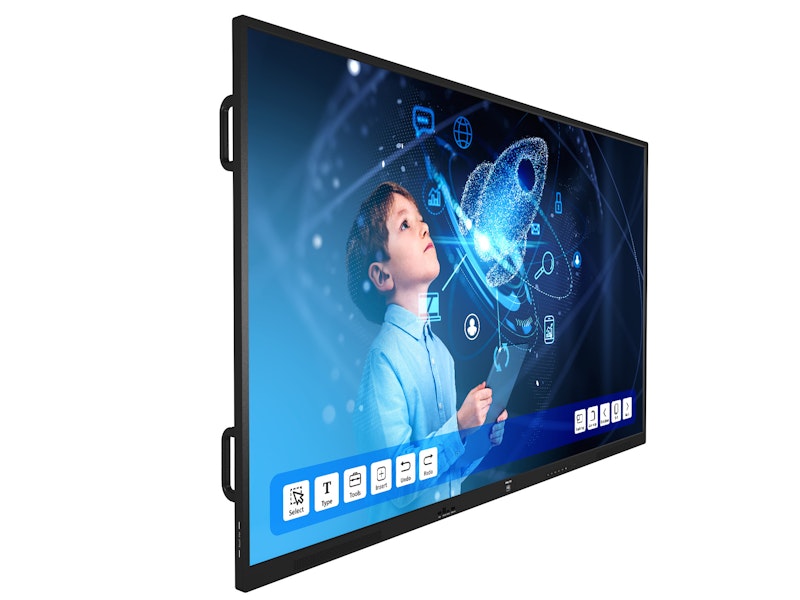

E-Line

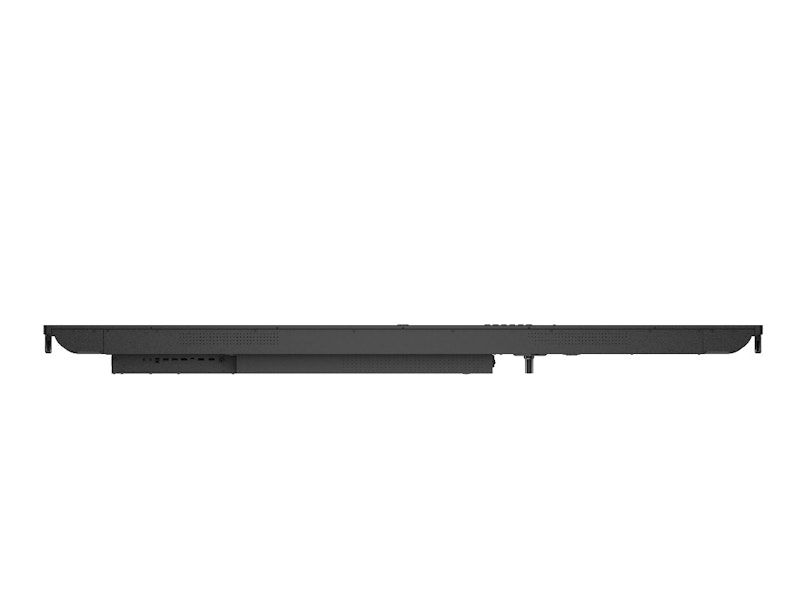

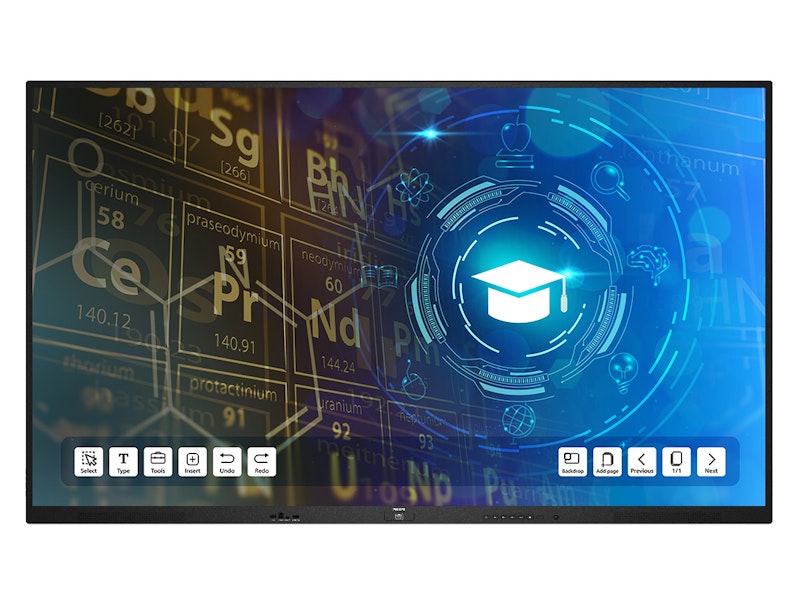

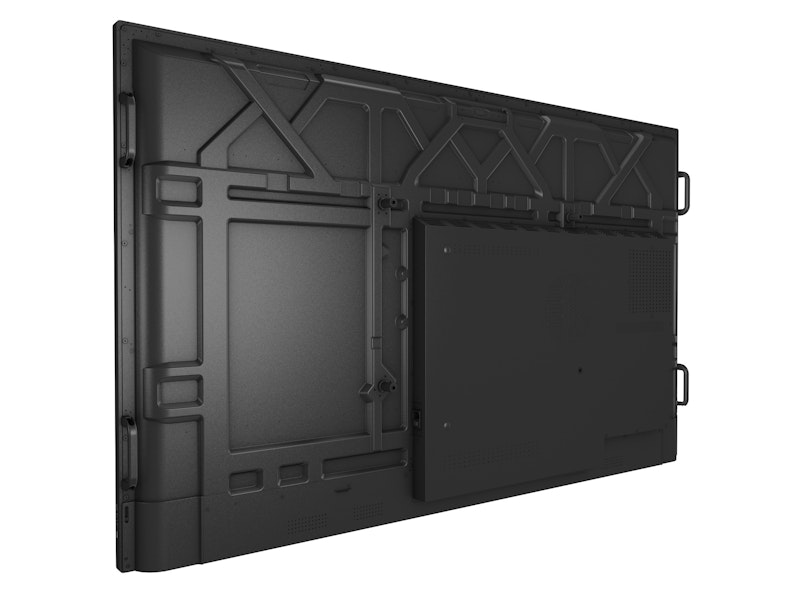

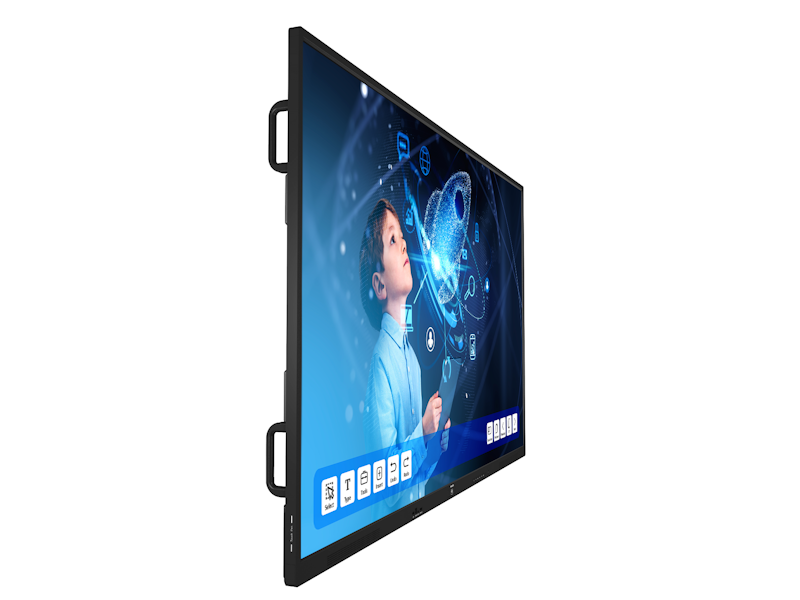

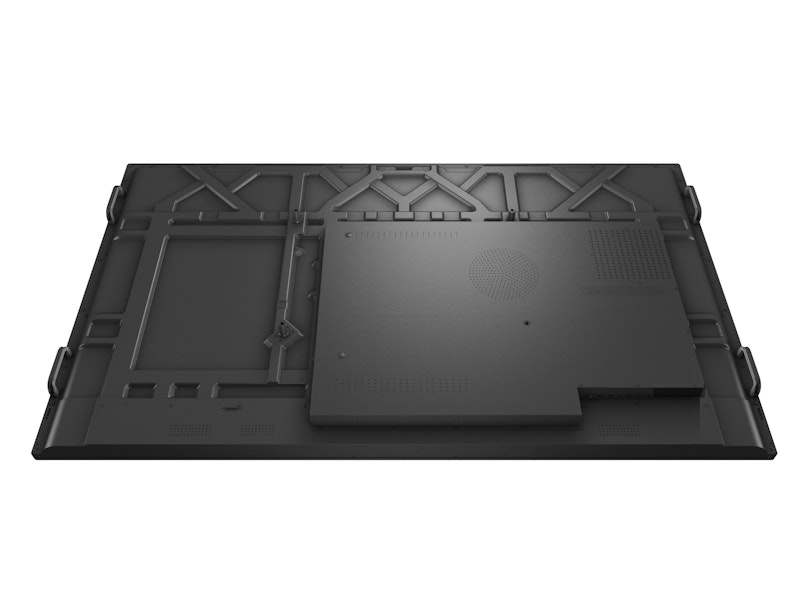

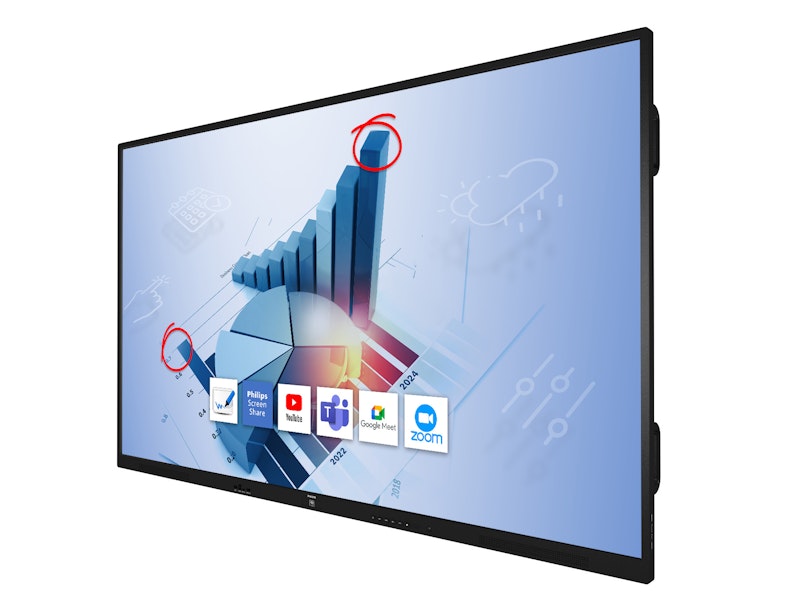

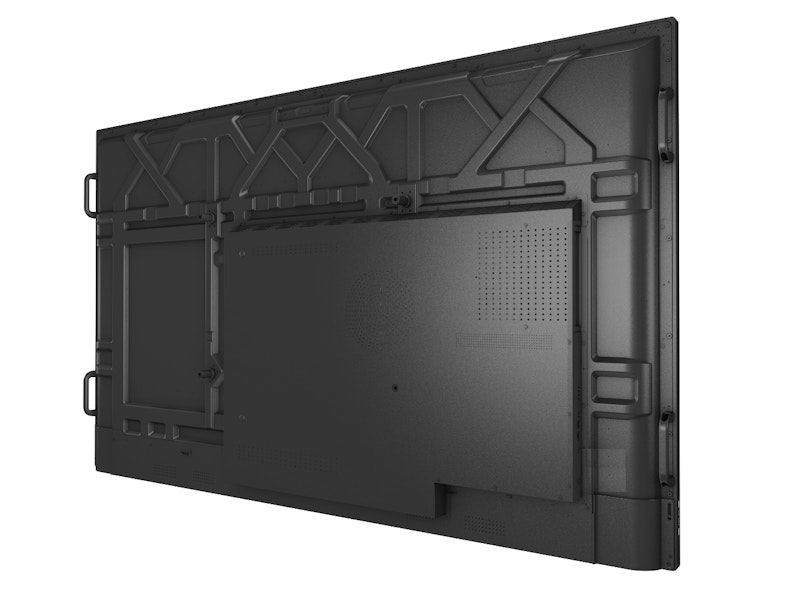

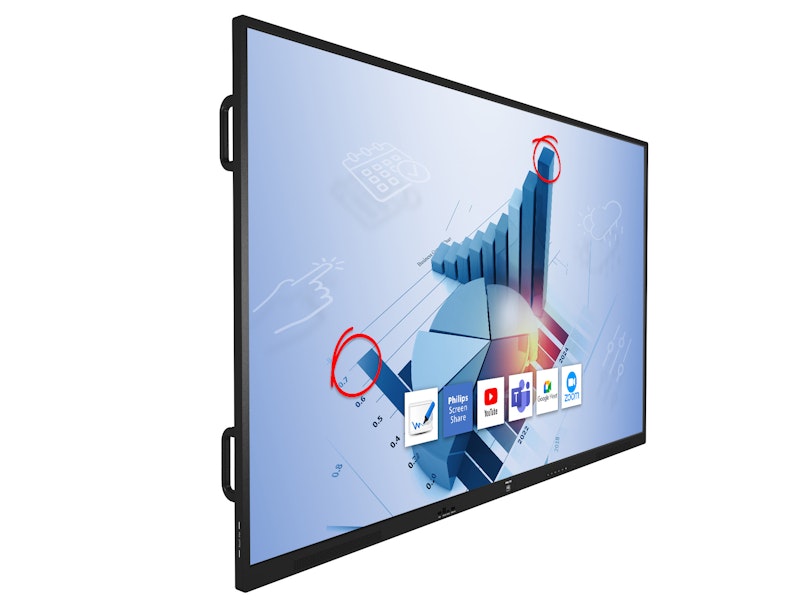

86BDL4152E/00

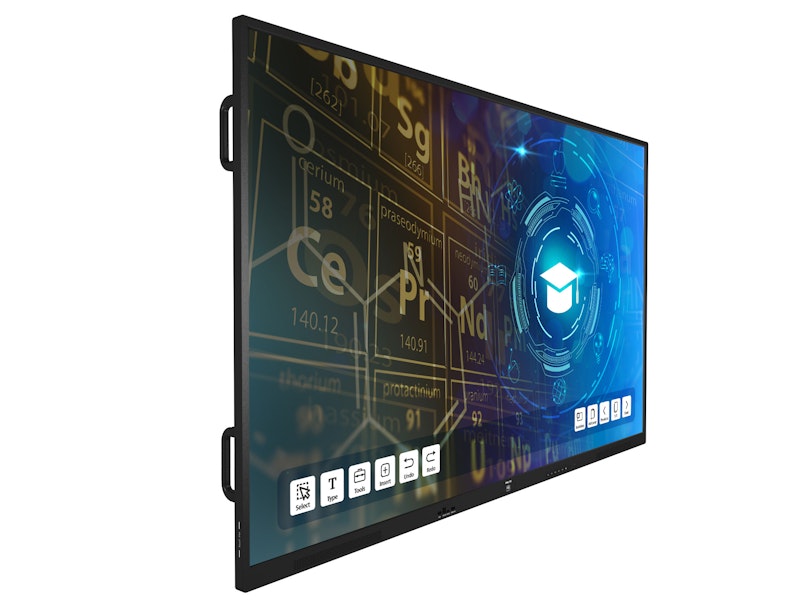

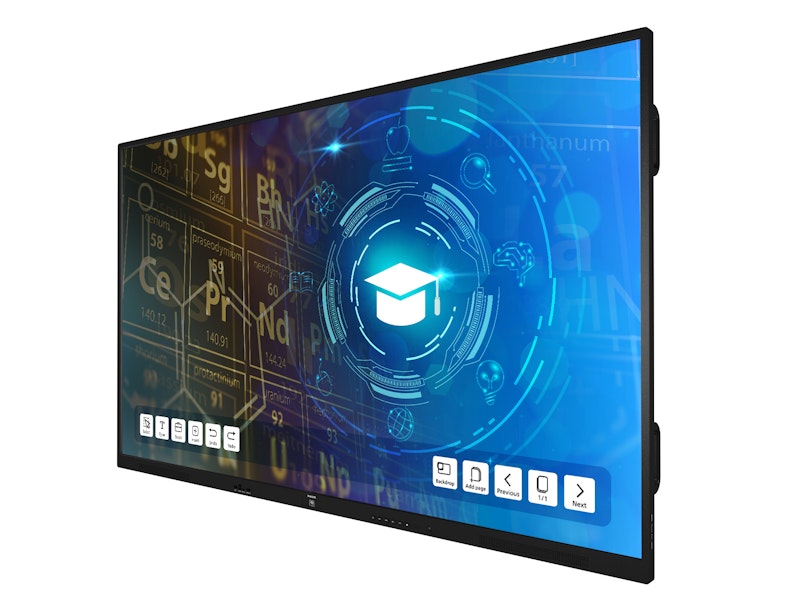

This interactive display, powered by Android 13, has up to 40 touchpoints, maximising engagement and collaboration. Toughened anti-glare, anti-reflection and anti-fingerprint glass are ideal for heavy daily use in busy environments.

Features

Technical Specifications

Operating conditions

Altitude 0 ~ 3000 m
MTBF 50,000 hour(s)
Humidity range (operation)[RH] 20 ~ 80% (without condensation)
Humidity range (storage) [RH] 5 ~ 95% (without condensation)
Temperature range (storage) -20 ~ 60 °C
Temperature range (operation) 0 ~ 40 °C

Weight

Product without stand (lb) TBD lb
Product with packaging (kg) TBD kg
Product with packaging (lb) TBD lb
Product without stand (kg) TBD kg

Miscellaneous

On-Screen Display Languages Arabic
Dutch
Danish
English
French
Finnish
German
Italian
Japanese
Norwegian
Polish
Portuguese
Russian
Spanish
Swedish
Simplified Chinese
Turkish
Traditional Chinese
Regulatory approvals CE
FCC, Class A
RoHS
CB
EAC
EMF
ETL
Warranty 5 year warranty

Picture/Display

Contrast ratio (typical) 1200:1
Response time (typical) 8 ms
Viewing angle (horizontal) 178 degree
Picture enhancement 3/2 - 2/2 motion pull down
3D Combfilter
Motion compens. deinterlacing
Progressive scan
3D MA deinterlacing
Dynamic contrast enhancement
Viewing angle (vertical) 178 degree
Operating system Android 13
Dynamic contrast ratio 500,000:1
Diagonal screen size (inch) 85.6 inch
Optimum resolution 3840x 2160 @ 60Hz
Aspect ratio 16:9
Display colors 1.07 billion
Panel resolution 3840 x 2160
OS UI resolution 3840 x 2160 @ 60 Hz
Diagonal screen size (metric) 217.4 cm
Panel technology IPS
Brightness 400 cd/m²
Pixel pitch 0.4935x0.4935 mm

Supported Display Resolution

Computer formats 640 x 350, 70Hz
640 x 480, 60, 67, 72, 75Hz
800 x 600, 56, 60, 72, 75Hz
832 x 624, 75Hz
848 x 480, 60Hz
960x720, 75Hz
1024x768, 60,70Hz
1152 x 864, 60, 70, 75Hz
1152 x 900, 66Hz
1280 x 720, 60,70Hz
1280 x 768, 60Hz, 75Hz
1280 x 800, 60,75Hz
1280 x 960, 60Hz
1280x1024, 60,67,75Hz
1360 x 768, 60Hz
1366 x 768, 60Hz
1400 x 1050 ,60, 75Hz
1600 x 900, 60Hz
1600 x 1200, 60Hz
1680 x 1050, 60Hz
1920 x 1080, 60Hz
1920 x 1200, 60Hz
3840 x 2160, 24,25,30,60Hz
1440 x 900, 60Hz
720 x 400, 70Hz
Video formats 480p, 60Hz
1080i, 50, 60Hz
1080p, 50, 60Hz
2160p, 50, 60Hz
480i, 60Hz
720p, 50, 60Hz

Interactivity

Protection glass Anti-Glare
Blue light filter
Tempered safety glass 7MOHS
Touch points 40 simultaneous touch points
Multi-touch technology 0-gap Infrared touch
Plug and play HID compliant

Connectivity

Audio output 3.5 mm Mini Jack (x1)
Other connections OPS
micro SD
USB-B (x3)
Micro USB (x1) (OTG)
Thermal sensor
Video input USB 3.0 (x3)
USB-C (up to 65W)
HDMI 2.0 (x2)
Audio input 3.5 mm mini jack (x1)
SPDIF (x1)
Video output HDMI 2.0 (x1)
External control IR (in/out) 3.5 mm jack
RS232C (in/out) 2.5 mm jack
RJ45 x2

Convenience

Screen saving functions Pixel Shift, Low Brightness
Remote control signal Lockable
Ease of installation AC Out
Smart Insert
Other convenience Carrying handles
Placement Landscape (18/7)
Network controllable RS232
RJ45
Keyboard control Lockable
Signal loop through RS232
IR Loopthrough

Accessories

Included Accessories Cleaning cloth (x1)
Remote control & AAA batteries
USB A to B cable (3m) (x1)
AC Power Cord
Philips logo (x1)
Quick start guide (x1)
AC switch cover & Screw x1
HDMI cable (1.8 m) (x1)
Touch Pen (x2)
Optional accessories Interact dongles

Dimensions

Set Height 1158.74 mm
Set Width 1965.1 mm
Wall Mount 800x400mm,M8
Set Height (inch) 45.62 inch
Weight TBD kg
Bezel width 16.7mm(T/R/L), 39.42mm(B)
Set Depth 116.227 mm
Set Width (inch) 77.37 inch
Set Depth (inch) 4.58 inch

Internal Player

Wifi 2G/5G/6G 2T2R
GPU Multi-Core Mali-G52
Storage 32 GB eMMc
CPU 4xA73 + 4xA53

Sound

Built-in speakers 2 x20 W

Power

Standby power consumption <0.5 W
Consumption (Max) TBD
Power Saving Features Smart Power
Consumption (Typical) TBD W
Mains power 100 - 240V~, 50 - 60Hz, 7.5A
Energy Label Class G

Multimedia Applications

USB Playback Video H.263
H.264
H.265
MPEG1/2
MPEG4
VP8
VP9
USB Playback Picture BMP
JPEG
PNG
USB Playback Audio AAC
HEAAC
MPEG
