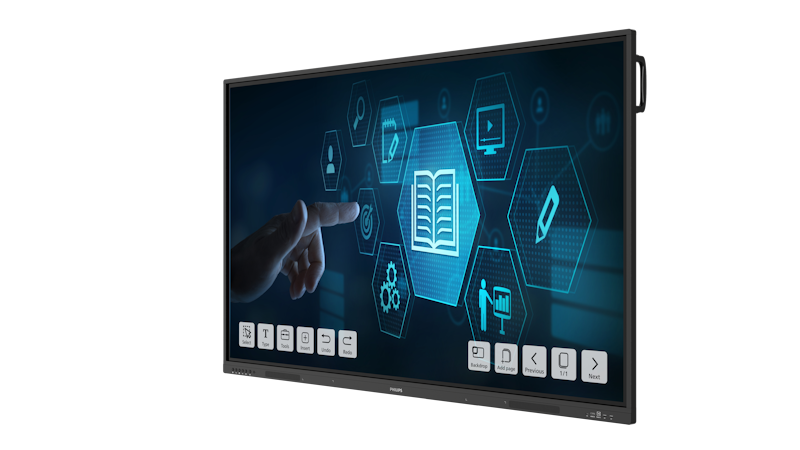

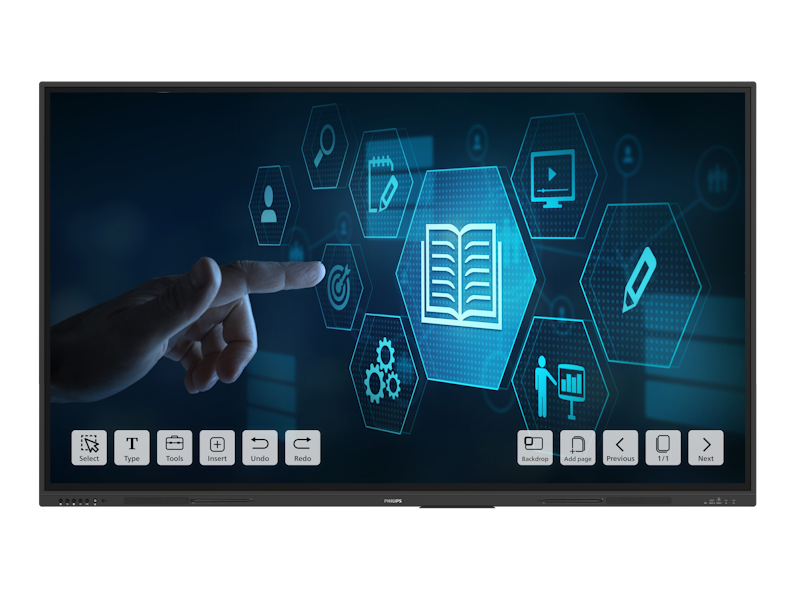

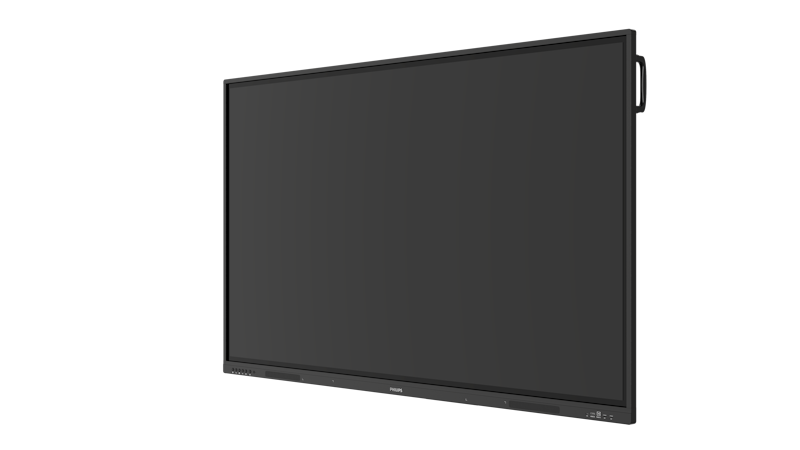

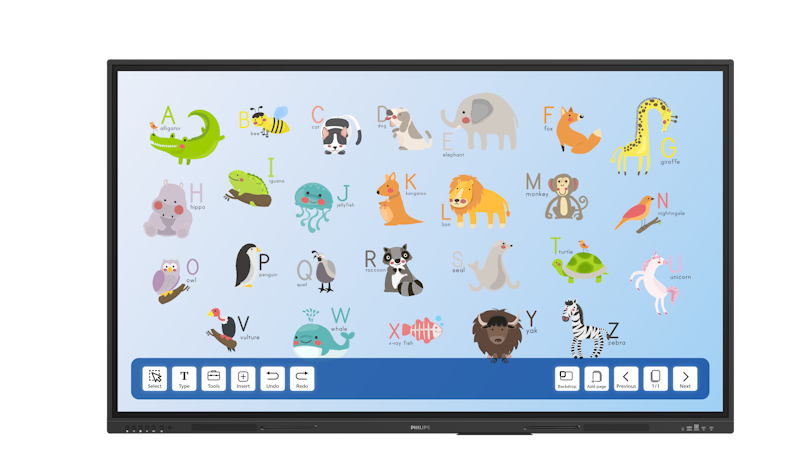

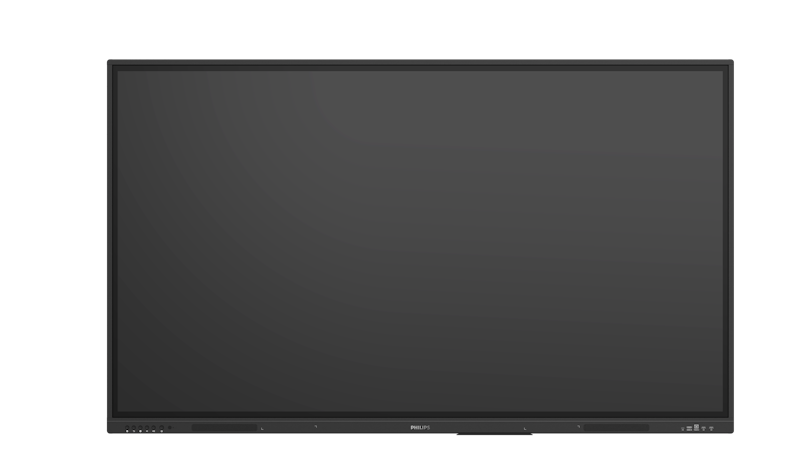

E-Line

75BDL3152E/00

This interactive display maximises engagement and inspires collaboration with up to 40 touchpoints. Powered by Android 13 and with toughened anti-glare and anti-reflection glass, it’s made to withstand heavy daily use in busy environments.

Get a quote

Technical Specifications

Weight

Product with packaging (kg)	62.5 kg
Product without stand (lb)	113.32 lb
Product with packaging (lb)	137.79 lb
Product without stand (kg)	51.4 kg

Miscellaneous

On-Screen Display Languages	Arabic
	Dutch
	Danish
	English
	French
	Finnish
	German
	Italian
	Japanese
	Norwegian
	Polish
	Portuguese
	Russian
	Spanish
	Swedish
	Simplified Chinese
	Turkish
	Traditional Chinese
Regulatory approvals	CE
	FCC, Class A
	RoHS
	CB
	EAC
	EMF
	ETL
	EnergyStar 8.0
Warranty	5 year warranty

Operating conditions

Temperature range (operation)	0 ~ 40 °C
Humidity range (storage) [RH]	10 ~ 90% (without condensation)
Altitude	0 ~ 5000 m
MTBF	30,000 hour(s)
Humidity range (operation)[RH]	10 ~ 90% (without condensation)
Temperature range (storage)	-20~60 °C

Picture/Display

Panel technology	VA
Pixel pitch	0.42975 (H) x 0.42975 (V)[mm]
Viewing angle (horizontal)	178 degree
Panel resolution	3840 x 2160
Aspect ratio	16:9
Diagonal screen size (inch)	74.5 inch
Operating system	Android 13
Optimum resolution	3840 x 2160 @ 60 Hz
Display colors	1.07 B
OS UI resolution	1920 x 1080 @ 60 Hz
Diagonal screen size (metric)	189.3 cm
Contrast ratio (typical)	5500:1
Viewing angle (vertical)	178 degree
Response time (typical)	6.5 ms
Picture enhancement	3/2 - 2/2 motion pull down
	3D Combfilter
	Motion compens. deinterlacing
	Progressive scan
	3D MA deinterlacing
	Dynamic contrast enhancement
Brightness	400 cd/m²

Supported Display Resolution

Video formats	480i, 60Hz
	480p, 60Hz
	720p, 50, 60Hz
	1080i, 50, 60Hz
	1080p, 50, 60Hz
	2160p, 30, 60Hz

Interactivity

Multi-touch technology	0-gap Infrared touch
Plug and play	HID compliant
Protection glass	Anti-Glare
	Tempered safety glass 7MOHS
Touch points	50 simultaneous touch points(depending on application)

Connectivity

Audio output	3.5 mm Mini Jack (x1)
	SPDIF
Video input	HDMI 2.0 (x3)
	VGA (Analog D-Sub) (x1)
	USB-C (up to 65W)
	USB 2.0 ( x1)
	USB 3.0 (x4)
Audio input	3.5 mm mini jack (x1)
Other connections	OPS
	USB-B (x2)
Bluetooth	BT5.2
External control	RS232C (in) D-Sub9
	RJ45 x2

Convenience

Network controllable	RS232
	RJ45
Other convenience	Carrying handles
Remote control signal	Lockable
Screen saving functions	Pixel Shift, Low Brightness
Placement	Landscape (16/7)
Keyboard control	Lockable

Accessories

Optional accessories	Interact dongles
Accessories	Power code(US, UK, EU)
	HDMI cable
	USB A to B
	Remote control & AAA batteries
	2 pcs stylus
	Wall mount
	Quick start guide

Internal Player

Memory	4GB RAM
Storage	32 GB eMMc
GPU	Multi-Core Mali-G52
Wifi	2.4/5GHz
CPU	Quad Core Cortex A55

Dimensions

Bezel width (L/R, T/B)	16.6mm (L/R/T) / 45.0mm (B)
Set Depth	85.4 mm
Set Width (inch)	67.30 inch
Set Height	1020.2 mm
Set Width	1709.4 mm
Wall Mount	800 x 400 mm, M8
Set Depth (inch)	3.36 inch
Set Height (inch)	40.17 inch

Sound

Built-in speakers	2 x16 W

Power

Power Saving Features	Smart Power
Standby power consumption	<0.5W
Mains power	100 ~ 240 VAC, 50/60Hz
Consumption (Typical)	155 W
Energy Label Class	E

Multimedia Applications

USB Playback Audio	AAC
	MPEG
	HEAAC
USB Playback Picture	BMP
	JPEG
	PNG
USB Playback Video	H.263
	H.264
	H.265
	MPEG1/2
	MPEG4
	VP8
