D-Line

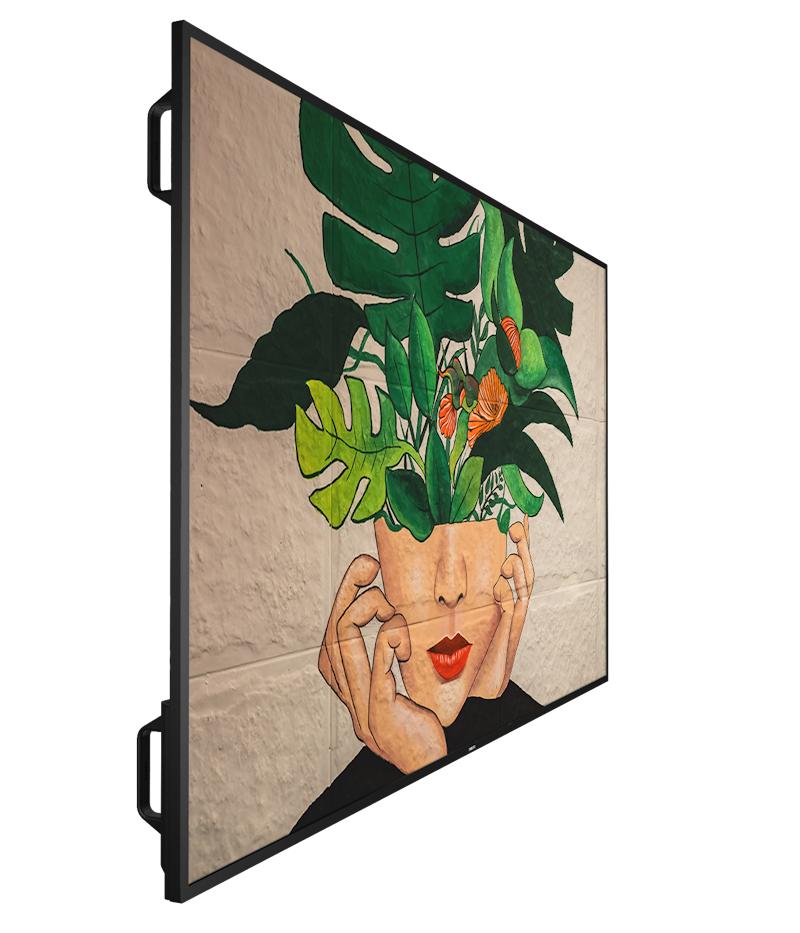

Make it stand out with a fast Philips D-Line Professional 4K UHD display. Philips superb picture quality ensures true colors and intense contrast. You can effortlessly display content from multiple sources on a single screen.
TAA compliant
Created in 1979, TAA compliance requires products and goods considered for governmental use to be manufactured or substantially transformed in the US or in designated TAA countries*. Products for government use are available via selected commercial companies – such as distributors – with Federal Supply Schedule government contracts.
Features
Technical Specifications
Connectivity
| Audio output | 3.5mm jack |
|---|---|
| Other connections | OPS |
| Video input | Display Port1.2 (x1) |
| DVI-I (x 1) | |
| HDMI 2.0 (x3) | |
| USB 2.0 (x2) | |
| Audio input | 3.5 mm jack |
| External control | IR (in/out) 3.5 mm jack |
| RJ45 | |
| RS232C (in/out) 2.5 mm jack | |
| Video output | DisplayPort 1.2 (x1) |
| HDMI 2.0 (x1) |
Convenience
| Energy saving functions | Smart Power |
|---|---|
| Screen saving functions | Pixel Shift, Low Bright |
| Keyboard control | Hidden |
| Lockable | |
| Network controllable | RS232 |
| RJ45 | |
| Placement | Landscape (24/7) |
| Portrait (24/7) | |
| Signal loop through | DisplayPort |
| RS232 | |
| HDMI | |
| IR Loopthrough |
Accessories
| Included Accessories | AC Switch Cover |
|---|---|
| Philips logo (x1) | |
| RS232 daisy-chain cable | |
| AC power cord | |
| IR sensor cable (1.8 m) (x1) | |
| Quick start guide (x1) | |
| Remote control & AAA batteries | |
| RS232 cable | |
| USB Cover and screw x1 | |
| Wire Clamper (x3) |
Dimensions
| Product weight | 35.9 kg |
|---|---|
| Set Width | 1683.5 mm |
| Set Height | 961.7 mm |
| Wall Mount | 600(H)x400(V) mm, M8 |
| Product weight (lb) | 79.15 lb |
| Set Height (inch) | 37.86 inch |
| Set Depth | 69.5 (@Wall mount)/ 91.8 (@Handle) mm |
| Set Width (inch) | 66.28 inch |
| Bezel width | 14.9 mm (Even bezel) |
| Set Depth (inch) | 2.74 inch(wall mount)/3.61 (@Handle) inch |
Sound
| Built-in speakers | 2 x 10W RMS |
|---|
Power
| Standby power consumption | <0.5 W |
|---|---|
| Consumption (Max) | 345 W |
| Mains power | 100 ~ 240 VAC, 50 ~ 60 Hz |
| Consumption (Typical) | 185 W |
| Energy Label Class | G |
Multimedia Applications
| USB Playback Picture | BMP |
|---|---|
| JPEG | |
| PNG | |
| USB Playback Video | H.263 |
| H.264 | |
| H.265 | |
| MPEG | |
| USB Playback Audio | AAC |
| MPEG | |
| HEAAC |
Operating conditions
| Humidity range (storage) [RH] | 5 - 95% RH (No condensation) |
|---|---|
| Humidity range (operation)[RH] | 20 - 80% RH (No condensation) |
| Altitude | 0 ~ 3000 m |
| MTBF | 50,000 hour(s) |
| Temperature range (storage) | -20 ~ 60 °C |
| Temperature range (operation) | 0 ~ 40 °C |
Miscellaneous
| On-Screen Display Languages | Arabic |
|---|---|
| Dutch | |
| Danish | |
| English | |
| French | |
| Finnish | |
| German | |
| Italian | |
| Japanese | |
| Norwegian | |
| Polish | |
| Portuguese | |
| Russian | |
| Spanish | |
| Swedish | |
| Simplified Chinese | |
| Turkish | |
| Traditional Chinese | |
| Regulatory approvals | CE |
| FCC, Class A | |
| CCC | |
| RoHS | |
| CB | |
| BSMI | |
| EMF | |
| VCCI | |
| PSB | |
| EnergyStar 8.0 | |
| ETL | |
| CECP | |
| EAC | |
| Warranty | 3 year warranty |
Picture/Display
| Viewing angle (horizontal) | 178 degree |
|---|---|
| Viewing angle (vertical) | 178 degree |
| Response time (typical) | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Aspect ratio | 16:9 |
| Dynamic contrast ratio | 500,000:1 |
| Diagonal screen size (inch) | 74.5 inch |
| Optimum resolution | 3840 x 2160 @ 60Hz |
| Haze | 25% |
| Diagonal screen size (metric) | 189.3 cm |
| Panel resolution | 3840 x 2160 |
| Display colors | 1.07 Billion |
| Brightness | 500 cd/m² |
| Panel technology | ADS |
| Pixel pitch | 0.4296 x 0.429 6 mm |
Supported Display Resolution
| Computer formats | 640 x 480, 60Hz |
|---|---|
| 800 x 600, 60Hz | |
| 1024 x 768, 60Hz | |
| 1280 x 720, 60Hz | |
| 1280 x 1024, 60Hz | |
| 1440 x 900, 60 Hz | |
| 1600 x 900, 60Hz | |
| 1680 x 1050, 60Hz | |
| 1920 x 1080, 60Hz | |
| 3840 x 2160, 30, 60Hz | |
| Video formats | 480i, 60Hz |
| 480p, 60Hz | |
| 576p, 50Hz | |
| 576i, 50Hz | |
| 720p, 50,60 Hz | |
| 1080i, 50, 60Hz | |
| 1080p, 50, 60Hz | |
| 2160p, 24, 30, 60Hz |
