MediaSuite

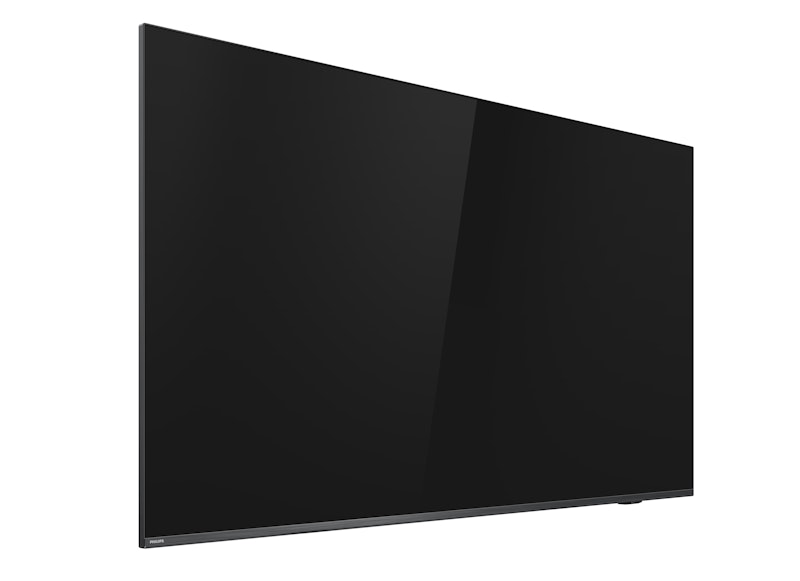

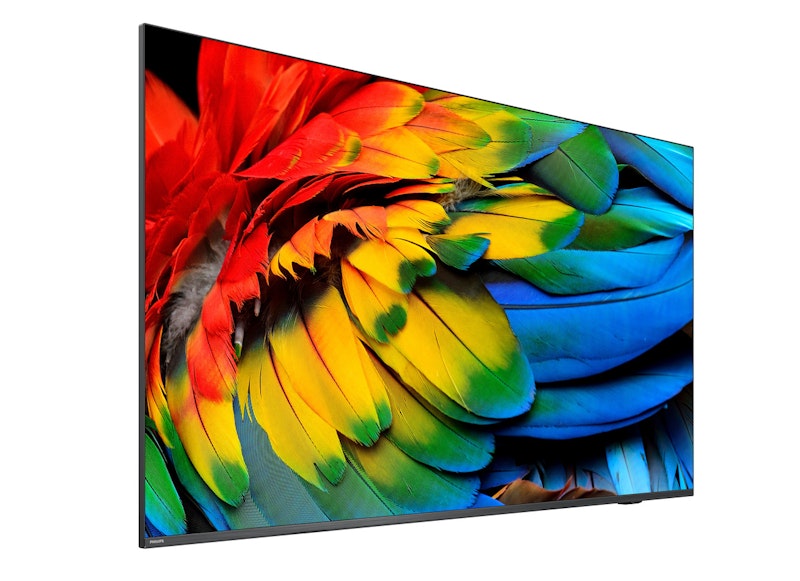

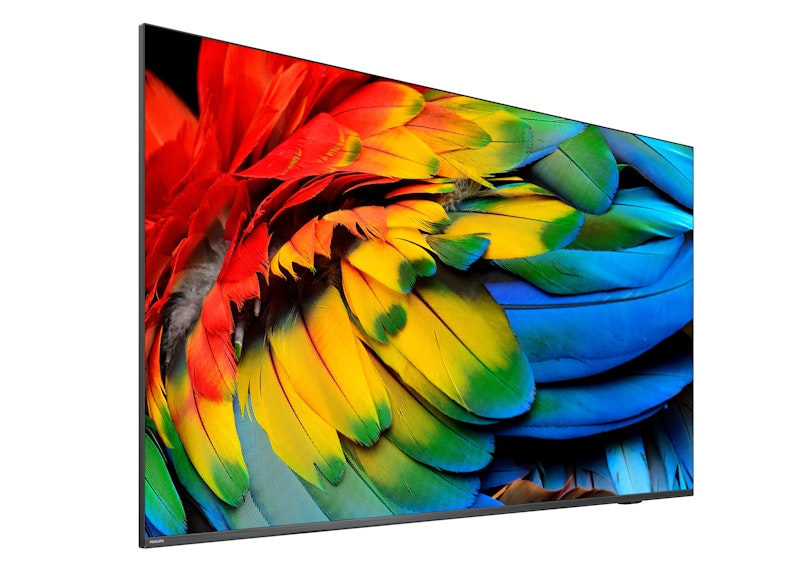

65HFL6214U/12

Designed for a fast-paced world, MediaSuite features advanced connectivity and versatile configuration settings. Chromecast built-in makes streaming fast and easy, while Android™ and Google Play Store unleash infinite possibilities.

Get a quote

Technical Specifications

Design

Material	Aluminium frame
Colour	Anthracite Grey

Audio

Sound output Power	20 (2x10) W
Bathroom speaker out	1.5 W Mono 8 ohm
Speakers	2.0
	Down Firing
Sound Features	DTS-HD
	Dolby Atmos Compatible
	Dolby MS12D
	AC-4
	DTS Studio Sound

Accessories

Included	Hygienic RC 22AV2226A
	2x AA batteries
	Power Cord
	Warranty Leaflet
	Legal and Safety brochure
Optional	Easy RC 22AV1601B/12
	External Clock 22AV1860A/12
	DOCSIS Cable Modem 22AV1970A
	Setup RC 22AV9574A/12
	PPDS VESA table stand

Wireless Connectivity

Wireless LAN	802.11 ac
	Wi-Fi-Direct

Tuner/Reception/Transmission

Analogue TV	PAL
Digital TV	DVB-T/T2/C
	HEVC UHD (up to 2160p60)
IP Playback	Multicast
	Unicast
	HLS
	OTT App Channels

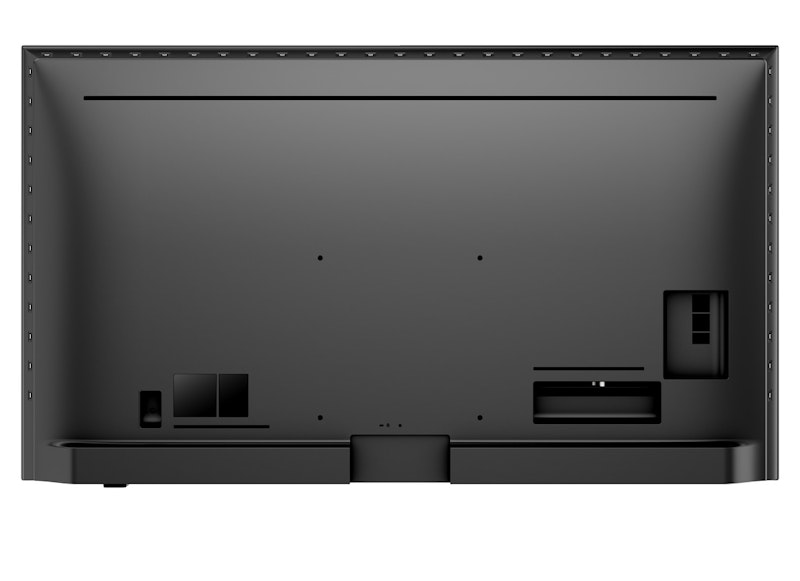

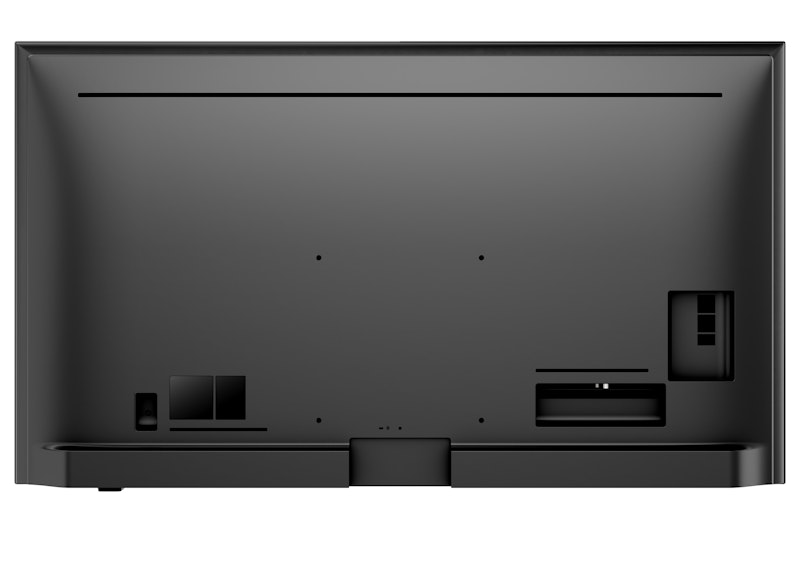

Connectivity Bottom

Bathroom speaker out	Mini-Jack
External power	12 V, max 1.5 A
Ethernet (LAN)	RJ-45
HDMI 2	HDMI 2.0 with HDCP 2.2
HDMI 3	HDMI 2.0 with HDCP 2.2
USB 2	USB 2.0
External Control	RJ-48
Antenna	IEC-75

Power

EU Energy Label power	86 W
Mains power	AC 220-240 V; 50-60 Hz
Ambient temperature	0 °C to 40 °C
EPREL registration number	936086
Standby power consumption	<0.3 W
Power Saving Features	Eco mode
	Auto switch-off timer
	Light sensor
Energy Label Class	F

Dimensions

Wall-mount compatible	300 x 300 mm
	M6
Set Width	1451 mm
Set Height	836 mm
Product weight	23.7 kg

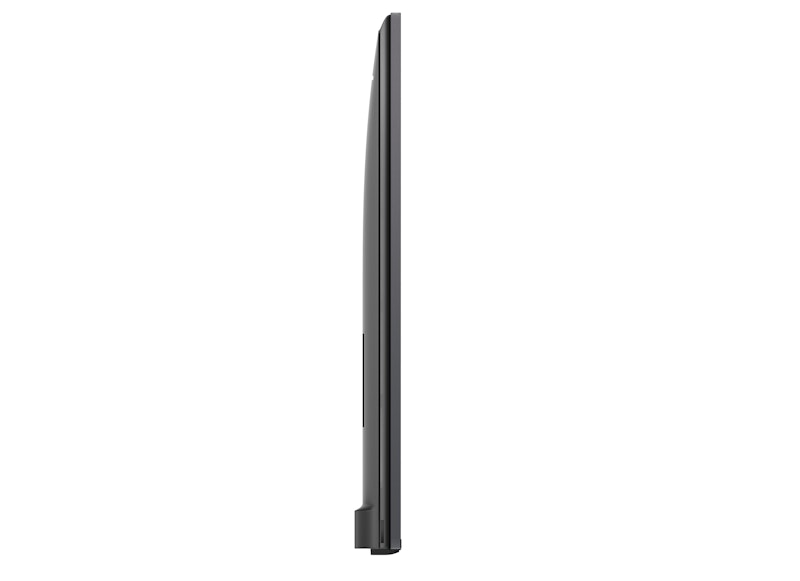

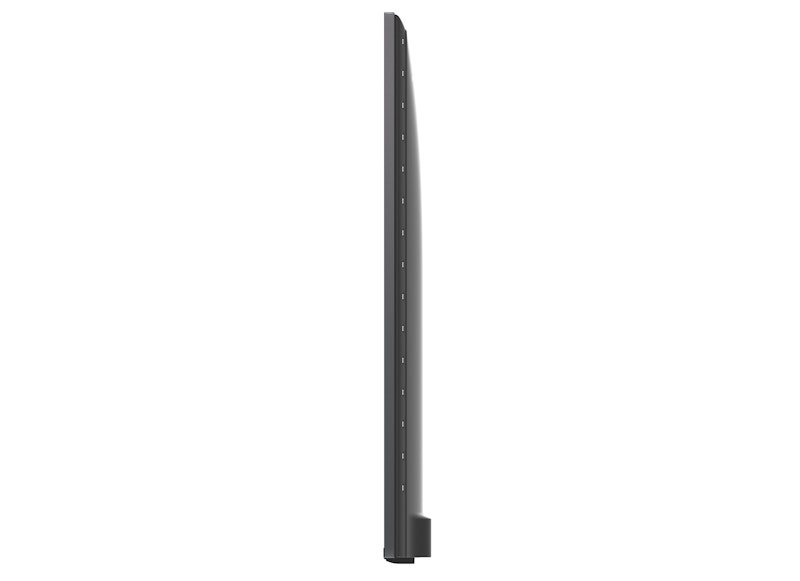

Set Depth	68/83 mm

Supported Display Resolution

Tuner	Others: up to 1920 x 1080p@60 Hz
	T2 HEVC: up to 3840 x 2160@60 Hz
USB, LAN	HEVC: up to 3840 x 2160@60 Hz
	Others: up to 1920 x 1080p@60 Hz
HDMI	Up to 3840 x 2160p@60 Hz

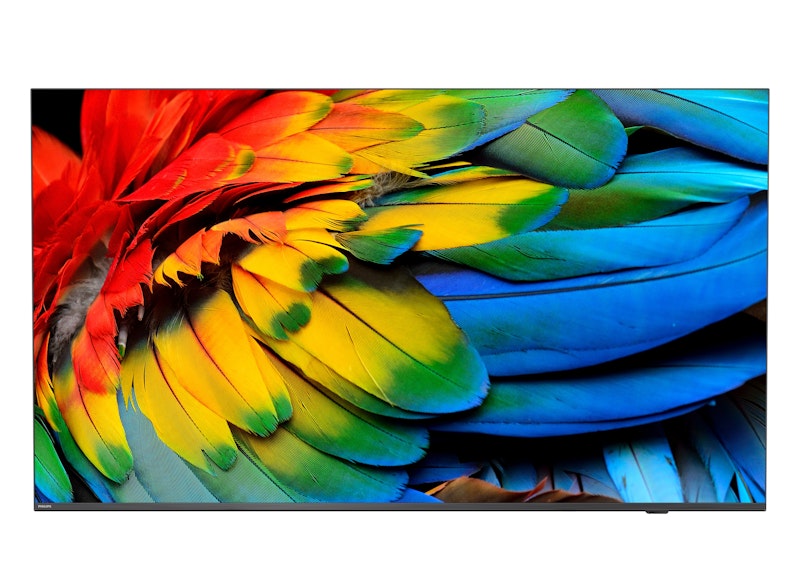

Picture/Display

Panel resolution	3840 x 2160p
Diagonal screen size (inch)	65 inch
Display	4K Ultra HD LED
Brightness	400 cd/m²
Diagonal screen size (metric)	164 cm

Healthcare features

Convenience	TalkBack
	Independent main speaker mute
Control	Multi-Remote Control
	Nurse call system compatible
Safety	Double isolation class II
	Flame retardant

Android TV

Pre-installed apps	Netflix*
	YouTube
	Google Play Store*
	Google Play Movies
	Google Play Games
	YouTube Music
OS	Android TV™ 9 (Pie)
Memory size (Flash)	16 GB*

Side Connectivity

HDMI1	HDMI 2.0 with HDCP 2.2
USB1	USB 3.0
Headphone out	Mini-Jack
Common Interface Slot	CI+ 1.3.2

Hospitality Features

Your brand	Customisable Home Screen
	Customisable Welcome App
	Location Name (Geonames ID)
	CMND&Create
	Custom Dashboard (HTML&APK)
Power control	Quick Start Mode
	Auto Power ON
	Auto Power OFF
Sharing	Chromecast Ultra built in
	Secure Sharing
	Network-managed Sharing
CMND&Check-In	Guest Name
	Guest Language
	Messages
	Bill on TV
	Express Checkout
Control	AppControl
	JEDI Native Android TV Control
	JSON API for TV Control-JAPIT
	Serial Xpress Protocol
	Crestron Connected
	Joystick
Hotel mode	Switch-ON Settings Control
	Volume limitation
	Installation Menu Lock
	Menu lock
	Joystick Control Lock
	Prison mode
Convenience	Google Assistant*
	Google Account Login
	Weather Forecast
	>40 Supported Menu Languages
	Clock in OFF mode
	Theme TV
	Wake Up Alarm
	Sleep Timer
CMND&Control	Off-Line Channel Editor
	Off-Line Settings Editor
	Remote Management over IP/RF
	TV Group management
	Local Updates via USB
	Instant Initial Cloning
Revenue generation	MyChoice
Interactive DRM	VSecure
	Playready Smoothstreaming
	SecureMedia
Remote Control	Low-Battery Detection
	RC Battery Door Lock

Multimedia

Subtitle formats supported	SRT
	SMI
	TXT
Music formats supported	MP3
	AAC
	WAV
	WMA (v2 up to v9.2)
	WMA-PRO (v9 and v10)
Picture formats supported	JPG
	PNG
	BMP
	GIF
Video playback supported	Formats: H.264/MPEG4 AVC
	MPEG1
	MPEG2
	MPEG4
	WMV9/VC1
	HEVC
	Containers: AVI, MKV
	VP9

Connectivity Enhancements

RJ48	IR-In/Out
	Serial Xpress interface
HDMI	ARC (all ports)
	Auto Input Selection
EasyLink (HDMI CEC)	One touch play
	System Standby
	RC pass through
	system audio control
