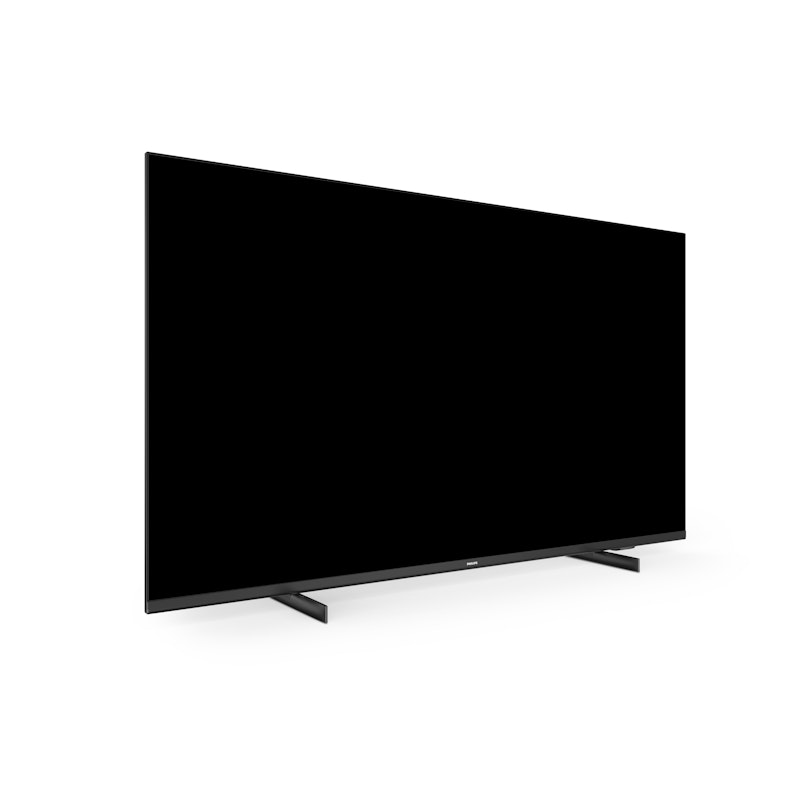

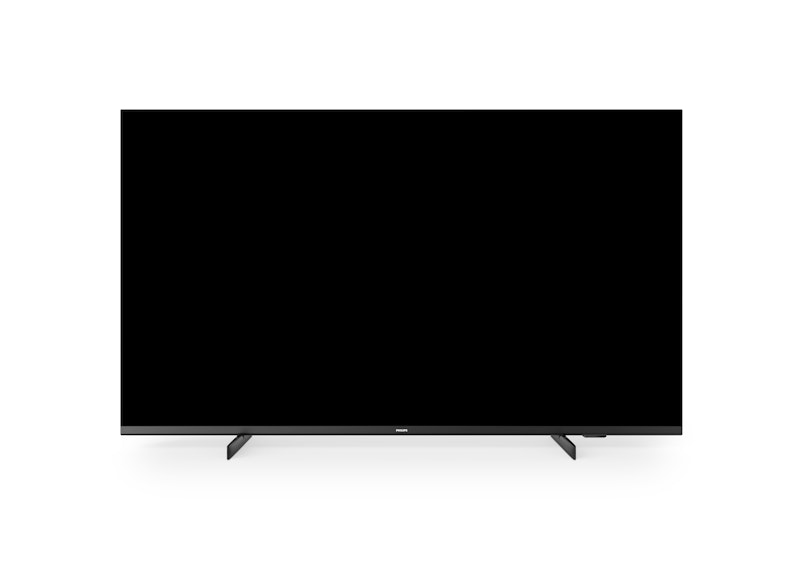

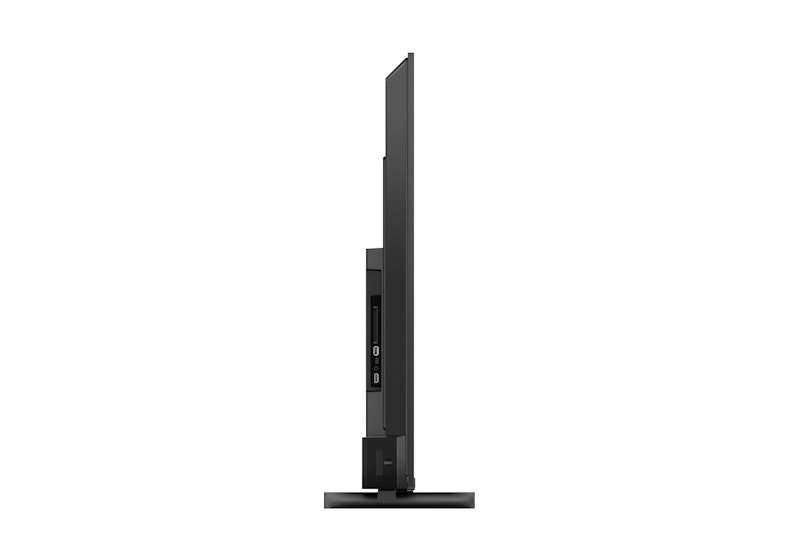

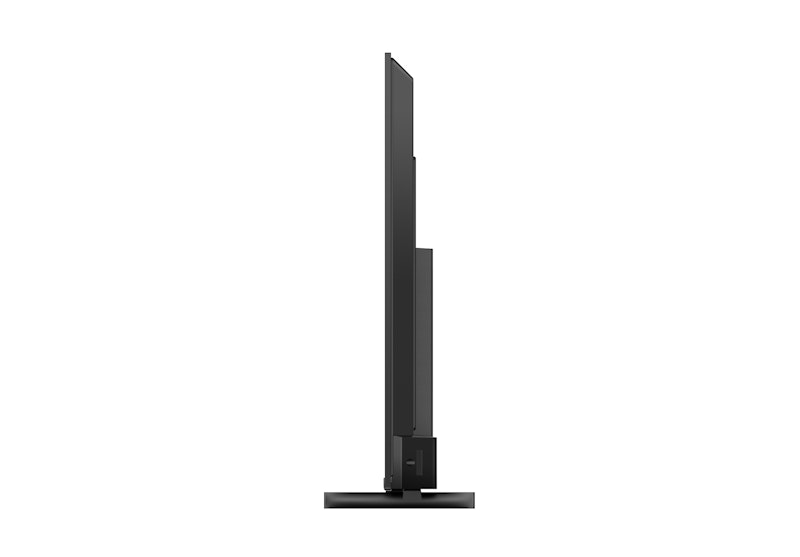

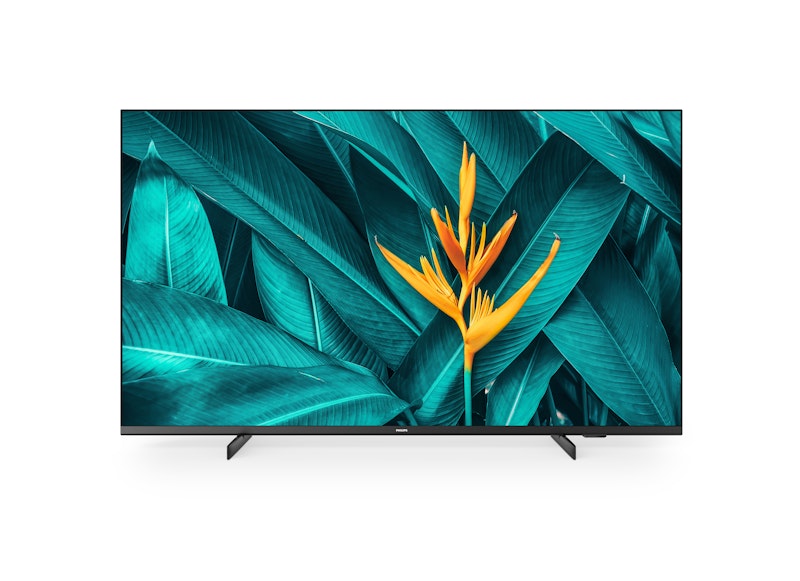

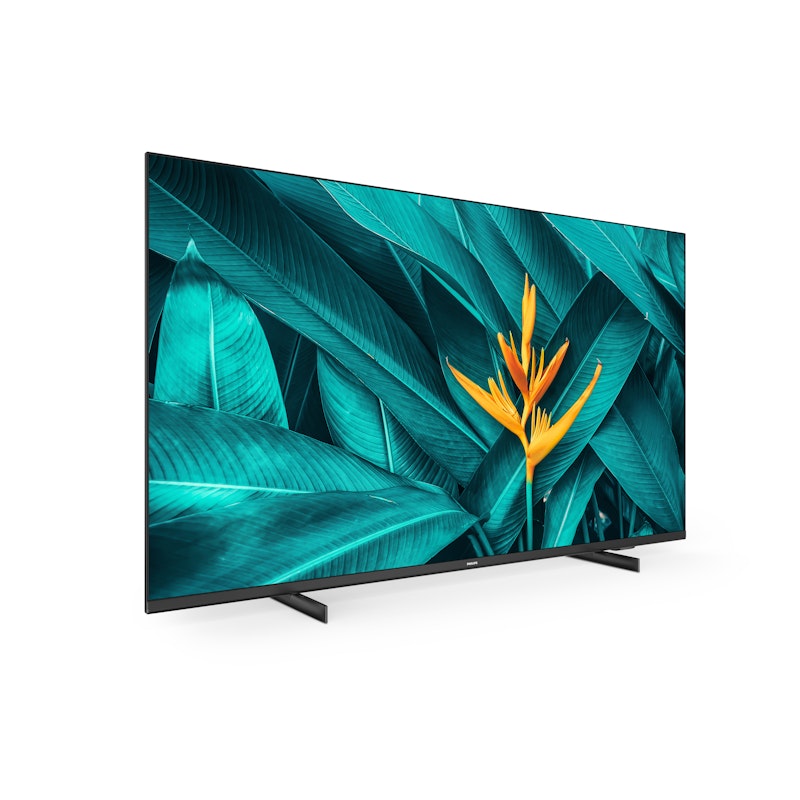

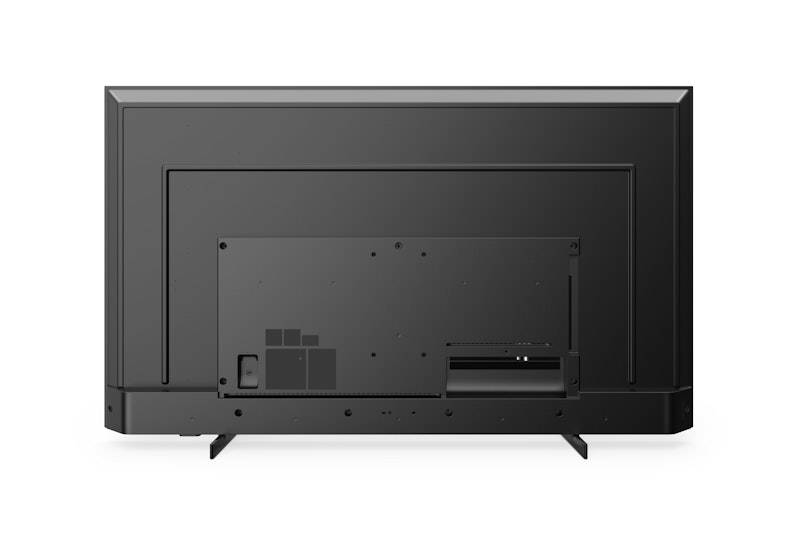

MediaSuite

50HFL5214U/12

Designed for a fast-paced world, MediaSuite features advanced connectivity and versatile configuration settings. Chromecast built-in makes streaming fast and easy, while Android™ and Google Play Store unleash infinite possibilities.

Get a quote

Technical Specifications

Design

Colour	Black

Audio

Sound Features	DTS-HD
	Dolby Atmos Compatible
	Dolby MS12D
	AC-4
	DTS Studio Sound
Bathroom speaker out	1.5 W Mono 8 ohm
Sound output Power	20 (2x10) W
Speakers	2.0
	Down Firing

Accessories

Optional	Voice RC 22AV2025B/00
	Easy RC 22AV1601B/12
	Healthcare RC 22AV1604B/12
	External Clock 22AV1860A/12
	DOCSIS Cable Modem 22AV1970A
	Setup RC 22AV9574A/12
Included	Remote Control 22AV2005B/00
	2 x AAA batteries
	Power Cord
	Warranty Leaflet
	Legal and Safety brochure
	Edge Stand

Wireless Connectivity

Wireless LAN	802.11 ac
	Wi-Fi-Direct

Tuner/Reception/Transmission

Digital TV	DVB-T/T2/C
	HEVC UHD (up to 2160p60)
Analogue TV	PAL
IP Playback	Multicast
	Unicast
	HLS
	OTT App Channels

Connectivity Bottom

Bathroom speaker out	Mini-Jack
External power	12 V, max 1.5 A
Antenna	IEC-75
Ethernet (LAN)	RJ-45
HDMI 3	HDMI 2.0 with HDCP 2.2
HDMI 2	HDMI 2.0 with HDCP 2.2
USB 2	USB 2.0
External Control	RJ-48

Power

EU Energy Label power	65 W
Power Saving Features	Eco mode
	Auto switch-off timer
	Light sensor
Standby power consumption	<0.3 W
Ambient temperature	0 °C to 40 °C
EPREL registration number	935974
Energy Label Class	F
Mains power	AC 220-240 V; 50-60 Hz

Dimensions

Wall-mount compatible	M6
	100 x 200 mm
Set Width	1112 mm
Set Height	647 mm
Set width (with stand)	1112 mm
Set Depth	78/85 mm
Set depth (with stand)	246 mm
Product weight (+stand)	11.5 kg
Set height (with stand)	677 mm
Product weight	11.3 kg

Supported Display Resolution

HDMI	Up to 3840 x 2160p@60 Hz
Tuner	Others: up to 1920 x 1080p@60 Hz
	T2 HEVC: up to 3840 x 2160@60 Hz
USB, LAN	HEVC: up to 3840 x 2160@60 Hz
	Others: up to 1920 x 1080p@60 Hz

Picture/Display

Diagonal screen size (inch)	50 inch
Contrast ratio (typical)	5000:1
Brightness	350 cd/m²
Display	4K Ultra HD LED
Panel resolution	3840 x 2160p
Diagonal screen size (metric)	126 cm

Healthcare features

Convenience	TalkBack
	Independent main speaker mute
Safety	Double isolation class II
	Flame retardant
Control	Multi-Remote Control
	Nurse call system compatible

Android TV

Pre-installed apps	Netflix*
	YouTube
	Google Play Store*
	Google Play Movies
	Google Play Games
	YouTube Music
Memory size (Flash)	16 GB*
OS	Android TV™ 9 (Pie)

Hospitality Features

Control	AppControl
	JEDI Native Android TV Control
	JSON API for TV Control-JAPIT
	Serial Xpress Protocol
	Crestron Connected
	Joystick
Hotel mode	Switch-ON Settings Control
	Volume limitation
	Installation Menu Lock
	Menu lock
	Joystick Control Lock
	Prison mode
Convenience	Google Assistant*
	Google Account Login
	Weather Forecast
	>40 Supported Menu Languages
	Clock in OFF mode
	Theme TV
	Wake Up Alarm
	Sleep Timer
Revenue generation	MyChoice
Power control	Quick Start Mode
	Auto Power ON
	Auto Power OFF
Your brand	Customisable Home Screen
	Customisable Welcome App
	Location Name (Geonames ID)
	CMND&Create
	Custom Dashboard (HTML&APK)
Remote Control	Low-Battery Detection
	RC Battery Door Lock
	Glow-in-the-Dark Clock button
Interactive DRM	VSecure
	Playready Smoothstreaming
CMND&Check-In	Guest Name
	Guest Language
	Messages
	Bill on TV
	Express Checkout
Sharing	Chromecast Ultra built in
	Secure Sharing
	Network-managed Sharing
CMND&Control	Off-Line Channel Editor
	Off-Line Settings Editor
	Remote Management over IP/RF
	TV Group management
	Local Updates via USB
	Instant Initial Cloning

Side Connectivity

USB1	USB 3.0
HDMI1	HDMI 2.0 with HDCP 2.2
Common Interface Slot	CI+ 1.3.2
Headphone out	Mini-Jack

Multimedia

Picture formats supported	JPG
	PNG
	BMP
	GIF
Music formats supported	MP3
	AAC
	WAV
	WMA (v2 up to v9.2)
	WMA-PRO (v9 and v10)
Subtitle formats supported	SRT
	SMI
	TXT
Video playback supported	Formats: H.264/MPEG4 AVC
	MPEG1
	MPEG2
	MPEG4
	WMV9/VC1
	HEVC
	Containers: AVI, MKV
	VP9

Connectivity Enhancements

HDMI	ARC (all ports)
	Auto Input Selection
EasyLink (HDMI CEC)	One touch play
	System Standby
	RC pass through
	system audio control
RJ48	IR-In/Out
	Serial Xpress interface
