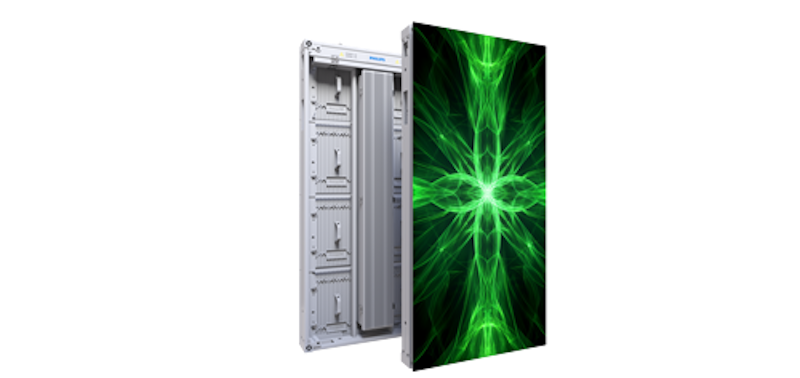

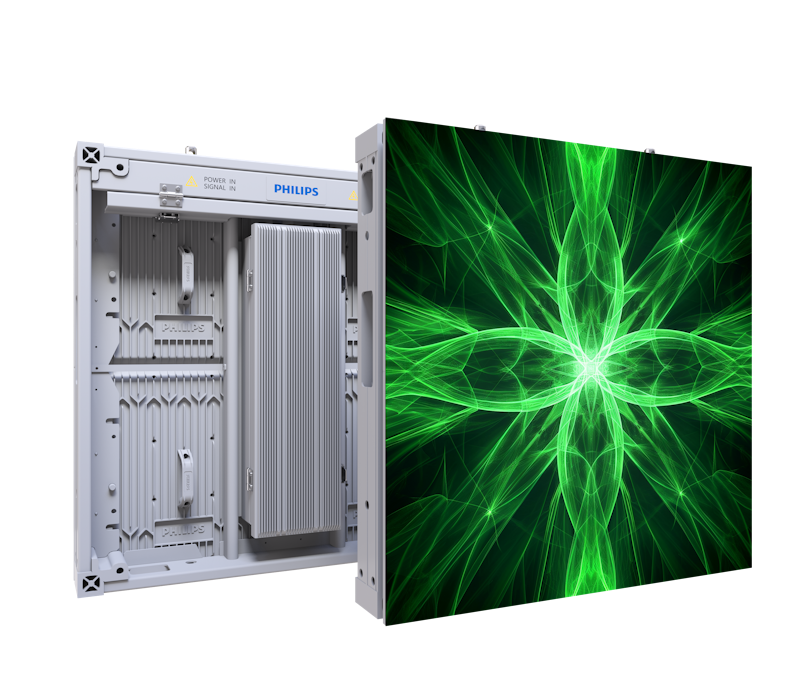

Philips Urban LED 7000 Series

44HUL7148DP/00

Offering a series of fine pixel pitches, the range ensures high brightness for advertising displays at bus stations, arenas, airports and more. Housed in a die-cast aluminium cabinet, with front and rear access for simplified maintenance.

Get a quote

Technical Specifications

Cabinet

Cabinet Size (W x H x D in mm)	500 x 1000 x 81.6
Cabinet pixels (Dot)	21632
Cabinet diagonal (inch)	44"
Power connector	Seetronic
Control System	Novastar
Cabinet resolution (W x H)	104 x 208 pixels
Weight (kg)	17±0.5 kg
Cabinet area (m2)	0.5
Cabinet construction	Profile Aluminium
Data connector	Seetronic

Power

Input voltage	AC100~240 V (50 and 60 Hz)
Cabinet Typical Power consumption (W) (AC)	113
BTU/M2 (AC)	1923.24
Power consumption/M2 (W) (AC)	564
Power consumption/M2 (W) (BC)	660
BTU/M2 (BC)	2250.60

Miscellaneous

Certification	TUV
	ITS
Regulatory approvals	CB
	CE
	ETL
	FCC
Warranty	36 months

Operating conditions

Temperature range (storage)	-40~60 °C
Working environment (indoor/outdoor)	outdoor
IP Rating (front/rear)	IP66/65
Temperature range (operation)	-30~50 °C
Humidity range (operation)[RH]	10%–90%
Humidity range (storage) [RH]	10%–90%

Picture/Display

Bit-depth (bit)	14
Calibration (brightness/colour)	Colour and Brightness
Colour temperature adjust range	3000~10000
Refresh rate (Hz)	3840 Hz (with CE report and cert.)
Contrast ratio	8000:1
Frame frequency (Hz)	50 & 60
Viewing angle (°) H/V	160/90
Brightness after calibration	6000
Colour temperature default	8000
Brightness before calibration	7000

Module

LED type	SMD
LED Lifetime (hrs, half brightness)	100,000
Module size (W x H in mm)	500 x 250
Pixel constitution	1R1G1B
Weight (kg)	1.85±0.1 kg
Pixel pitch (mm)	4.8
Module resolution (WxH pixels)	104 x 52
LED size	SMD1921
