Philips X-Line

55BDL4107X/00

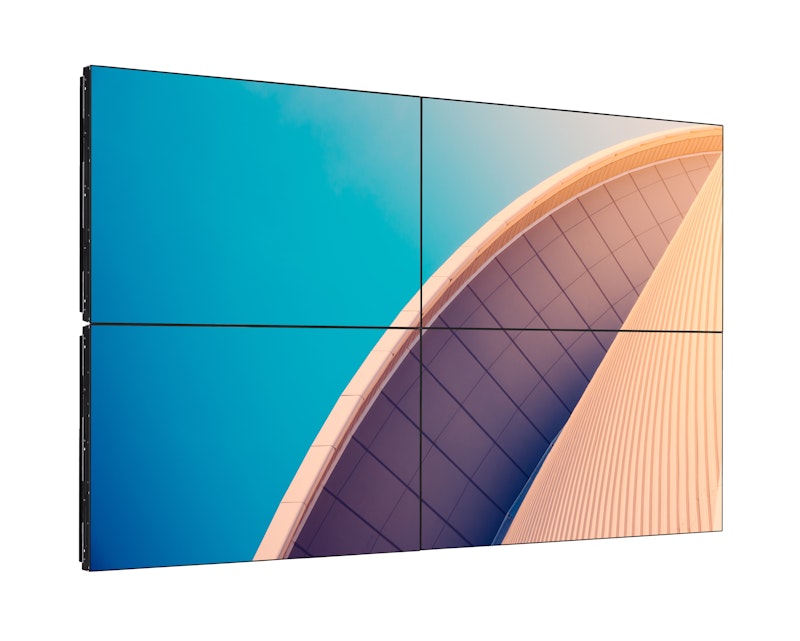

Take presentations and corporate branding to the next level. The Philips X-Line Videowall display brings your content to life to ensure absolute audience engagement in every setting with Pure Colour Pro.

Features

Technical Specifications

Picture/Display

Diagonal screen size (metric) 138.7
Diagonal screen size (inch) 54.6
Panel resolution 1920x1080p
Optimum resolution 1920 x 1080 @ 60 Hz
Brightness 700
Dynamic contrast ratio 500,000:1
Response time (typical) 8
Aspect ratio 16:9
Viewing angle (horizontal) 178
Viewing angle (vertical) 178
Pixel pitch 0.63 x 0.63 mm
Display colors 1.07 B
Contrast ratio (typical) 1100:1
Haze 28 %

Supported Display Resolution

Computer formats 640 x 480, 60, 72, 75Hz
720 x 400, 70Hz
800 x 600, 60, 75Hz
1024 x 768, 60, 75Hz
1280 x 768, 60Hz
1280 x 800, 60Hz
1280 x 960, 60Hz
1280 x 1024, 60Hz
1360 x 768, 60Hz
1366 x 768, 60Hz
1600 x 1200, 60Hz
1920 x 1080, 60Hz
Video formats 720p, 50, 60Hz
1080i, 25, 30Hz
1080p, 50, 60Hz

Connectivity

Video input DVI-D (x1)
VGA (Analog D-Sub) (x1)
HDMI 1.4 (x2)
Display Port1.3 (x1)
Audio input 3.5 mm mini jack (x1)
Video output DisplayPort 1.2 (x1)
Audio output 3.5 mm Mini Jack (x1)
External control IR (in) 3.5 mm jack
LAN RJ45 (x2)
Signal loopthrough RJ45(x2)
Other connections OPS
USB 2.0 (x1)
Thermal sensor

Convenience

Placement Landscape (24/7)
Portrait (24/7)
Tiled Matrix Up to 15 x 15
Screen saving functions Pixel Shift, Low Bright
Signal loop through DisplayPort
RJ45
Ease of installation Carrying Handles
Smart Insert
Energy saving functions Smart Power
Network controllable LAN (RJ45)

Operating conditions

Temperature range (operation) 0 ~ 40
Temperature range (storage) -20 ~ 60
Altitude 0 ~ 3000 m
MTBF 50,000
Humidity range (operation)[RH] 20 - 80% (without condensation)
Humidity range (storage) [RH] 5 - 95% (without condensation)

Power

Consumption (Typical) 190
Consumption (Max) 370 W
Consumption (On mode) 150 W
Standby power consumption 0.5 W
Energy Label Class G

Sound

Built-in speakers 2 x 10W (RMS)

Accessories

Included Accessories AC Switch Cover
Gap pad x3
IR sensor cable (1.8 m) (x1)
Quick start guide (x1)
Remote control & AAA batteries
RJ45 / RS232 converter
Wire Clamper (x3)
Power cord
DP cable (x1)
RJ45 cable (x1)
Edge alignment pin (x2)
Kit-1 (x1)
Kit-2 (x2)

Miscellaneous

On-Screen Display Languages Arabic
English
French
German
Italian
Japanese
Polish
Russian
Spanish
Simplified Chinese
Turkish
Traditional Chinese
Regulatory approvals CE
FCC, Class A
RoHS
CB
BSMI
ETL
PSE
Warranty 3 years warranty

Dimensions

Smart Insert mount 100mm x 100mm, 6xM4xL6
Set Width 1212.2
Set Height 683
Set Depth 97.7 mm([email protected])/98.9 mm([email protected])
Set Width (inch) 47.72
Set Height (inch) 26.89
Set Depth (inch) 3.85 ([email protected])/3.89 ([email protected])
Bezel width 0.88 mm + 0.88 mm
Wall Mount 400mm x 400mm, M6
Product weight 25.33
