Philips X-Line

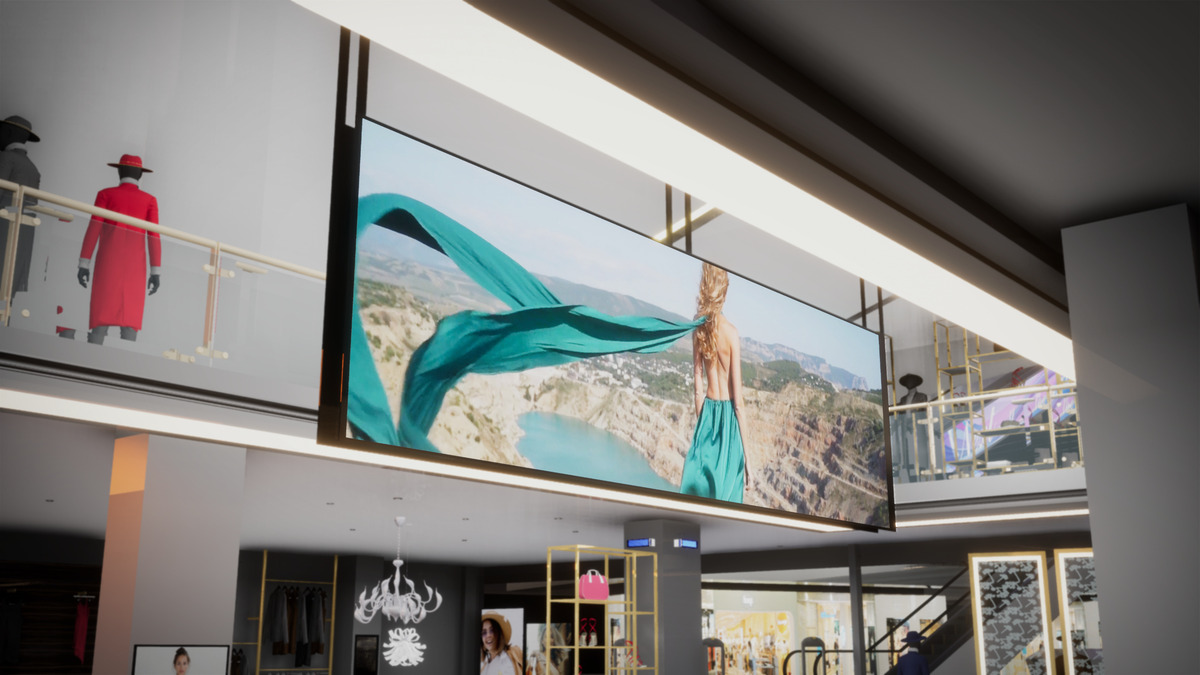

Take presentations and corporate branding to the next level. The Philips X-Line Videowall display brings your content to life to ensure absolute audience engagement in every setting with Pure Colour Pro.
Features
Technical Specifications
Connectivity
| Other connections | OPS |
|---|---|
| USB 2.0 (x1) | |
| Thermal sensor | |
| Audio output | 3.5 mm Mini Jack (x1) |
| Video input | DVI-D (x1) |
| HDMI 2.0 (x2) | |
| VGA (Analog D-Sub) (x1) | |
| Display Port1.3 (x1) | |
| Audio input | 3.5 mm mini jack (x1) |
| External control | IR (in) 3.5 mm jack |
| LAN RJ45 (x2) | |
| Signal loopthrough RJ45(x2) | |
| Video output | DisplayPort 1.3 (x1) |
Convenience
| Energy saving functions | Smart Power |
|---|---|
| Tiled Matrix | Up to 15 x 15 |
| Screen saving functions | Pixel Shift, Low Bright |
| Ease of installation | Carrying Handles |
| Smart Insert | |
| Signal loop through | DisplayPort |
| RJ45 | |
| Network controllable | LAN (RJ45) |
| Placement | Landscape (24/7) |
| Portrait (24/7) |
Accessories
| Included Accessories | Gap pad x3 |
|---|---|
| IR sensor cable (1.8 m) (x1) | |
| Quick start guide (x1) | |
| Remote control & AAA batteries | |
| RJ45 / RS232 converter | |
| Wire Clamper (x3) | |
| Power cord | |
| DP cable (x1) | |
| RJ45 cable (x1) | |
| Edge alignment pin (x2) | |
| Kit-1 (x1) | |
| Kit-2 (x2) |
Dimensions
| Product weight | 26.17 kg |
|---|---|
| Set Width | 1213.4 mm |
| Set Height | 684.2 mm |
| Wall Mount | 400mm x 400mm, M6 |
| Smart Insert mount | 100mm x 100mm, 6xM4xL6 |
| Bezel width | 3.5mm |
| Set Width (inch) | 47.77 inch |
| Set Depth | 98.2 mm(D@WallMount)/99.35 mm(D@Handle) mm |
| Set Height (inch) | 26.94 inch |
| Set Depth (inch) | 3.87 (D@WallMount)/3.91 (D@Handle) inch |
Sound
| Built-in speakers | 2 x 10W (RMS) |
|---|
Power
| Consumption (On mode) | 115 W |
|---|---|
| Standby power consumption | <0.50 W |
| Consumption (Typical) | 170 W |
| Consumption (Max) | 340 W |
| Energy Label Class | G |
Operating conditions
| MTBF | 50,000 hour(s) |
|---|---|
| Humidity range (storage) [RH] | 5 - 95% (without condensation) |
| Altitude | 0 ~ 3000 m |
| Humidity range (operation)[RH] | 20 - 80% (without condensation) |
| Temperature range (storage) | -20 ~ 60 °C |
| Temperature range (operation) | 0 ~ 40 °C |
Miscellaneous
| On-Screen Display Languages | Arabic |
|---|---|
| English | |
| French | |
| German | |
| Italian | |
| Japanese | |
| Polish | |
| Russian | |
| Spanish | |
| Simplified Chinese | |
| Turkish | |
| Traditional Chinese | |
| Warranty | 3 years warranty |
| Regulatory approvals | CE |
| FCC, Class A | |
| RoHS | |
| CB | |
| ETL | |
| BSMI | |
| PSE |
Picture/Display
| Viewing angle (vertical) | 178 degree |
|---|---|
| Contrast ratio (typical) | 1100:1 |
| Response time (typical) | 8 ms |
| Viewing angle (horizontal) | 178 degree |
| Haze | 28 % |
| Optimum resolution | 1920 x 1080 @ 60 Hz |
| Diagonal screen size (inch) | 54.6 inch |
| Aspect ratio | 16:9 |
| Dynamic contrast ratio | 500,000:1 |
| Display colors | 1.07 B |
| Panel resolution | 1920x1080p |
| Diagonal screen size (metric) | 138.7 cm |
| Brightness | 700 cd/m² |
| Pixel pitch | 0.63 x 0.63 mm |
Supported Display Resolution
| Computer formats | 1024 x 768, 60, 75Hz |
|---|---|
| 1280 x 1024, 60Hz | |
| 1280 x 768, 60Hz | |
| 1280 x 800, 60Hz | |
| 1280 x 960, 60Hz | |
| 1360 x 768, 60Hz | |
| 1366 x 768, 60Hz | |
| 1600 x 1200, 60Hz | |
| 1920 x 1080, 60Hz | |
| 640 x 480, 60, 72, 75Hz | |
| 720 x 400, 70Hz | |
| 800 x 600, 60, 75Hz | |
| Video formats | 720p, 50, 60Hz |
| 1080i, 25, 30Hz | |
| 1080p, 50, 60Hz | |
| 2160P 50, 60Hz ((HDMI/OPS/DP) |
