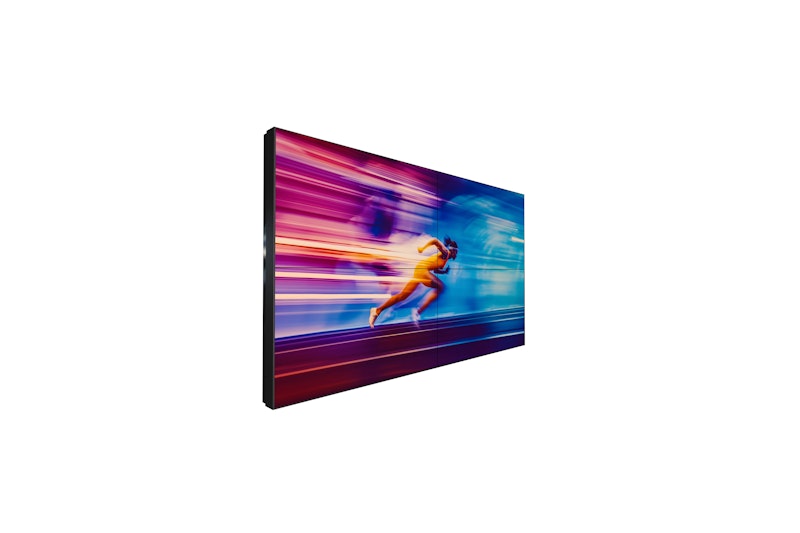

Philips X-Line

55BDL3305X/00

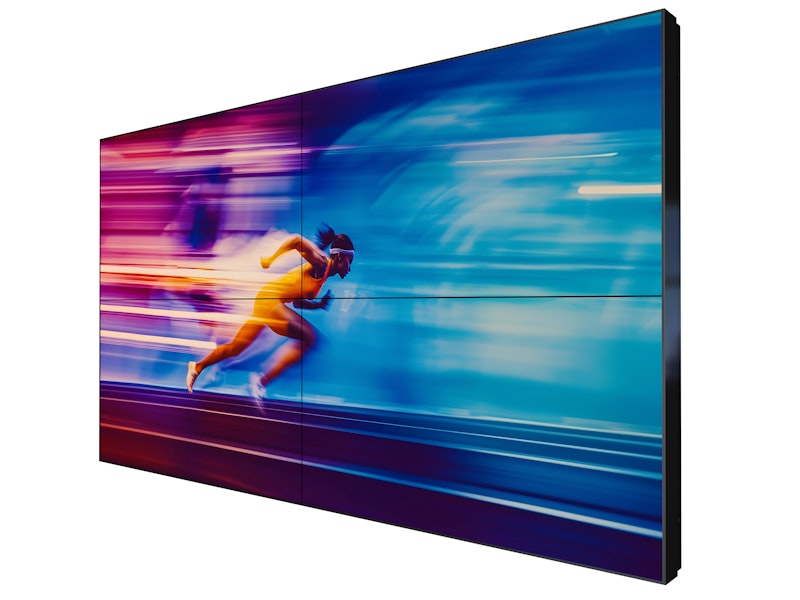

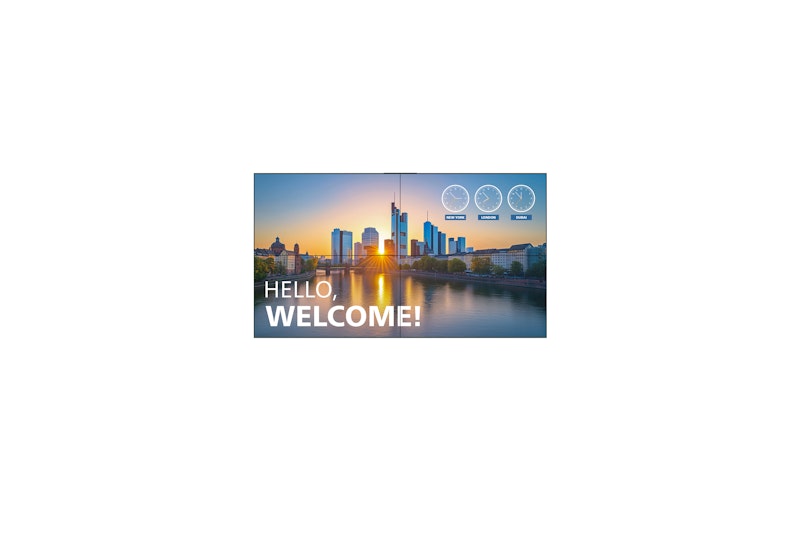

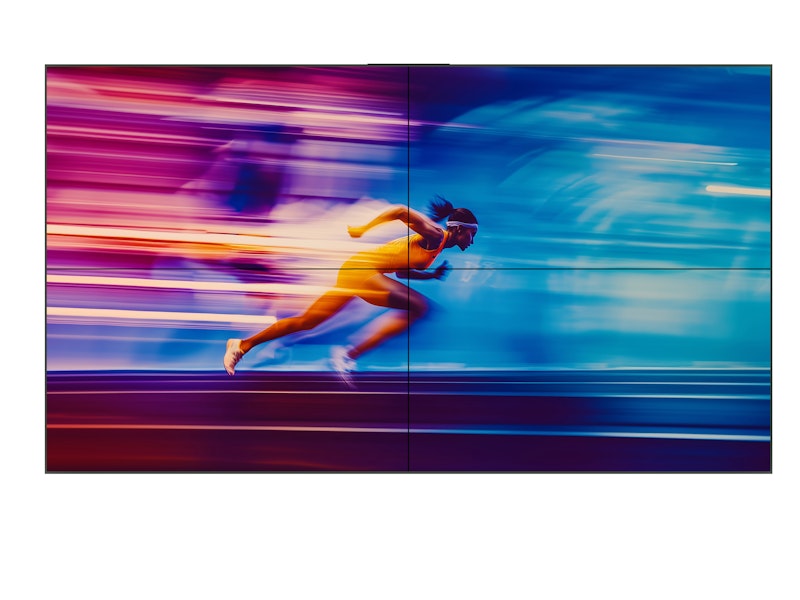

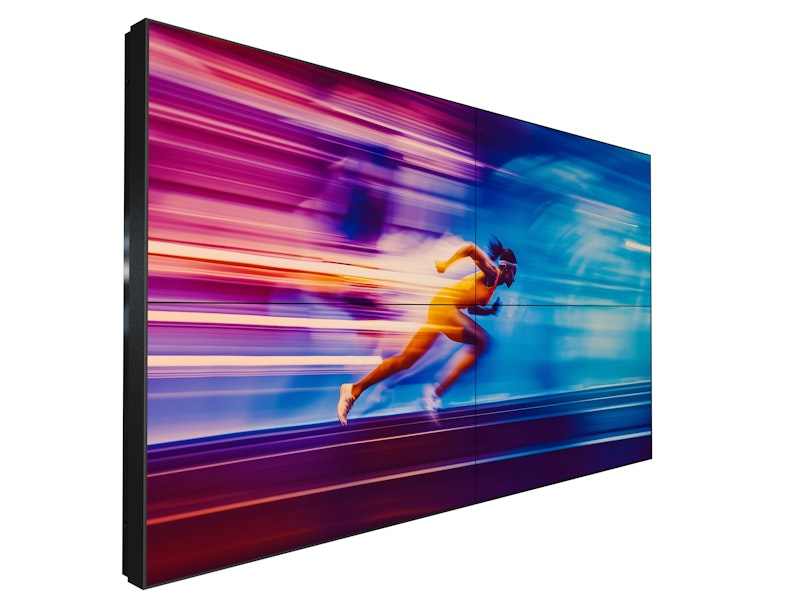

The Philips Videowall 3000 is designed for 24/7 operation and engages customers with its dynamic, immersive content. The CMND platform simplifies the management of content, while FailOver ensures enhanced reliability and peace of mind.

Get a quote

Technical Specifications

Connectivity

Audio output	3.5 mm Mini Jack (x1)
Video input	Display Port1.2 (x1)
	DVI-D (x1)
	HDMI 2.0 (x2)
	VGA (Analog D-Sub) (x1)
Audio input	3.5 mm mini jack (x1)
Other connections	OPS
	USB 2.0 (x1)
	Thermal sensor
External control	IR (in) 3.5 mm jack
	LAN RJ45 (x2)
Video output	DisplayPort 1.2 (x1)

Convenience

Network controllable	LAN (RJ45)
Tiled Matrix	Up to 15 x 15
Energy saving functions	Smart Power

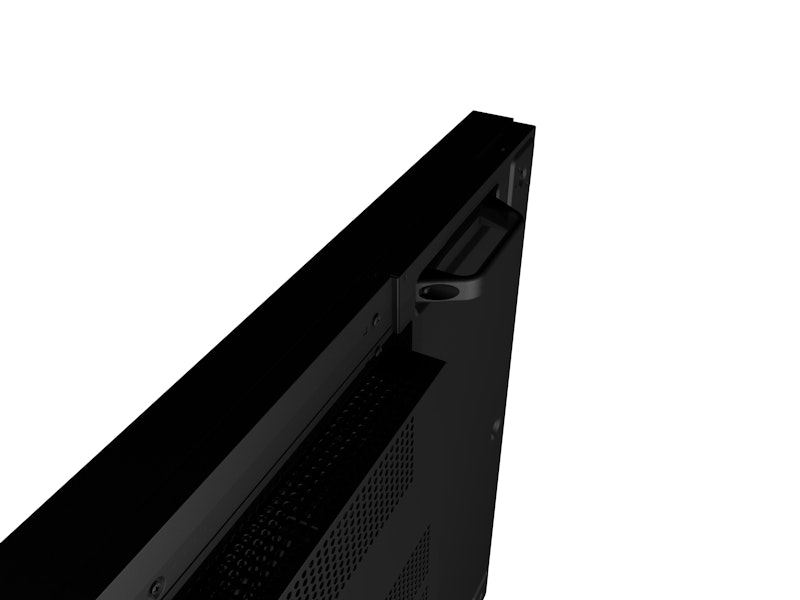

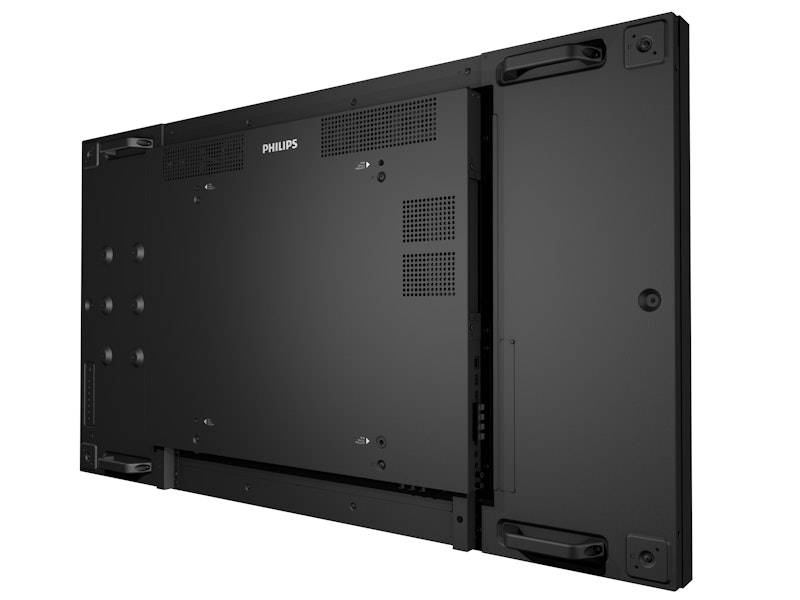

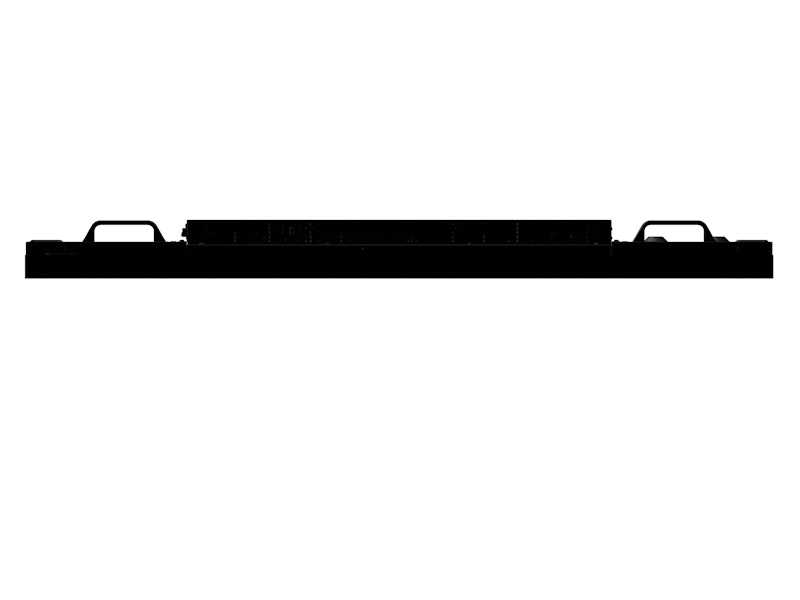

Ease of installation	Carrying Handles
	Smart Insert
Screen saving functions	Pixel Shift, Low Bright
Placement	Landscape (24/7)
	Portrait (24/7)
Signal loop through	DisplayPort
	RJ45

Accessories

Included Accessories	Gap pad x3
	IR sensor cable (1.8 m) (x1)
	Quick start guide (x1)
	Remote control & AAA batteries
	RJ45 / RS232 converter
	Wire Clamper (x3)
	Power cord
	DP cable (x1)
	RJ45 cable (x1)
	Edge alignment pin (x2)
	Kit-1 (x1)
	Kit-2 (x2)

Dimensions

Set dimensions in inch (W x H x D)	47.69 x 26.85 x 3.85 (D@WallMount) / 3.85 (D@Handle) inch
Bezel width	2.9 mm
Smart Insert mount	100mm x 100mm and 100mm x 200mm, 6xM4xL6
Product weight	28.7 kg
Set dimensions (W x H x D)	1211.3 x 682.1 x 97.8 mm (D@WallMount) / 97.8 mm (D@Handle) mm
Wall Mount	400 x 400 mm, M6

Sound

Built-in speakers	2 x 10W (RMS)

Power

Consumption (Max)	228 W
Standby power consumption	0.5W
Consumption (Typical)	164 W
Energy Label Class	G

Miscellaneous

On-Screen Display Languages	Arabic
	English
	French
	German
	Italian
	Japanese
	Polish
	Russian
	Spanish
	Simplified Chinese
	Turkish
	Traditional Chinese
Regulatory approvals	CE
	FCC, Class A
	RoHS
	CB
	ETL
	BSMI
Warranty	3 year warranty

Picture/Display

Pixel pitch	0.63 x 0.63 mm
Viewing angle (horizontal)	178 degree
Panel resolution	1920x1080p
Aspect ratio	16:9
Dynamic contrast ratio	500,000:1
Haze	25%
Optimum resolution	1920 x 1080 @ 60 Hz
Display colors	16.7 M
Contrast ratio (typical)	1200:1
Response time (typical)	8 ms
Viewing angle (vertical)	178 degree
Diagonal screen size	54.5 inch / 138.7 cm
Brightness	500 cd/m²

Operating conditions

Temperature range (operation)	0 ~ 40 °C
Humidity range (storage) [RH]	5 ~ 95% (without condensation)
Humidity range (operation)[RH]	20 ~ 80% (without condensation)
MTBF	50,000 hour(s)
Altitude	0 ~ 5000 m
Temperature range (storage)	-20 ~ 60 °C
