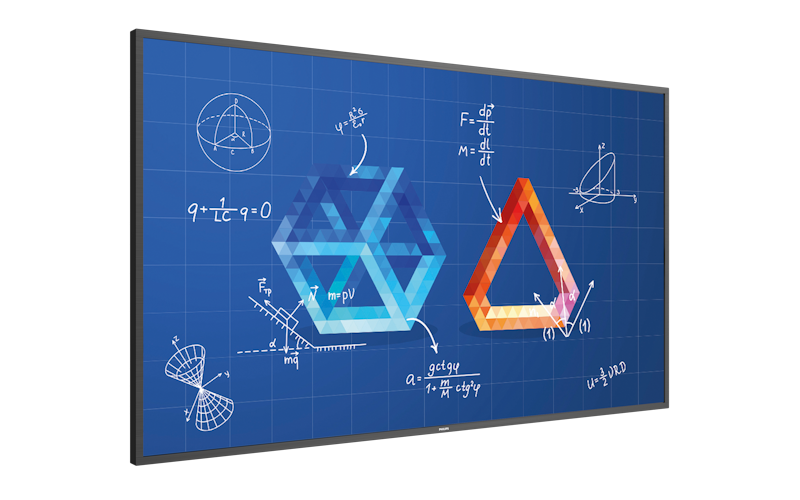

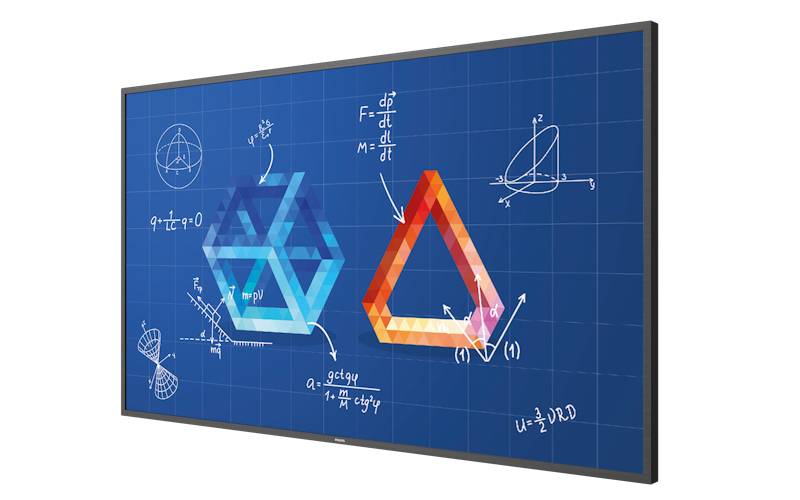

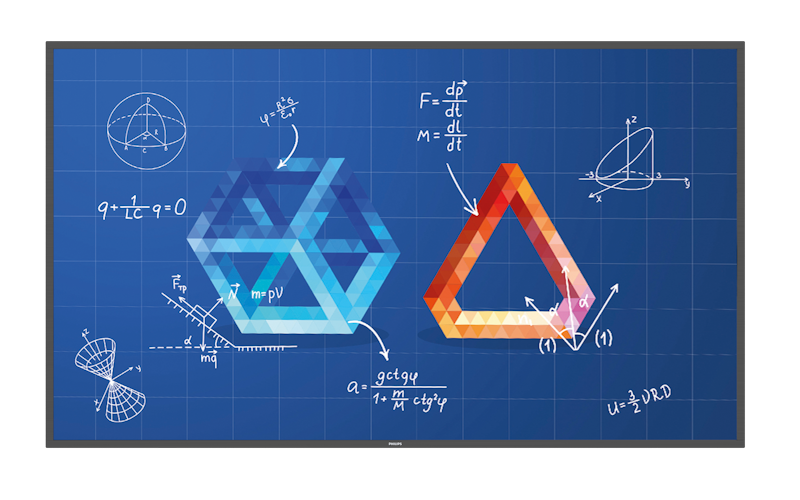

T-Line
Maximise engagement and inspire collaboration with an interactive Philips T-Line display. Featuring an anti-glare toughened glass, these Android powered displays are made to withstand heavy daily usage and feature up to 20 touchpoints
Features
Technical Specifications
Picture/Display
| Diagonal screen size (metric) | 163.9 |
|---|---|
| Diagonal screen size (inch) | 64.5 |
| Panel resolution | 3840 x 2160 |
| Optimum resolution | 3840 x 2160 @ 60 Hz |
| Brightness | 420 |
| Dynamic contrast ratio | 500,000:1 |
| Response time (typical) | 9 |
| Aspect ratio | 16:9 |
| Viewing angle (horizontal) | 178 |
| Viewing angle (vertical) | 178 |
| Pixel pitch | 0.372 x 0.372 mm |
| Display colors | 1.07 Billion |
| Picture enhancement | 3/2 - 2/2 motion pull down |
| 3D Combfilter | |
| Motion compens. deinterlacing | |
| Progressive scan | |
| 3D MA deinterlacing | |
| Dynamic contrast enhancement | |
| Surface treatment | Anti-Glare coating |
| Panel technology | IPS |
| Contrast ratio (typical) | 1300:1 |
| Operating system | Android 9 |
Supported Display Resolution
| Computer formats | 640 x 350, 70Hz |
|---|---|
| 640 x 480, 60, 67, 72, 75Hz | |
| 800 x 600, 56, 60, 72, 75Hz | |
| 832 x 624, 75Hz | |
| 848 x 480, 60Hz | |
| 960x720, 75Hz | |
| 1024x768, 60,70Hz | |
| 1152 x 864, 60, 70, 75Hz | |
| 1152 x 900, 66Hz | |
| 1280 x 720, 60,70Hz | |
| 1280 x 768, 60Hz, 75Hz | |
| 1280 x 800, 60,75Hz | |
| 1280 x 960, 60Hz | |
| 1280x1024, 60,67,75Hz | |
| 1360 x 768, 60Hz | |
| 1366 x 768, 60Hz | |
| 1400 x 1050 ,60, 75Hz | |
| 1440 x 900, 60, 75Hz | |
| 1440 x 1050, 60Hz | |
| 1600 x 900, 60Hz | |
| 1600 x 1200, 60Hz | |
| 1680 x 1050, 60Hz | |
| 1920 x 1080, 60Hz | |
| 1920 x 1200, 60Hz | |
| 3840 x 2160, 24,25,30,60Hz | |
| Video formats | 480p, 60Hz |
| 576p, 50Hz | |
| 720p, 60Hz | |
| 720p, 50, 60Hz | |
| 1080i, 50, 60Hz | |
| 1080p, 50, 60Hz | |
| 4K x 2K |
Connectivity
| Video input | Display Port1.2 (x1) |
|---|---|
| DVI-I (x 1) | |
| HDMI 2.0 (x2) | |
| HDMI 2.0 (x4) | |
| USB 2.0 (x2) | |
| USB 3.0 (x2) | |
| USB-C | |
| Audio input | 3.5mm Jack (x1) |
| Video output | DisplayPort 1.2 (x1) |
| DVI - D (x1) | |
| USB 2.0 (x2) | |
| HDMI 2.0 (x2) | |
| Audio output | 3.5mm Jack (x2) |
| External control | IR (in/out) 3.5 mm jack |
| RJ45 | |
| RS232C (in/out) 2.5 mm jack | |
| Other connections | OPS |
| micro SD |
Convenience
| Placement | Portrait (12/7) |
|---|---|
| Landscape (18/7) | |
| Screen saving functions | Pixel Shift, Low Brightness |
| Signal loop through | DisplayPort |
| RS232 | |
| IR Loopthrough | |
| Ease of installation | Smart Insert |
| Energy saving functions | Smart Power |
| Picture performance | Advanced color control |
| Network controllable | RS232 |
| RJ45 | |
| Keyboard control | Hidden |
| Lockable | |
| Remote control signal | Lockable |
| Other convenience | Carrying handles |
Operating conditions
| Temperature range (operation) | 0 ~ 40 |
|---|---|
| Temperature range (storage) | -20 ~ 60 |
| Relative humidity | 20 ~ 80%(Operational),5 - 95%(Storage) |
| Altitude | 0 ~ 3000 m |
| MTBF | 50,000 |
Power
| Consumption (Typical) | 175 |
|---|---|
| Consumption (Max) | 350 W |
| Standby power consumption | <0.5W |
| Mains power | 100 ~ 240 VAC, 50 ~ 60 Hz |
| Power Saving Features | Smart Power |
| Energy Label Class | G |
Sound
| Built-in speakers | 2 x 20W RMS |
|---|
Accessories
| Optional accessories | Interact dongles |
|---|---|
| Included Accessories | Cleaning cloth (x1) |
| DVI-D cable (1.8m ) | |
| M2 Screw (x2) | |
| M3 screw (x2) | |
| Philips logo (x1) | |
| RS232 daisy-chain cable | |
| Touch Pen (x2) | |
| Touch USB (x1) | |
| USB Cover (x1) | |
| AC power cord | |
| Batteries for remote control | |
| HDMI cable | |
| IR sensor cable (1.8 m) (x1) | |
| Quick start guide (x1) | |
| Remote control (x1) | |
| RS232 cable |
Miscellaneous
| On-Screen Display Languages | Arabic |
|---|---|
| Dutch | |
| Danish | |
| English | |
| French | |
| Finnish | |
| German | |
| Italian | |
| Japanese | |
| Norwegian | |
| Polish | |
| Portuguese | |
| Russian | |
| Spanish | |
| Swedish | |
| Simplified Chinese | |
| Turkish | |
| Traditional Chinese | |
| Regulatory approvals | CE |
| FCC, Class A | |
| RoHS | |
| CB | |
| BSMI | |
| EAC | |
| EMF | |
| PSB | |
| ETL | |
| Warranty | 5 year warranty |
Multimedia Applications
| USB Playback Video | ASF |
|---|---|
| AVI | |
| DAT | |
| FLV | |
| MKV | |
| MP4 | |
| MPEG | |
| MPG | |
| TS | |
| VOB | |
| WEBM | |
| WMV | |
| USB Playback Picture | BMP |
| JPEG | |
| JPG | |
| PNG | |
| USB Playback Audio | AAC |
| M4A | |
| MP3 | |
| WMA |
Interactivity
| Multi-touch technology | 0-gap Infrared touch |
|---|---|
| Touch points | 20 simultaneous touch points |
| Plug and play | HID compliant |
| Protection glass | Anti-Glare |
| Tempered safety glass |
Internal Player
| CPU | MTK5680 |
|---|---|
| GPU | DDR4 4GB |
| Memory | 4GB RAM |
| Storage | 32 GB eMMc |
| Wifi | AP(WC0SR2511-88112BU) |
| STA(WCT5GM2511MT7668AU) |
Dimensions
| Smart Insert mount | 100mm x 100mm, 6xM4L6 |
|---|---|
| Set Width | 1494.30 |
| Set Height | 869.40 |

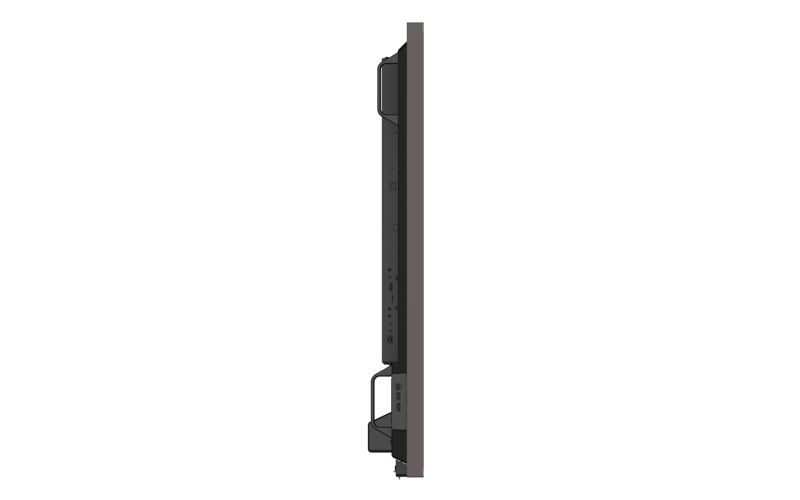

| Set Depth | 80.2mm(D@wall mount) / 106.8mm (D@speaker cover) |
| Set Width (inch) | 58.83 |
| Set Height (inch) | 34.23 |
| Set Depth (inch) | 3.16(D@wall mount) / 4.20 (D@speaker cover) |
| Bezel width | 17.8 mm(even) |
| Wall Mount | 400(H)x400(V), M8 |
| Product weight | 43.6 |
| Product weight (lb) | 96.12 |
