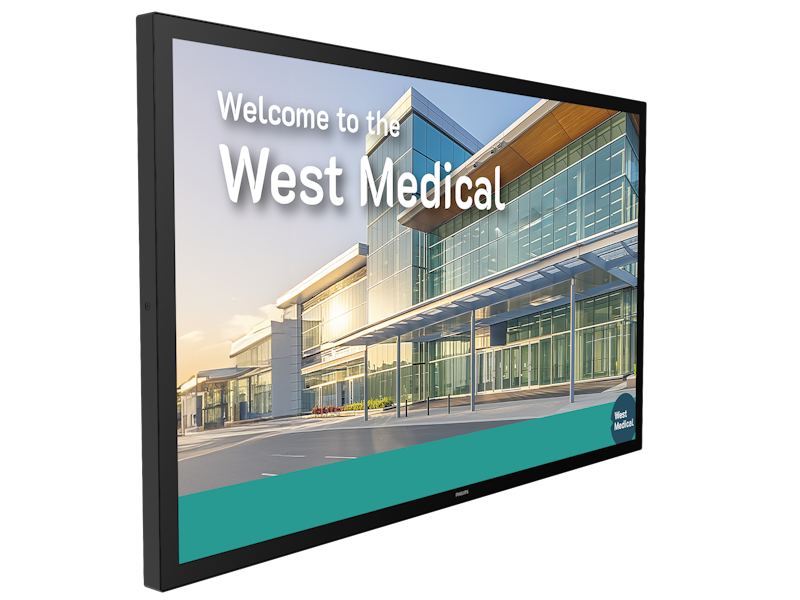

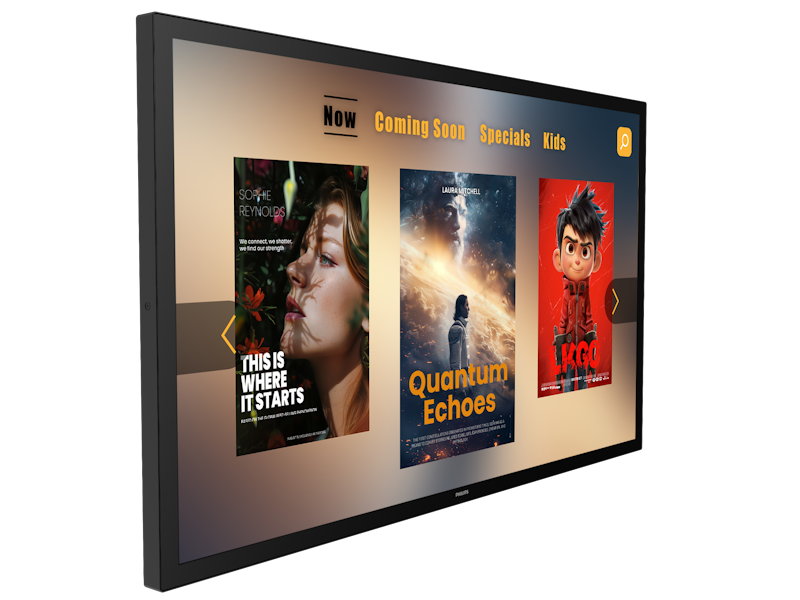

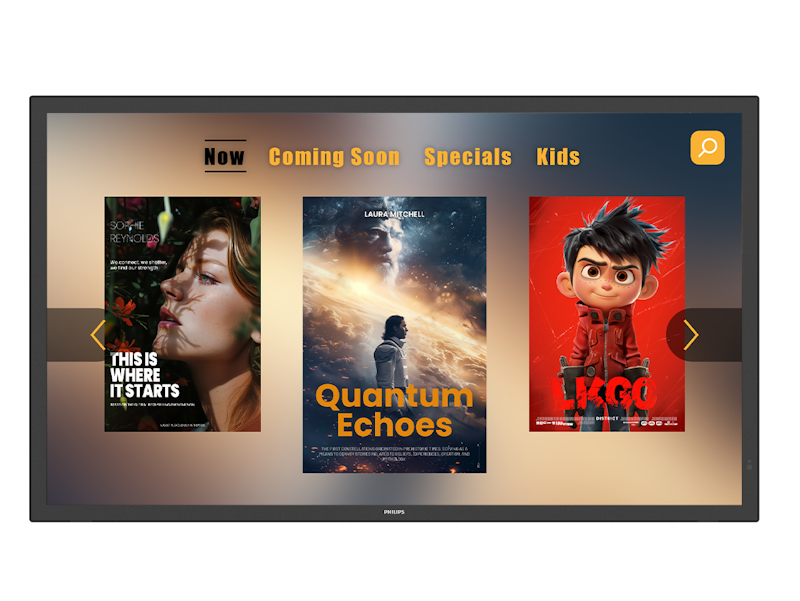

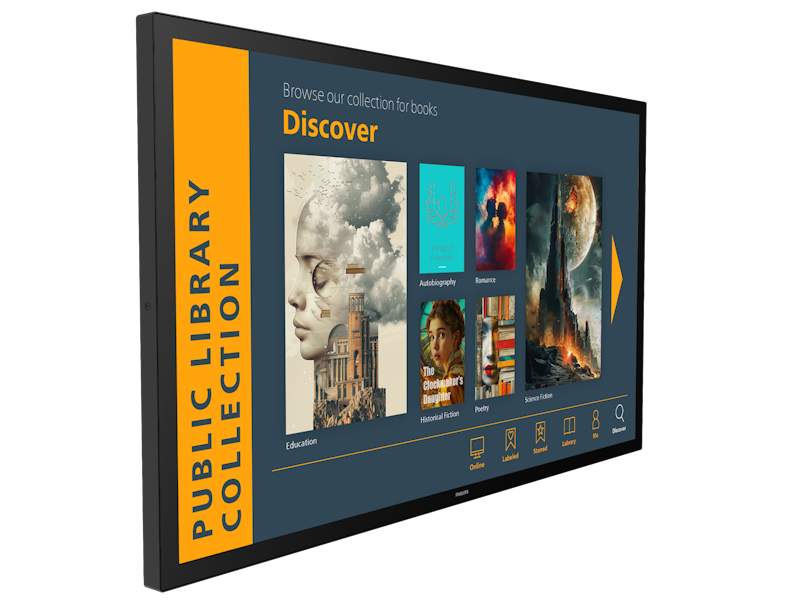

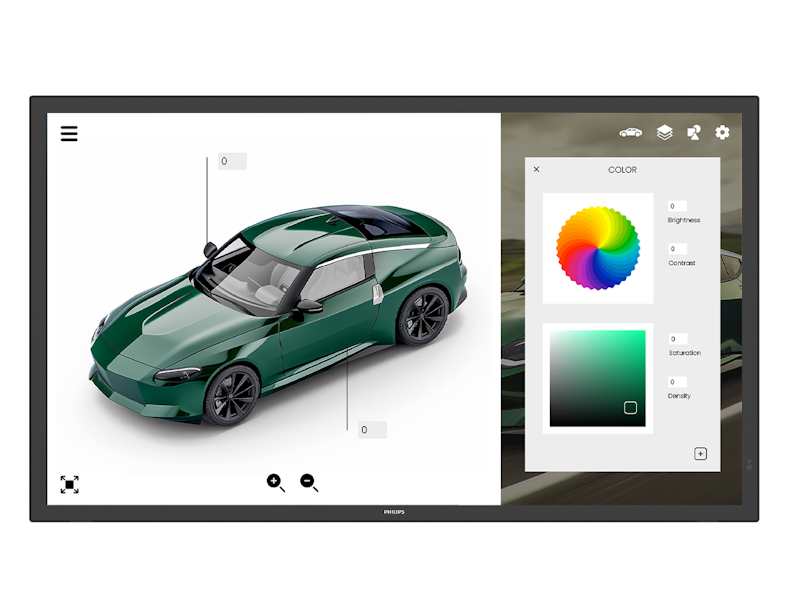

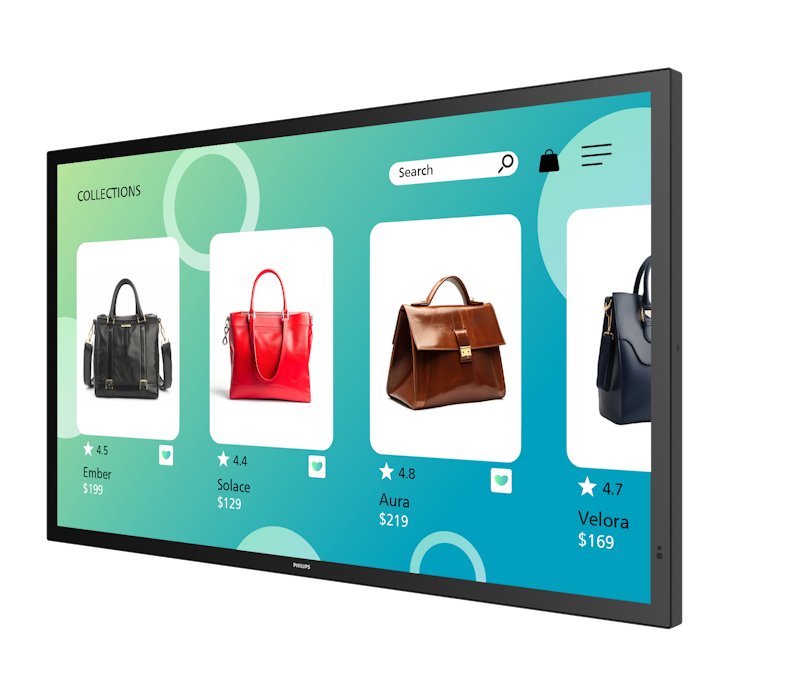

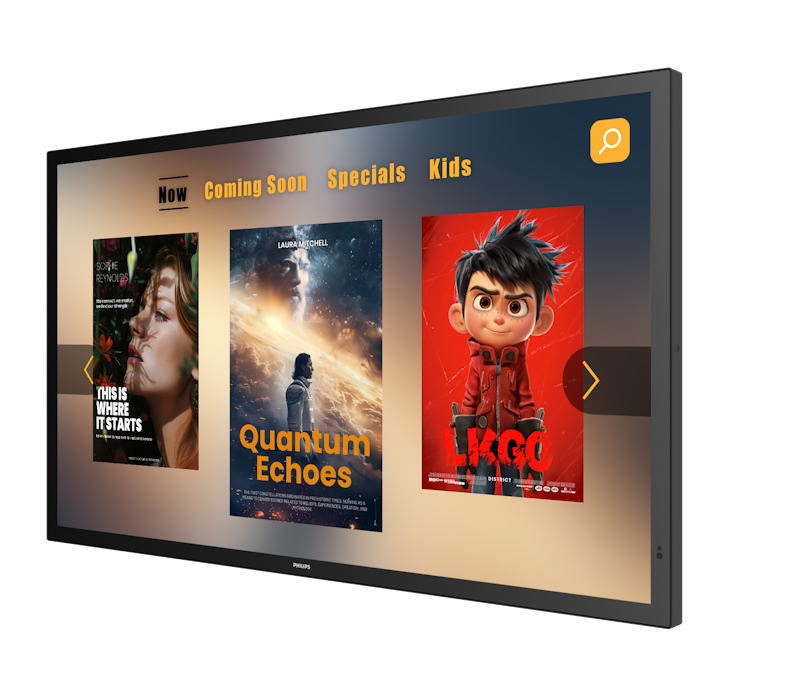

T-Line

43BDL3751T/00

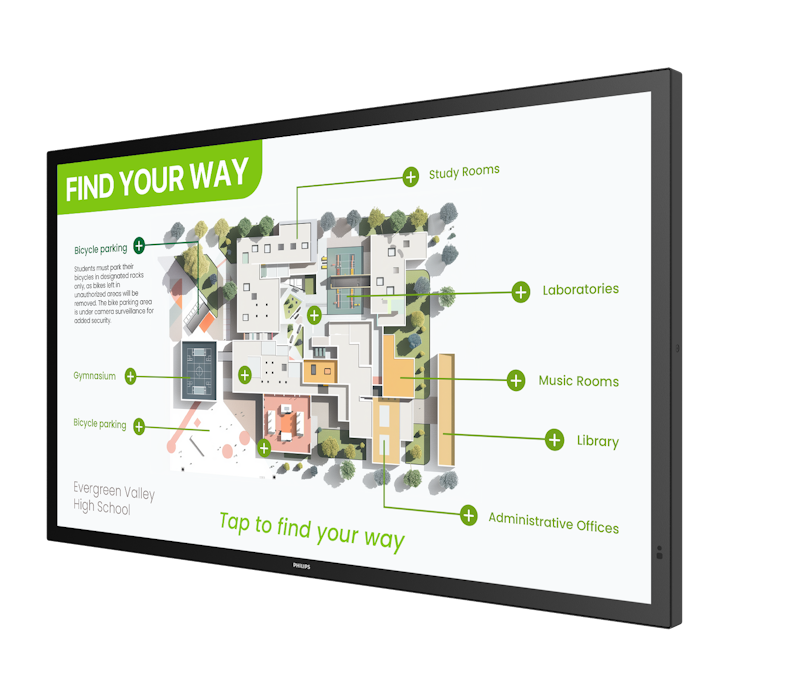

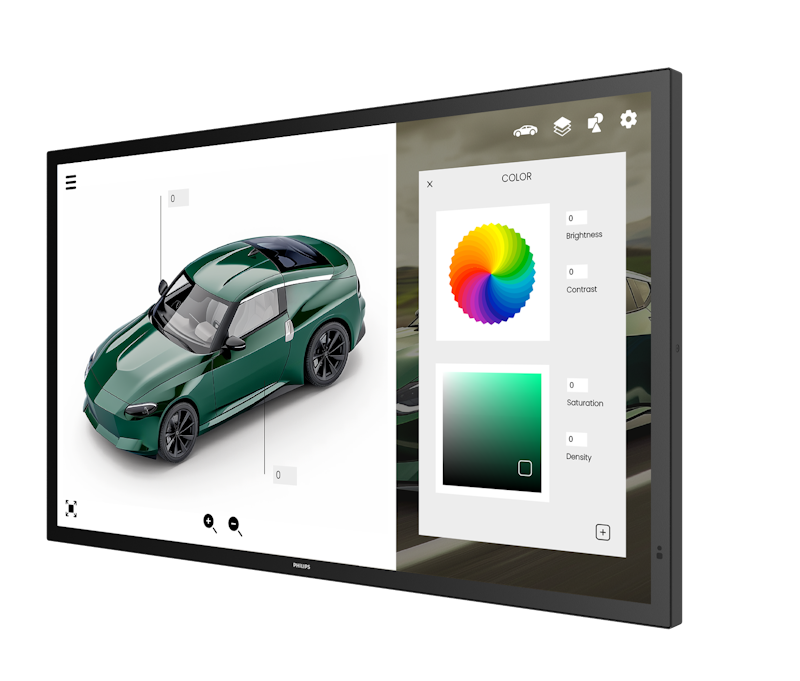

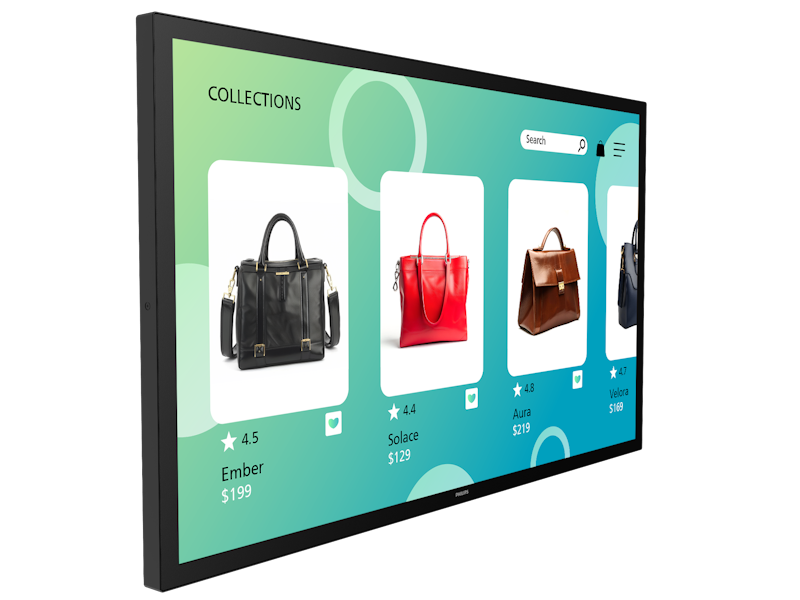

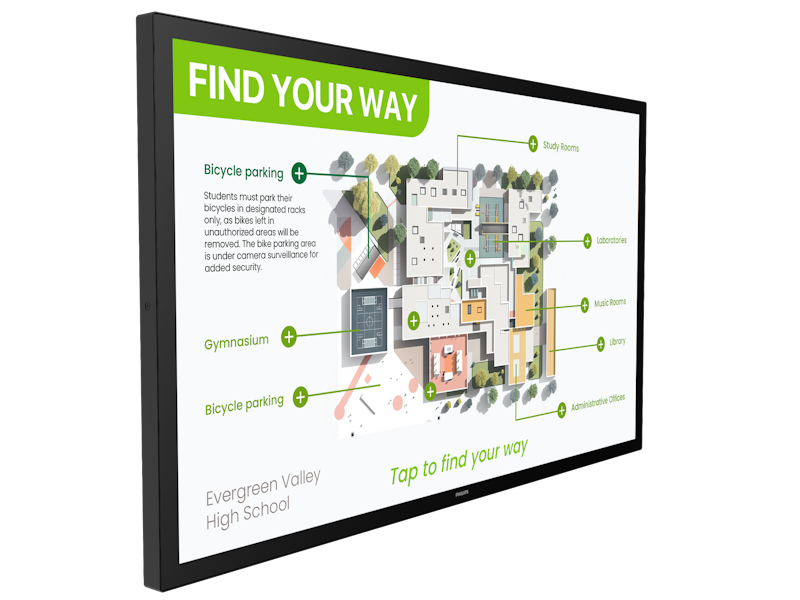

Delivering 24/7 operation with 450 nits brightness, this versatile PCAP display is also designed to reduce energy consumption across the range. Engage. Inspire. Connect. With Android 13, Wave ready, and no need for an external media player.

Get a quote

Technical Specifications

Weight

Product with packaging (kg)	20.63 kg
Product without packaging (kg)	17.05 kg
Product with packaging (lb)	45.48 lb
Product without packaging (lb)	37.59 lb

Miscellaneous

On-Screen Display Languages	Arabic
	English
	French
	German
	Italian
	Japanese
	Polish
	Spanish
	Turkish
	Russian
	Simplified Chinese
	Traditional Chinese
	Danish
	Dutch
	Finnish
	Norwegian
	Portuguese
	Swedish
Regulatory approvals	CE
	CB
	BSMI
	FCC, Class A
	CU
	ETL
	IMDA
	PSB
	RoHS
	EnergyStar 8.0
Warranty	3 year warranty

Picture/Display

Pixel pitch	0.245 mm
Panel technology	ADS
Viewing angle (horizontal)	178 degree
Brightness max. (before glass)	500 cd/m²
Panel resolution	3840 x 2160
Surface treatments	Anti-Glare coating
	Anti-Fingerprint coating
Aspect ratio	16:9
Operating system	Android 13
Diagonal screen size (inch)	42.5" inch
Optimum resolution	3840 x 2160 @ 60 Hz
OS UI resolution	UHD
Diagonal screen size (metric)	108.0 cm
Display colors	1.07 B
Response time (typical)	8 ms
Viewing angle (vertical)	178 degree
Picture enhancement	3/2 - 2/2 motion pull down
	3D Combfilter
	3D MA deinterlacing
	Dynamic contrast enhancement
	Motion compens. deinterlacing
	Progressive scan
Brightness max. (after glass)	450 cd/m²
Contrast ratio (typical)	1200:1

Operating conditions

Temperature range (operation)	0 ~ 40 °C
Humidity range (storage) [RH]	5 ~ 95% (without condensation)
Humidity range (operation)[RH]	20 ~ 80% (without condensation)
Altitude	0 ~ 3000 m
MTBF	50,000 hour(s)
Temperature range (storage)	-20 ~ 60 °C

Supported Display Resolution

Computer formats	720 x 400, 70Hz
	640 x 480, 60,67,75Hz
	800 x 600, 60Hz
	832 x 624, 75Hz
	1024 x 768, 60Hz
	1152 x 870, 75Hz
	1280 x 720, 60Hz
	1920 x 1080, 60Hz
	1680 x 1050, 60Hz
	3840 x 2160, 30, 60Hz
	1920 x 1200, 60Hz
	3840 x 2160, 60 Hz, 50 Hz
Video formats	480i, 60Hz
	480p, 60Hz
	576p, 50Hz
	576i, 50Hz
	720p, 50, 60Hz
	1080i, 50, 60Hz
	1080p, 50, 60Hz
	3840 x 2160, 30, 60Hz

Interactivity

Multi-touch technology	Projected capacitive
Plug and play	HID compliant
Protection glass	3 mm tempered safety glass
Touch points	10 simultaneous touch points

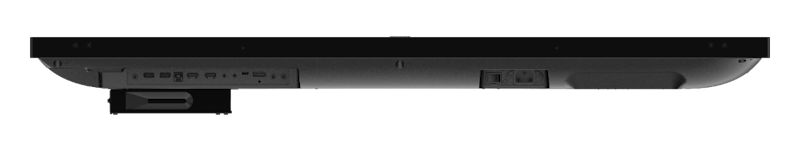

Connectivity

Audio output	3.5mm jack
Video input	HDMI 2.0 (x2)
	Display Port1.3 (x1)
	USB-C (with 15W power delivery)
External control	Gigabit LAN RJ45
	IR (in/out) 3.5 mm jack
	RS232 (in/out) 2.5 mm jack
Other connections	Micro USB (x1) (OTG)
	USB 3.0 A (x2)
	USB 3.0 B (x1)
	Wifi: 2T/2R 2.4/5/6 GHz
	Bluetooth 5.2

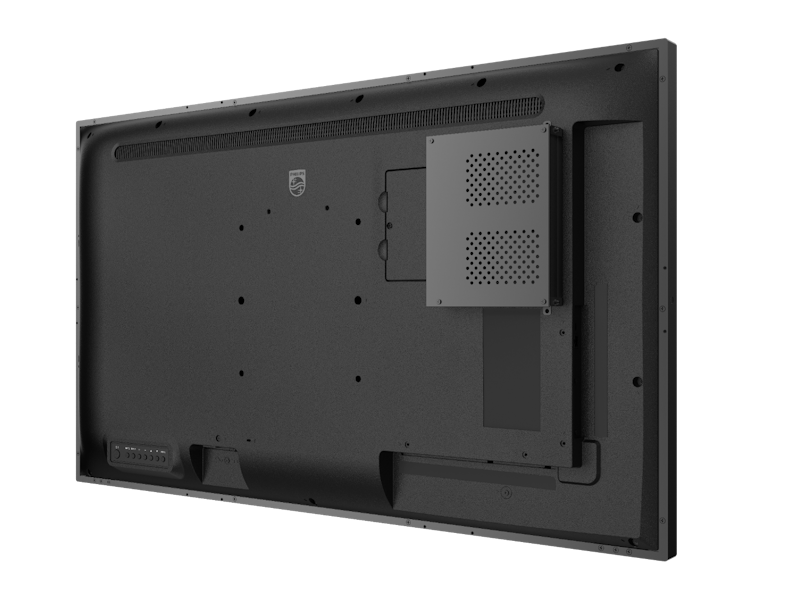

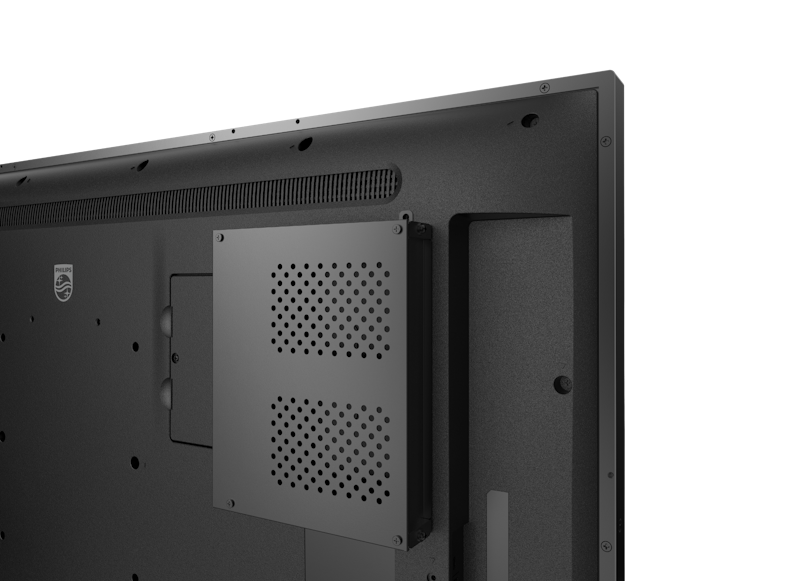

	OPS (external, removable)

Convenience

Network controllable	RS232
	RJ45

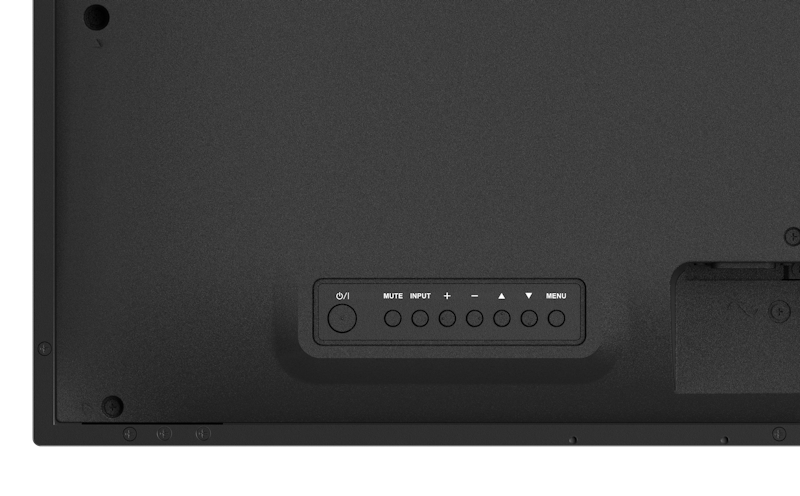

Keyboard control	Hidden
	Lockable

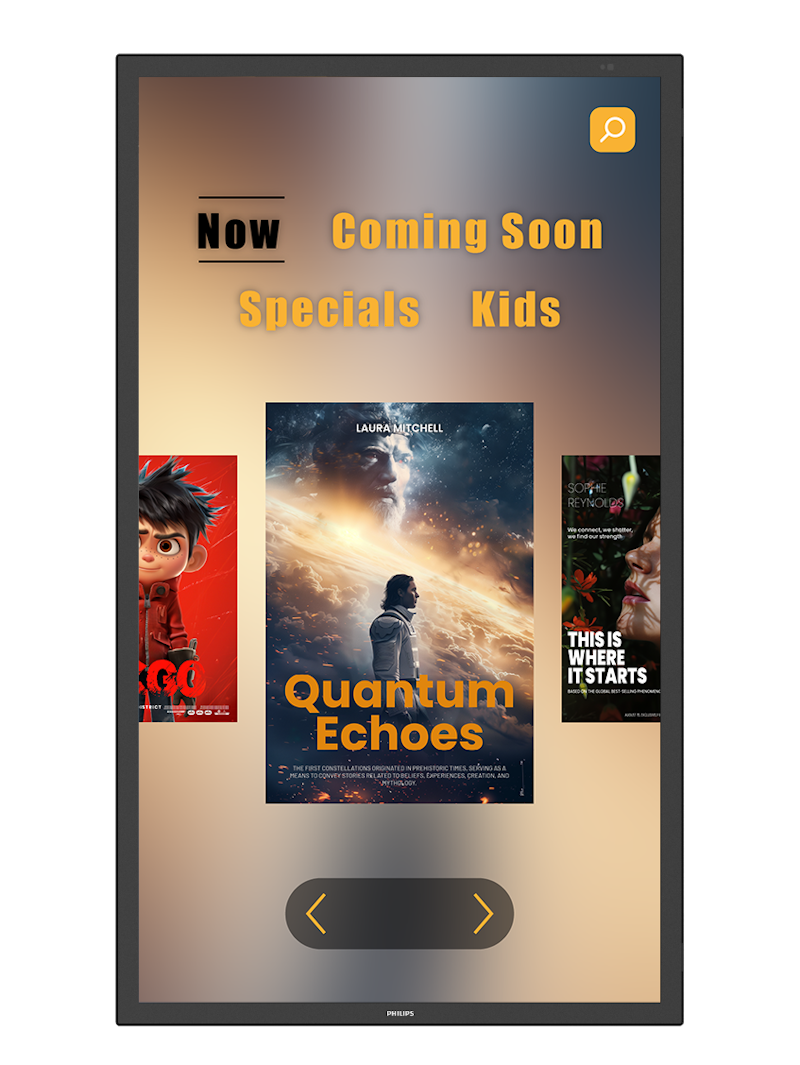

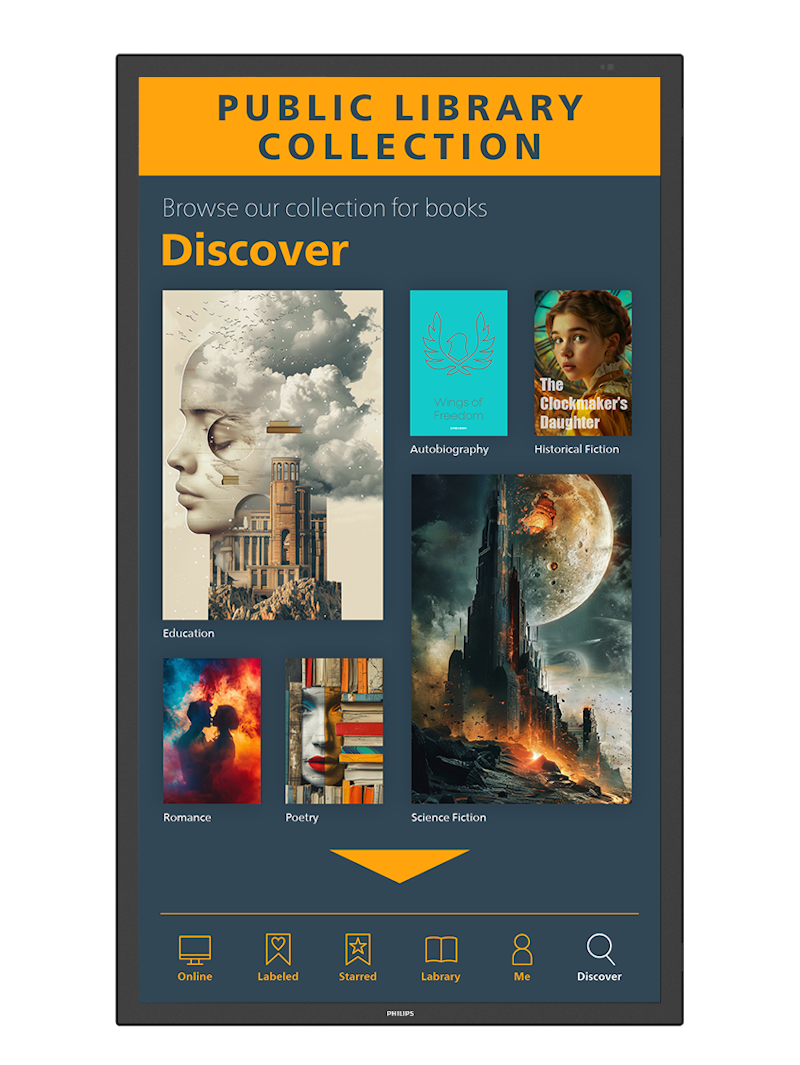

Placement	Landscape (24/7)

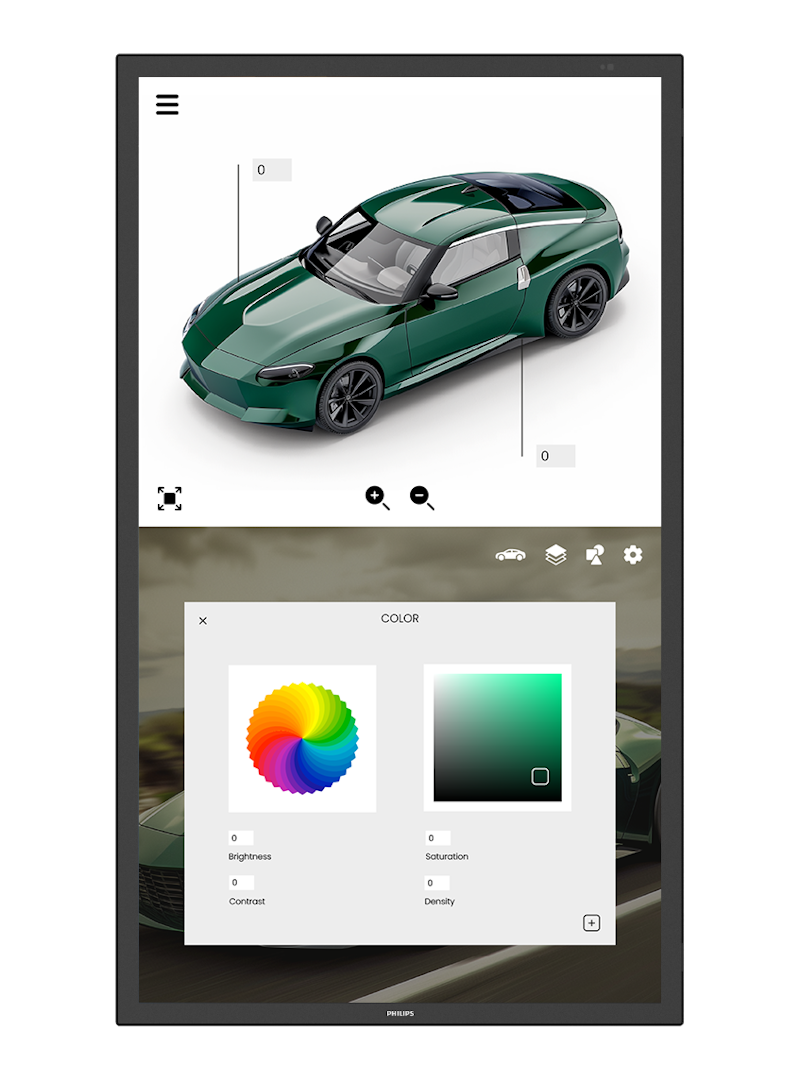

	Portrait (24/7)
	Tilted installation up to 30° backwards
Signal loop through	IR Loopthrough
	RS232
Remote control signal	Lockable
Screen saving functions	Pixel Shift, Low Brightness

Accessories

Stand	BM05922 (Optional)
Included Accessories	Philips logo (x1)
	Power supply cable (3 m)
	Quick start guide (x1)
	Remote control & AAA batteries
	AC Switch Cover
	RS232 cable (3 m) (x1)
	USB A to B cable (3m) (x1)
	Wifi Antennas (2 pcs)
	CRD32 wifi module
Optional accessories	Open frame kit (BM03751)

Internal Player

Memory	4GB DDR3
Storage	32 GB eMMc
CPU	Quad Core Cortex A55
GPU	Multi-Core Mali-G52

Dimensions

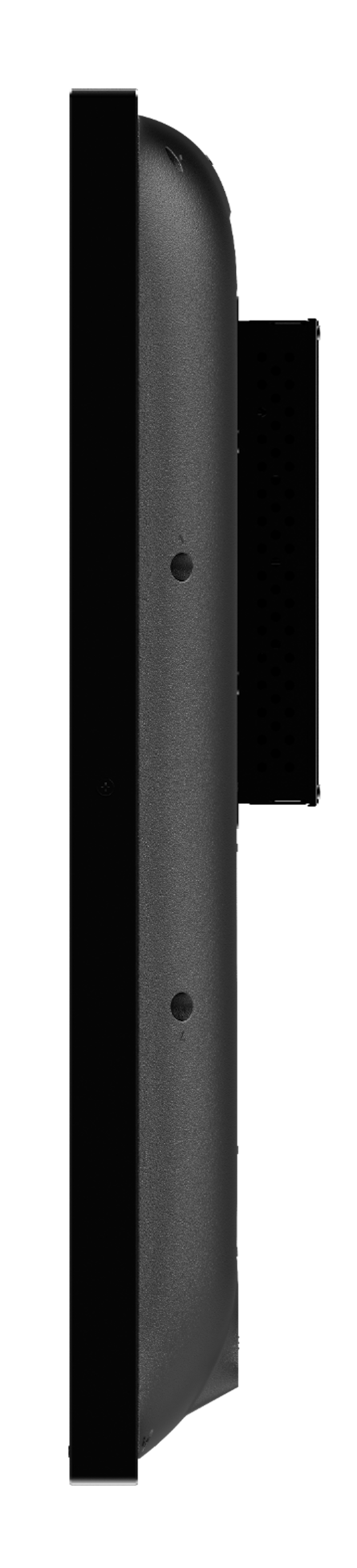

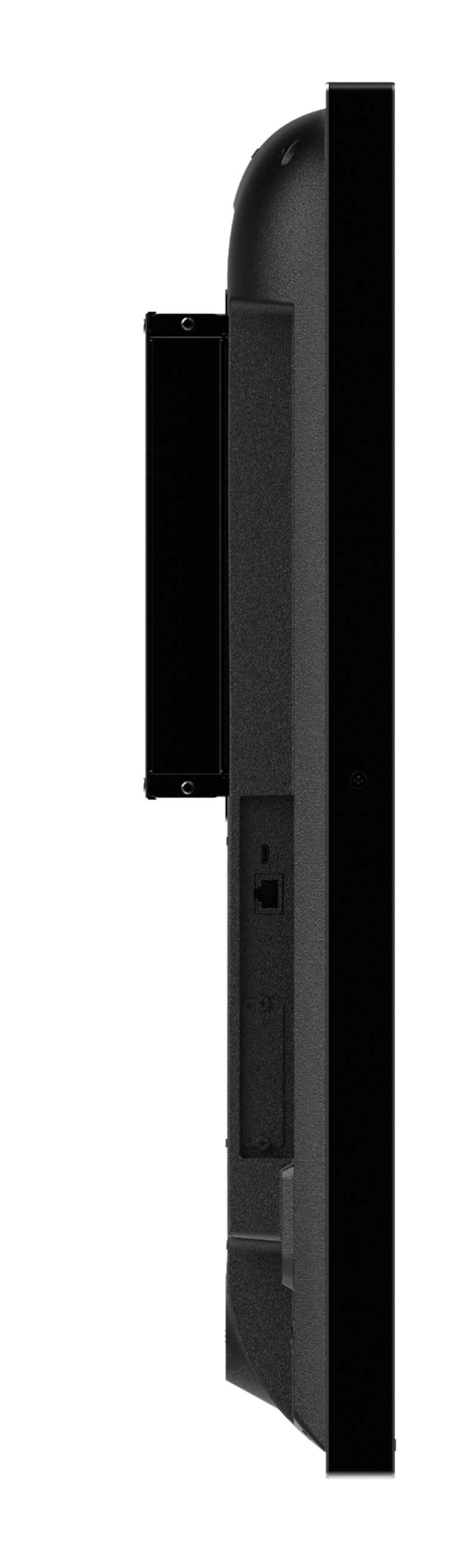

Set Depth	69.3 mm (Wall mount) / 103.9 mm (external OPS box) mm
Bezel width	23.4 mm touch black border (T/R/L/B)
Set Width (inch)	38.98" inch
Set Height	578.2 mm
Set Width	990.0 mm

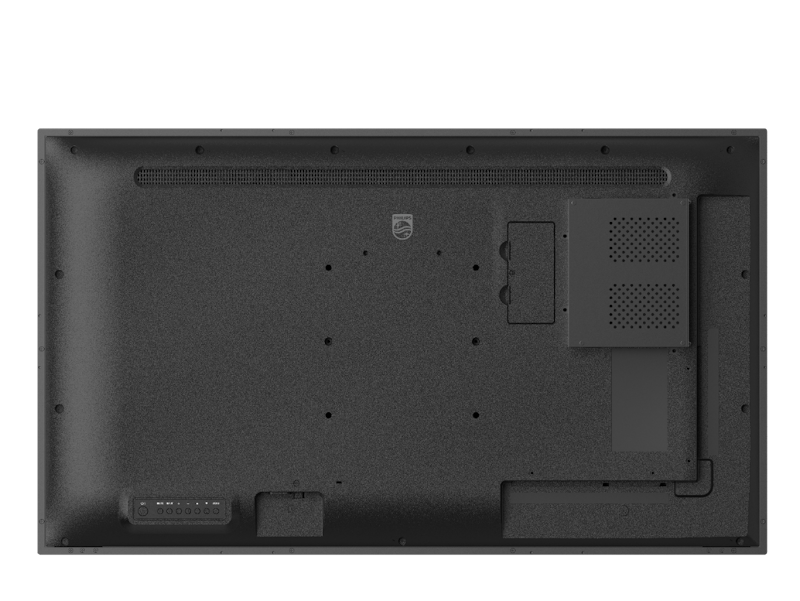

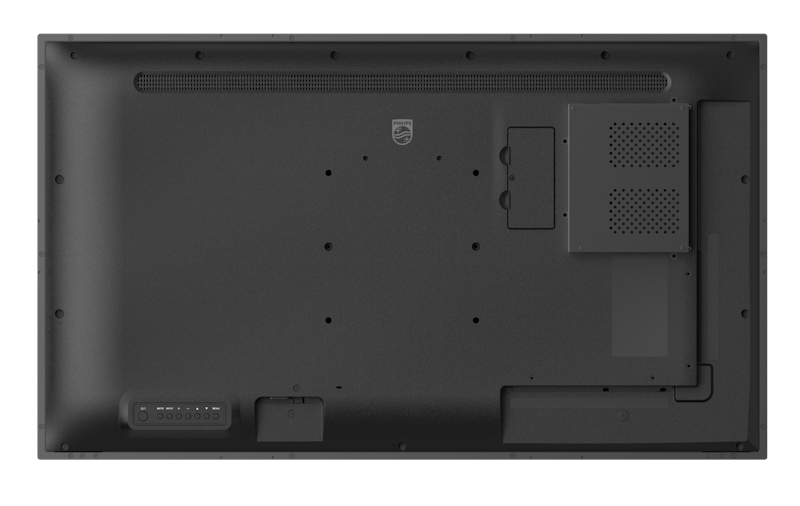

Wall Mount	200 mm x 200 mm , M6
Set Depth (inch)	2.73" (Wall mount) / 4.09" (external OPS box) inch
Set Height (inch)	22.76" inch

Sound

Built-in speakers	2 x 10W

Power

Consumption (Max)	145 W
Standby power consumption	<0.5W
Mains power	100 ~ 240 VAC, 50/60Hz
Consumption (Typical)	65 W
Energy Label Class	G

Multimedia Applications

USB Playback Audio	AAC
	HEAAC
	MPEG 1/2/2.5 Layer 3
	MPEG 1/2 Layer 1
	MPEG 1/2 Layer 2
USB Playback Picture	JPEG
	PNG
	BMP
	WEBP
USB Playback Video	MPEG 1/2 (1080p 60Hz)
	MPEG 4 (1080p 60Hz)
	H.263 (1080p 60Hz)
	H.264 (4K2K 120Hz)
	H.265 (4K2K 120Hz)
	VP8 (1080p 60Hz)
	VP9 (4K2K 120Hz)
