T-Line

24BDL3751T/00

Delivering 24/7 operation with 250 nits brightness, this versatile PCAP display is also designed to reduce energy consumption across the range. Engage. Inspire. Connect. With Android 13, Wave ready, and no need for an external media player.

Get a quote

Technical Specifications

Miscellaneous

On-Screen Display Languages	Arabic
	English
	French
	German
	Italian
	Japanese
	Polish
	Spanish
	Turkish
	Russian
	Simplified Chinese
	Traditional Chinese
	Danish
	Dutch
	Finnish
	Norwegian
	Portuguese
	Swedish
Warranty	3 year warranty
Regulatory approvals	CB
	CE
	FCC, Class A
	RoHS
	BSMI
	CU
	ETL
	IMDA
	PSB

Weight

Product with packaging (kg)	6.7 kg
Product with packaging (lb)	14.77 lb
Product without packaging (kg)	4.78 kg
Product without packaging (lb)	10.54 lb

Operating conditions

Temperature range (operation)	0 ~ 40 °C
Humidity range (storage) [RH]	5 ~ 95% (without condensation)
MTBF	50,000 hour(s)
Altitude	0 ~ 3000 m
Humidity range (operation)[RH]	20 ~ 80% (without condensation)
Temperature range (storage)	-20~60 °C

Picture/Display

Pixel pitch	0.2745 mm
Panel technology	ADS
Viewing angle (horizontal)	178 degree
Panel resolution	1920 x 1080
Aspect ratio	16:9
Brightness (before glass)	275 cd/m²
Surface treatments	Anti-Glare coating
	Anti-Fingerprint coating
Diagonal screen size (inch)	23.8" inch
Brightness (after glass)	250 cd/m²
Optimum resolution	1920 x 1080 @ 60 Hz
Operating system	Android 13
OS UI resolution	FHD
Display colors	16.7 M
Diagonal screen size (metric)	60.5 cm
Contrast ratio (typical)	1000:1
Response time (typical)	8 ms
Viewing angle (vertical)	178 degree
Picture enhancement	3/2 - 2/2 motion pull down
	3D Combfilter
	3D MA deinterlacing
	Motion compens. deinterlacing
	Progressive scan

Supported Display Resolution

Computer formats	720 x 400, 70Hz
	640 x 480, 60,67,75Hz
	800 x 600, 60Hz
	832 x 624, 75Hz
	1024 x 768, 60Hz
	1152 x 870, 75Hz
	1280 x 720, 60Hz
	1920 x 1080, 60Hz
	1680 x 1050, 60Hz
	3840 x 2160, 30, 60Hz
Video formats	480i, 60Hz
	480p, 60Hz
	576p, 50Hz
	576i, 50Hz
	720p, 50, 60Hz
	1080i, 50, 60Hz
	1080p, 50, 60Hz
	3840 x 2160, 30, 60Hz

Interactivity

Plug and play	HID compliant
Multi-touch technology	Projected capacitive
Protection glass	1.8 mm tempered safety glass
Touch points	10 simultaneous touch points

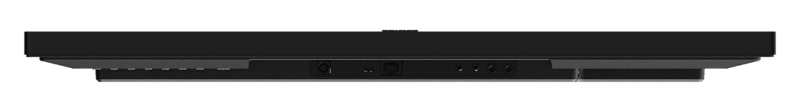

Connectivity

Audio output	3.5mm jack
Video input	HDMI 2.0 (x2)
	Display Port1.3 (x1)
	USB-C (with 15W power delivery)
Other connections	Micro USB (x1) (OTG)
	USB 3.0 A (x2)
	USB 3.0 B (x1)
	Wifi: 2T/2R 2.4/5/6 GHz
	Bluetooth 5.2
External control	Gigabit LAN RJ45
	IR (in/out) 3.5 mm jack
	RS232 (in/out) 2.5 mm jack

Convenience

Network controllable	RS232
	RJ45
Screen saving functions	Pixel Shift, Low Brightness
Remote control signal	Lockable

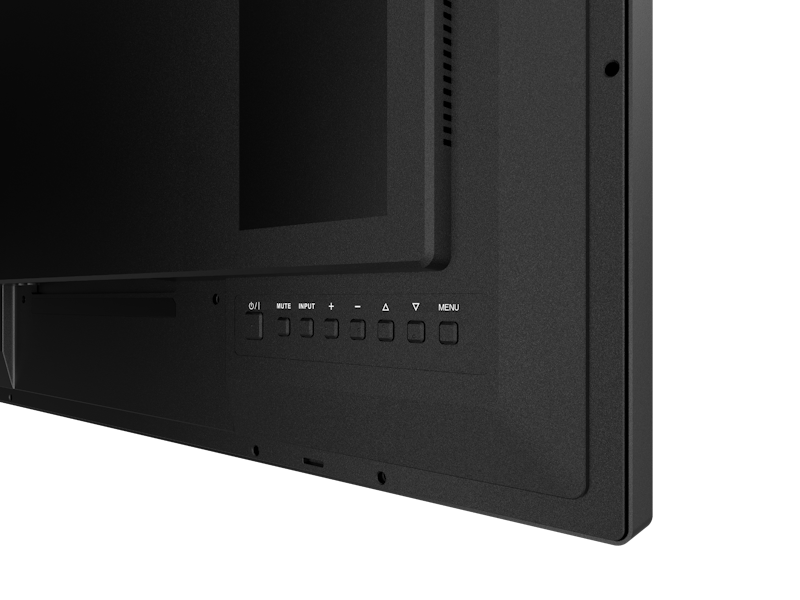

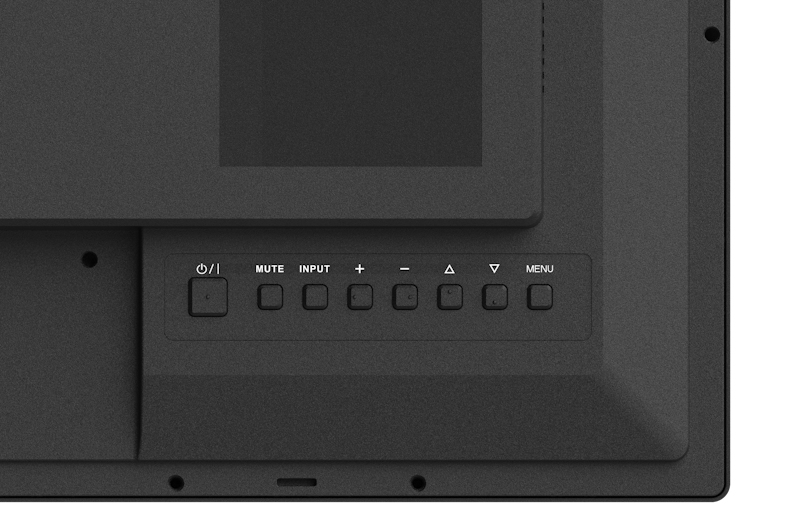

Keyboard control	Hidden
	Lockable
Signal loop through	IR Loopthrough
	RS232
Placement	Landscape (24/7)

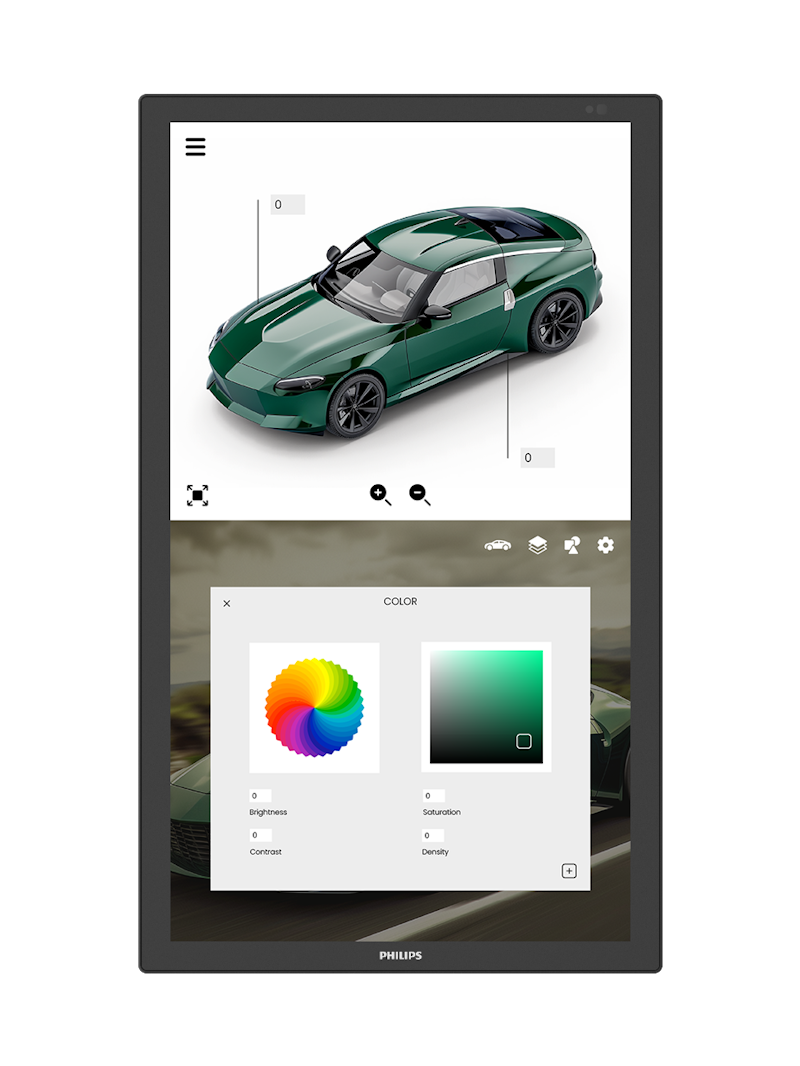

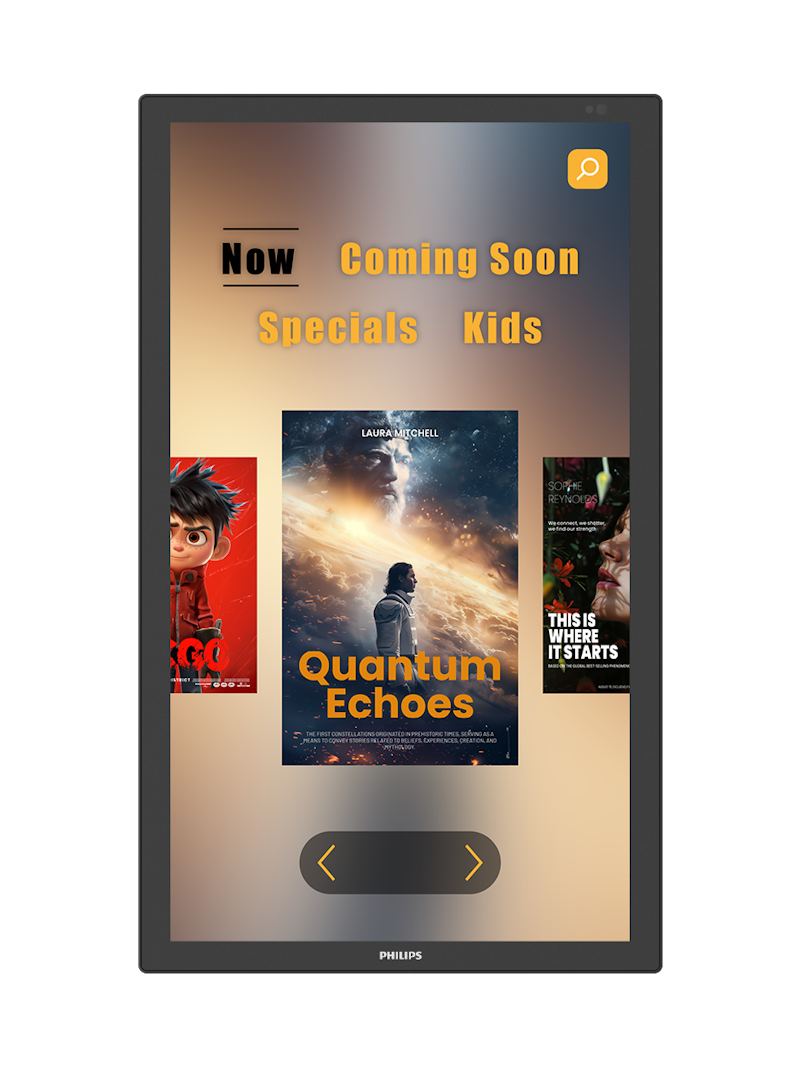

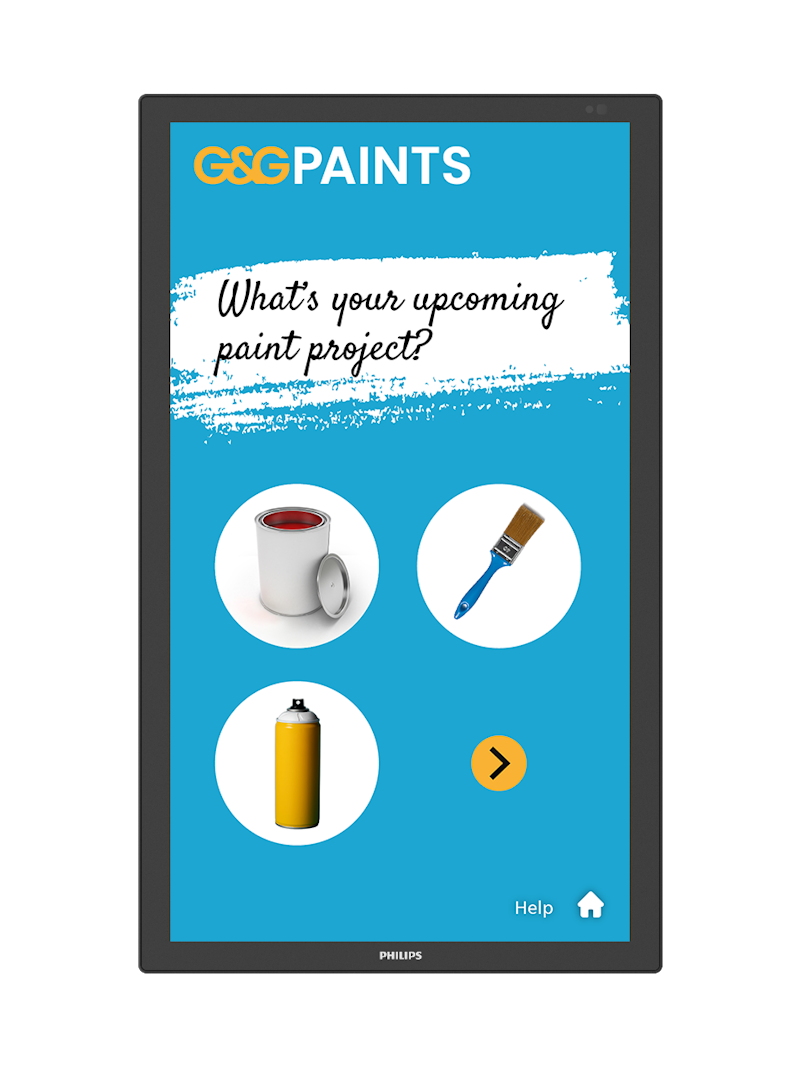

	Portrait (24/7)
	Tilted installation up to 30° backwards

Accessories

Stand	BM05911 (optional)
Included Accessories	Philips logo (x1)
	Power supply cable (3 m)
	AC power adapter
	Quick start guide (x1)
	Remote control & AAA batteries
	RS232 cable (3 m) (x1)
	USB A to B cable (3m) (x1)
	Wall mount bolt x2
Optional accessories	Open frame kit (BM03752)

Internal Player

Storage	32 GB eMMc
Memory	4GB DDR3
GPU	Multi-Core Mali-G52
CPU	Quad Core Cortex A55

Dimensions

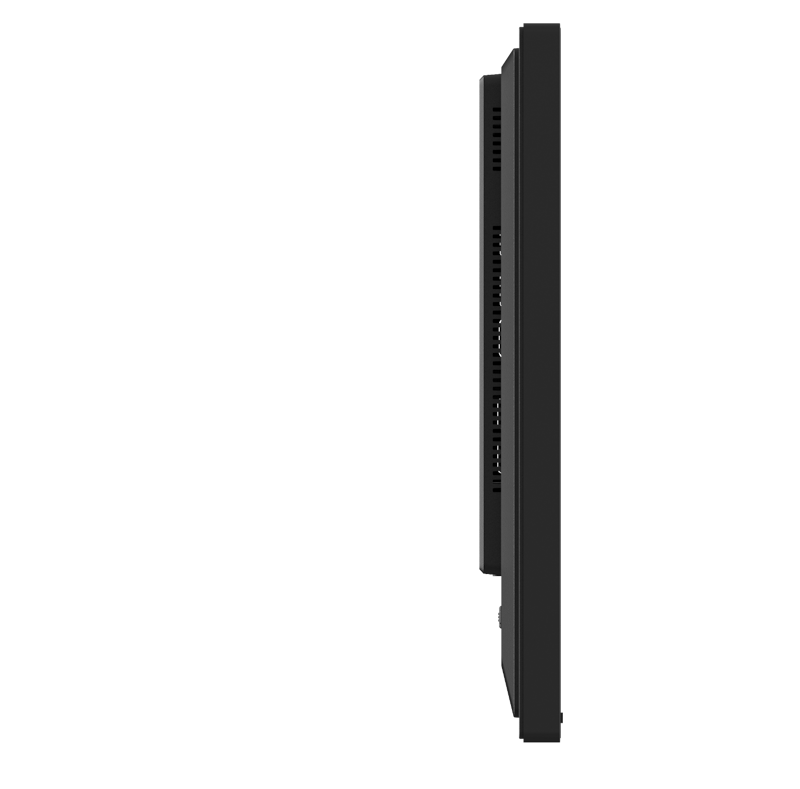

Set Depth	38.4 mm
Set Width (inch)	22.47" inch
Bezel width	21.1 mm touch black border (T/R/L/B)
Set Height	340.3 mm
Set Width	570.8 mm
Set Depth (inch)	1.51" inch
Wall Mount	200mm x 200mm , M4
Set Height (inch)	13.40" inch

Sound

Built-in speakers	2 x 10W

Power

Consumption (Max)	83 W
Standby power consumption	<0.5W
Consumption (Typical)	25 W
Mains power	100 ~ 240 VAC, 50/60Hz
Energy Label Class	F

Multimedia Applications

USB Playback Audio	AAC
	HEAAC
	MPEG 1/2/2.5 Layer 3
	MPEG 1/2 Layer 1
	MPEG 1/2 Layer 2
USB Playback Picture	JPEG
	PNG
	BMP
	WEBP
USB Playback Video	MPEG 1/2 (1080p 60Hz)
	MPEG 4 (1080p 60Hz)
	H.263 (1080p 60Hz)
	H.264 (4K2K 120Hz)
	H.265 (4K2K 120Hz)
	VP8 (1080p 60Hz)
	VP9 (4K2K 120Hz)
