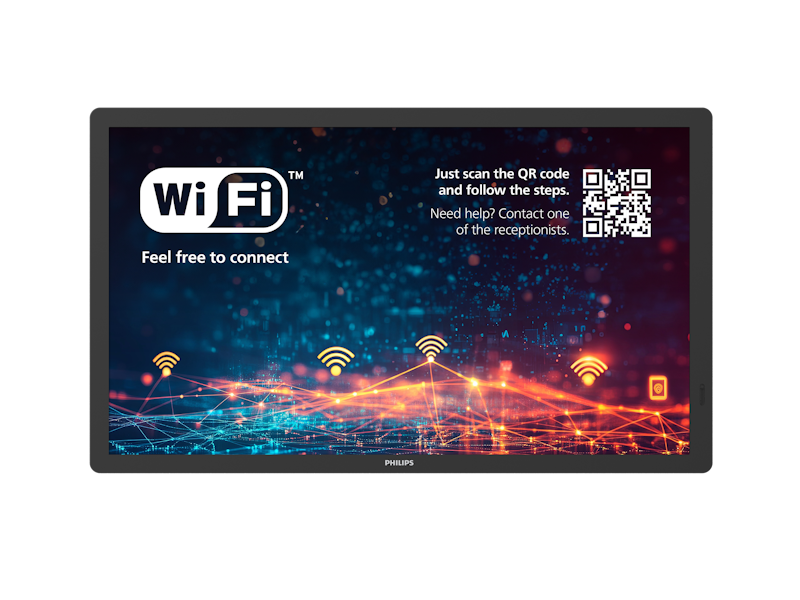

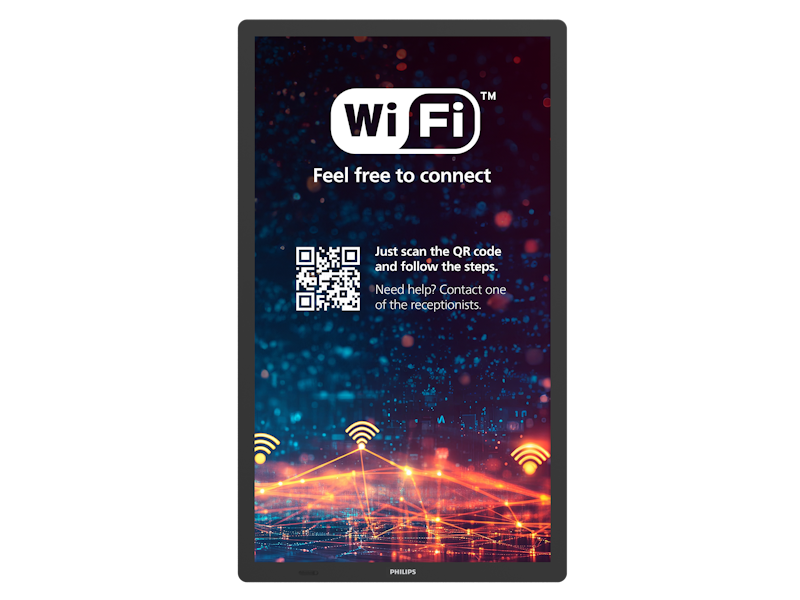

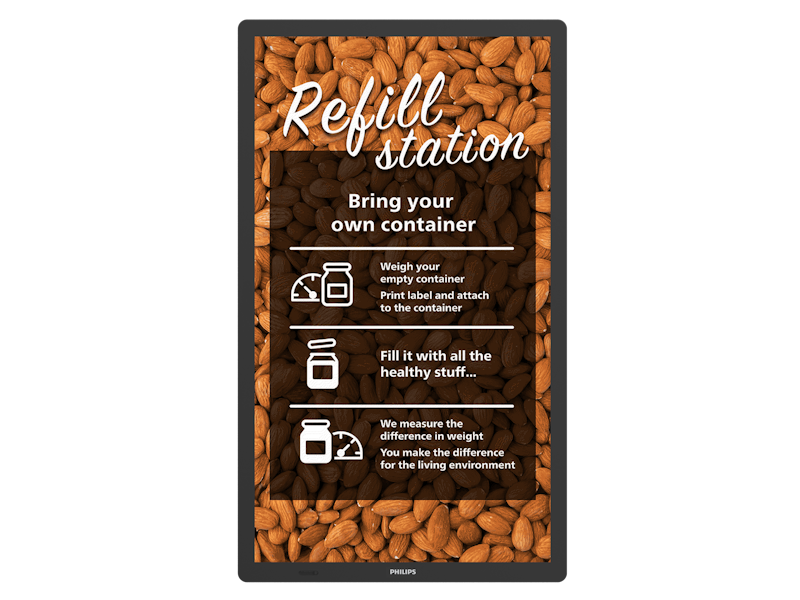

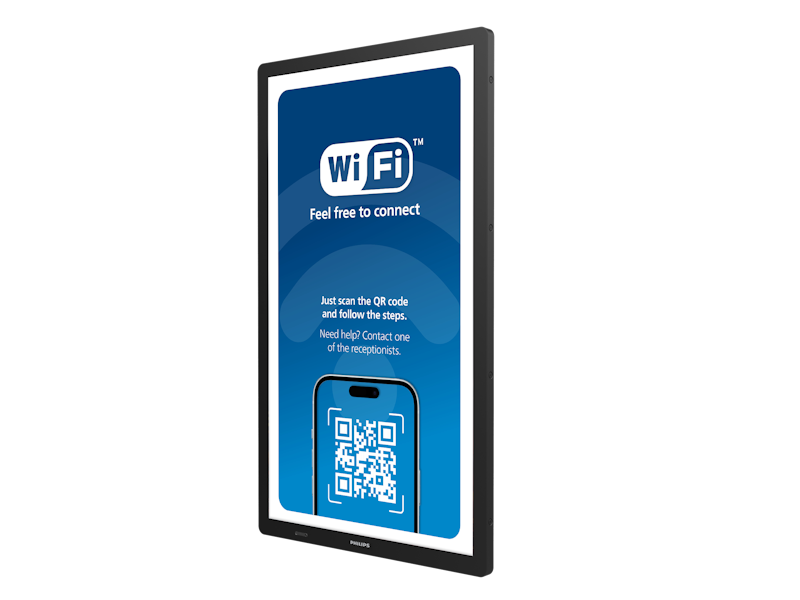

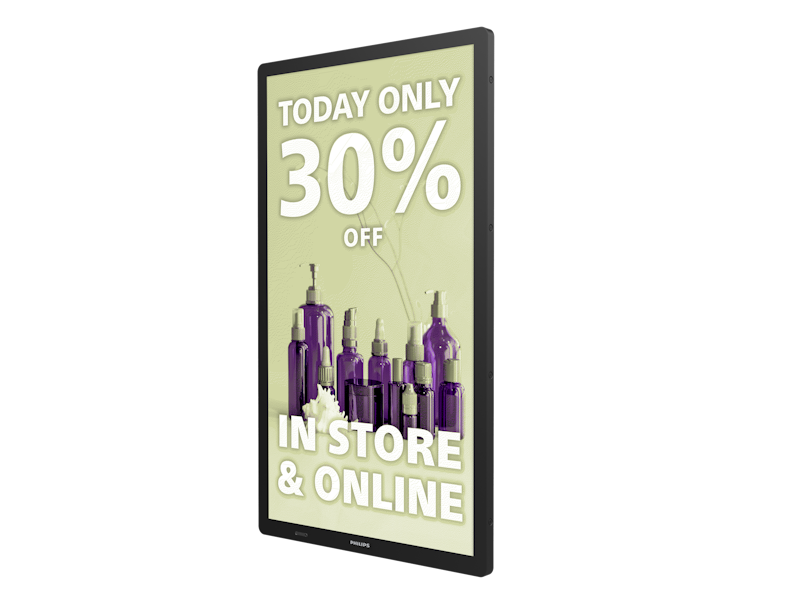

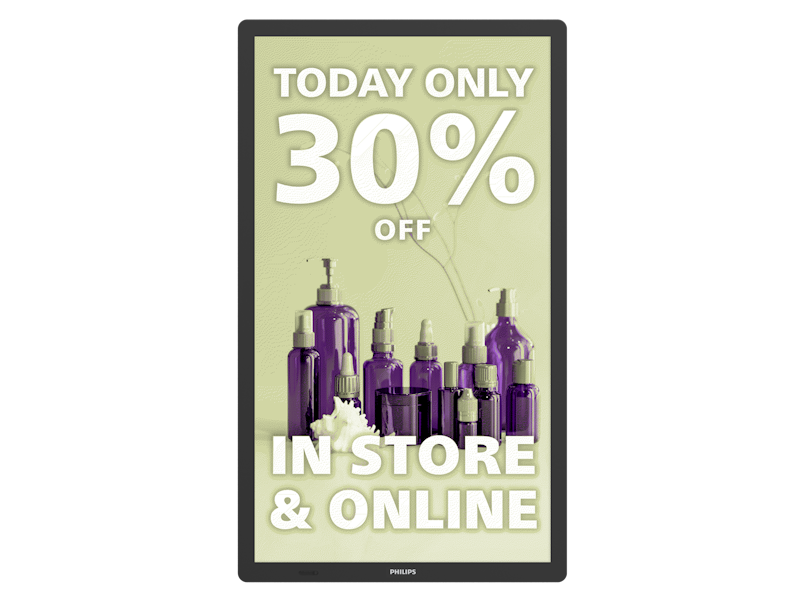

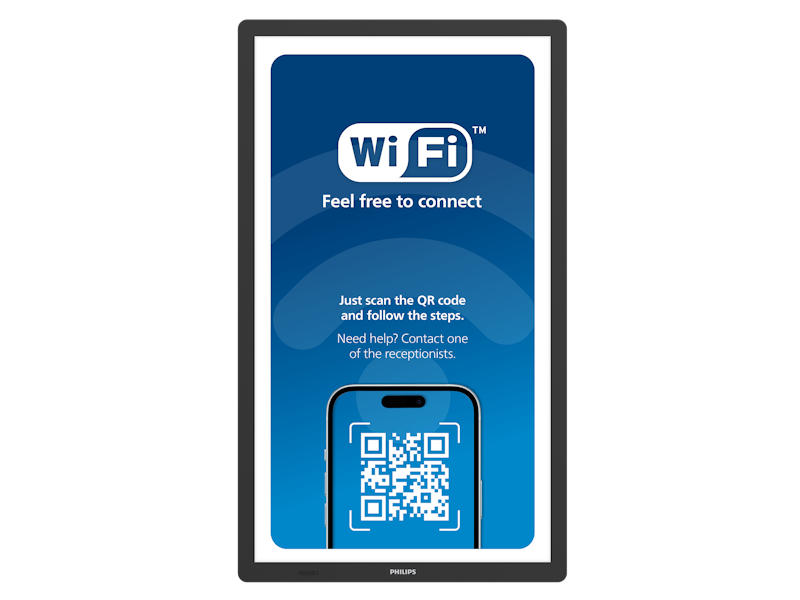

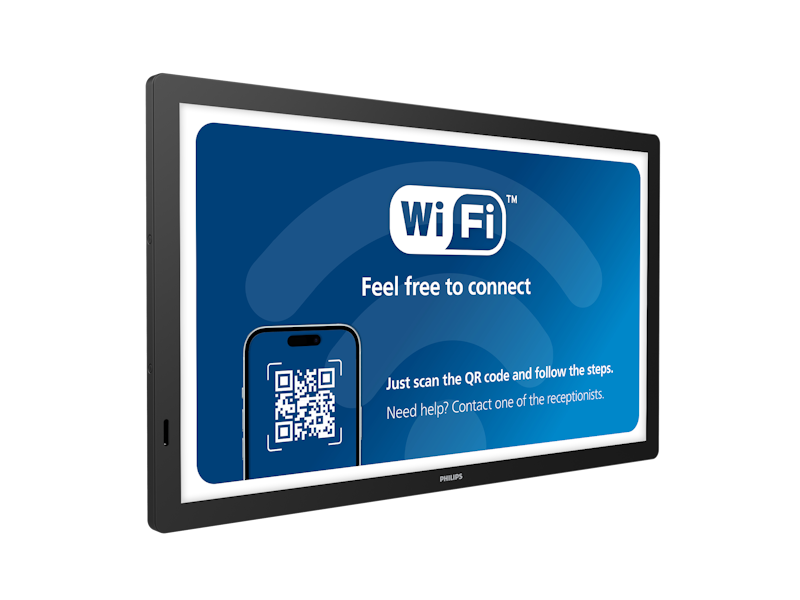

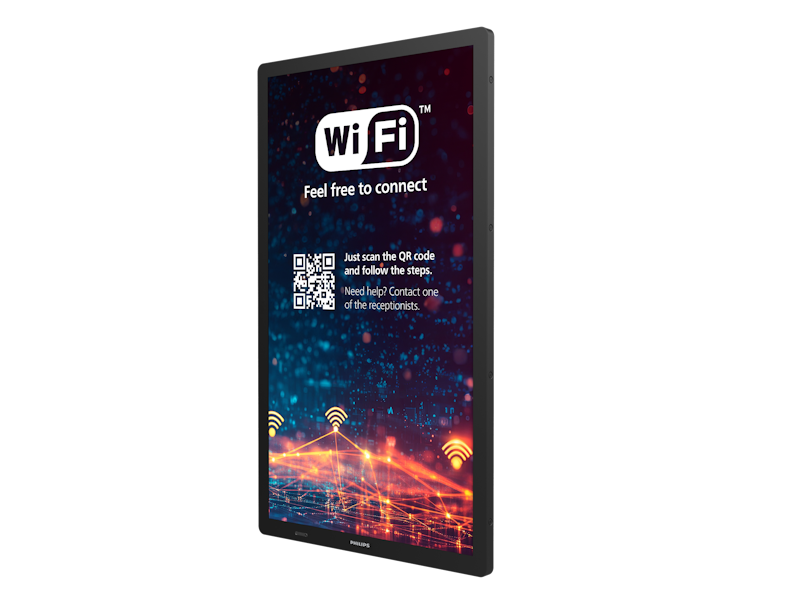

Tableaux

25BDL4150I/00

From confidently coloured menus to paper-free posters, bring a new era of display potential to life. Digitise paper signs or swap out digital models showing static imagery with ultra-clear, easily updatable, more sustainable ePaper technology.

Get a quote

Technical Specifications

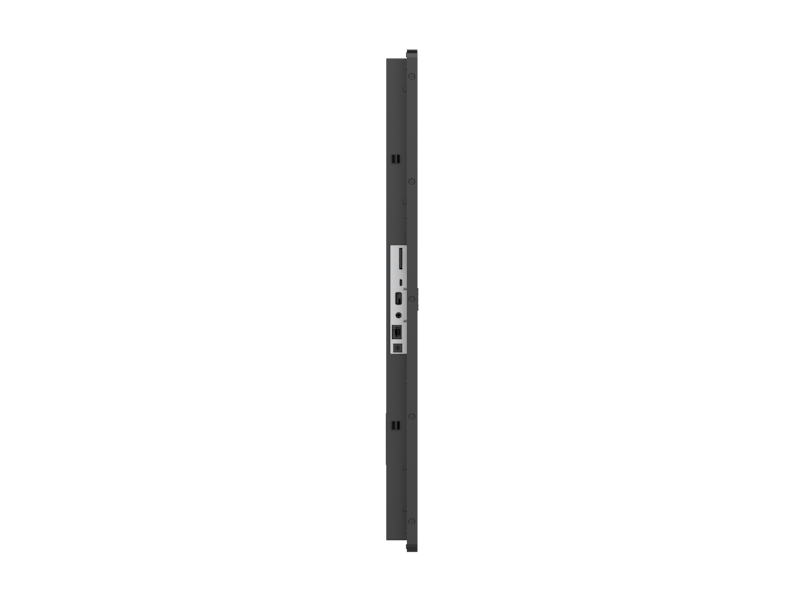

Connectivity

Video input	USB
Other connections	micro SD
	micro USB
Audio output	Audio Left/Right (3.5 mm jack)

Convenience

Network controllable	LAN (RJ45)
Battery bay	4 pcs 18650 batteries (>2600 mAh) not included

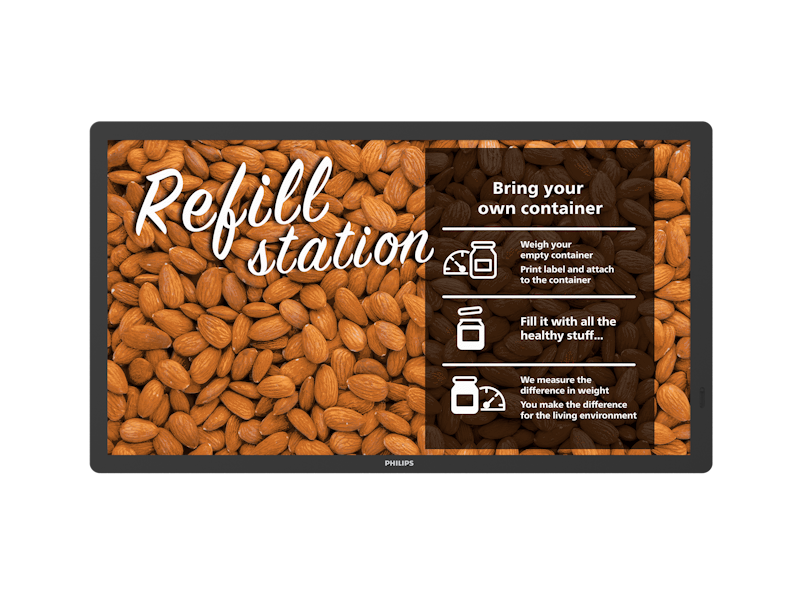

Placement	Landscape (24/7)

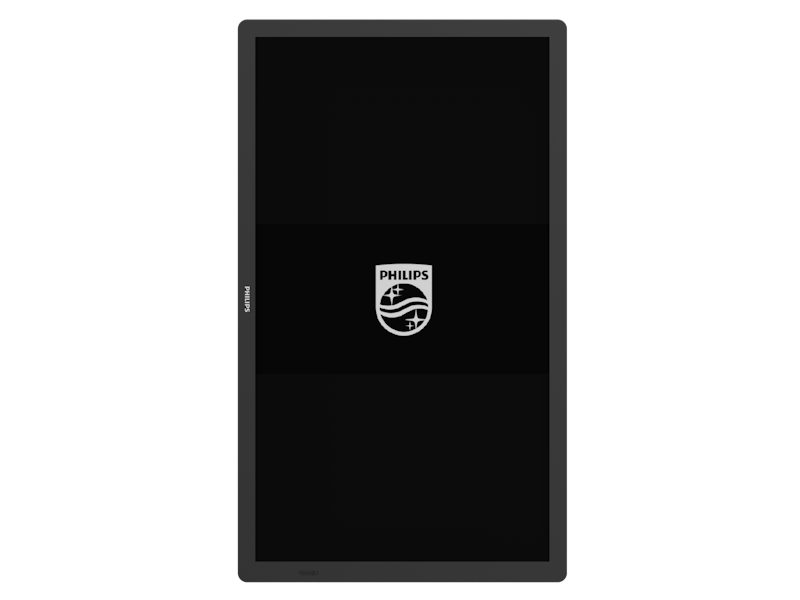

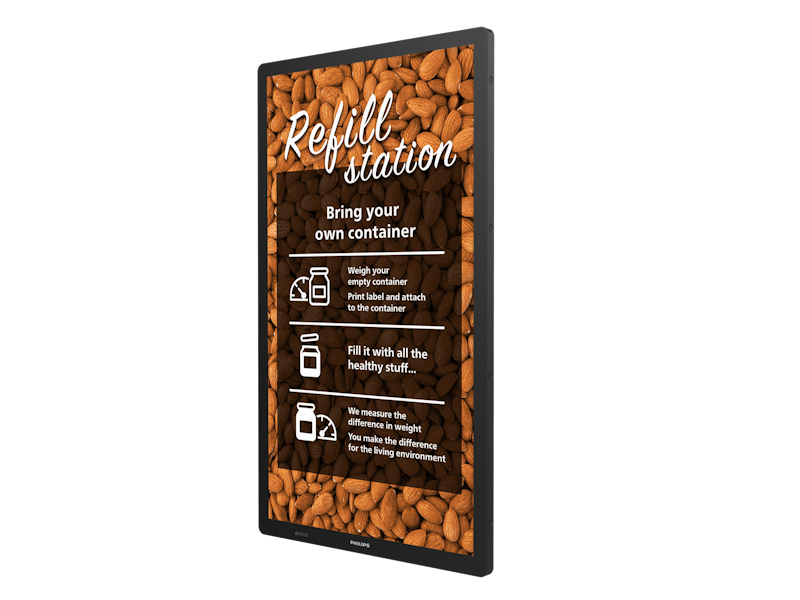

	Portrait (24/7)

Accessories

Included Accessories	AC power adapter
	Quick start guide (x 1)

Internal Player

Storage	16 GB EMMC
Memory	2 GB DDR4
CPU	Rockchip PX30S

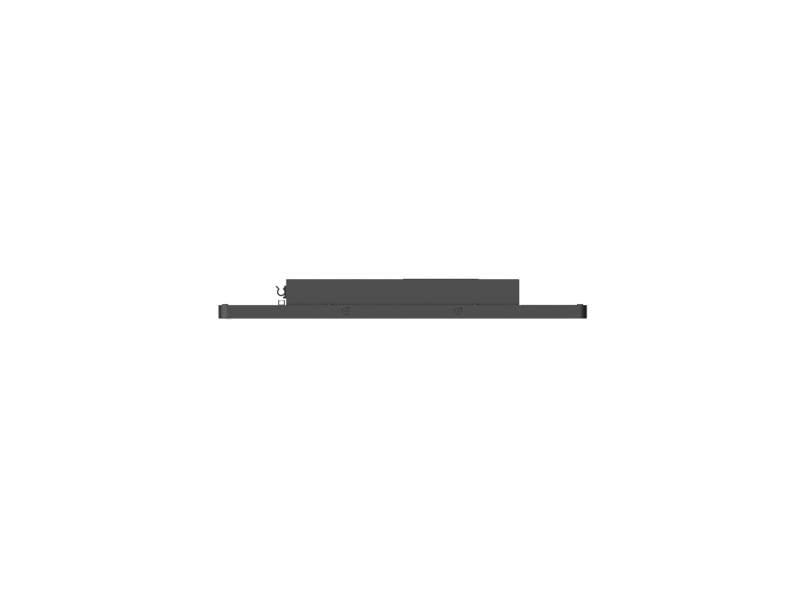

Dimensions

Bezel width	18.6/18.6/18.6/22 mm
Product weight	2.7 kg
Set Depth	37.5 mm
Set Width	598.6 mm

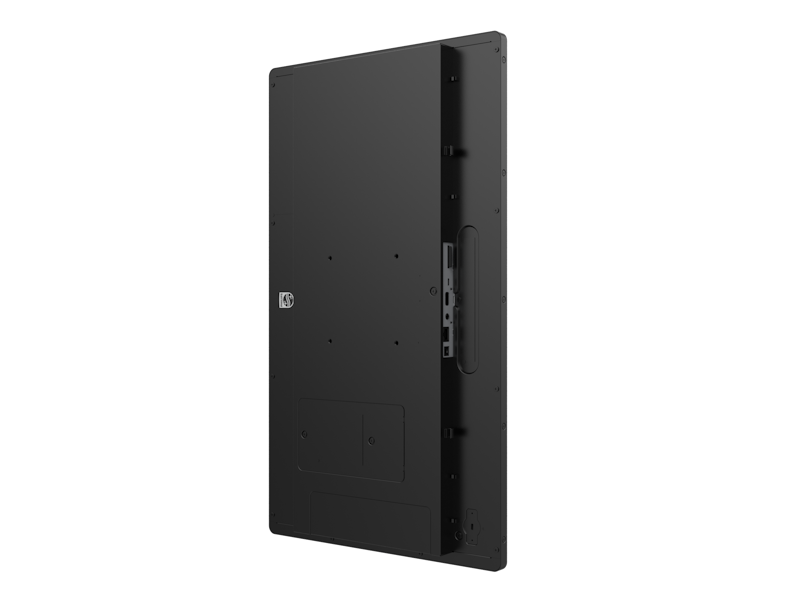

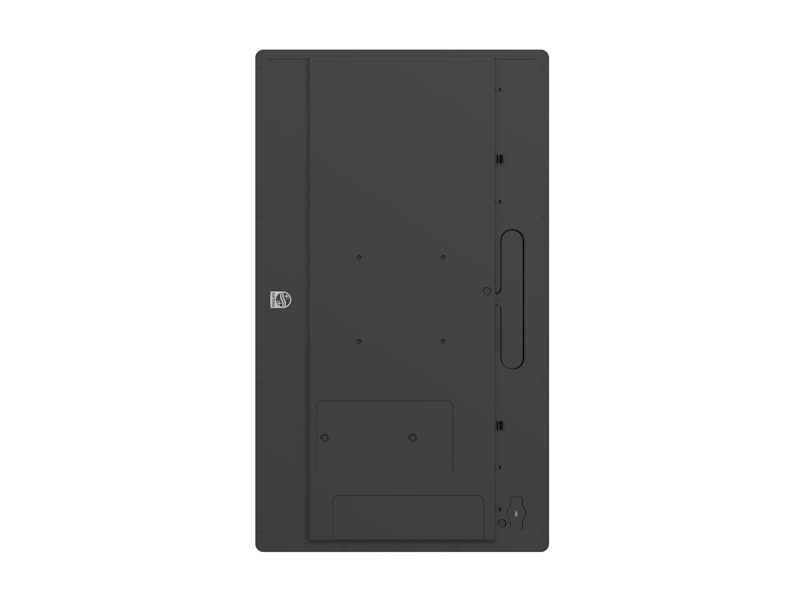

Wall Mount	100 x 100 mm VESA mount
Set Height	350.2 mm

Communication

Ethernet	10 M/100 M
Wi-Fi/ WLAN	2Tx/2Rx 802.11 ac/a/b/g/n Wi-Fi + BT 5.1 Module

Power

Mains power	20 V/2.25 A adapter, PoE++, IEEE 802.3bt (Type 3)

Miscellaneous

Regulatory approvals	CE
	CB
	UL
	FCC
Warranty	3 year warranty
On-Screen Display Languages	English
	Simplified Chinese

Operating conditions

Temperature range (storage)	-20 ~ 60 °C
Temperature range (operation)	15~ 35 °C
Relative humidity	20% ~ 80 %
Altitude	0 ~ 3000 m

Picture/Display

Operating system	Android 11
Panel resolution	3200 x 1800
Aspect ratio	16:9
Display colours	60K
Diagonal screen size (inch)	25.3 inch
