Tableaux

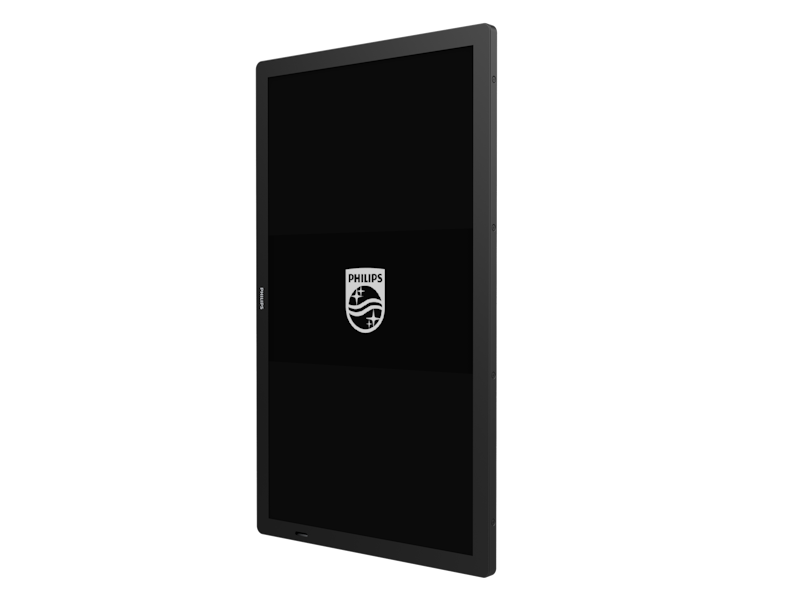

25BDL4050I/00

From confidently coloured menu boards to paper-free POS posters, Philips Tableaux bring new-era display potential to life. Digitise paper-based signage or swap out current digital models with ultra-clear, easily updatable ePaper displays.

Get a quote

Technical Specifications

Connectivity

Wi-Fi	Wi-Fi 2.4 GHz and 5G Hz
Audio output	Speaker output (earphone jack)
Other connections	micro SD
	micro USB
	USB, type A

Convenience

Placement	Landscape (24/7)
	Portrait (24/7)
Network controllable	LAN (RJ45)
Battery bay	4 pcs 18650 batteries (>2600 mAh) not included

Accessories

Included Accessories	AC power adapter
	Quick start guide (x 1)

Dimensions

Set Height	357.4 mm
Wall Mount	100 x 100 mm
Set Width	602.4 mm
Set Depth	37.5 mm
Product weight	2.4 kg

Internal Player

Storage	16 GB EMMC
Memory	2 GB LPDDR3
CPU	Rockchip PX30

Power

Mains power	20 V/2.25 A adapter

Communication

Ethernet	10 M/100 M
Wi-Fi/ WLAN	Wi-Fi 2.4 G (802.11 b/g/n) + 5 GHz

Miscellaneous

Regulatory approvals	CE
	FCC
Warranty	3 year warranty

Operating conditions

Temperature range (storage)	-25 ~ 50 °C
Temperature range (operation)	15° ~ 35° °C
Altitude	0 ~ 3000 m
Relative humidity	30 ~ 80 %

Picture/Display

Panel resolution	3200 x 1800
Display colours	60,000
Aspect ratio	16:9
Response time (typical)	36 sec to update image
Operating system	Android 11
Diagonal screen size (inch)	25.3 inch
