D-Line

50BDL4550D/00

Energy Label: g
Amaze your guests with a smarter, faster signage display. With integrated WiFi and designed for running Android apps, it's the next evolution in signage solutions

Made for results

D-Line

Bigger impact

22 Android Hospitality Hotel Reception

Powered by Android

Android-powered Philips professional displays are fast, versatile and easy to navigate. All displays are optimised for native Android apps and you can install web apps directly to the display too. Automatic updates ensure apps stay up to date.

Internal memory

Save and play content without the need for a permanent external player. Your Philips professional display has an internal memory, which allows you to upload media into the display for instant playback. The internal memory also functions as a cache for online streaming.

CMND_Laptop_V1_FINAL

Proof of Play

Be sure your Android-powered Philips professional display is showing the right content-even when you're not there. When playing content via the embedded media player, you can set up your display to take automatic screenshots at regular intervals. Screenshots are stored on the display's internal memory, and you can choose to receive them via email.

TRANSPORT - Airport Departures

FailOver

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips professional display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.

Smart Power

The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

CMND

Take control of your Philips Professional Display network. CMND lets you manage, update, maintain and play via one easy-to-use interface. From installation to daily operation.

CMND & Create

Take control of your content with CMND and Create. A drag-and-drop interface makes it simple to publish your own content, whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure that your stills, text and video will be up and running in no time.

CMND_Room_V2_FINAL

CMND & Control

Run your display network over a local (LAN or RF) connection. CMND & Control allows you to perform vital functions like updating software and settings, as well as monitoring display status. Whether you’re in charge of one display or more, CMND & Control makes managing your fleet easy.

Q-Line 43BDL3010Q Image

Integrated HTML5 browser

Connect and control your content over the internet with the integrated HTML5 browser. Using the Chromium-based browser, design your content online and connect a single display or your complete network. Show content in both landscape and portrait mode, with full-HD resolution. Streaming content can also be shown in a PIP (picture-in-picture) window. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlist

01 D-Line Public Venue Aquarium

ADS wide-view panel display

Be seen from any angle with ADS wide-view technology. Advanced Super Dimension Switch delivers faster on-display picture processing for smoother content transitions, remarkable image accuracy and superior colour reproduction with 180 degree viewing.

Automatic screenshots

Content is king, and with the automatic screenshot feature, you can make sure that your content is up and running at all times. Screenshots are taken throughout the day, which are then stored in the FTP server. From there, the screenshots can be viewed no matter when, or where you are.

01 D-Line Public Venue Aquarium

Powerful performance

D-Line delivers versatility and performance designed for impact.

Features

Technical Specifications

Picture/Display

Diagonal screen size (inch) 49.5
Diagonal screen size (metric) 125.7
Panel resolution 3840 x 2160
Optimum resolution 3840 x 2160 @ 60 Hz
Brightness 500
Contrast ratio (typical) 4000:1
Dynamic contrast ratio 500,000:1
Aspect ratio 16:9
Response time (typical) 8
Pixel pitch 0.2854 x 0.2854 mm
Display colours 1.07 Billion
Viewing angle (horizontal) 178
Viewing angle (vertical) 178
Picture enhancement 3/2 - 2/2 motion pull down
3D Combfilter
Motion compens. deinterlacing
3D MA deinterlacing
Dynamic contrast enhancement
Progressive scan
Operating system Android 8.0
Panel technology VA

Connectivity

Video input Display Port1.2 (x 1)
DVI-I (x 1)
HDMI 2.0 (x 2)
USB 2.0 (x 2)
Video output DisplayPort 1.2 (x 1)
HDMI 2.0 (x 1)
Audio input 3.5 mm jack
Audio output 3.5 mm jack
External control RJ45
RS232C (in/out) 2.5 mm jack
IR (in/out) 3.5 mm jack
Wi-Fi dual aerial 2,4Ghz and 5Ghz
4G/LTE antenna connectors mPCIe

Supported Display Resolution

Computer formats 1920 x 1080, 60 Hz
1024 x 768, 60 Hz
1280 x 1024, 60 Hz
1280 x 720, 60 Hz
1440 x 900, 60 Hz
1600 x 900, 60 Hz
1680 x 1050, 60 Hz
3840 x 2160, 30, 60 Hz
640 x 480, 60 Hz
800 x 600, 60 Hz
Video formats 1080i, 50, 60 Hz
576i, 50 Hz
576p, 50 Hz
480p, 60 Hz
480i, 60 Hz
1080p, 50, 60 Hz
2160p, 24, 30, 60 Hz
720p, 50,60 Hz

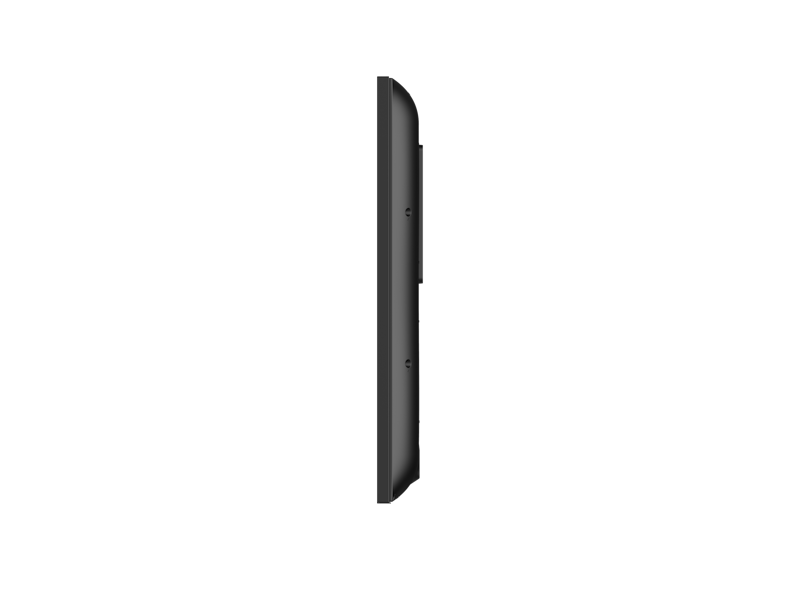

Dimensions

Set Width 1128.4
Set Height 649.0
Set Depth 63.5
Set Width (inch) 44.43
Set Height (inch) 25.55
Set Depth (inch) 2.50
Bezel width 14.9 mm (Even bezel)
Product weight (lb) 32.52
Product weight 14.75

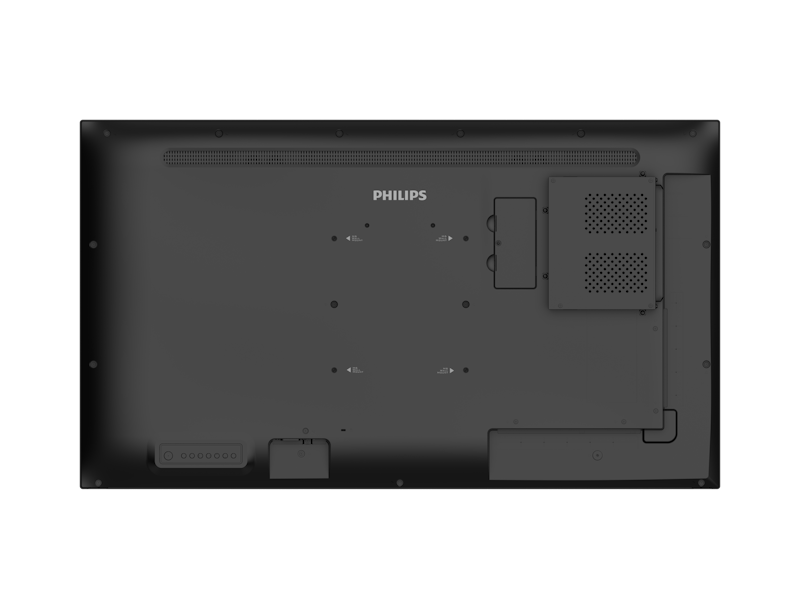

Wall Mount 400 (H) x 400 (V) mm, M6

Convenience

Placement Landscape (24/7)
Portrait (24/7)
Tiled Matrix Up to 10 x 15
Keyboard control Hidden
Lockable
Signal loop through RS232
IR Loop through
DisplayPort
HDMI
Network controllable RS232
Energy-saving functions Smart Power
Screen-saving functions Pixel Shift, Low Bright
WiFi protocol a b g n, 802.1x

Power

Standby power consumption <0.5 W
Mains power 100 ~ 240 VAC, 50 ~ 60 Hz
Consumption (Typical) 100
Consumption (Max) 132 W
Energy Label Class G

Operating conditions

Temperature range (operation) 0 ~ 40
Temperature range (storage) -20 ~ 60
Altitude 0 ~ 3000 m
MTBF 50,000
Humidity range (operation)[RH] 20–80% RH (No condensation)
Humidity range (storage) [RH] 5–95% RH (No condensation)

Sound

Built-in speakers 2 x 10 W RMS

Accessories

Included accessories Quick start guide
RS232 cable
AC Power Cord
IR sensor cable (1.8 M)
Remote Control and AAA Batteries
Included Accessories RS232 daisy-chain cable
Philips logo (x 1)
AC Switch Cover
USB Cover (x 1)
Screws
Stand BM05922(Optional)

Multimedia Applications

USB Playback Audio AAC
HEAAC
MPEG
USB Playback Picture BMP
JPEG
PNG
USB Playback Video MPEG
H.263
H.264
H.265

Miscellaneous

On-Screen Display Languages English
French
German
Spanish
Polish
Turkish
Russian
Italian
Simplified Chinese
Traditional Chinese
Arabic
Japanese
Danish
Dutch
Finnish
Norwegian
Portuguese
Swedish
Regulatory approvals CE
CCC
RoHS
BSMI
CB
VCCI
CU
EMF
EnergyStar 8.0
ETL
FCC, Class A
PSB
Warranty 3 year warranty

Internal Player

CPU 2 x A53 + 2 x A73
GPU ARM Mali G51
Memory 3 GB DDR
Storage 32 GB eMMc
