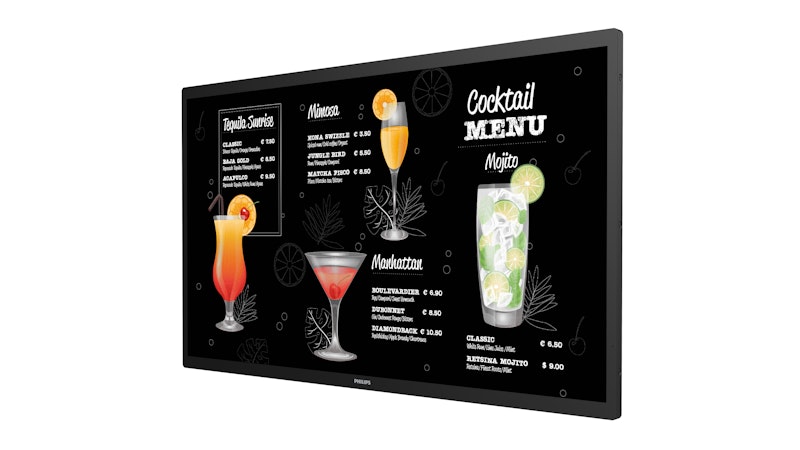

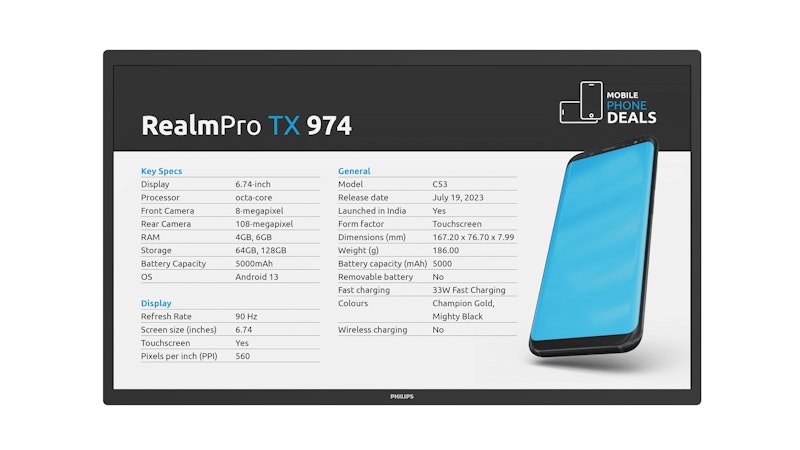

Tableaux

32BDL5150I/00

The ideal replacement for A2 colour posters and POS, Philips Tableaux 5150I is a size up for ePaper displays. Show static imagery using zero power in 65,000 ultra clear colours, and super low power to manage the display and update content.

Get a quote

Technical Specifications

Connectivity

Audio output	Audio Left/Right (3.5mm jack)
Video input	USB
Other connections	micro USB

Convenience

Network controllable	LAN (RJ45)
Battery bay	4 pcs 18650 batteries (>2600mAh) not included

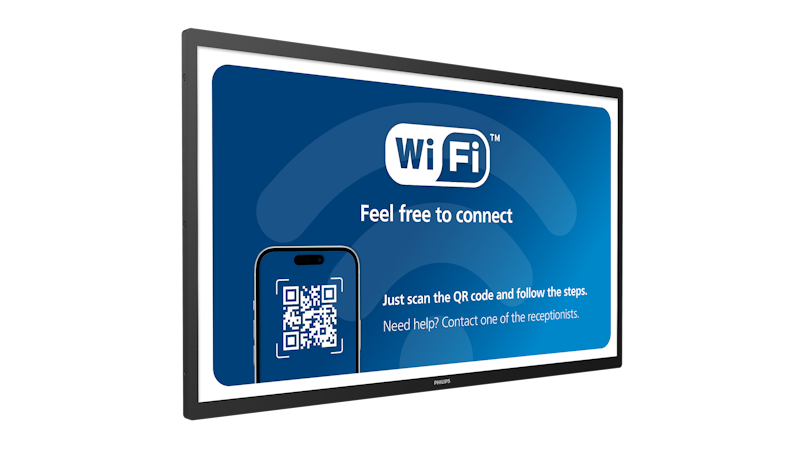

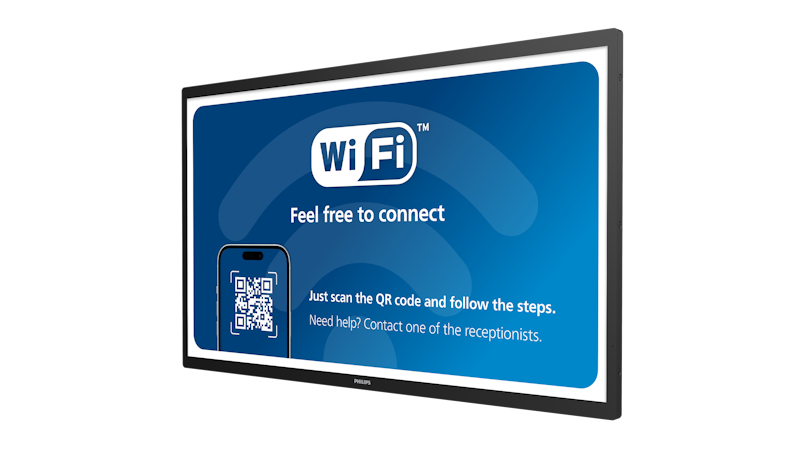

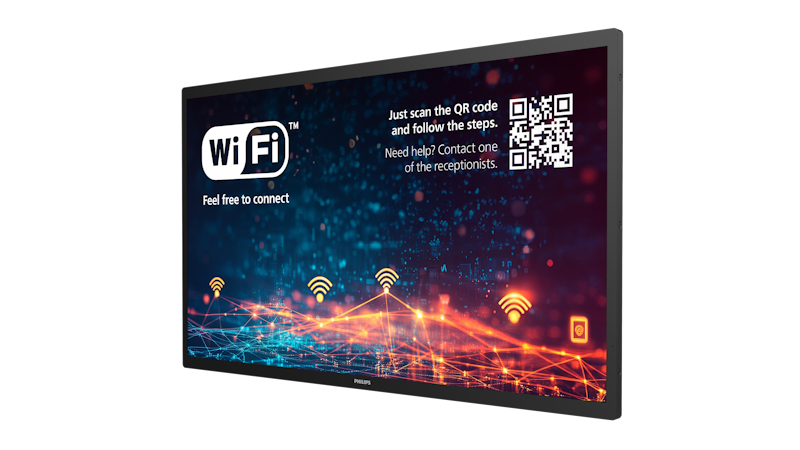

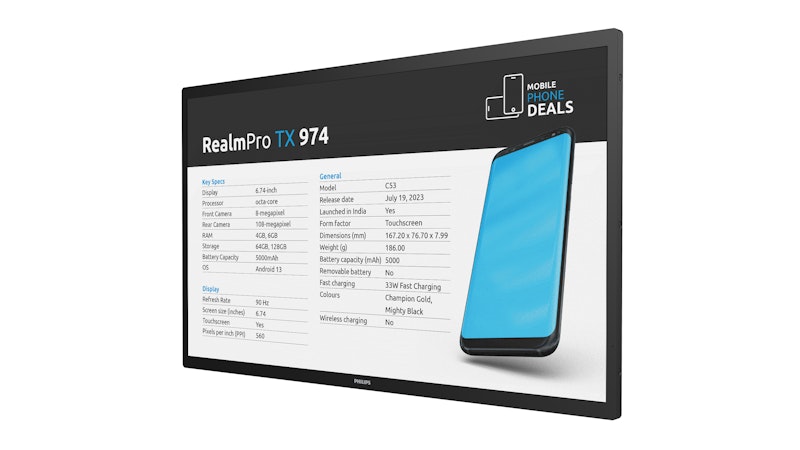

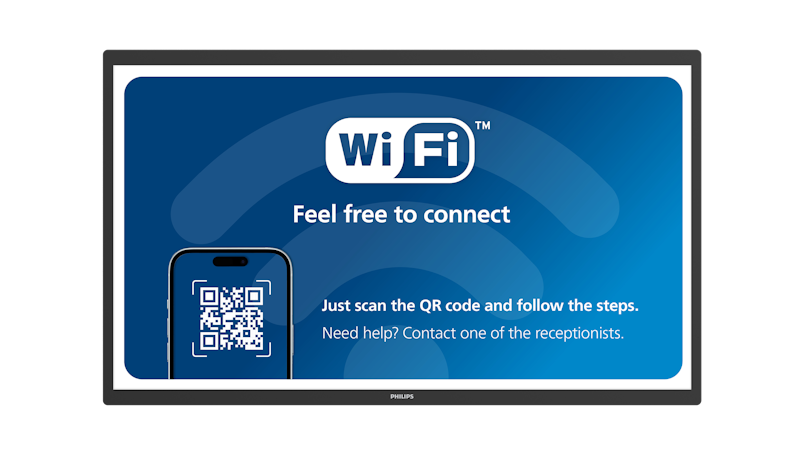

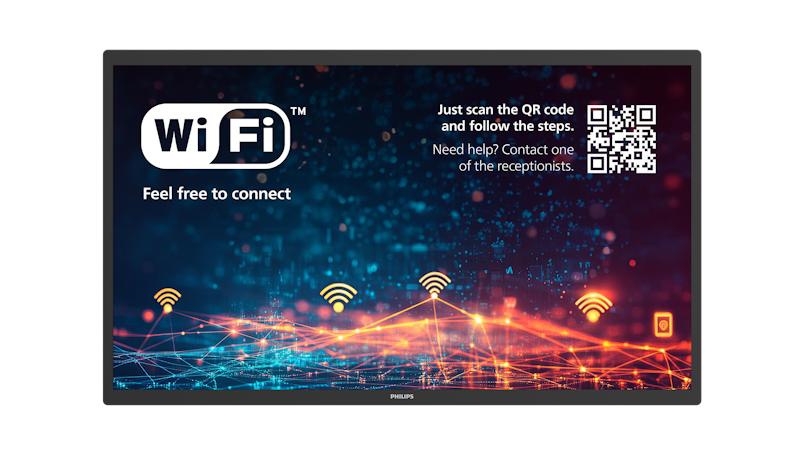

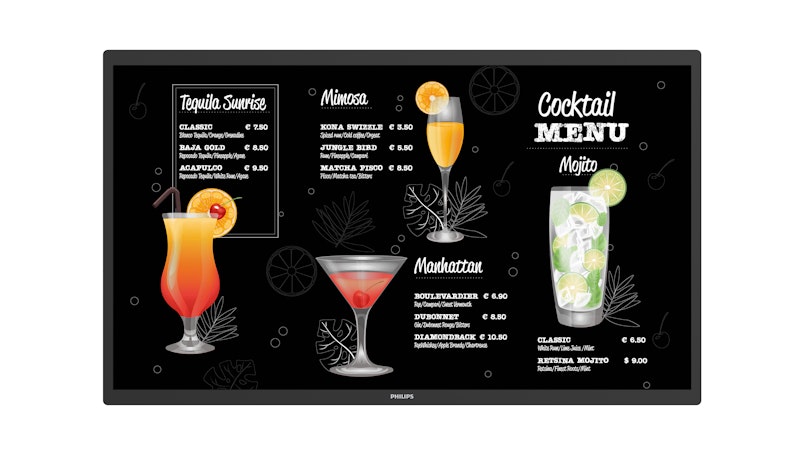

Placement	Landscape (24/7)

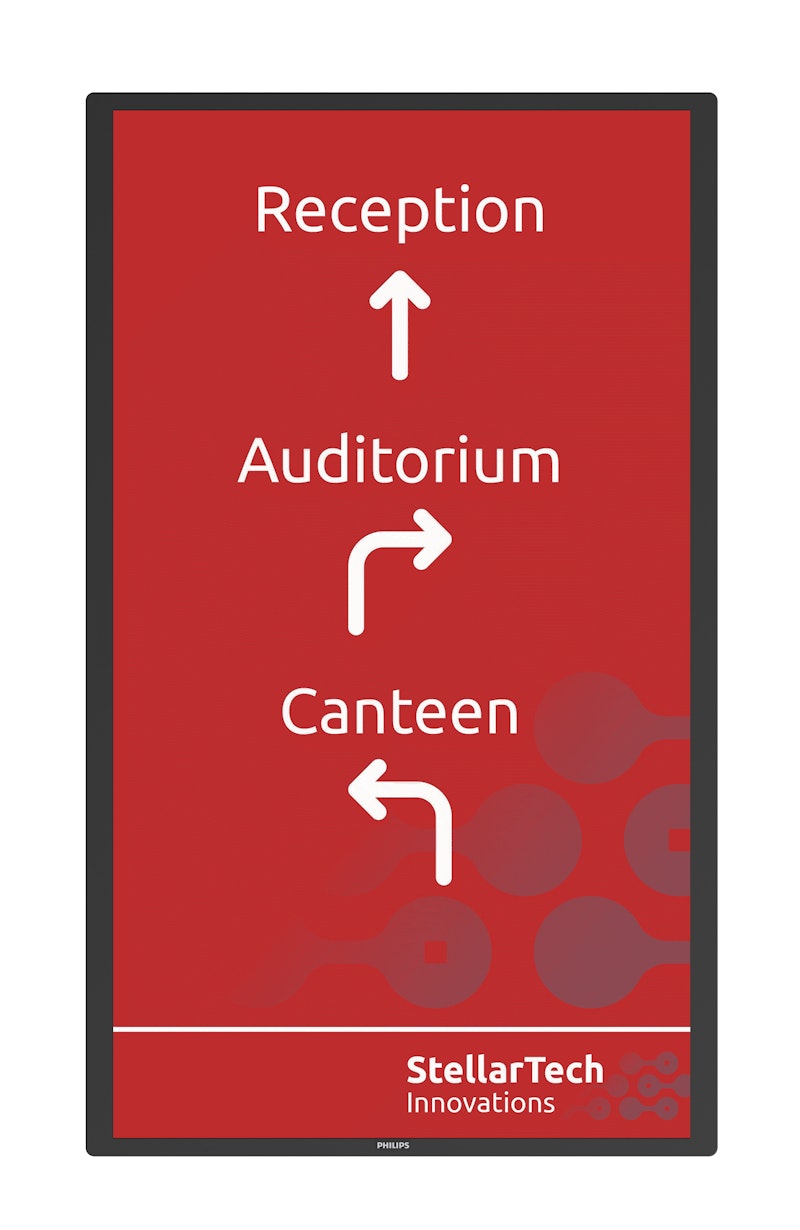

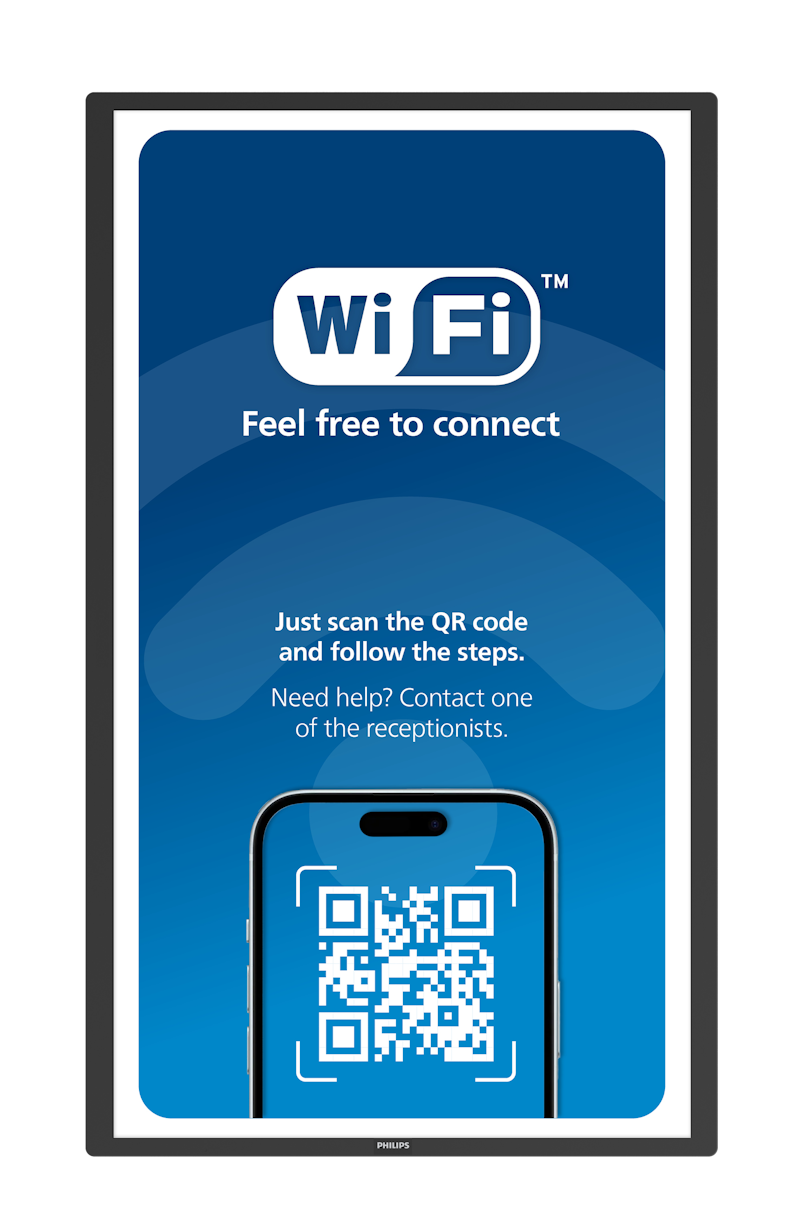

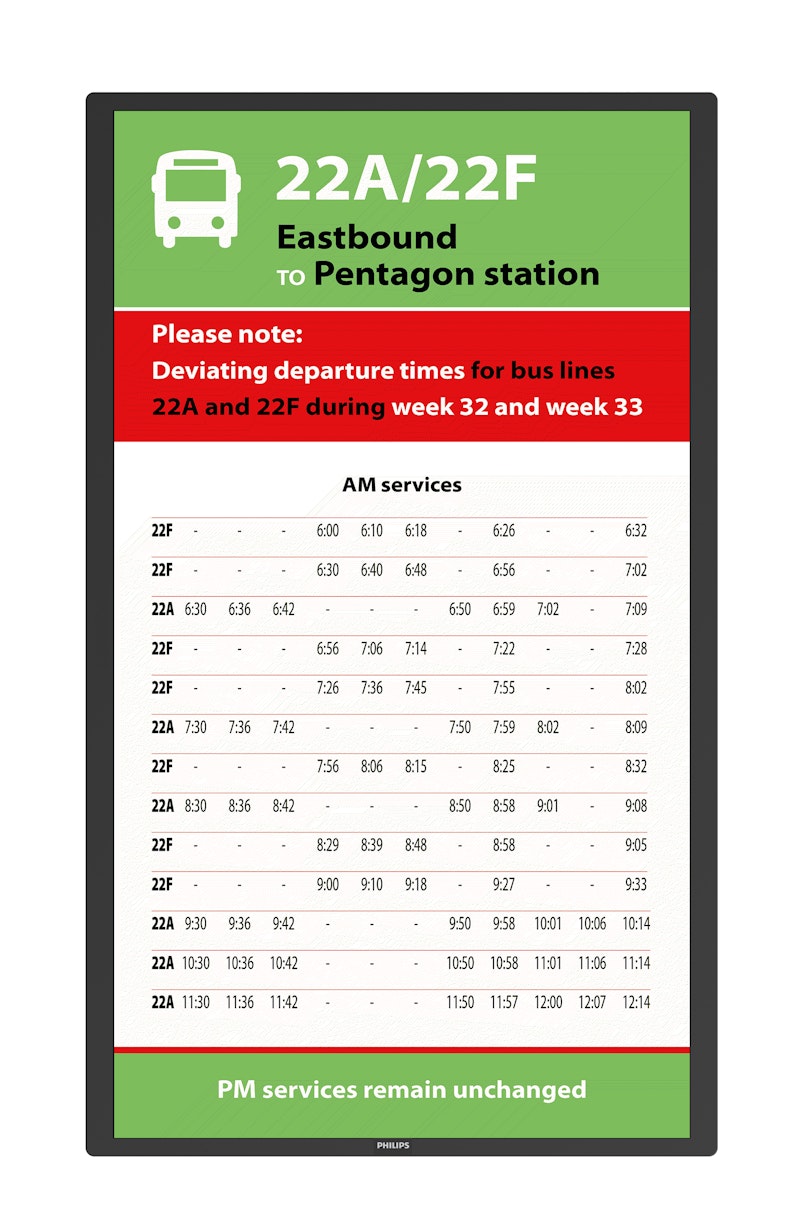

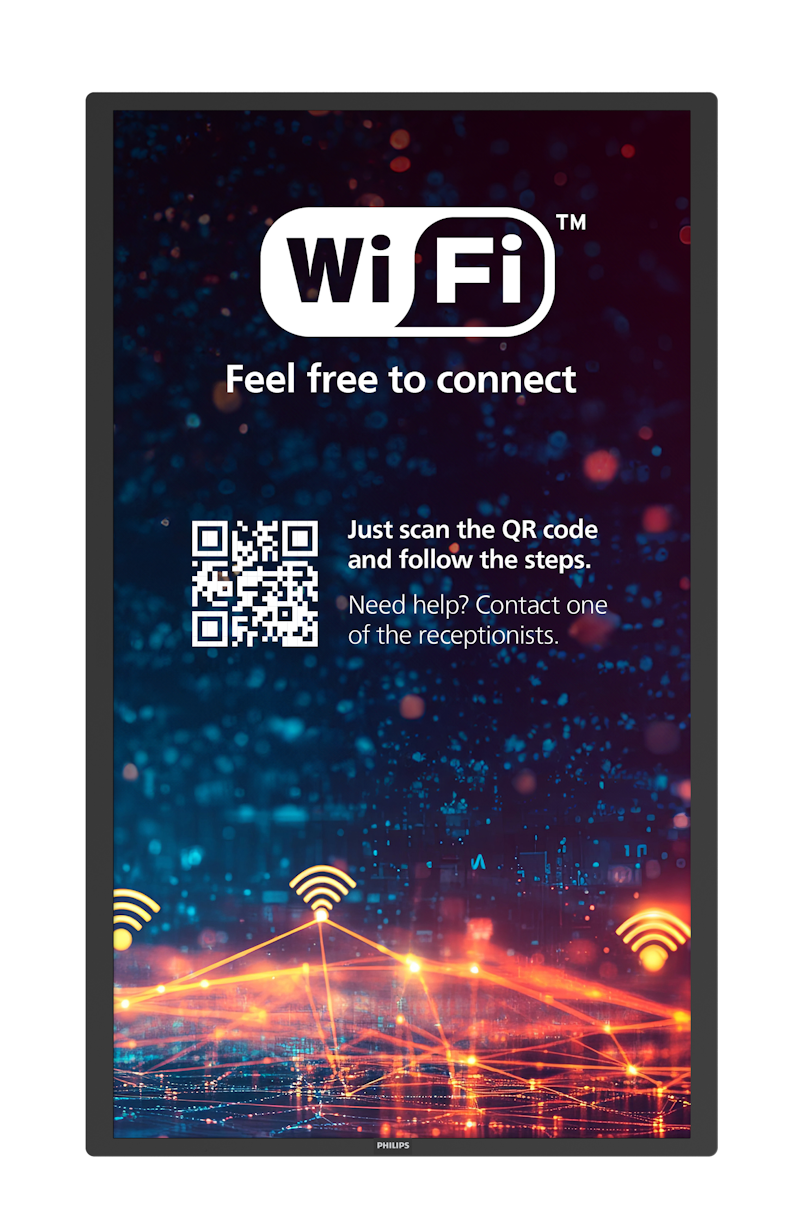

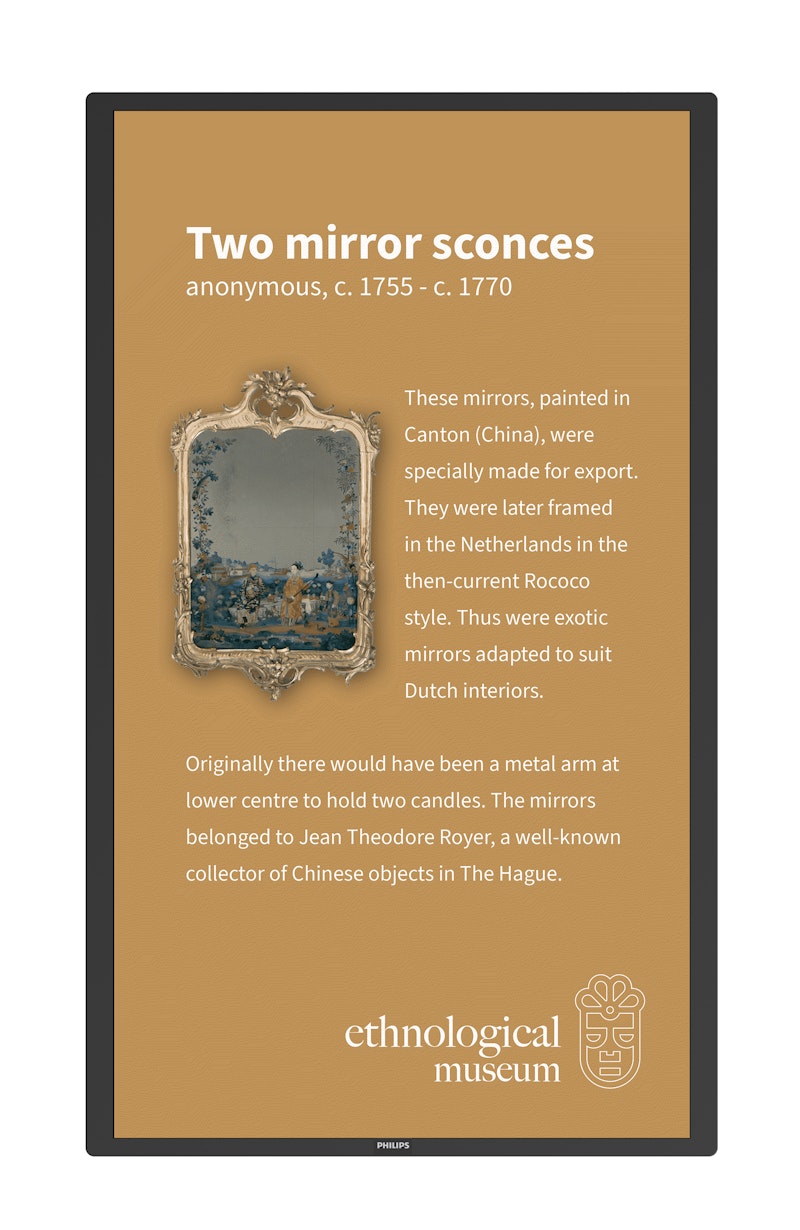

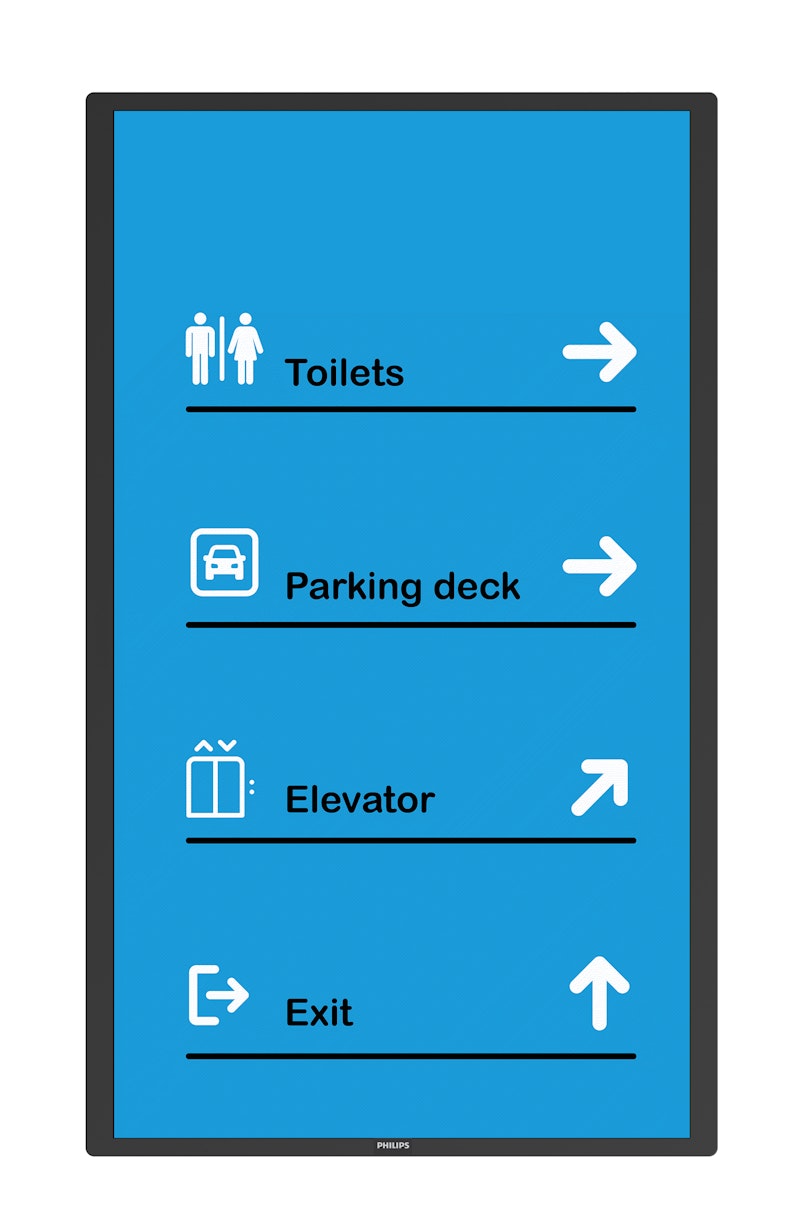

	Portrait (24/7)

Accessories

Included Accessories	AC power adapter
	Quick start guide (x1)

Internal Player

Storage	16GB EMMC
Memory	2GB DDR4
CPU	Rockchip RK3566

Dimensions

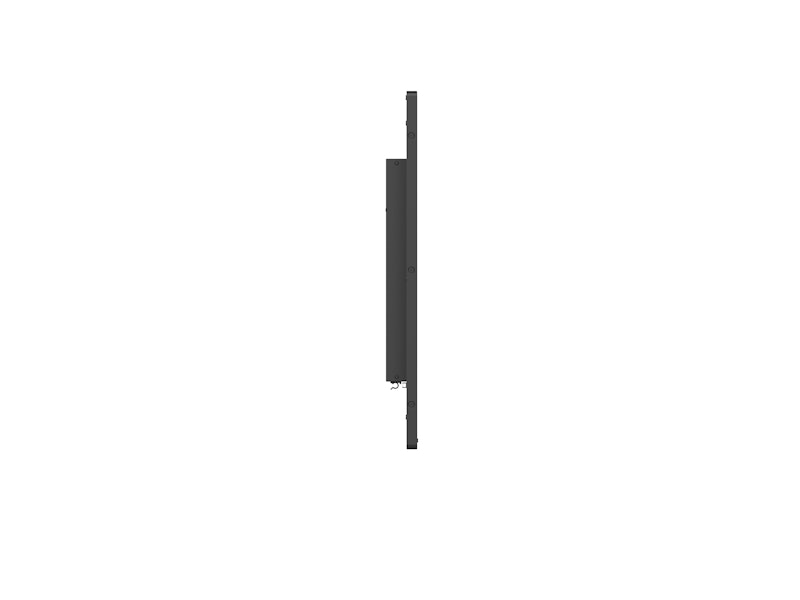

Set Depth	37.5 mm
Bezel width	18.6/18.6/12.2/12.2mm
Set Width	718.7 mm
Product weight	3.5 kg
Set Height	426.9 mm

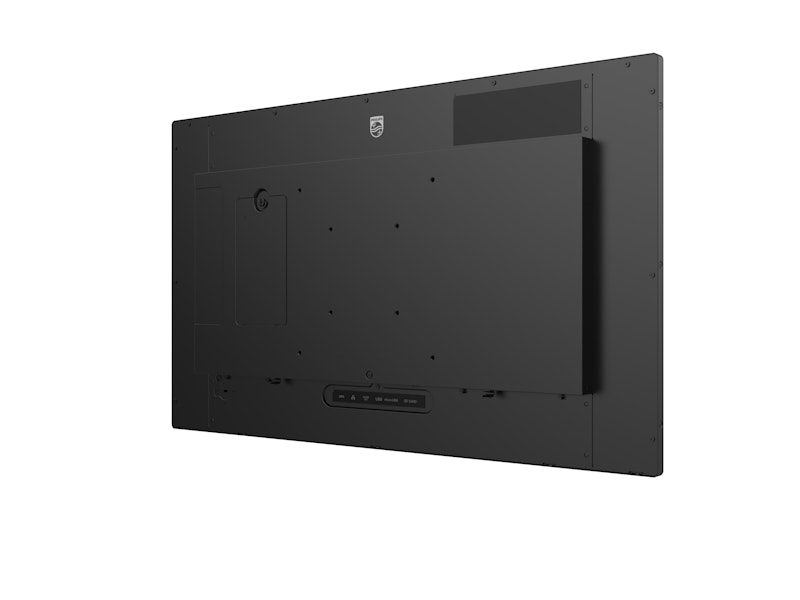

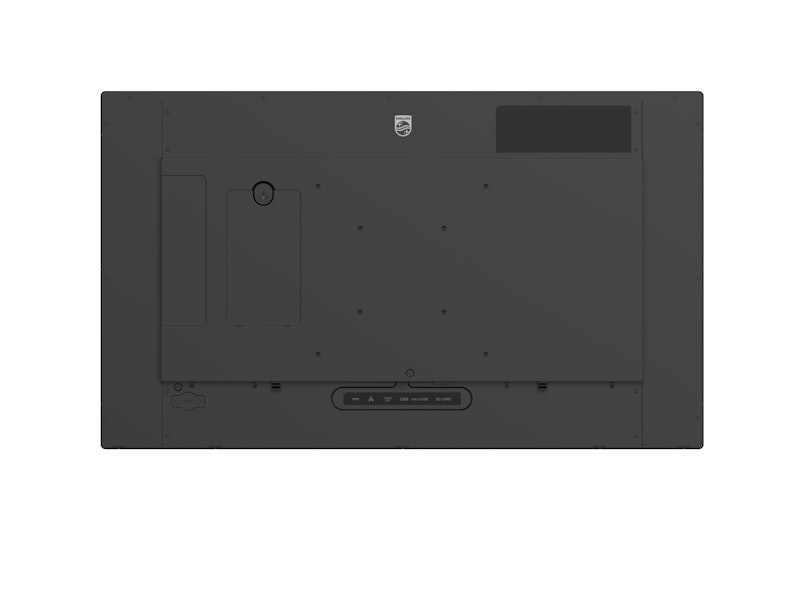

Wall Mount	100x100mm,200x200mm VESA mount

Power

Mains power	20V/2.25A adapter, PoE++, IEEE 802.3bt (Type 3)

Communication

Ethernet	10M/100M
Wi-Fi/ WLAN	2Tx/2Rx 802.11 ac/a/b/g/n Wi-Fi + BT 5.1 Module

Picture/Display

Panel resolution	2560 x 1440
Aspect ratio	16:9
Diagonal screen size (inch)	31.5 inch
Operating system	Android 13
Display colors	65k

Miscellaneous

On-Screen Display Languages	English
	Simplified Chinese
Regulatory approvals	CE
	CB
	UL
	FCC
Warranty	3 year warranty

Operating conditions

Temperature range (operation)	0~ 50 °C
Relative humidity	20% ~ 80 %
Altitude	0 ~ 3000 m
Temperature range (storage)	-20 ~ 60 °C
