Technical Specifications

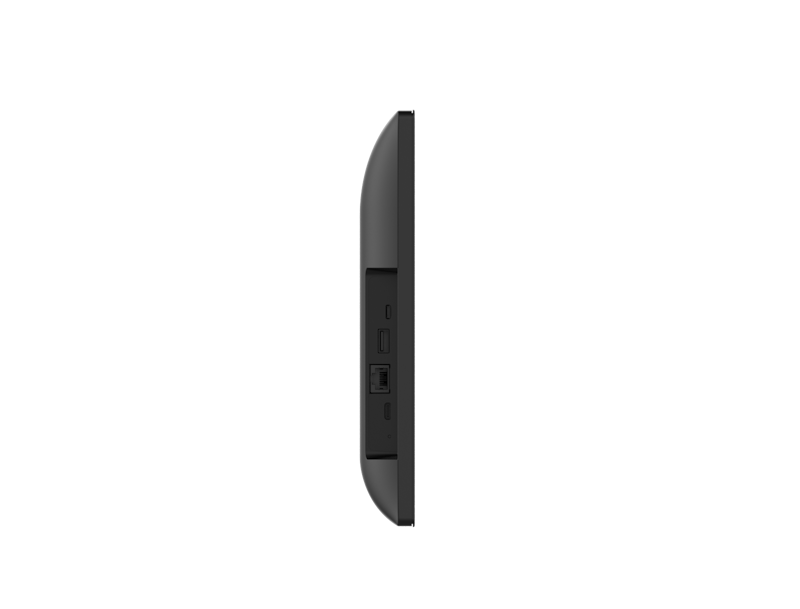

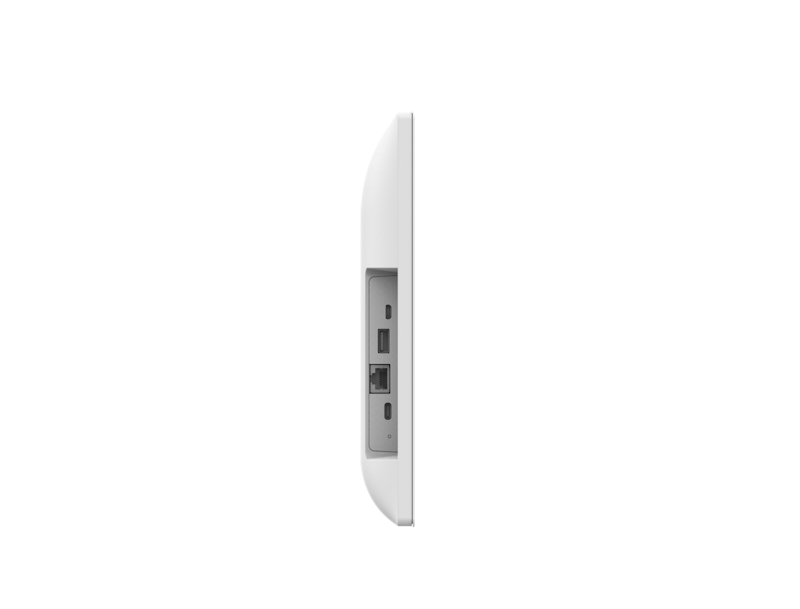

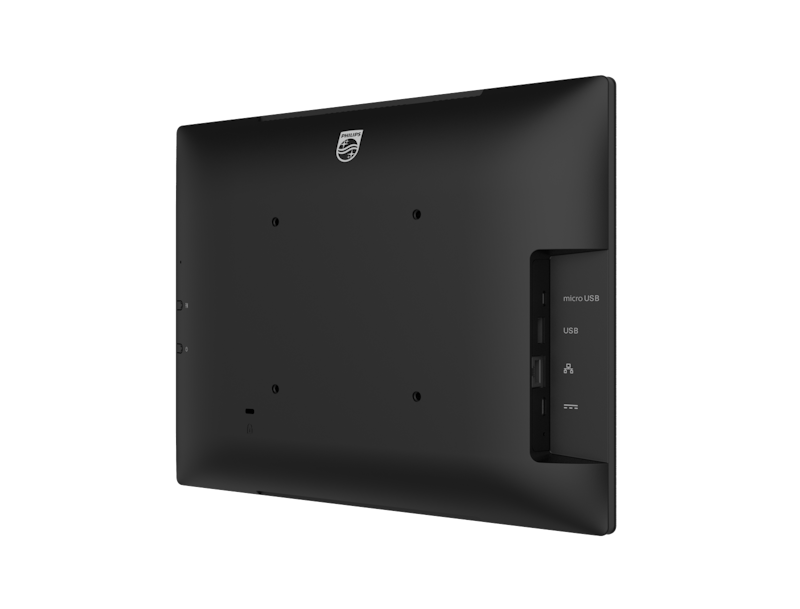

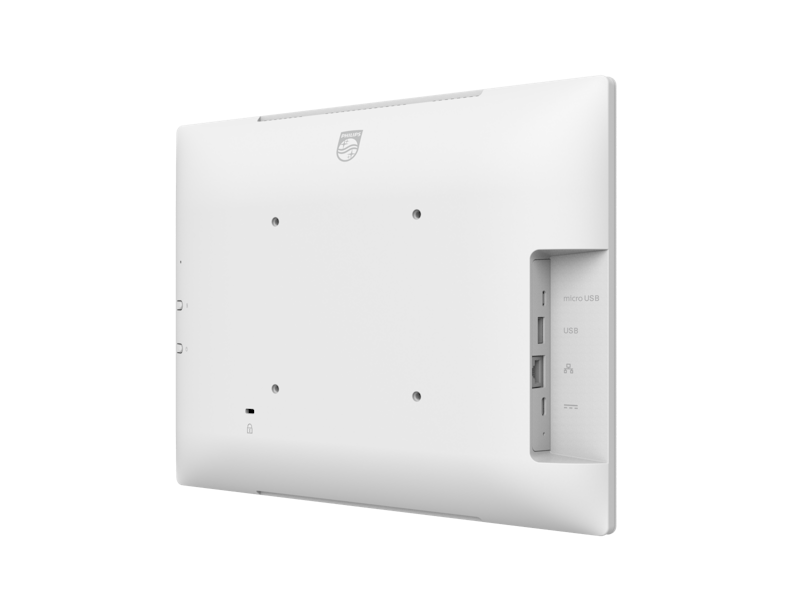

Connectivity
| Audio output | Audio Left/Right (3.5mm jack) |
|---|---|
| Video input | USB |
| Other connections | micro USB |
Convenience
| Network controllable | LAN (RJ45) |
|---|---|
| Placement | Landscape (24/7) |

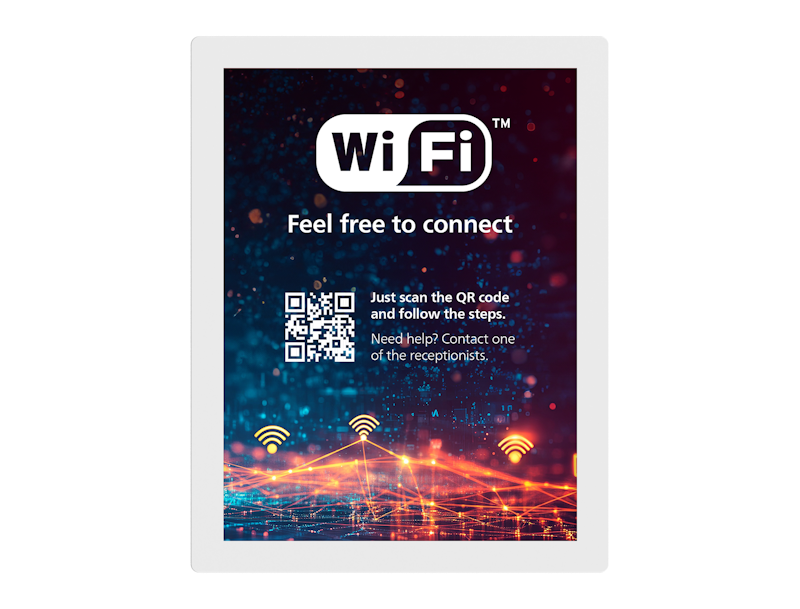

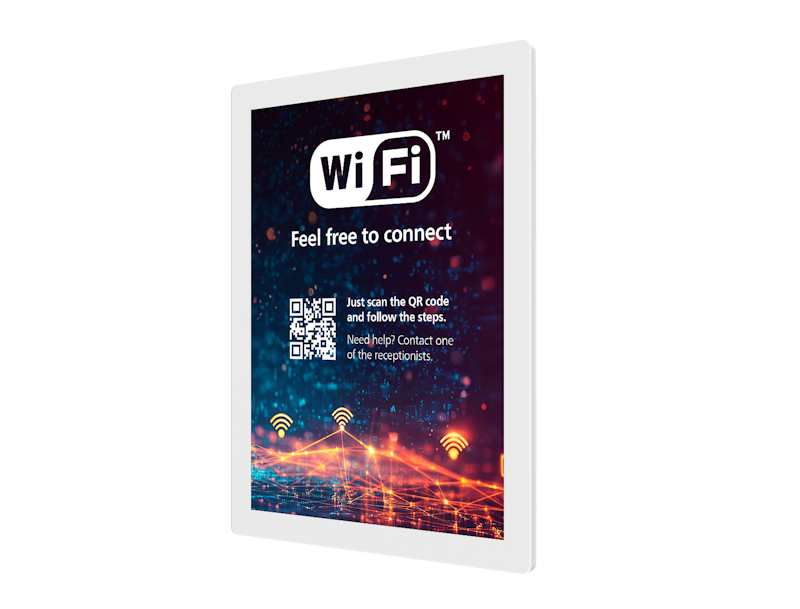

| Portrait (24/7) |
Accessories
| Included Accessories | AC power adapter |
|---|---|
| Quick start guide (x1) |
Internal Player
| Storage | 16GB EMMC |
|---|---|
| Memory | 2GB DDR4 |
| CPU | Rockchip PX30S |
Dimensions

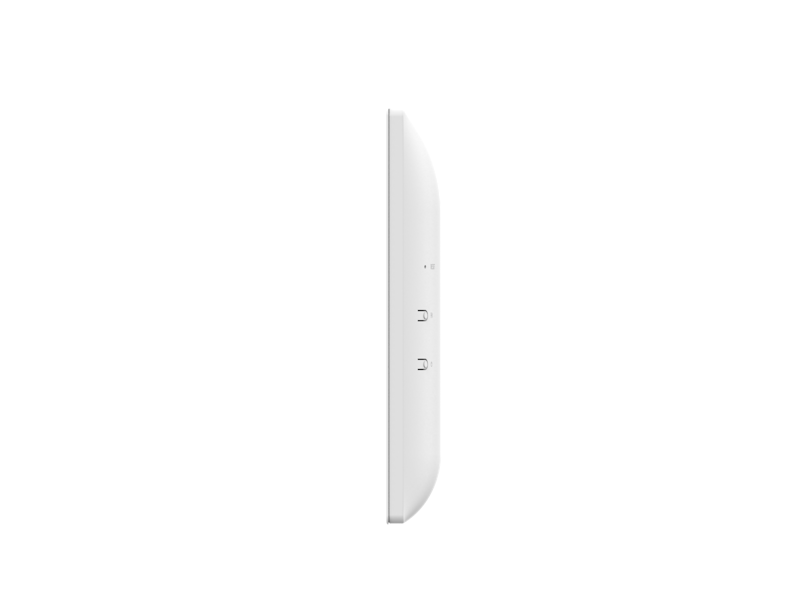

| Set Depth | 31.66 mm |
|---|---|
| Bezel width | 18.5 mm |
| Set Width | 306.4 mm |
| Product weight | 1.3 kg |
| Set Height | 238.8 mm |

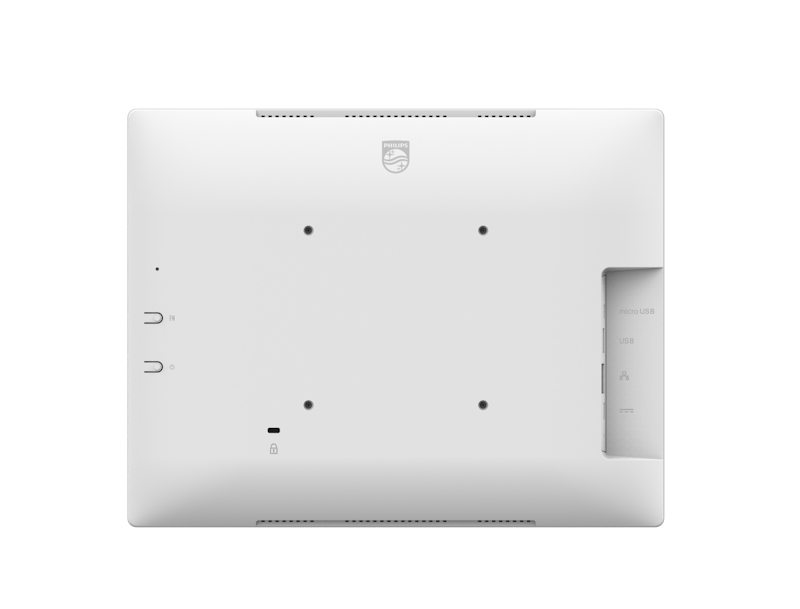

| Wall Mount | 100x100mm VESA mount |
Power
| Mains power | 20V/2.25A adapter |
|---|
Communication
| Ethernet | 10M/100M |
|---|---|
| Wi-Fi/ WLAN | 2Tx/2Rx 802.11 ac/a/b/g/n Wi-Fi + BT 5.1 Module |
Picture/Display
| Panel resolution | 1600 x 1200 |
|---|---|
| Aspect ratio | 16:9 |
| Diagonal screen size (inch) | 13.3 inch |
| Operating system | Android 11 |
| Display colors | 60k |
Miscellaneous
| On-Screen Display Languages | English |
|---|---|
| Simplified Chinese | |
| Regulatory approvals | CE |
| CB | |
| UL | |
| FCC | |
| Warranty | 3 year warranty |
Operating conditions
| Temperature range (operation) | 15~ 35 °C |
|---|---|
| Relative humidity | 20% ~ 80 % |
| Altitude | 0 ~ 3000 m |
| Temperature range (storage) | -20 ~ 60 °C |
