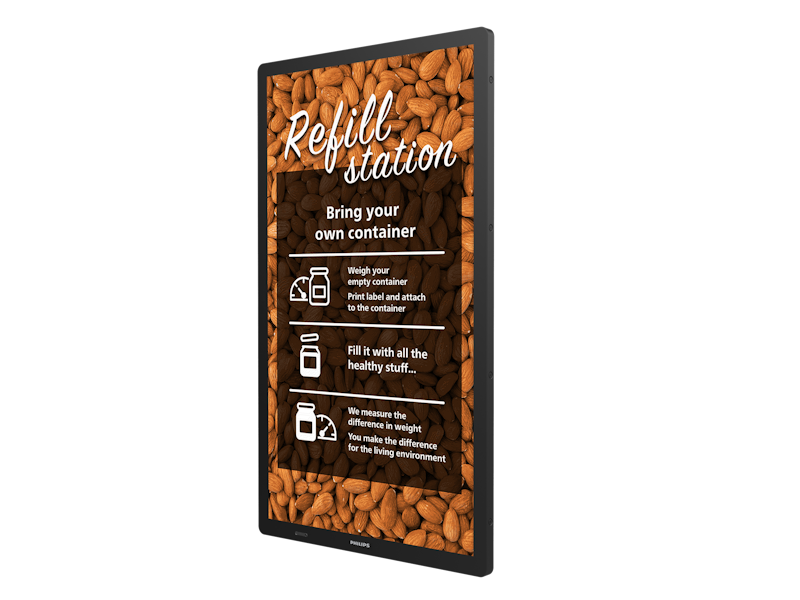

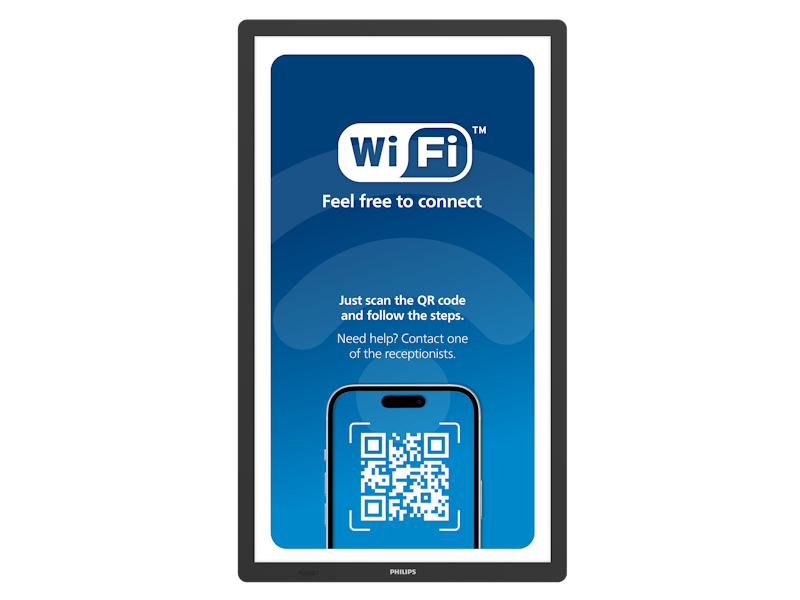

Tableaux

25BDL4150I/00

From confidently coloured menus to paper-free posters, bring new era display potential to life. Digitise paper signs or swap out digital models showing static imagery with ultra clear, easily updatable, more sustainable ePaper technology.

Get a quote

Technical Specifications

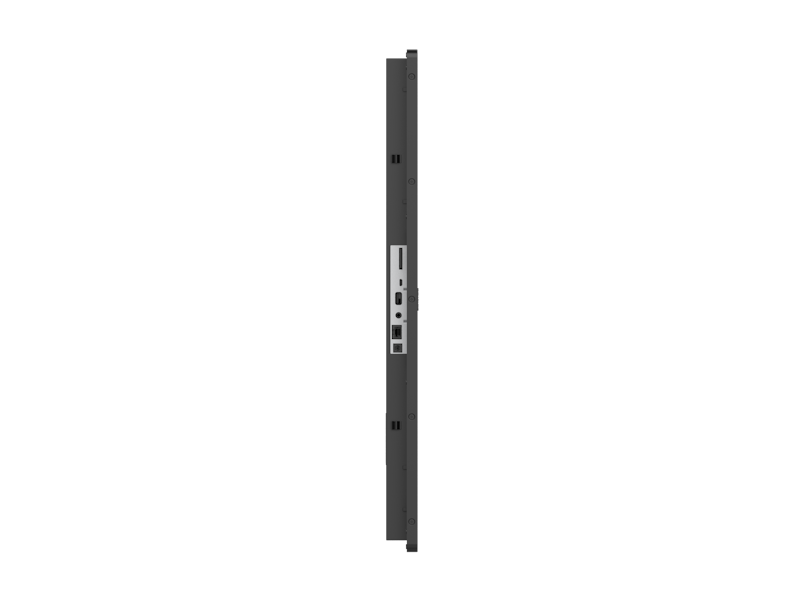

Connectivity

Audio output	Audio Left/Right (3.5mm jack)
Video input	USB
Other connections	micro SD
	micro USB

Convenience

Network controllable	LAN (RJ45)
Battery bay	4 pcs 18650 batteries (>2600mAh) not included

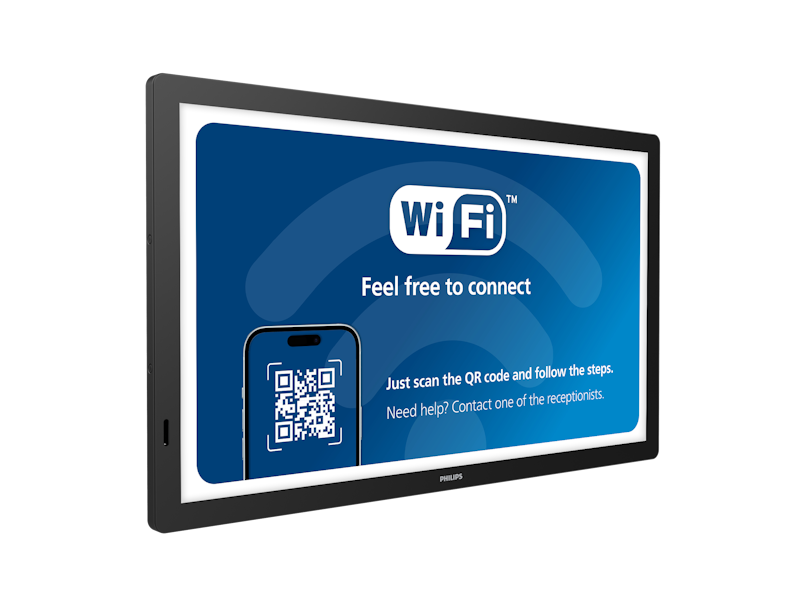

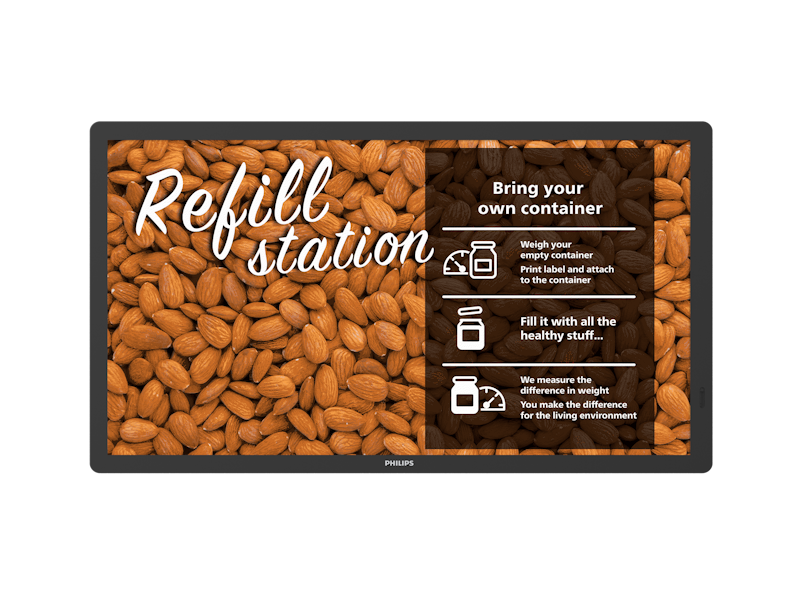

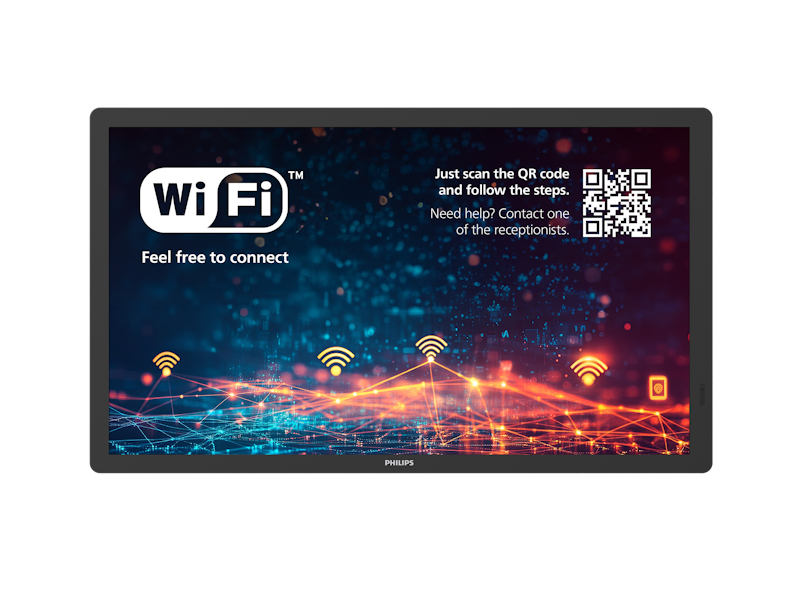

Placement	Landscape (24/7)

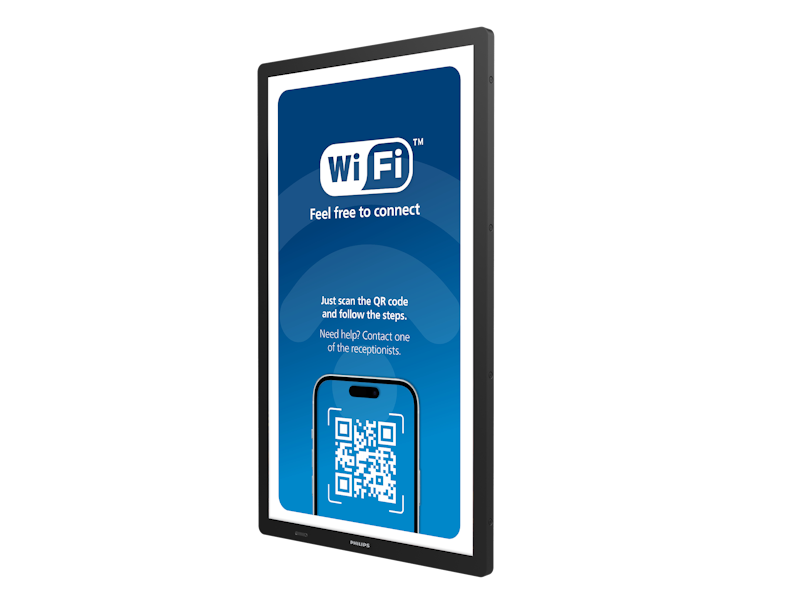

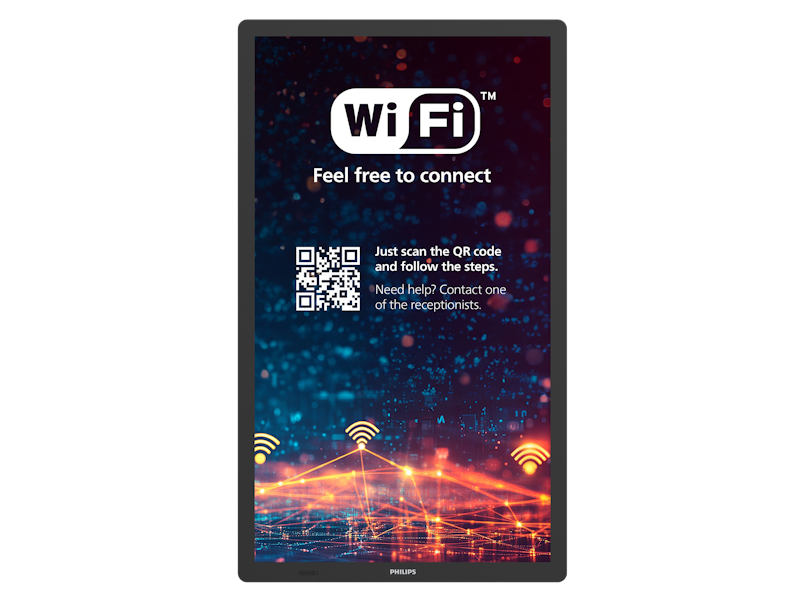

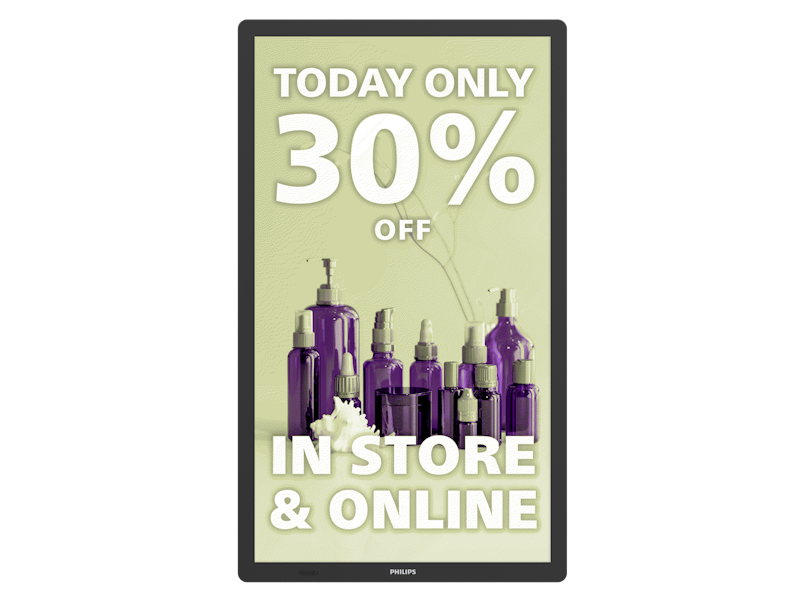

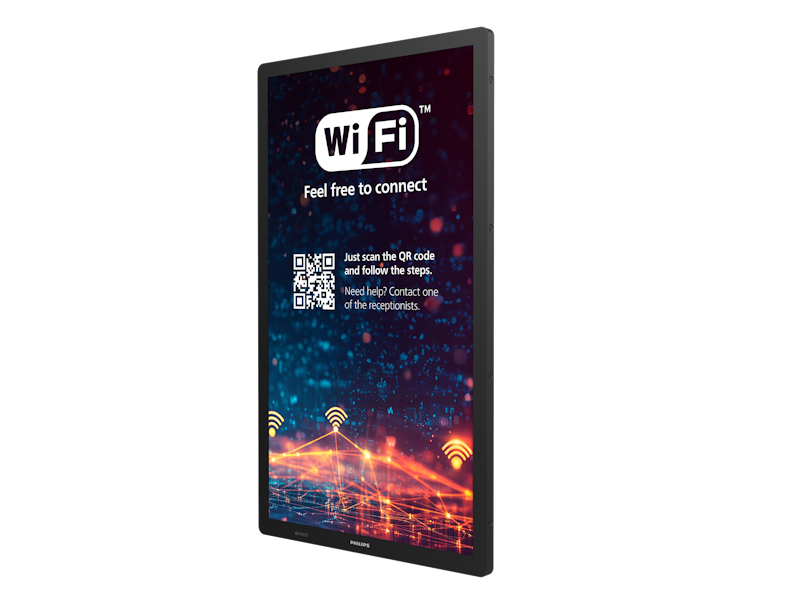

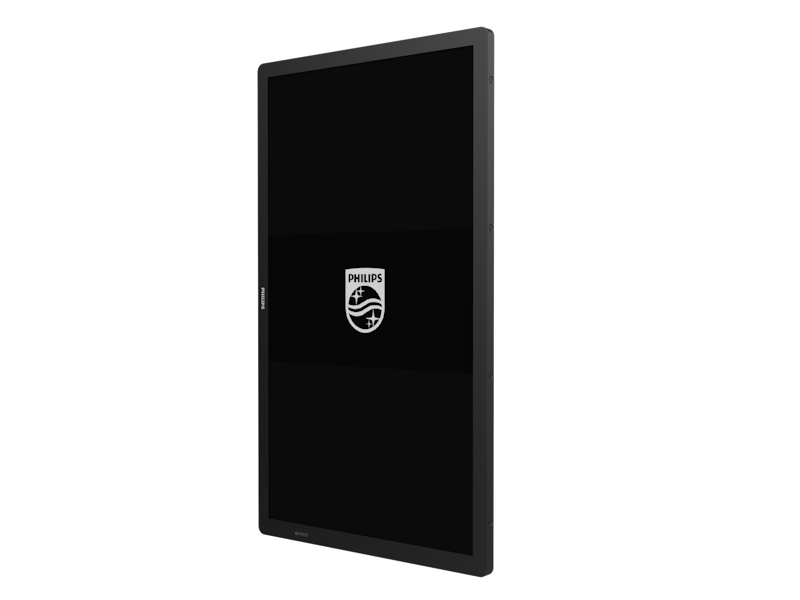

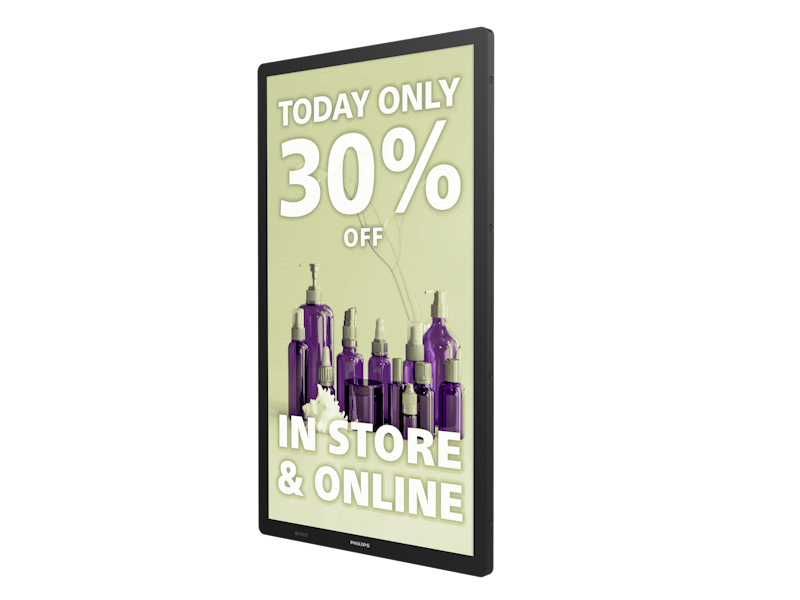

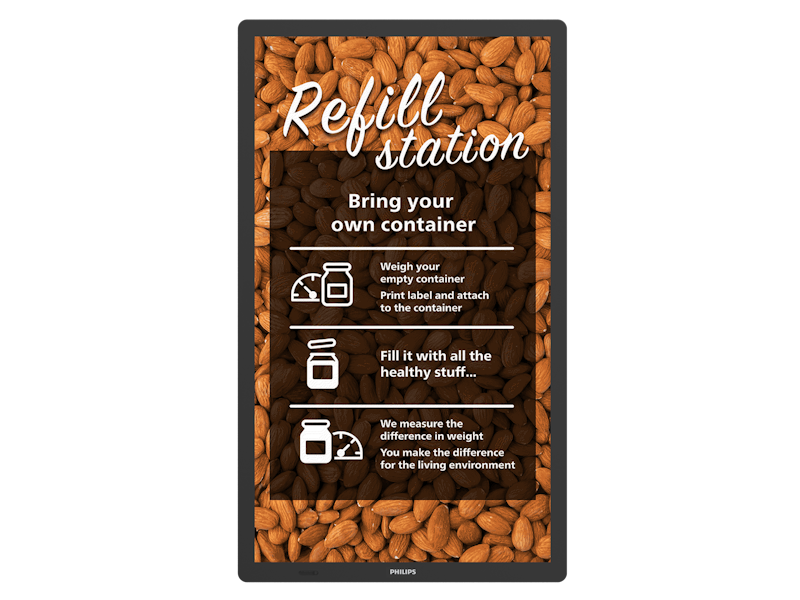

	Portrait (24/7)

Accessories

Included Accessories	AC power adapter
	Quick start guide (x1)

Internal Player

Storage	16GB EMMC
Memory	2GB DDR4
CPU	Rockchip PX30S

Dimensions

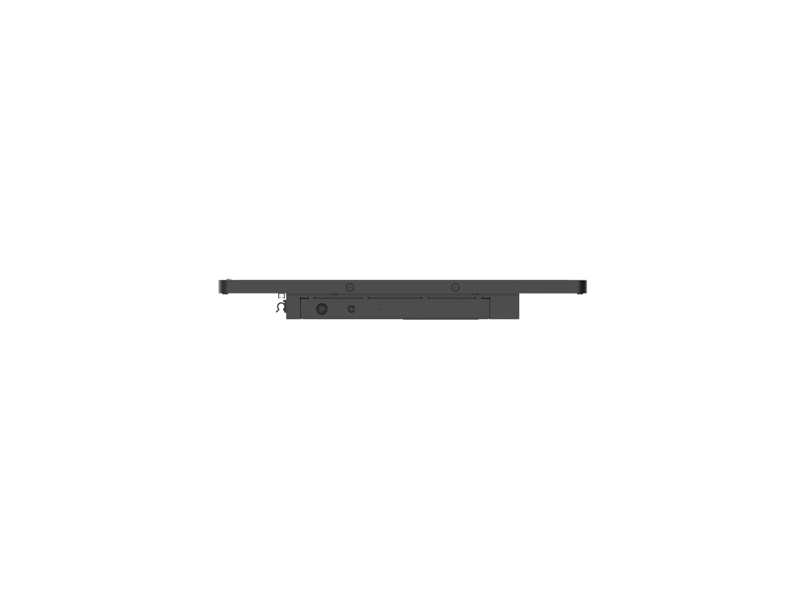

Set Depth	37.5 mm
Bezel width	18.6/18.6/18.6/22mm
Set Height	350.2 mm
Set Width	598.6 mm
Product weight	2.7 kg

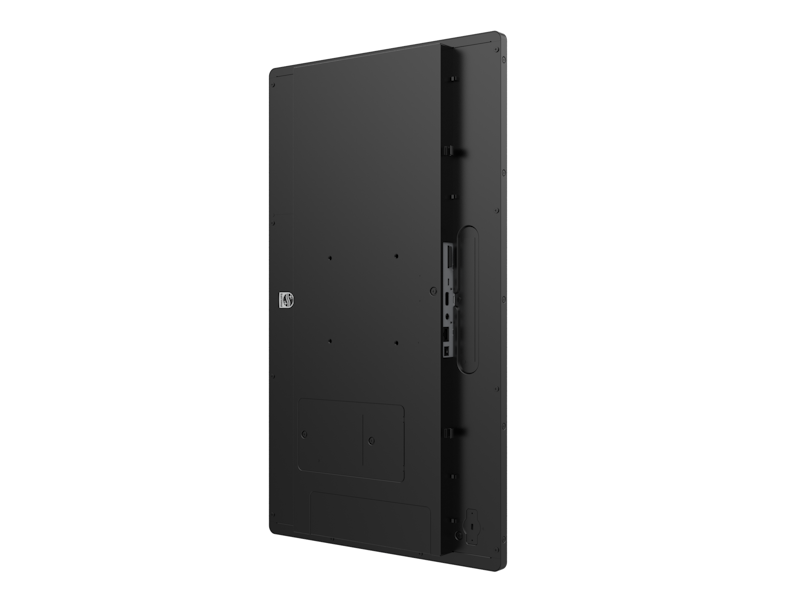

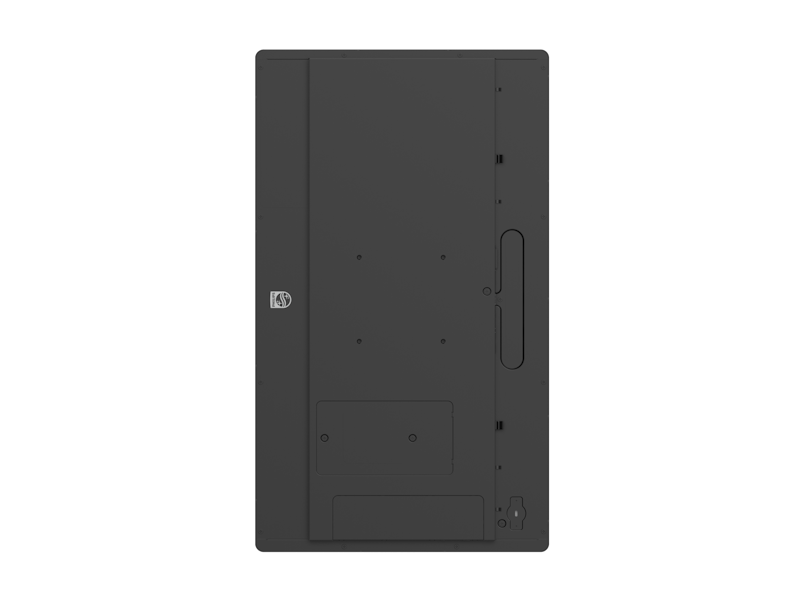

Wall Mount	100x100mm VESA mount

Power

Mains power	20V/2.25A adapter, PoE++, IEEE 802.3bt (Type 3)

Communication

Ethernet	10M/100M
Wi-Fi/ WLAN	2Tx/2Rx 802.11 ac/a/b/g/n Wi-Fi + BT 5.1 Module

Picture/Display

Panel resolution	3200 x 1800
Aspect ratio	16:9
Operating system	Android 11
Diagonal screen size (inch)	25.3 inch
Display colors	60k

Miscellaneous

On-Screen Display Languages	English
	Simplified Chinese
Warranty	3 year warranty
Regulatory approvals	CE
	CB
	UL
	FCC

Operating conditions

Temperature range (operation)	15~ 35 °C
Relative humidity	20% ~ 80 %
Altitude	0 ~ 3000 m
Temperature range (storage)	-20 ~ 60 °C
