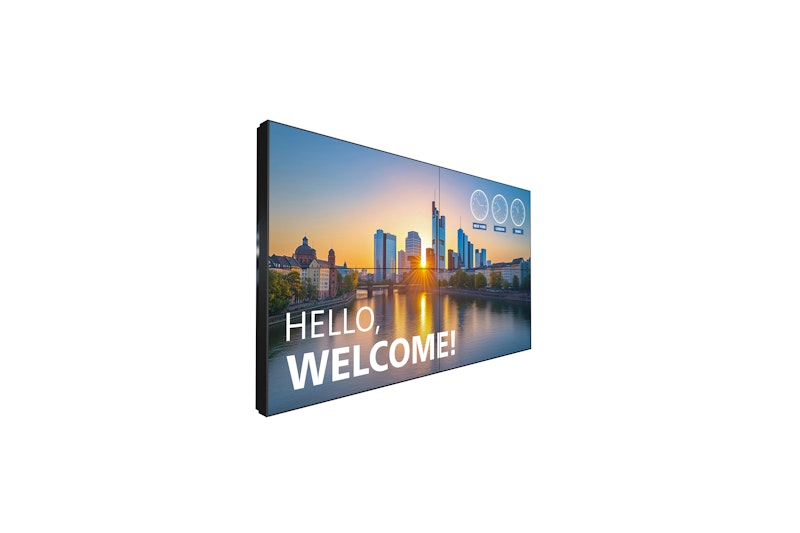

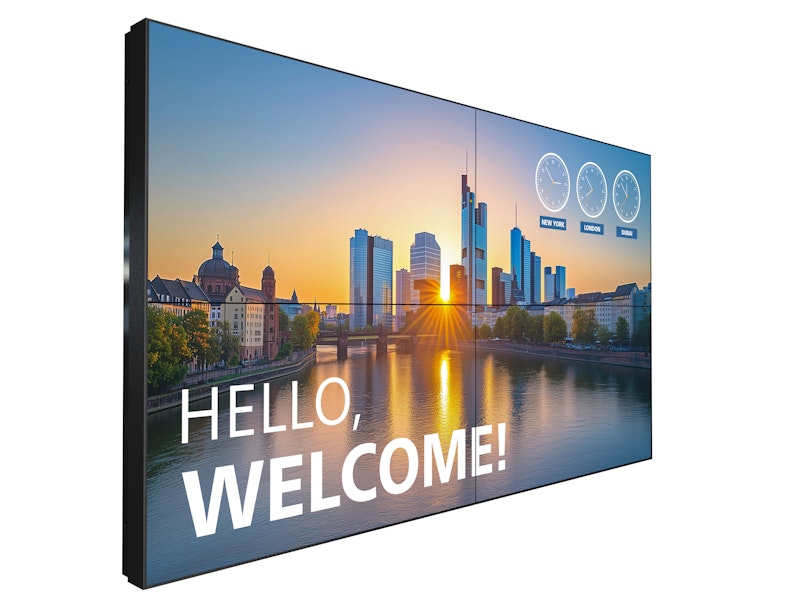

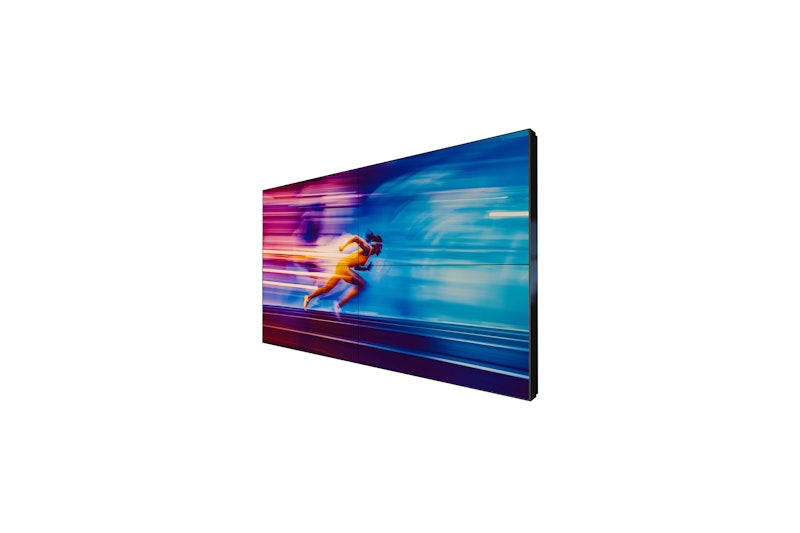

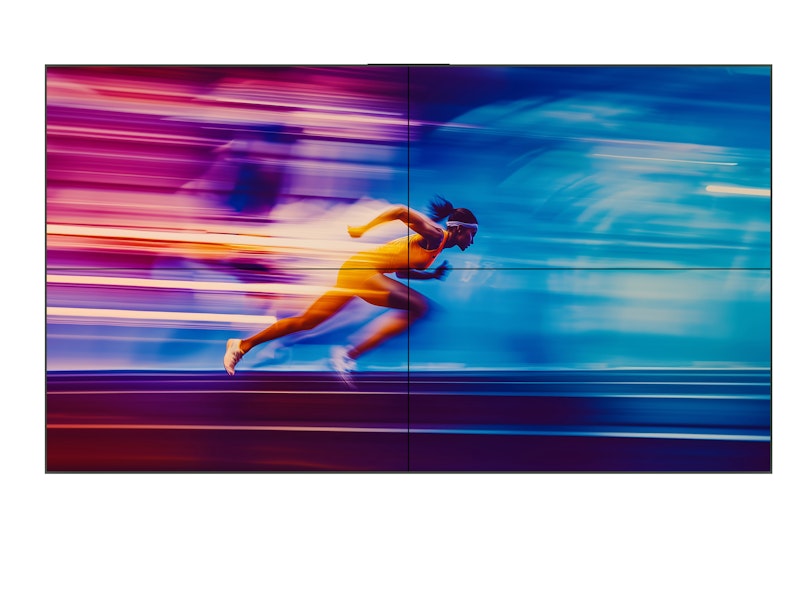

Philips X-Line

55BDL3305X/00

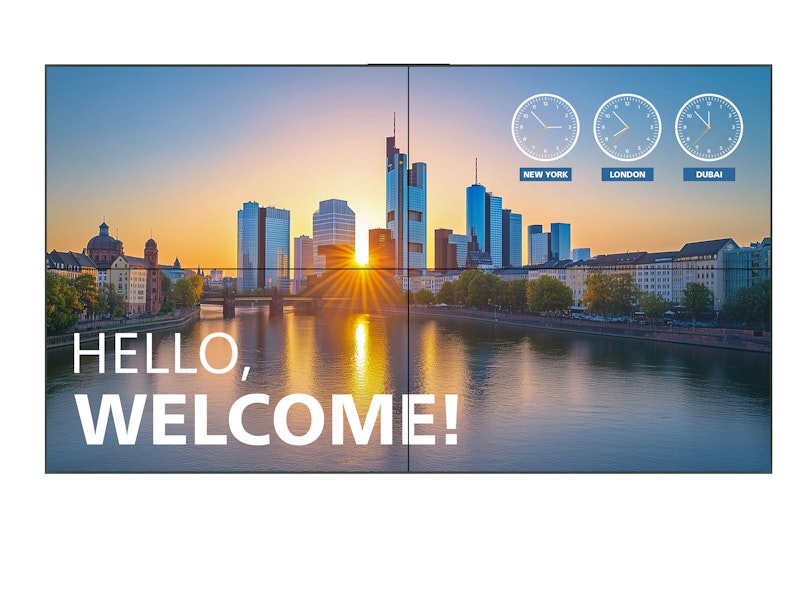

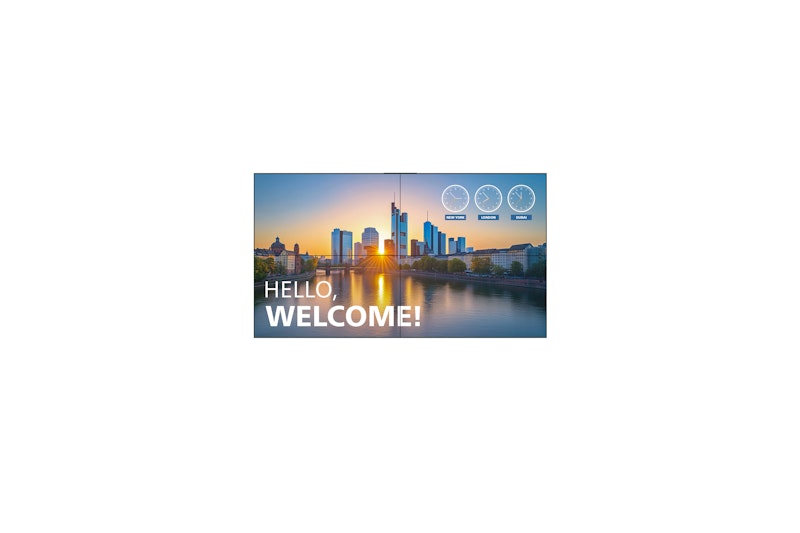

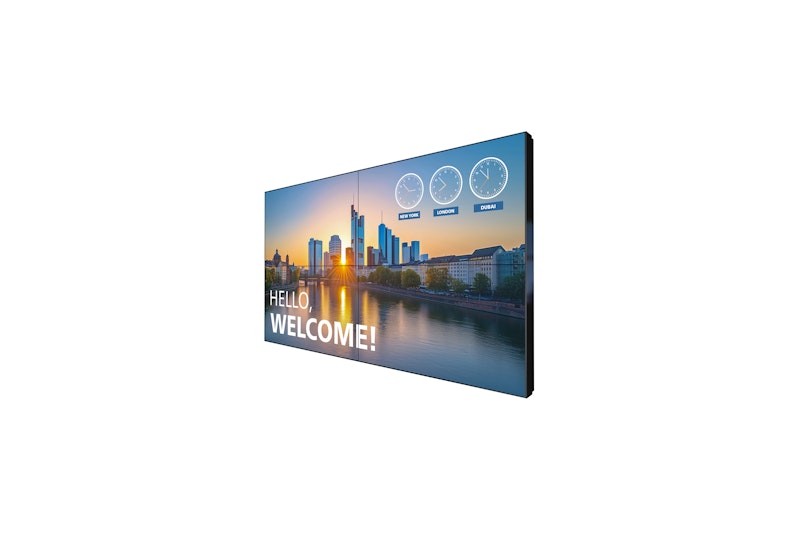

The Philips Videowall 3000 is designed for 24/7 operation and engages customers with its dynamic, immersive content. The CMND platform simplifies the management of content, while FailOver ensures enhanced reliability and peace of mind.

Get a quote

Technical Specifications

Connectivity

External control	IR (in) 3.5 mm jack
	LAN RJ45 (x2)
Audio input	3.5 mm mini jack (x 1)
Video output	DisplayPort 1.2 (x 1)
Video input	Display Port1.2 (x 1)
	DVI-D (x 1)
	HDMI 2.0 (x 2)
	VGA (Analogue D-Sub) (x 1)
Other connections	OPS
	USB 2.0 (x 1)
	Thermal sensor
Audio output	3.5 mm Mini Jack (x 1)

Convenience

Tiled Matrix	Up to 15 x 15
Network controllable	LAN (RJ45)
Energy-saving functions	Smart Power
Placement	Landscape (24/7)
	Portrait (24/7)
Screen-saving functions	Pixel Shift, Low Bright
Signal loop through	DisplayPort
	RJ45

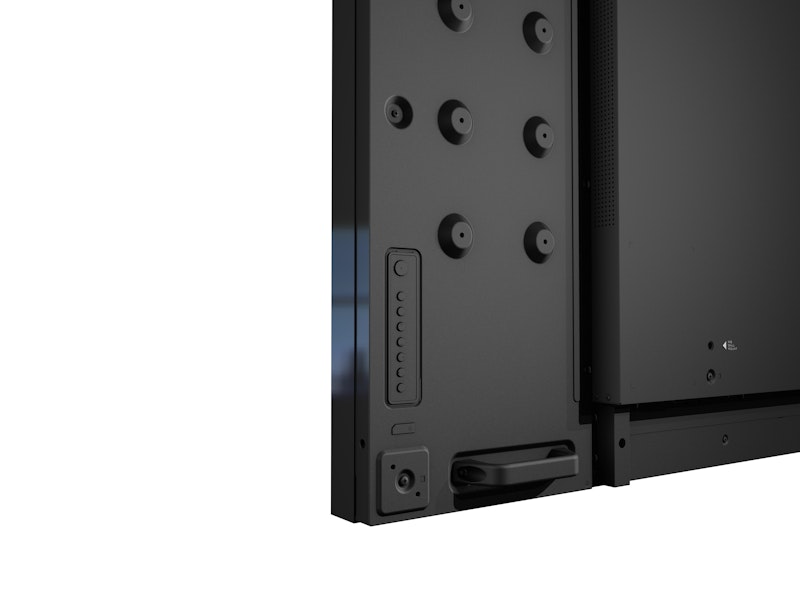

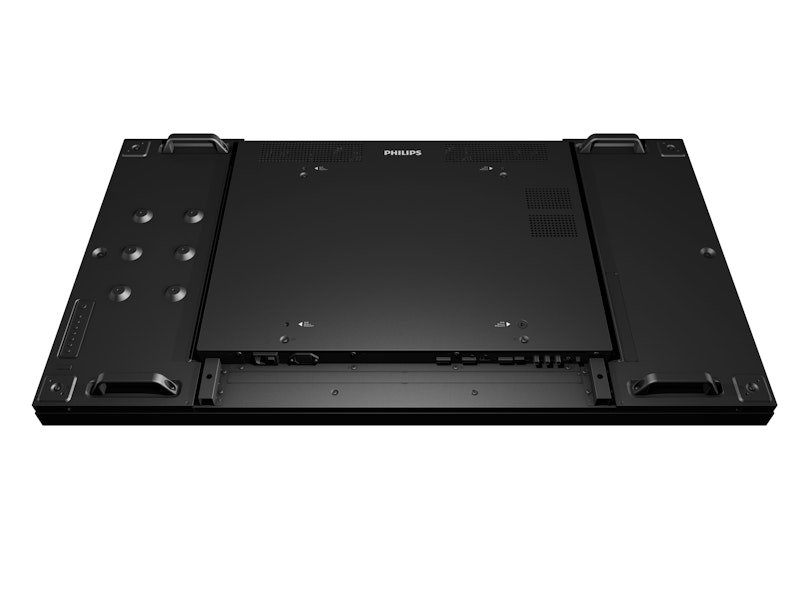

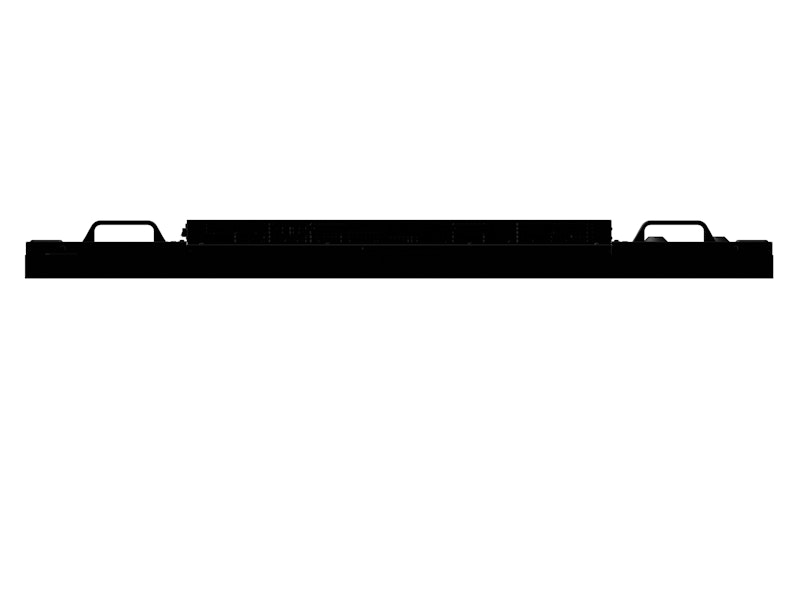

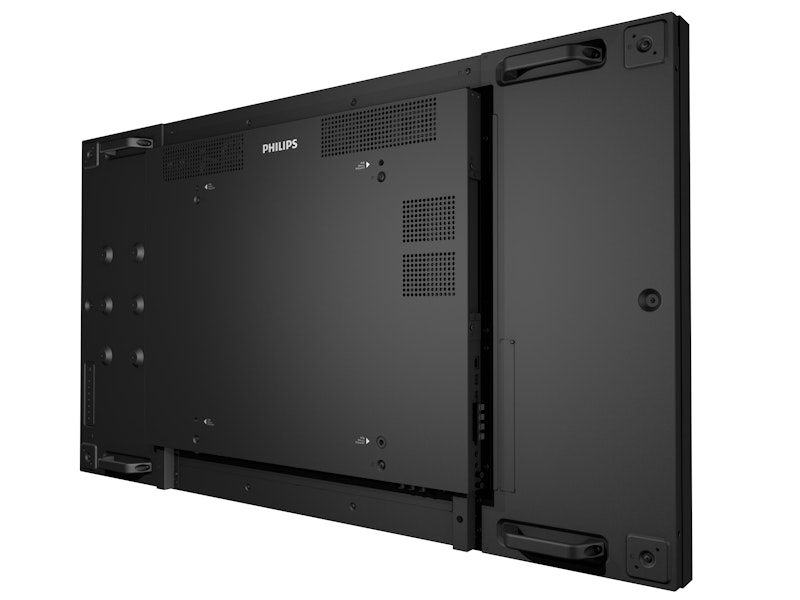

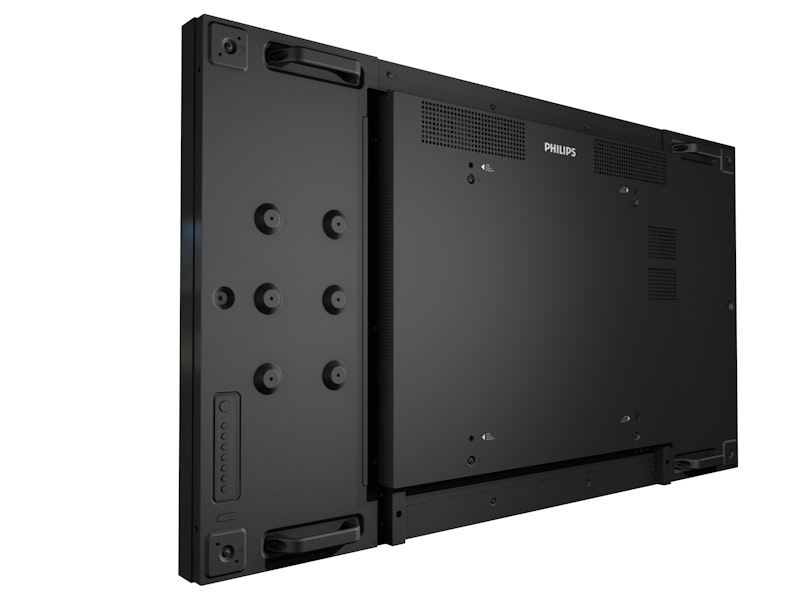

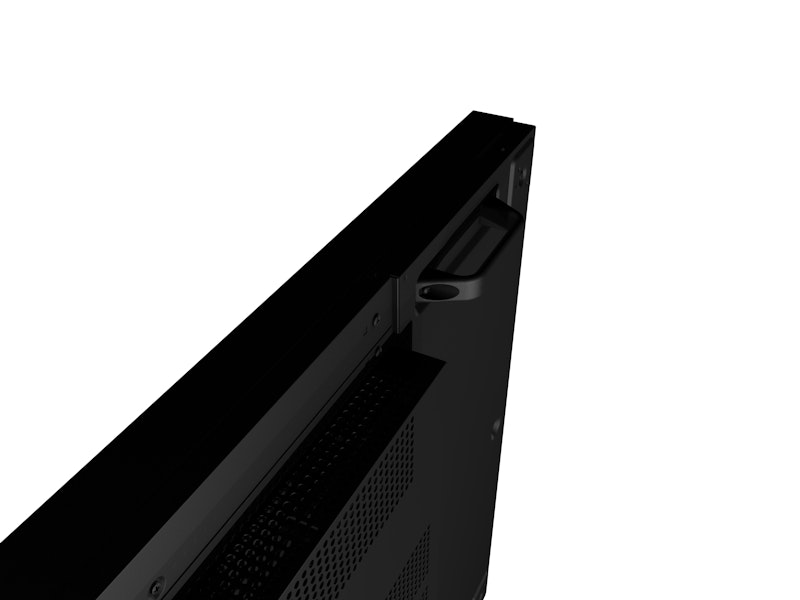

Ease of installation	Carrying Handles
	Smart Insert

Accessories

Included Accessories	Gap pad x 3
	IR sensor cable (1.8 m) (x 1)
	Quick start guide (x 1)
	Remote control and AAA batteries
	RJ45/RS232 converter
	Wire Clamper (x 3)
	Power cord
	DP cable (x1)
	RJ45 cable (x1)
	Edge alignment pin (x2)
	Kit-1 (x1)
	Kit-2 (x2)

Dimensions

Product weight	28.7 kg
Bezel width (combined)	<3 mm

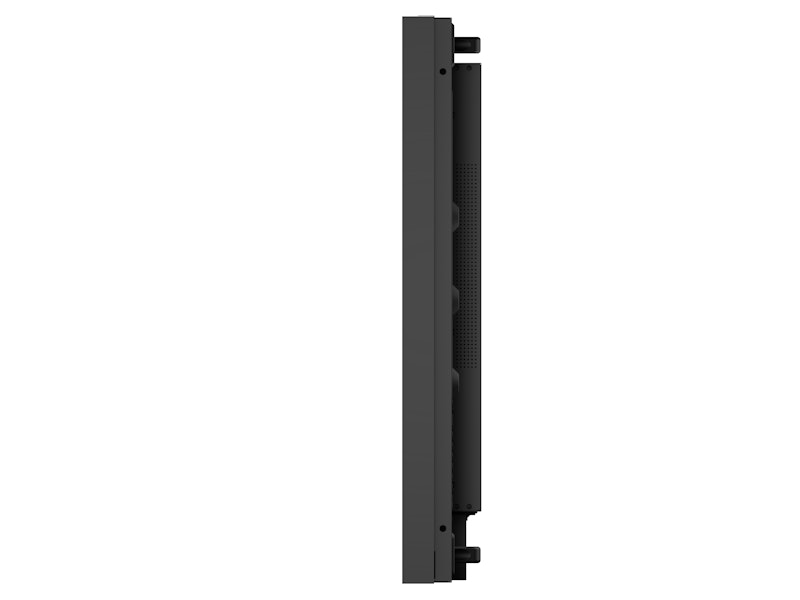

Set dimensions in inches (W x H x D)	47.69 x 26.85 x 3.85 (D@WallMount)/3.85 (D@Handle) inch
Set dimensions (W x H x D)	1211.3 x 682.1 x 97.8 mm (D@WallMount)/97.8 mm (D@Handle) mm

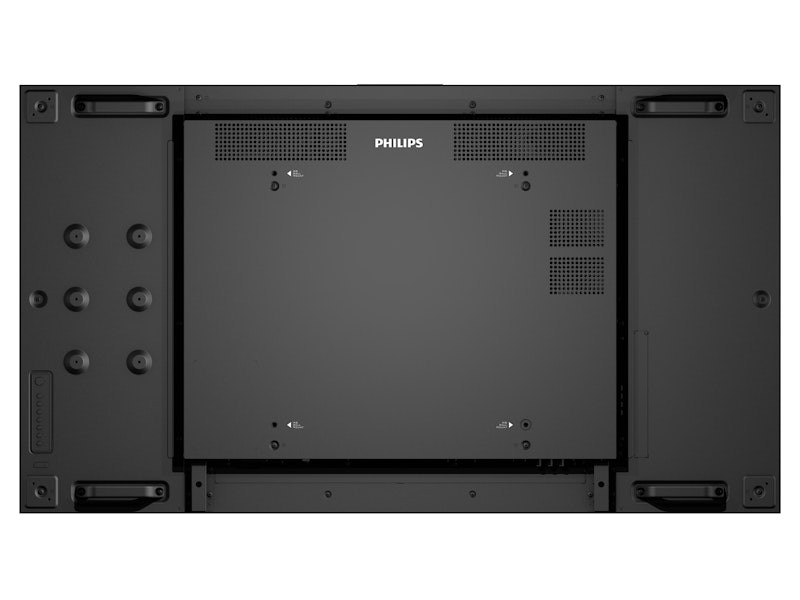

Smart Insert mount	100 mm x 100 mm and 100 mm x 200 mm, 6 x M4 x L6
Wall Mount	400 x 400 mm, M6

Sound

Built-in speakers	2 x 10 W (RMS)

Power

Consumption (Max)	228 W
Consumption (Typical)	164 W
Energy Label Class	G
Standby power consumption	0.5 W

Miscellaneous

Regulatory approvals	CE
	FCC, Class A
	RoHS
	CB
	ETL
	BSMI
Warranty	3 year warranty
On-Screen Display Languages	Arabic
	English
	French
	German
	Italian
	Japanese
	Polish
	Russian
	Spanish
	Simplified Chinese
	Turkish
	Traditional Chinese

Operating conditions

Temperature range (storage)	-20 ~ 60 °C
MTBF	50,000 hour(s)
Humidity range (storage) [RH]	5–95% (without condensation)
Humidity range (operation)[RH]	20–80% (without condensation)
Temperature range (operation)	0 ~ 40 °C
Altitude	0 ~ 5000 m

Picture/Display

Response time (typical)	8 ms
Pixel pitch	0.63 x 0.63 mm
Panel resolution	1920 x 1080p
Dynamic contrast ratio	500,000:1
Viewing angle (horizontal)	178 degree
Diagonal screen size	54.5 inch/138.7 cm
Aspect ratio	16:9
Display colours	16.7 M
Optimum resolution	1920 x 1080 @ 60 Hz
Haze	25%
Viewing angle (vertical)	178 degree
Contrast ratio (typical)	1200:1
Brightness	500 cd/m²

Supported Display Resolution

Computer formats	For details, see user manual
Video formats	1080p, 25, 30, 50, 60 Hz
	720p, 50, 60 Hz
	1080i, 50, 60 Hz
	2160p, 25, 30, 50, 60 Hz (HDMI/OPS/DP)
