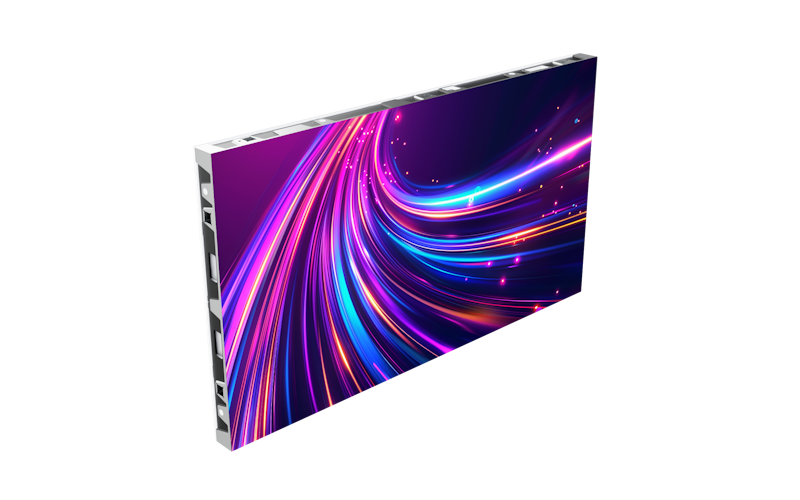

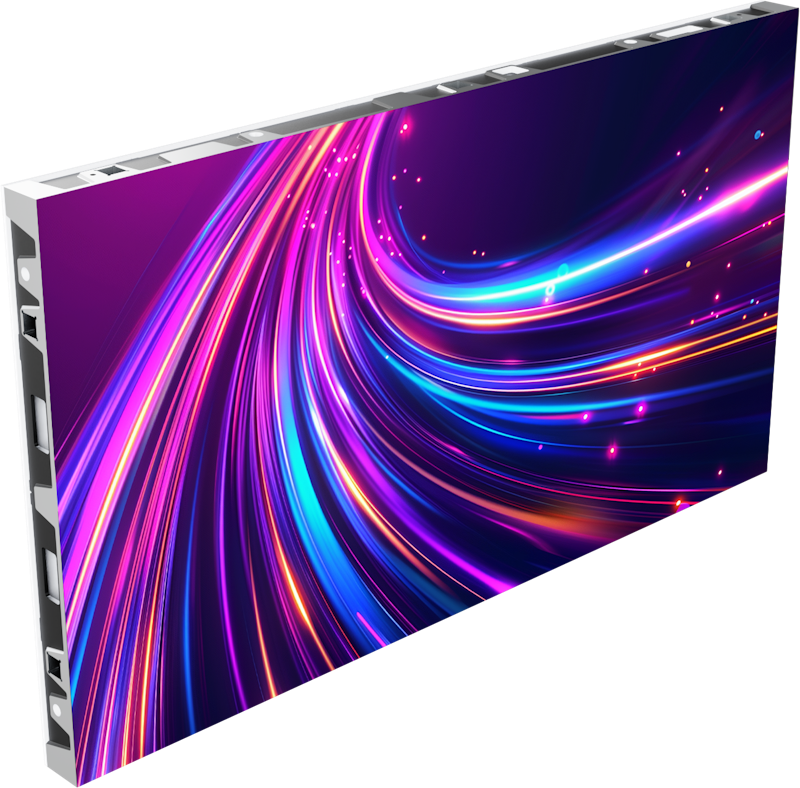

Unite LED All in One

27HDL5118IP/00

Your essential range of investment-friendly flip chip COB panels delivering on quality, resolution and reliability, as well as efficiency. With low power consumption for reduced cost of ownership and an easy-to-maintain flat matt surface.

Get a quote

Technical Specifications

Accessories

QSG (Quick Start Guide)	Printed on carton
LAN cable (type/length)	RJ45 75 cm/RJ45 15 cm
Screws (type/length mm)	Hex M6, 22 mm

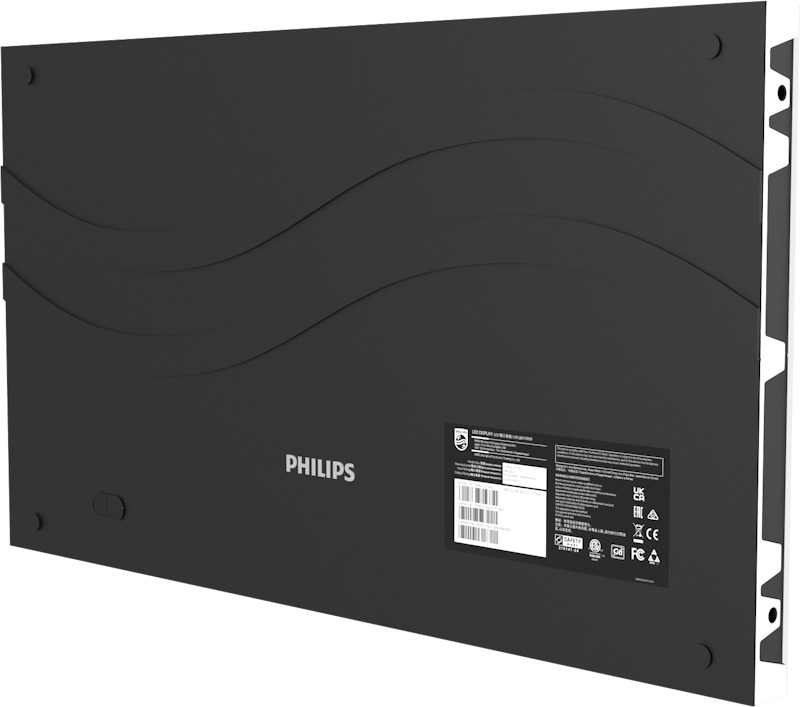

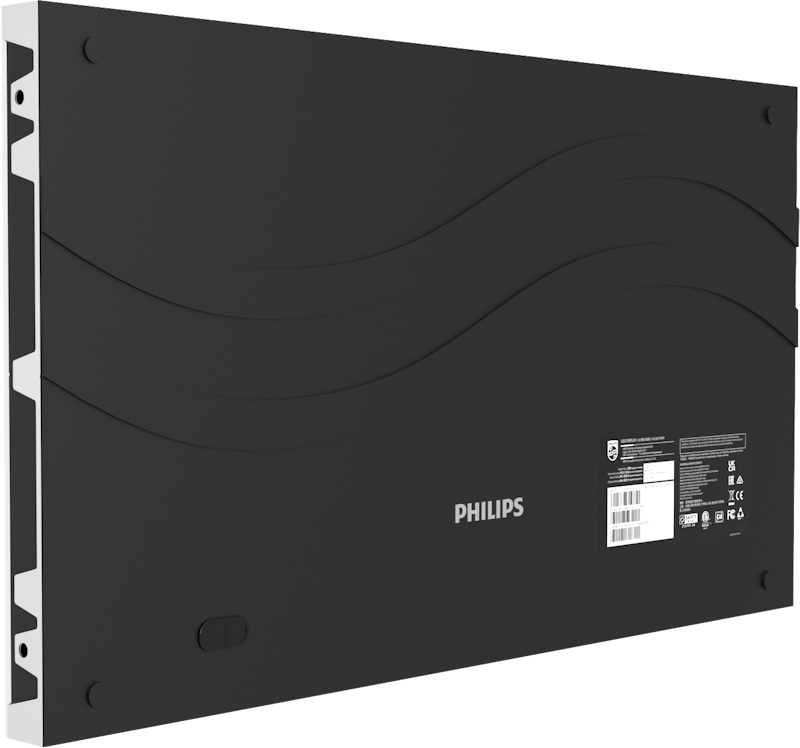

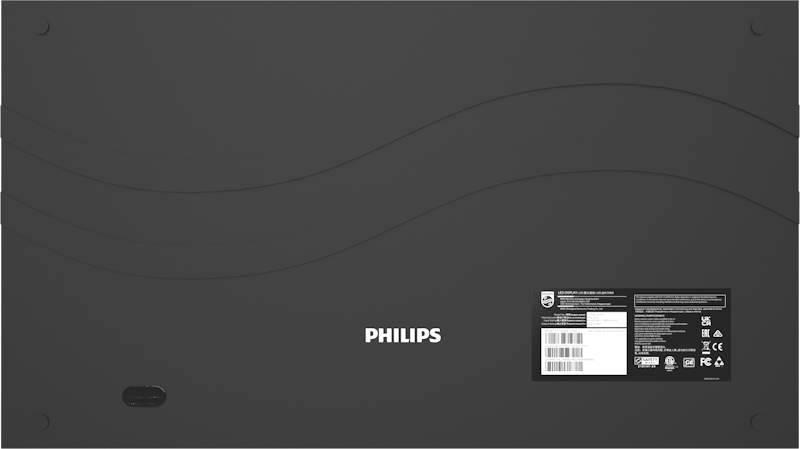

Cabinet

Cabinet Size (W x H x D in mm)	600 x 337.5 x 33.6
Receiving card brand	Novastar A8S-N
Cabinet size (inches)	27.1"
Cabinet pixels (Dot)	57,600
Power connector	3-pin connector
Cabinet resolution (W x H)	320x180
Weight (kg)	4.7 ± 0.2
Cabinet area (m2)	0.2052
Cabinet construction	Die cast
Data connector	RJ45

Power

Cabinet Max Power consumption (W) (BC)	<65
Max cabinets power daisy chain	16
Cabinet Typical Power consumption (W) (AC)	<19
Input voltage	AC100~240 V (50 and 60 Hz)
Cabinet Max Power consumption (W) (AC):	<50
BTU/M2 (AC)	972
Power consumption/M2 (W) (AC)	285
Power consumption/M2 (W) (BC)	338
BTU/M2 (BC)	1153

Miscellaneous

Regulatory approvals	CE
	UKCA
	FCC
	ETL
	RoHS
	CCC
	SASO
Warranty	36 months

Operating conditions

Temperature range (storage)	-40–60 °C
Working environment (indoor/outdoor)	Indoor
Temperature range (operation)	-10–45 °C
Humidity range (operation)[RH]	10%–90% RH
Humidity range (storage) [RH]	10%–70% RH

Picture/Display

Bit-depth (bit)	13
Calibration (brightness/colour)	Colour and Brightness
Refresh rate (Hz)	1920–3840 Hz
Frame frequency (Hz)	50–60
Brightness Uniformity	>=97%
Viewing angle (°) H/V	160°
Brightness (nits)	600 nit
Colour temperature default	6500K ± 500
Colour temperature (K) adjust range (by software)	3000–10000
Contrast ratio (typical)	5000:1

Module

LED type	COB
LED lifetime(Hrs)	100 000
Module size (W x H in mm)	150 x 168.75
Weight (kg)	0.137
Pixel pitch (mm)	1.875
Pixel constitution	1R1G1B Flip Chip
LED Pole type	Common Anode
Black screen power saving	Yes
Module resolution (WxH pixels)	80 x 90

Packaging Data

Packing Total weight Cardboard/paper (in grams)	1100 ± 100
Net Weight (Product excluding accessories and packaging in kg)	<4.8 kg
Packing Total weight Plastics (LDPE/EPE/HDPE/PVC/ in grams)	400 ± 100
Package size (W x H x D mm)	822 x 461 x 99
Gross weight (full product, incl. accessories and packaging in kg)	6.3 ± 0.2
