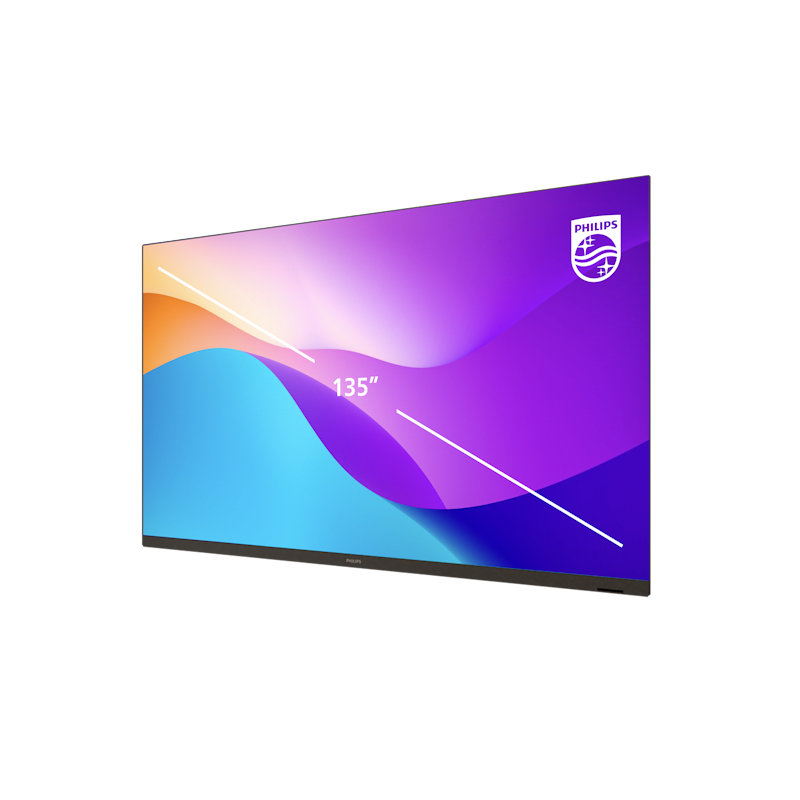

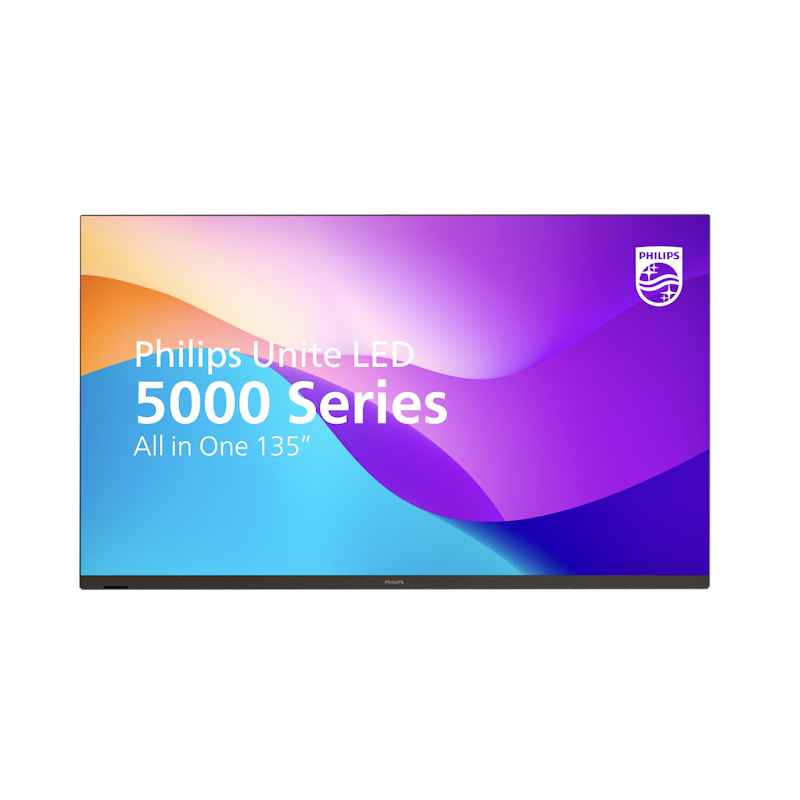

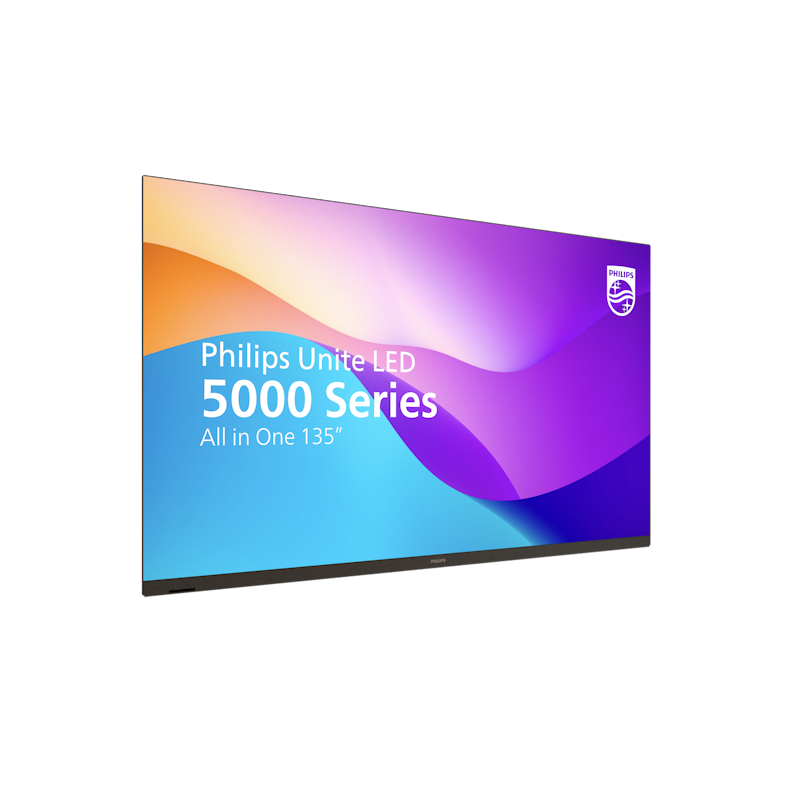

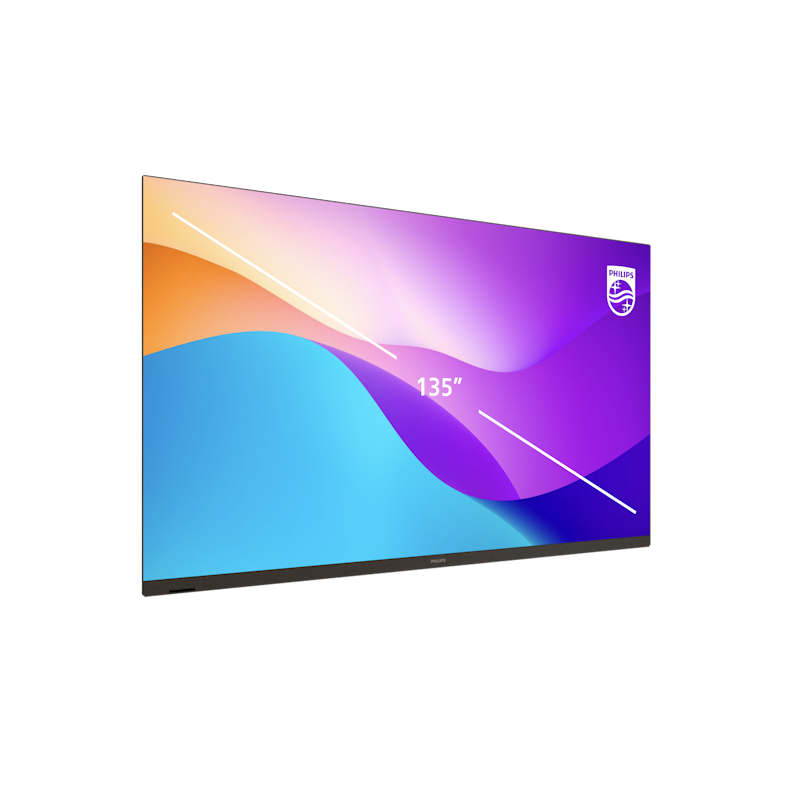

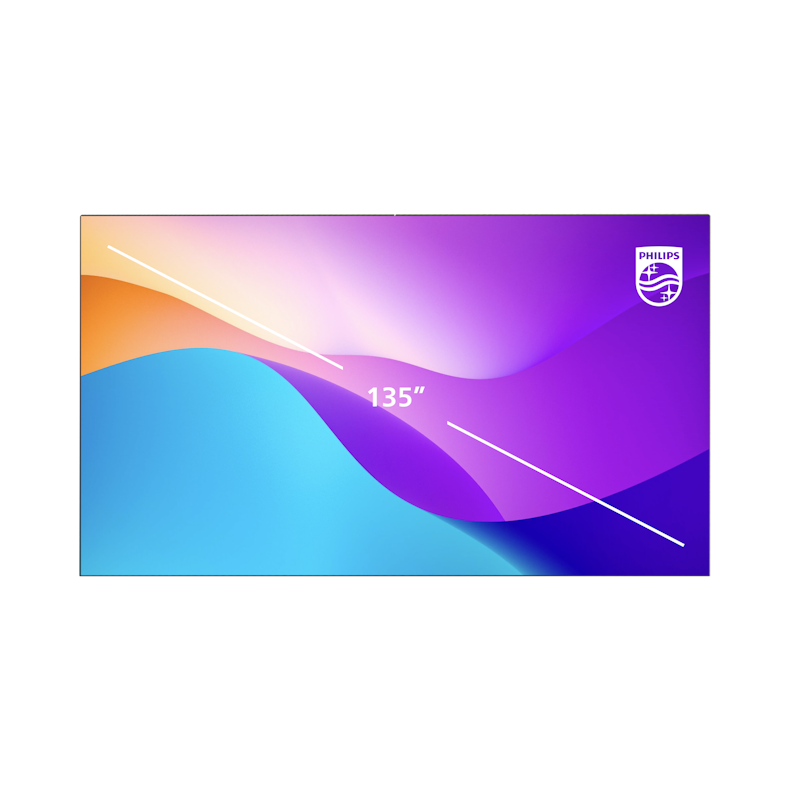

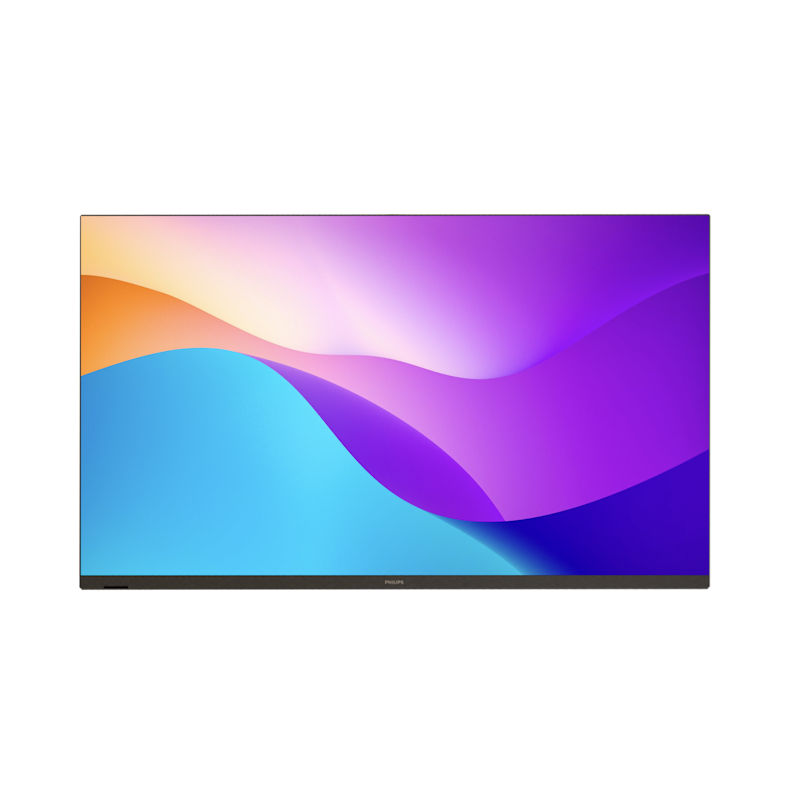

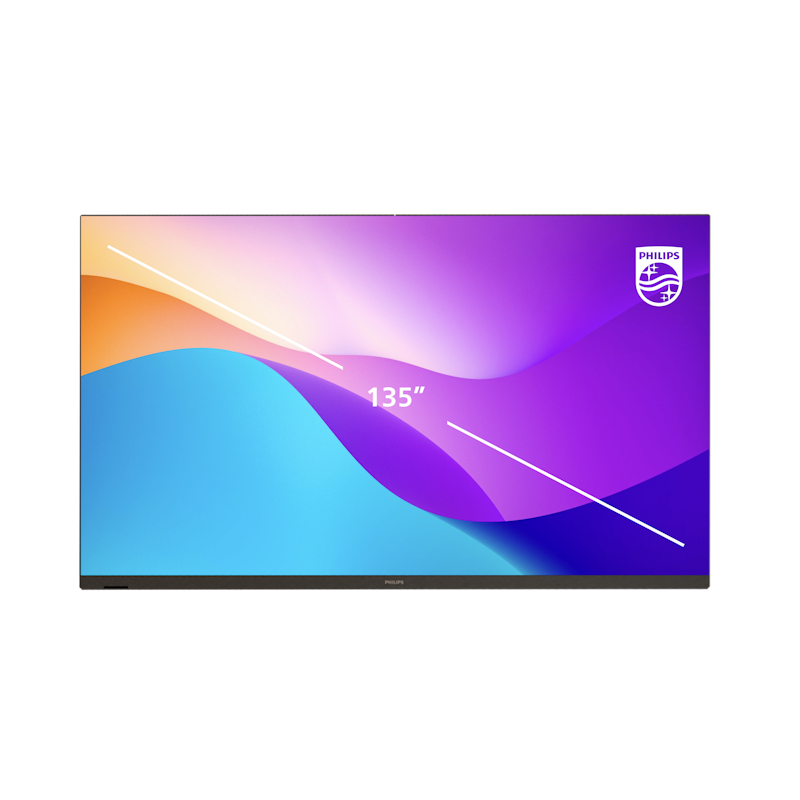

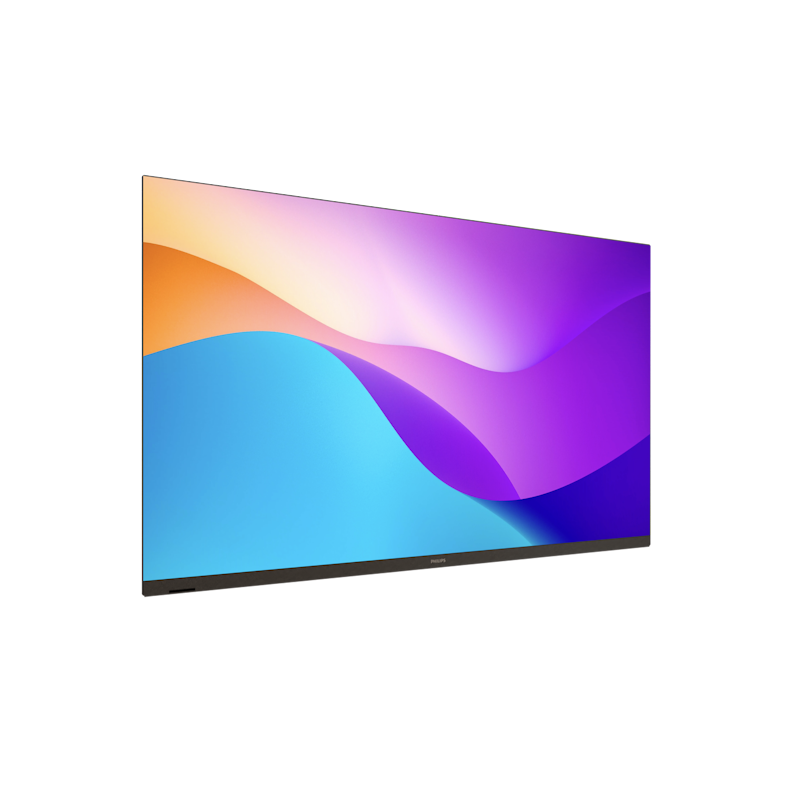

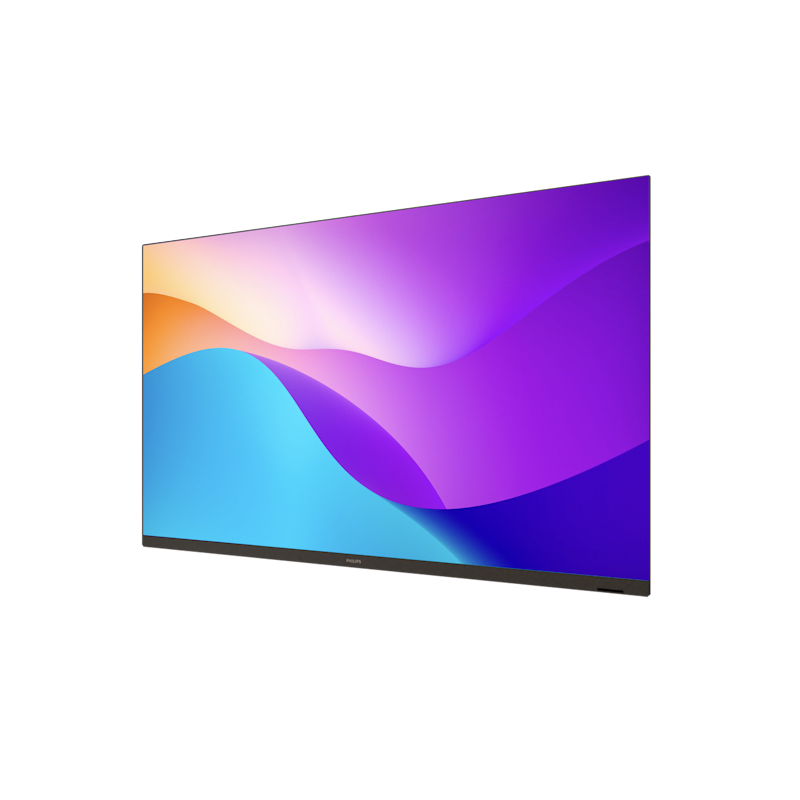

Unite LED All in One

135HDL5015IA/00

Designed to engage the audience with vivid colours and deep black contrast. Reliable solution for meeting rooms or auditoriums. Packaged in one box, pre-installed, pre-configured modules. Convenience, energy efficiency, superb image quality.

Get a quote

Technical Specifications

Connectivity

External control	RS232C (in/out) 2.5 mm jack
	RJ45
	RJ45 to LED screen (x 8)
	IR (in/out) 3.5 mm jack
Audio input	3.5 mm mini jack (x 1)
Video output	DisplayPort 1.4 (x 1)
Video input	DVI-I (x 1)
	DisplayPort 1.4 (x 1)
	HDMI 2.0 (x 2)
	USB 3.0 (x 2)
	USB-C (up to 65 W)
Audio out	3.5 mm headphone/line-out jack

Accessories

Included accessories	Remote Control and AAA Batteries
	RS232 cable
	Power cord
	Quick start guide
	RS232 daisy cable
	IR sensor cable (1.8 M)
	USB cover and screws
	Cable clips
	Key pad and IR receiver board
	Cable for key pad and IR receiver board
	Speaker set
	Wall mount
Wi-Fi module	CRD22 Wi-Fi and Bluetooth USB module, incl 2 antennas

Internal Player

Storage	32 GB eMMc
GPU	ARM Mali-T860 MP4
Memory	4 GB RAM
CPU	2 x A72 + 4 x A53

Cabinet

Receiving card spec.	A5s plus
Cabinet size (inches)	135"
Cabinet pixels (Dot)	414,720
Receiving card brand	Novastar
Cabinet resolution (W x H)	384 x 1080
Power connector	C40
Cabinet size (mm)	70.5
Weight (kg)	29
Cabinet area (m2)	1.0125
Cabinet construction	Extruded Aluminium
Data connector	RJ45

Power

Mains power	AC 100~240
Typical power cons. (W)	816
Max Power consumption (W)	2.260 W W

Miscellaneous

Regulatory approvals	CE
	FCC SDOC, Part 15, Class A
	EMC
	EN55032
	EN55035
	EN61000-3-2
	EN61000-3-3
	IEC/UL62368
	ETL
Warranty	2 Years

Operating conditions

Temperature range (storage)	-40~60 °C
Humidity range (operation)[RH]	≤90%
Humidity range (storage) [RH]	≤93%
Temperature range (operation)	0~40 °C

Picture/Display

Colour temperature adjust range	2000~10000
Aspect ratio	16:9
Viewing angle (horizontal)	160° degree
Refresh rate (Hz)	3840
Scan rate (lines)	1/48
Brightness uniformity	≥95%
Frame frequency (Hz)	50/60
Brightness after calibration	700 cd/m²
Viewing angle (vertical)	160° degree
Contrast ratio (typical)	8000:1
Colour temperature default	6500 adjustable
Brightness before calibration	900 cd/m²

Module

LED type	SMD 1212
LED lifetime(Hrs)	100.000
Module size (W x H in mm)	300 x 168.75
Pixel pitch (mm)	1.5625
Pixel constitution	1R1G1B
Module resolution (WxH pixels)	192x108

Packaging Data

Dimension of packaging (mm)	1830 x 1050 x 780
Gross weight (KG)	277
