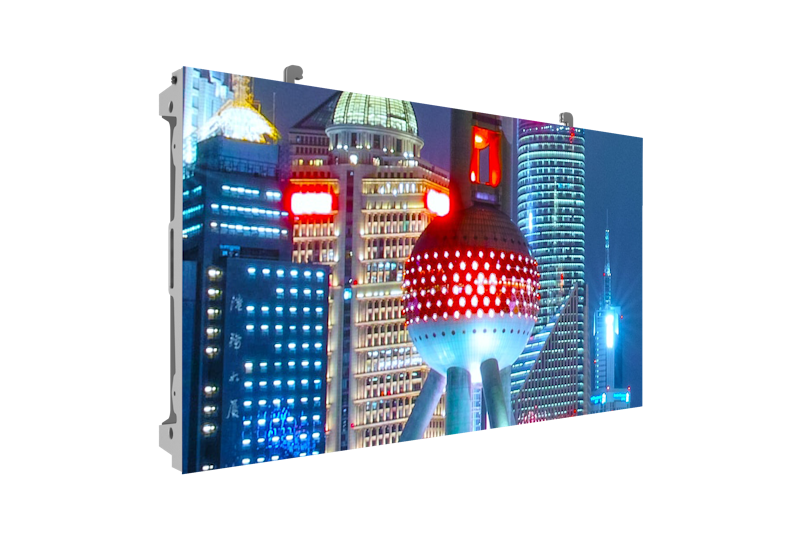

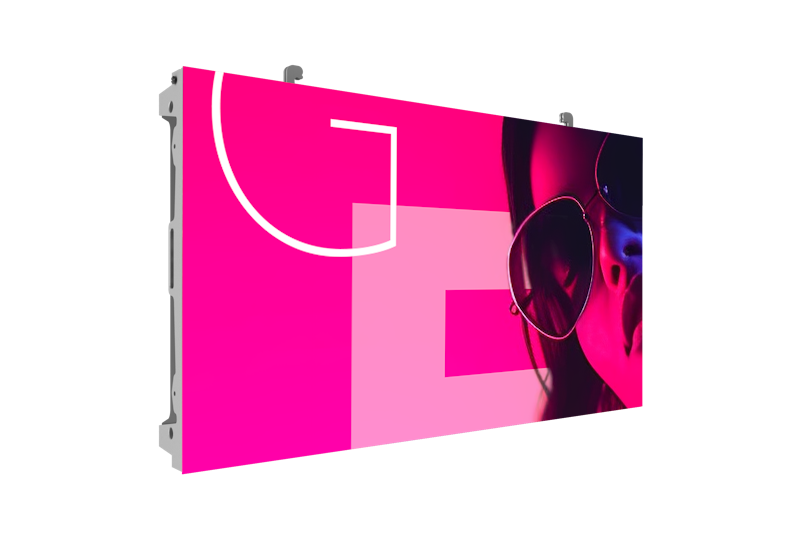

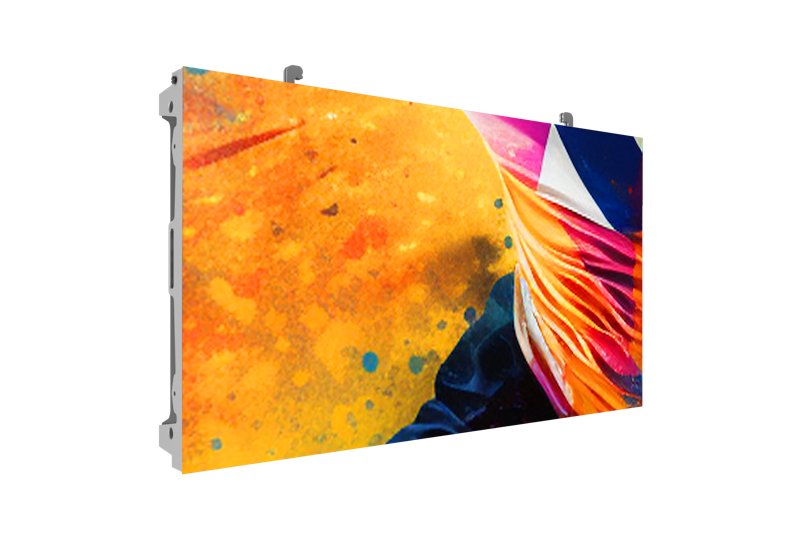

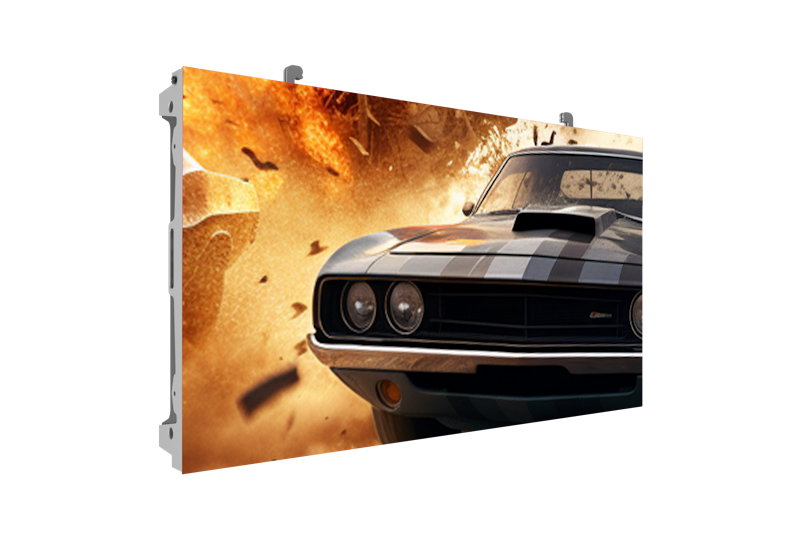

Philips L-Line 6000 Series

27BDL6395L/00

Building block of 4-in-1 mini LED to achieve 4K resolution at 165”, 16:9 or 32:9 panoramic view display. The 6395 Series deliver on lower power and heat emissions, supporting HDR10+ and 12-bit colours for deepest visual experiences.

Get a quote

Technical Specifications

Convenience

Signal control loop through	RJ45
Power loop through	For 230V environments: 8 cabinets or less, for 110V environments: 4 cabinets or less
Ease of installation	Guide pins
	Light weight
	Locking mechanism for cabinet

Accessories

LAN cable (RJ45, CAT-5)	1 pcs
Power loop through cable	1 pcs
QSG	1 pcs

Cabinet

Power connector	In/Out(C14/C13)
Data connector	RJ45
Receiving card quantity	2 pcs
Receiving card spec.	A8S-N
Cabinet construction	Die-Casting Aluminum+Aluminum back cover
Cabinet pixels ( Dot )	230,400
Cabinet area (m2)	0.208
Cabinet size (mm)	608x342x59
Cabinet resolution (W x H)	640×360
Cabinet diagonal (inch)	27.5
Weight (KG)	7.32 Kg
Receving card brand	Novastar

Power

Max. power cons. AC (W)	722 W
Input voltage	AC100~240V (50 & 60Hz)
Max. power cons. BC (W)	866 W
Consumption (Typical)	50 W

Miscellaneous

Warranty	1 year
Regulatory approvals	RoHS
	EAC
	EN61000-3-2
	EN61000-3-3
	FCC SDOC, Part 15, Class B
	IEC/UL60950
	IEC/UL62368
	IEC62471
	EN55032
	EN55035

Operating conditions

Humidity range (operation)[RH]	10~80%
Humidity range (storage) [RH]	10~85%
Temperature range (storage)	-20~50 °C
Temperature range (operation)	-20~45 °C

Picture/Display

Viewing angle (vertical)	160 degree
Frame frequency (Hz)	50 & 60
Picture enhancement	Wide color gamut display
Placement	Landscape
Viewing angle (horizontal)	160 degree
Refresh rate(Hz)	1920~3840
Contrast ratio (typical)	>=3000:1
Aspect ratio	16:9
Calibration(brightness/color)	Supported
Color temperature adjust range	4000~9500 K (by software)
Brightness before calibration	650 nits
Color temperature default	6500±500 K
Brightness Uniformity	>=97%
Usage	24/7 Hrs, Indoor
Brightness after calibration	550 nits

Module

LED type	SMD 1616 Copper wire
Pixel pitch (mm)	0.95
LED lifetime(Hrs)	50,000
Pixel constitution	4R4G4B
Module size (WxH in mm)	303.9x170.9
Module resolution (WxH pixels)	320x180
