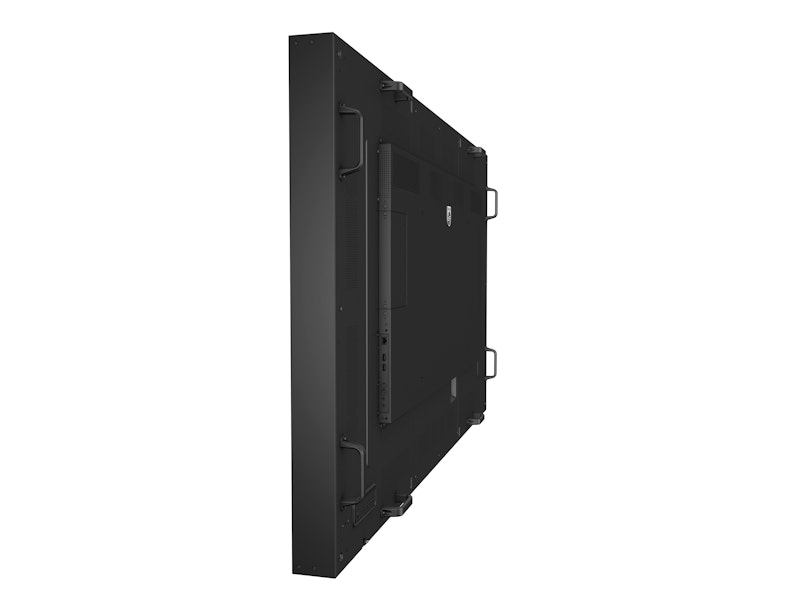

H-Line
Stay visible day and night with Philips H-Line high bright displays. Astonishing clarity and contrast make this a perfect solution for showcasing engaging content in windows and lighter locations. From airports to shopping malls, and more.
Features
Technical Specifications
Connectivity
| Other connections | OPS |
|---|---|
| USB 2.0 (x2) | |
| Audio output | 3.5mm jack |
| Video input | DisplayPort (1.2) |
| DVI-I (digital + analogue) 1x | |
| HDMI 2.0 (x3) | |
| Audio input | 3.5 mm jack |
| External control | IR (in/out) 3.5 mm jack |
| RJ45 | |
| RS232C (in/out) 2.5 mm jack | |
| Video output | DisplayPort 1.2 (x1) |
| HDMI 2.0 (x1) |
Convenience
| Remote control signal | Lockable |
|---|---|
| Energy saving functions | Smart Power |
| Screen saving functions | Pixel Shift, Low Brightness |

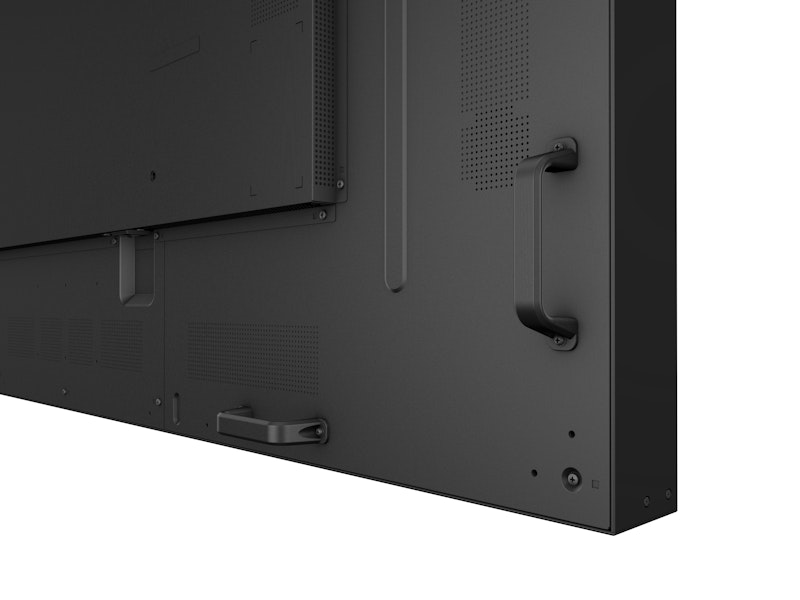

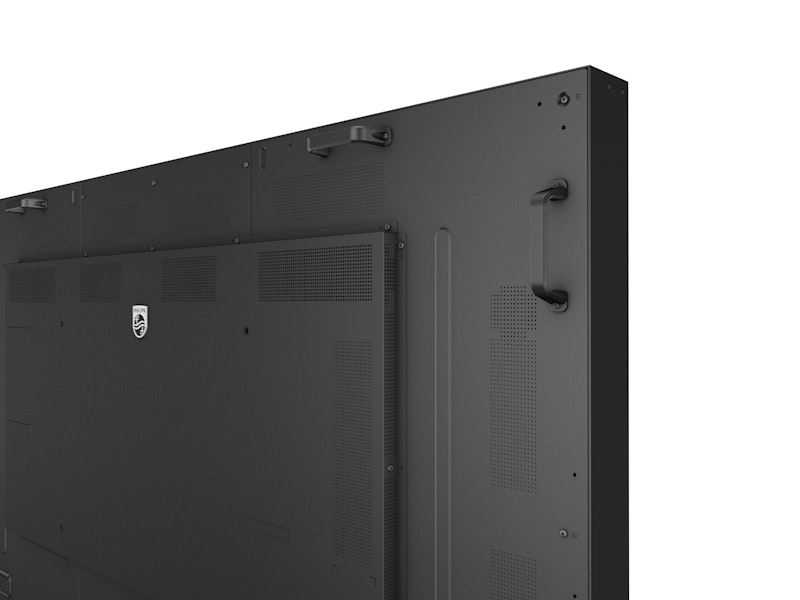

| Ease of installation | Carrying Handles |
| Smart Insert | |
| Network controllable | RS232 |
| LAN (RJ45) | |
| Keyboard control | Hidden |
| Lockable | |

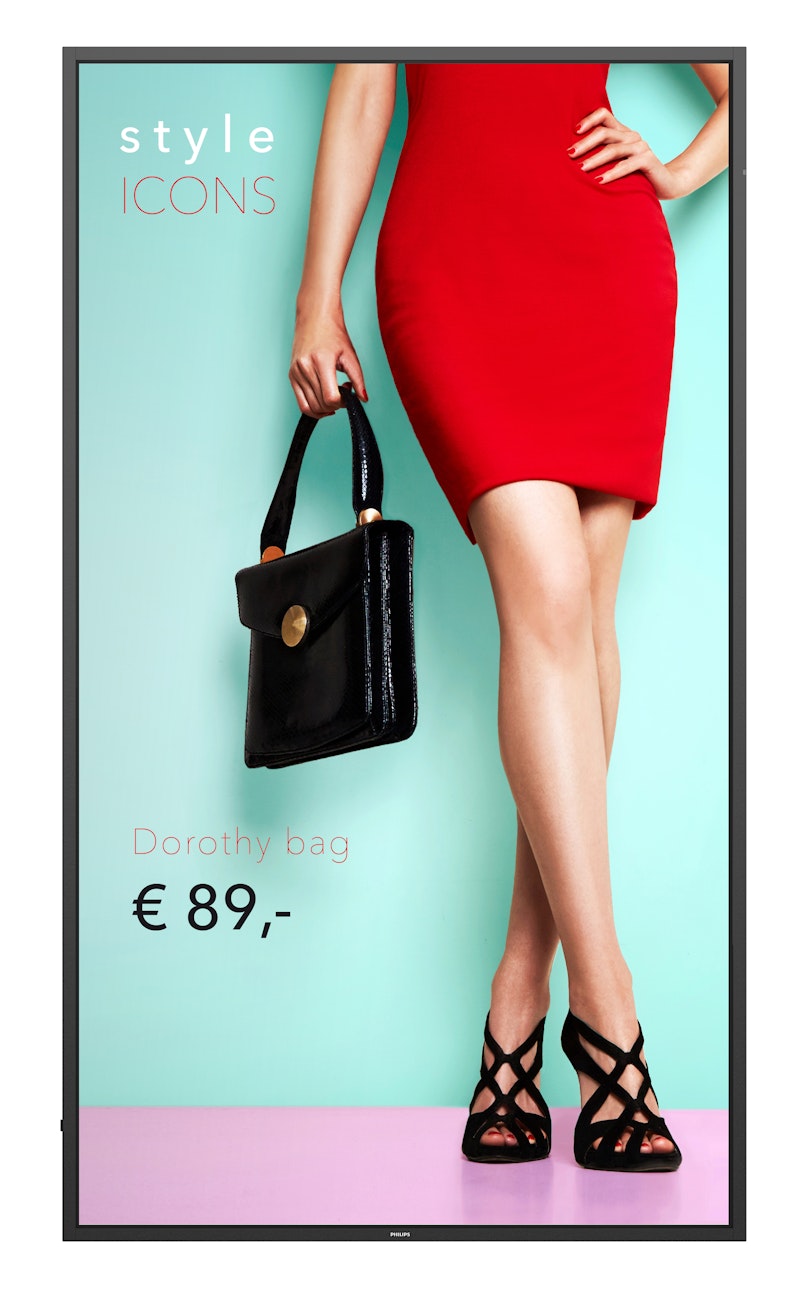

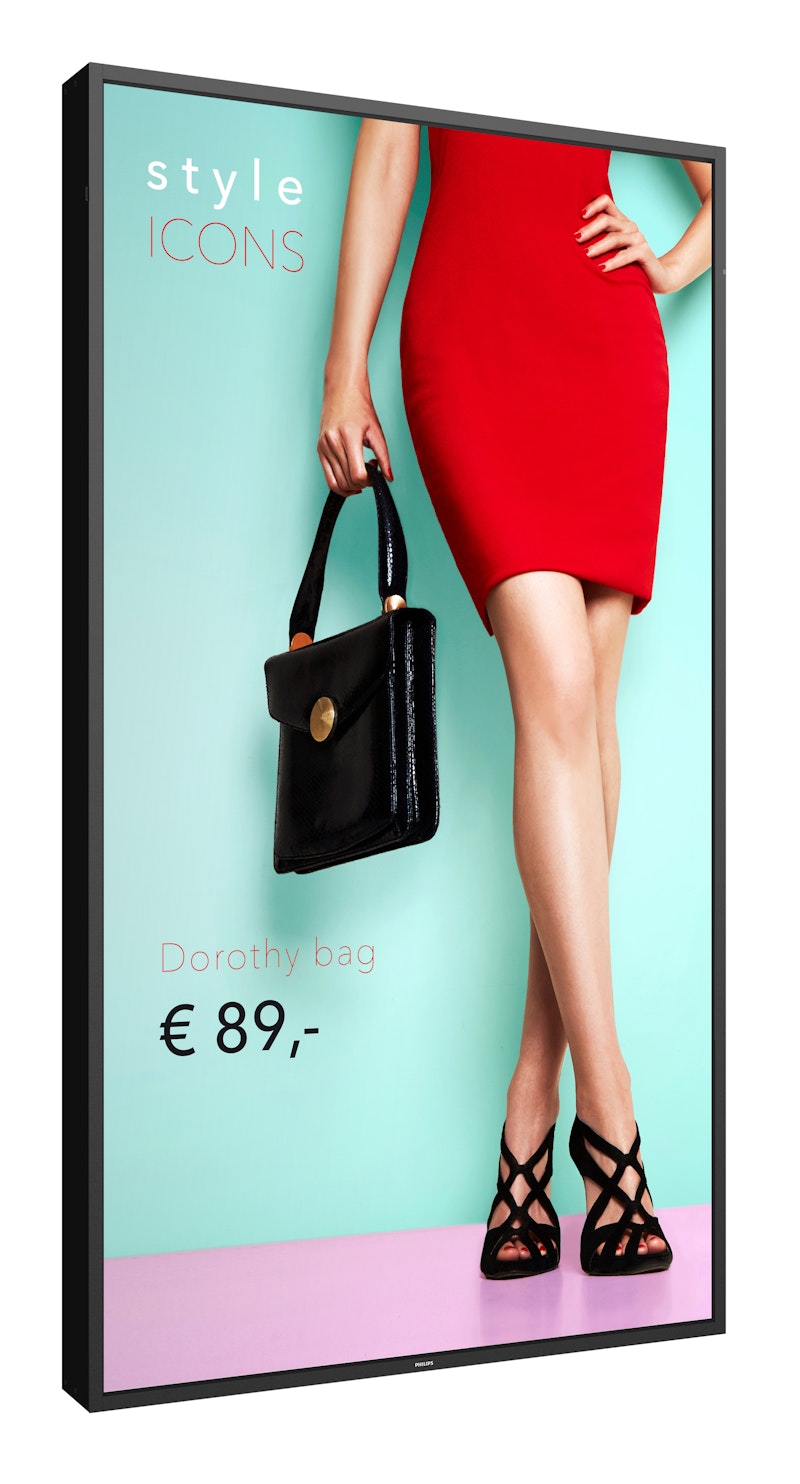

| Placement | Landscape (24/7) |
| Portrait (24/7) | |
| Signal loop through | DisplayPort |
| RS232 | |
| HDMI | |
| IR Loopthrough |
Accessories
| Included Accessories | Edge Alignment Kit |
|---|---|
| Philips logo (x1) | |
| RS232 daisy-chain cable | |
| Wire Clamper (x3) | |
| AC switch cover & Screw x1 | |
| USB cover and screws | |
| AC Power Cord | |
| HDMI cable | |
| IR sensor cable (1.8 m) (x1) | |
| Open frame kit | |
| Quick start guide (x1) | |
| Remote control & AAA batteries | |
| RS232 cable |
Dimensions
| Smart insert width | 180 mm |
|---|---|
| Product weight | 54.1 kg |
| Set Height | 966.6 mm |
| Set Width | 1688.2 mm |
| Product weight (lb) | 119.27 lb |

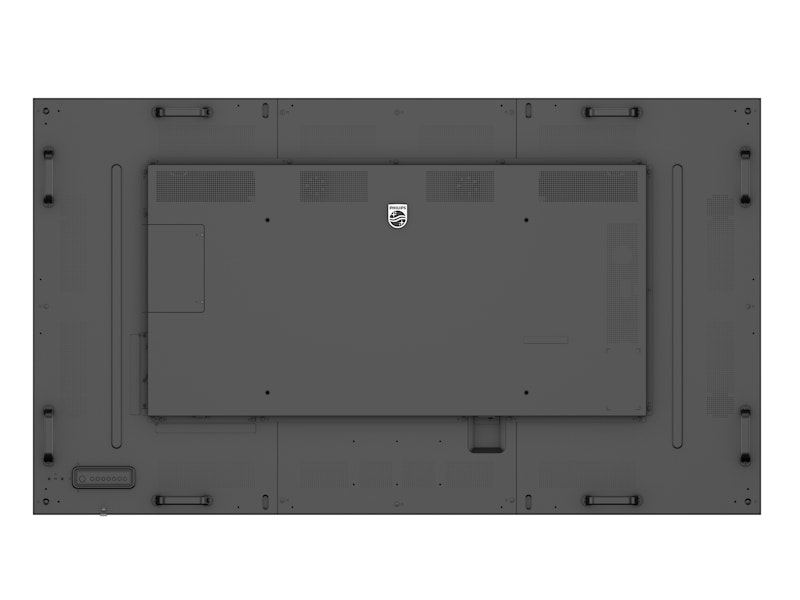

| Wall Mount | 600 x 400 mm, M8 |
| Set Height (inch) | 38.06 inch |

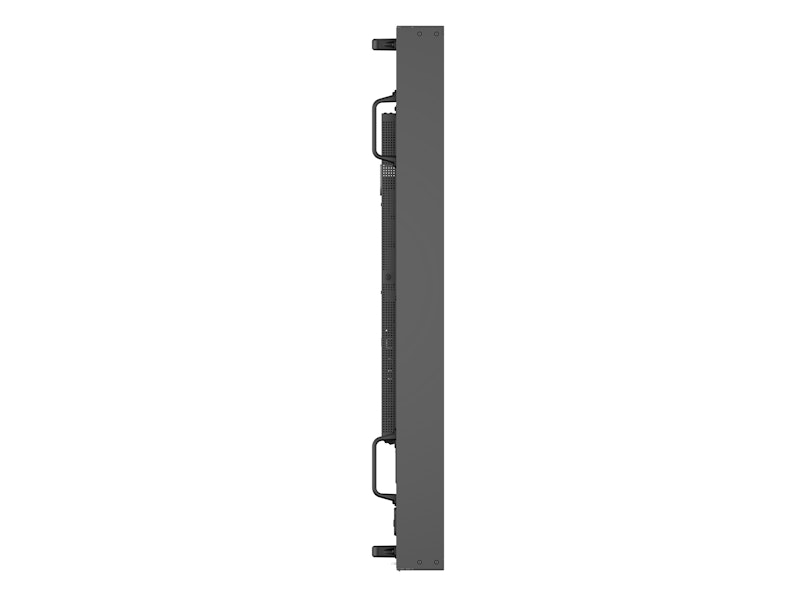

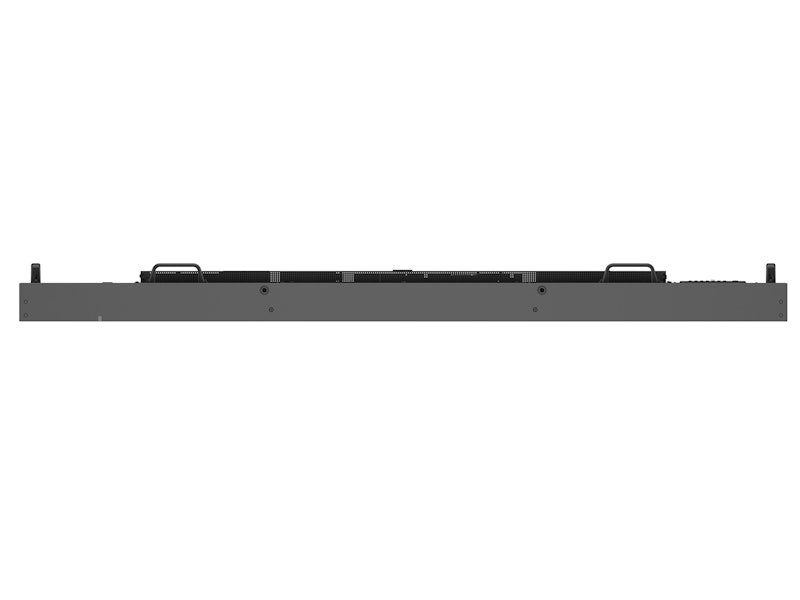

| Set Depth | 111.1 mm |
| Set Width (inch) | 66.46 inch |
| Smart insert height | 300 mm |
| Bezel width | 18.8 (even bezel) |
| Set Depth (inch) | 4.37 inch |
Sound
| Built-in speakers | 2 x 10W RMS |
|---|
Power
| Standby power consumption | <0.5W |
|---|---|
| Consumption (Max) | 790 |
| Consumption (Typical) | 510 W |
| Mains power | 100 ~ 240 VAC, 50 ~ 60 Hz |
Multimedia Applications
| USB Playback Picture | BMP |
|---|---|
| JPEG | |
| PNG | |
| USB Playback Video | AVI |
| MP4 | |
| MPEG | |
| MPG | |
| TTS | |
| VOB |
Operating conditions
| Relative humidity | 20 ~ 80 % |
|---|---|
| Altitude | 0 ~ 3000 m |
| MTBF | 50,000 hour(s) |
| Temperature range (storage) | -20 ~ 60 °C |
| Temperature range (operation) | 0 ~ 40 °C |
Miscellaneous
| On-Screen Display Languages | Arabic |
|---|---|
| English | |
| French | |
| German | |
| Italian | |
| Japanese | |
| Polish | |
| Portuguese | |
| Russian | |
| Spanish | |
| Simplified Chinese | |
| Turkish | |
| Traditional Chinese | |
| Regulatory approvals | CE |
| CB | |
| EAC | |
| UL | |
| Warranty | 3 year warranty |
Picture/Display
| Viewing angle (vertical) | 178 degree |
|---|---|
| Contrast ratio (typical) | 1200:1 |
| Viewing angle (horizontal) | 178 degree |
| Response time (typical) | 8 ms |
| Picture enhancement | 3/2 - 2/2 motion pull down |
| Progressive scan | |
| Dynamic contrast enhancement | |
| Aspect ratio | 16:9 |
| Diagonal screen size (inch) | 74.5 inch |
| Optimum resolution | 3840 x 2160 @ 60Hz |
| Dynamic contrast ratio | 500,000:1 |
| Panel resolution | 3840 x 2160 |
| Diagonal screen size (metric) | 189.3 cm |
| Display colors | 1.07 Billion |
| Pixel pitch | 0.429 x 0.429 mm |
| Panel technology | IPS |
| Brightness | 3000 cd/m² |
Supported Display Resolution
| Computer formats | 640 x 480, 60, 67, 72, 75Hz |
|---|---|
| 720 x 400, 70Hz | |
| 800 x 600, 60, 72, 75Hz | |
| 1024 x 768, 60Hz | |
| 1280 x 768, 60Hz | |
| 1280 x 800, 60Hz | |
| 1280 x 1024, 60Hz | |
| 1360 x 768, 60Hz | |
| 1600 x 1200, 60Hz | |
| 1920 x 1080, 60Hz | |
| 1920 x 1200, 60Hz | |
| 3840 x 2160, 30Hz | |
| 3840 x 2160, 60Hz | |
| Video formats | 480i, 30, 60Hz |
| 480p, 60Hz | |
| 576p, 50Hz | |
| 576i, 25, 50Hz | |
| 1080i, 25, 30Hz | |
| 1080p, 50, 60Hz | |
| 3840 x 2160, 30Hz | |
| 3840 x 2160, 60Hz |
