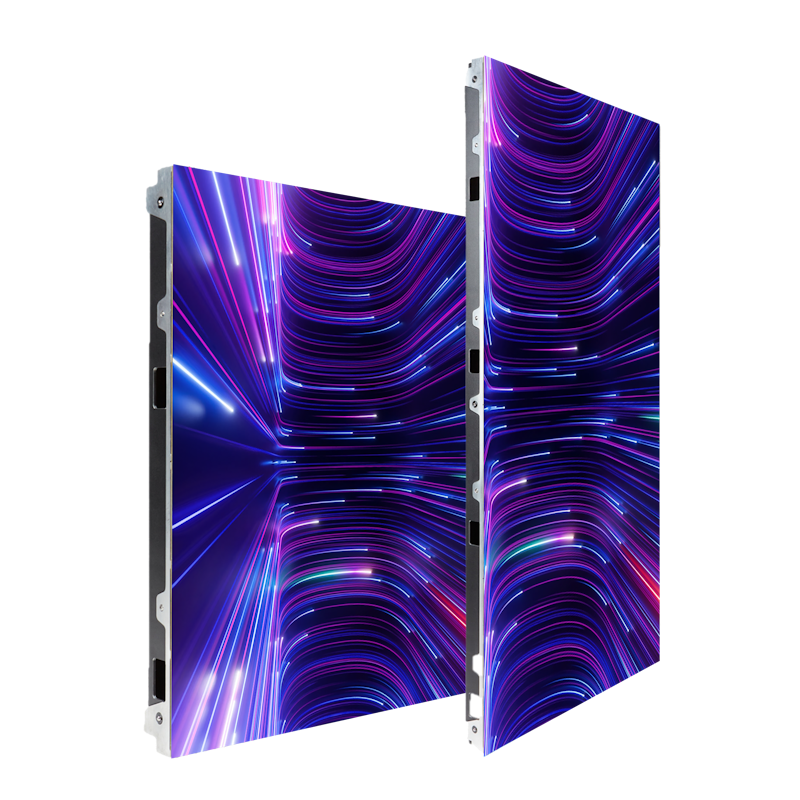

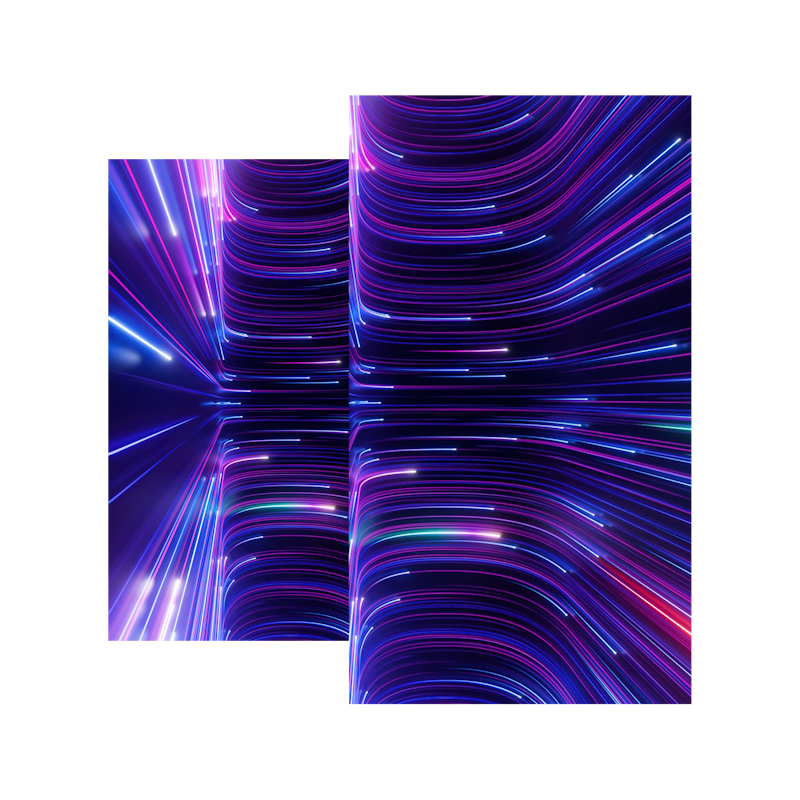

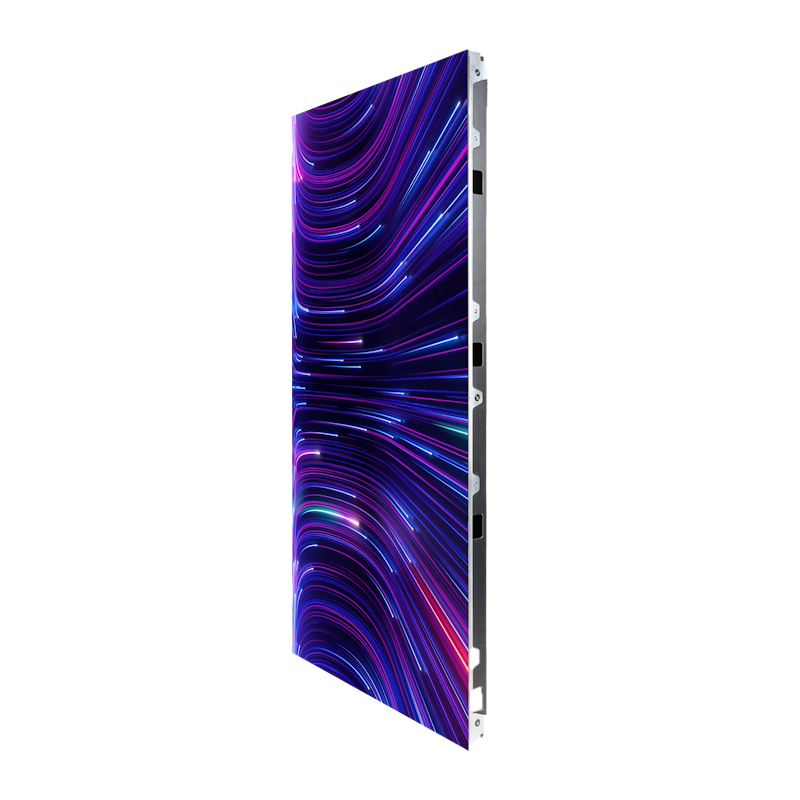

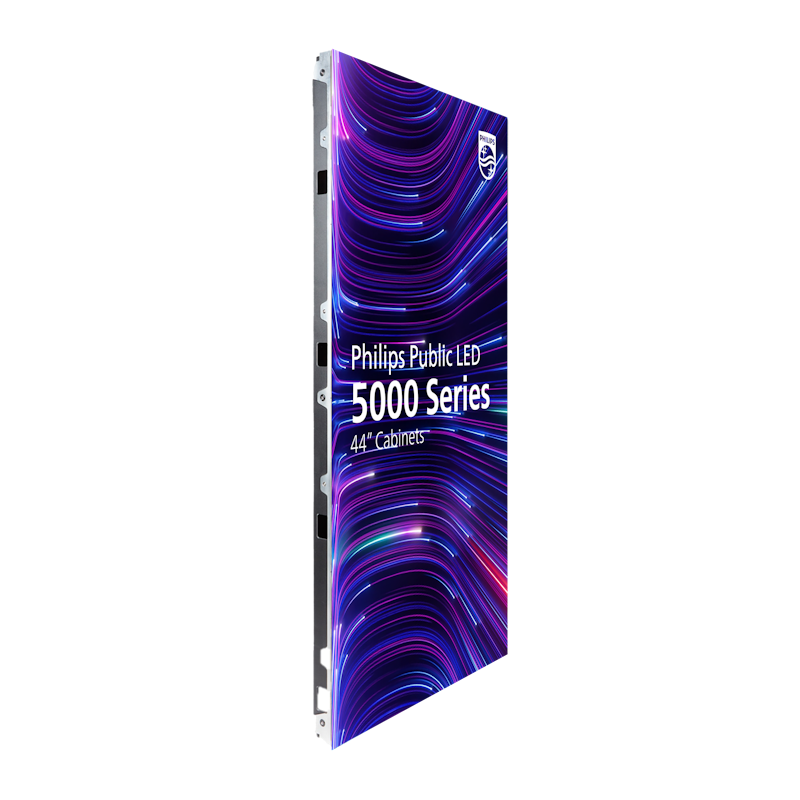

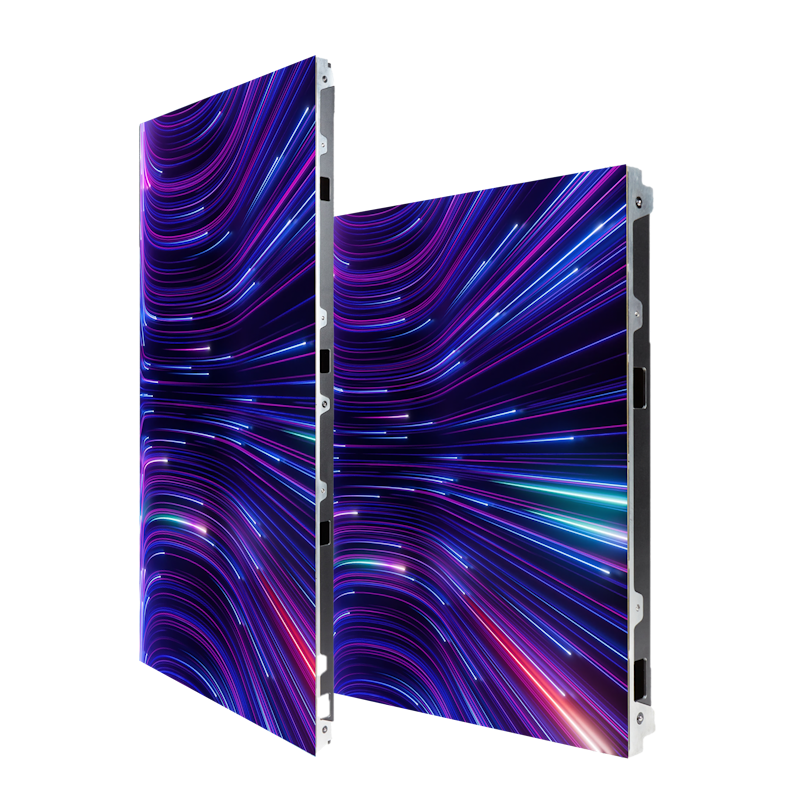

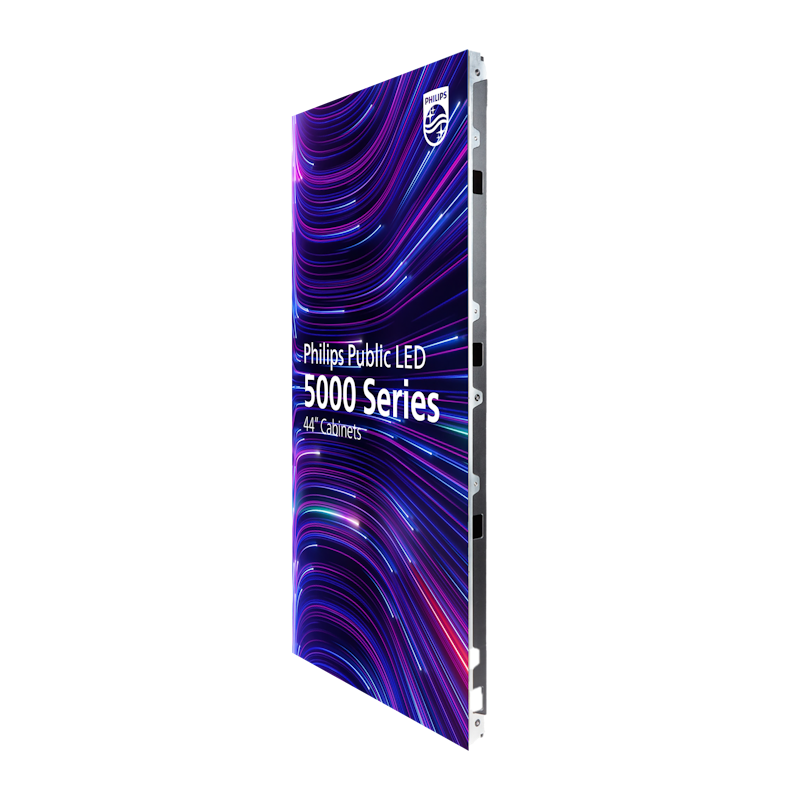

Public LED 5000 Series

44HDL5000PP/00

Empower uniquely crafted Public LED displays that redefine audience engagement. Deliver your immersive visual experiences with seamless connectivity, variable sizing and customisable curvature, allowing you to design a breathtaking display.

Get a quote

Technical Specifications

Convenience

Power loop through	- for 230 V environments: 8 cabinets or fewer - for 110 V environments: 4 cabinets or fewer
Signal control loop through	RJ45
Ease of installation	Guide pins
	Light weight
	Locking mechanism for cabinet

Accessories

LAN cable (RJ45, CAT-5)	1 pcs
QSG	1 pcs

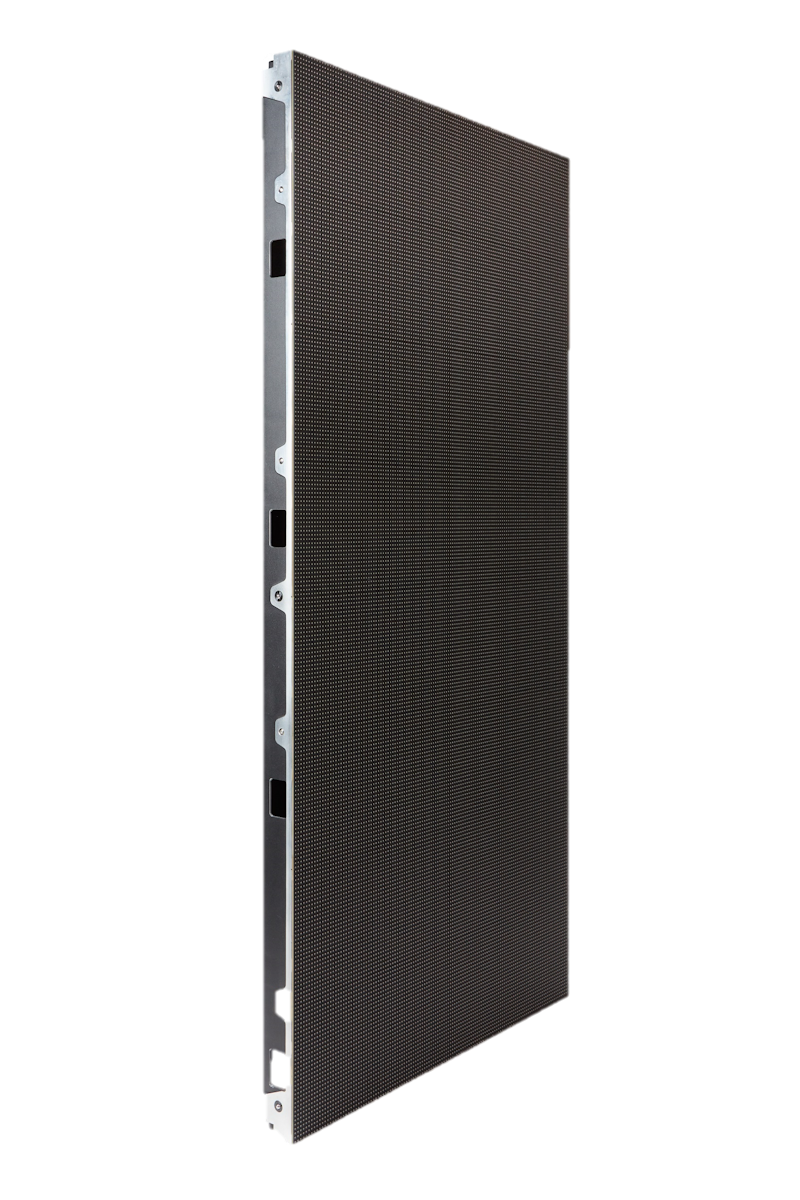

Cabinet

Receiving card brand	Novastar

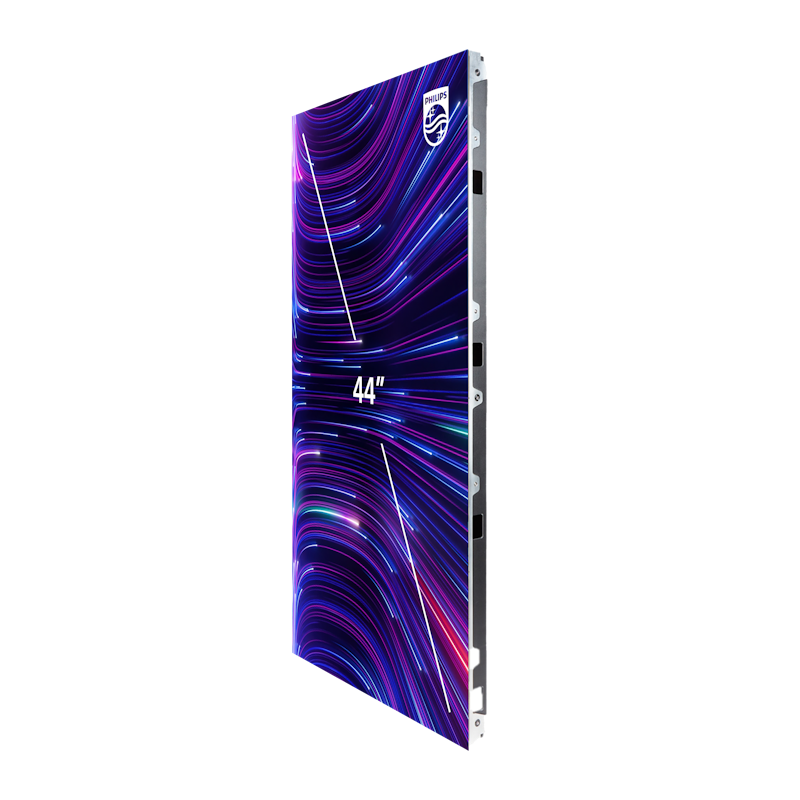

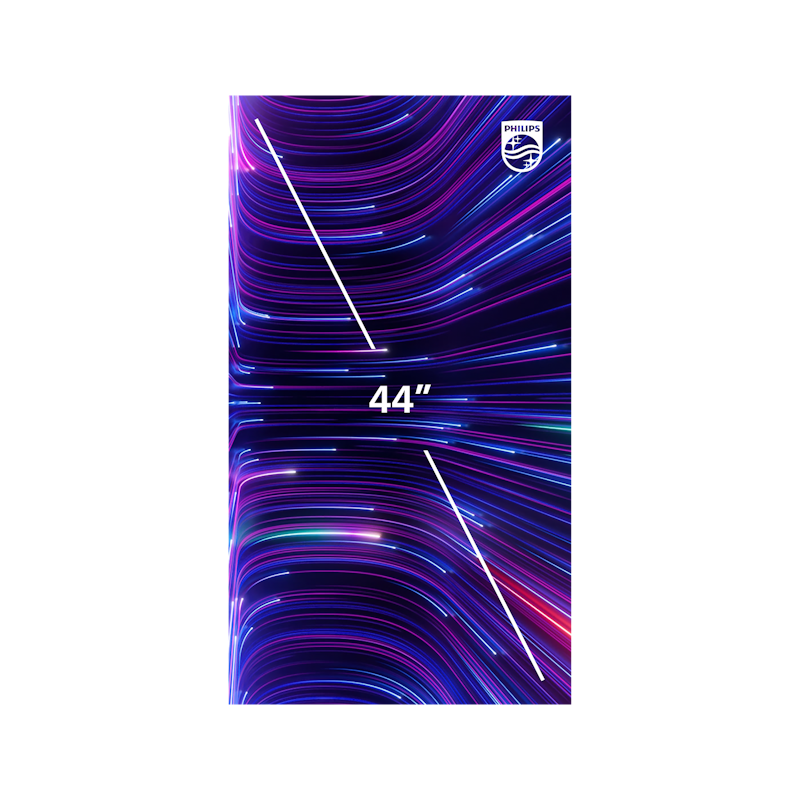

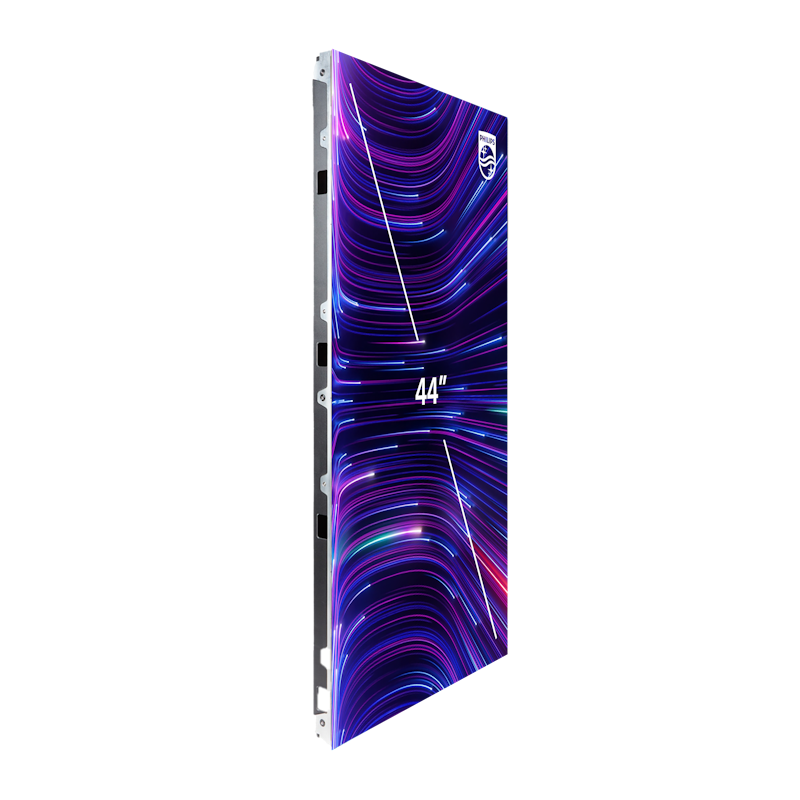

Cabinet diagonal (inch)	44.02
Cabinet size (mm)	500 x 1000 x 40
Power connector	In/Out (C14/C13)
Cabinet area (m2)	0.50
Weight (kg)	11.2
Cabinet construction	Die-cast aluminium
Data connector	RJ45

Specific module 14HDL5019PM/00

Cabinet resolution (W x H)	256 x 512
Consumption (Typical W/m²)	120 W
Pixel pitch	1.9 mm
Cabinet pixels (Dot)	131,072
Max. power cons. BC (W/m²)	388 W
Brightness after calibration	≤ 500 nit
Module resolution (W x H)	128 x 128
Max. power cons. AC (W/m²)	340 W
Brightness before calibration	550 nit

Miscellaneous

Regulatory approvals	RoHS
	EAC
	EN61000-3-2
	EN61000-3-3
	IEC/UL60950
	IEC/UL62368
	IEC62471
	EN55032
	EN55035
	FCC SDOC, Part 15, Class A
Warranty	2 years

Picture/Display

Colour temperature adjust range	4000~9500 K (by software)
Calibration (brightness/colour)	Supported
Three specific modules of pixel pitch	1.9 mm, 2.5 mm and 3.9 mm
Viewing angle (horizontal)	150 degree
Aspect ratio	1:2
Picture enhancement	Wide colour gamut display
Refresh rate (Hz)	Up to 3840 Hz
Frame frequency (Hz)	50 & 60
Placement	Landscape
	Portrait
Brightness Uniformity	>=97%
Contrast ratio (typical)	>=3000:1
Viewing angle (vertical)	150 degree
Colour temperature default	6500±500 K

Operating conditions

Temperature range (storage)	-20~50 °C
Humidity range (operation)[RH]	10~80%
LED Lifetime	TBD
Temperature range (operation)	-20~45 °C
Humidity range (storage) [RH]	10~85%

Specific module 14HDL5039PM/00

Brightness before calibration	550 nit
Cabinet pixels (Dot)	32,768
Module resolution (W x H)	64 x 64
Pixel pitch	3.9 mm
Cabinet resolution (W x H)	128 x 256
Max. power cons. BC (W/m²)	340 W
Consumption (Typical W/m²)	100 W
Brightness after calibration	≤ 500 nit
Max. power cons. AC (W/m²)	300 W

Specific module 14HDL5025PM/00

Brightness after calibration	≤ 500 nit
Consumption (Typical W/m²)	100 W
Cabinet resolution (W x H)	200 x 400
Brightness before calibration	550 nit
Max. power cons. AC (W/m²)	300 W
Module resolution (W x H)	100 x 100
Cabinet pixels (Dot)	20.000
Max. power cons. BC (W/m²)	340 W
Pixel pitch	2.5 mm

Downloads

Leaflet

English UK

Downloads

44HDL5000PP/00

Leaflet

German

Downloads

44HDL5000PP/00

Leaflet

Italian

Downloads

44HDL5000PP/00

View all

Available in:

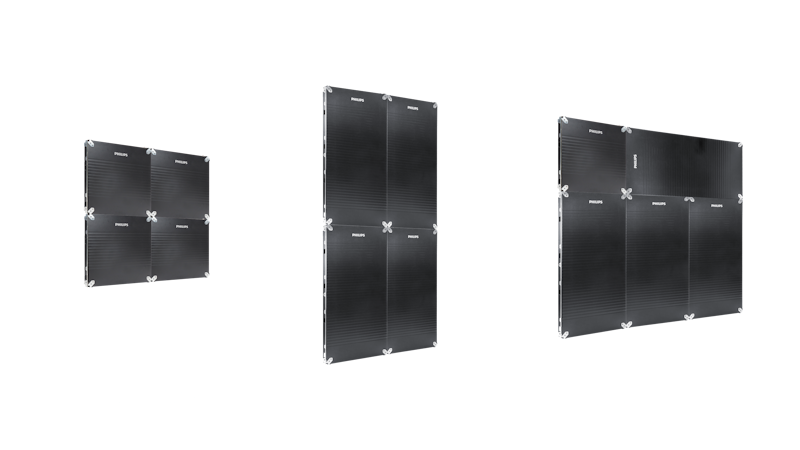

All Sizes

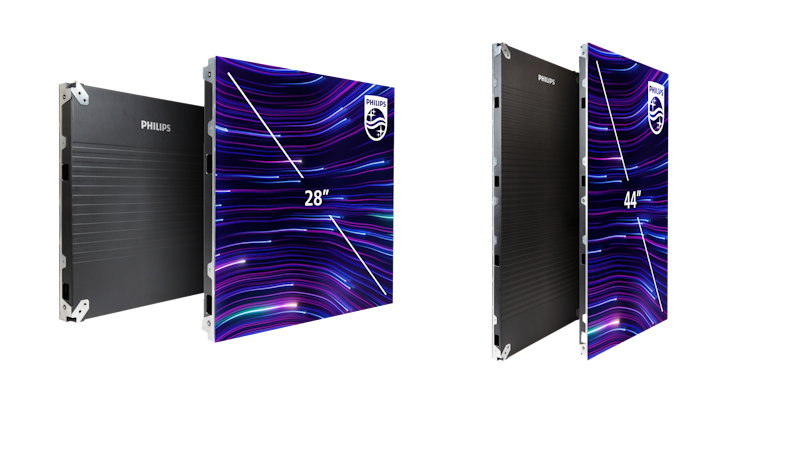

28"
