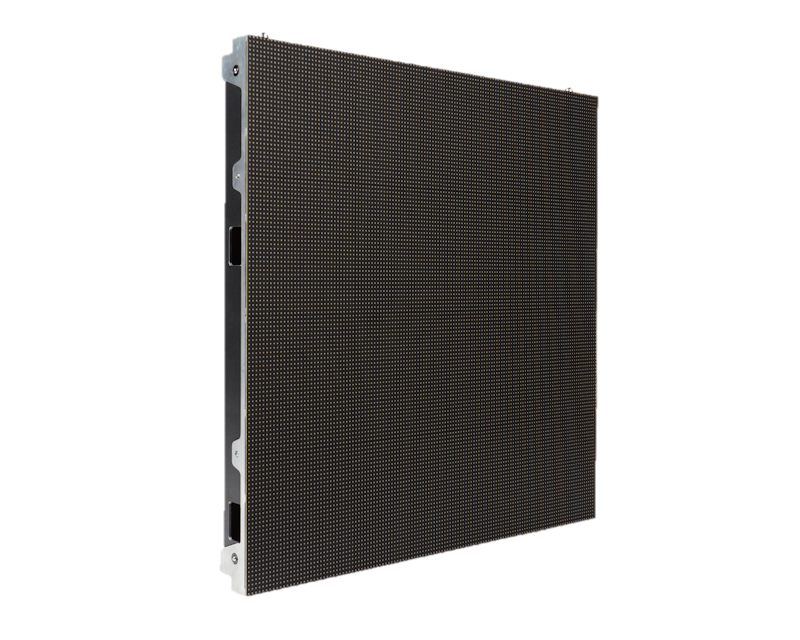

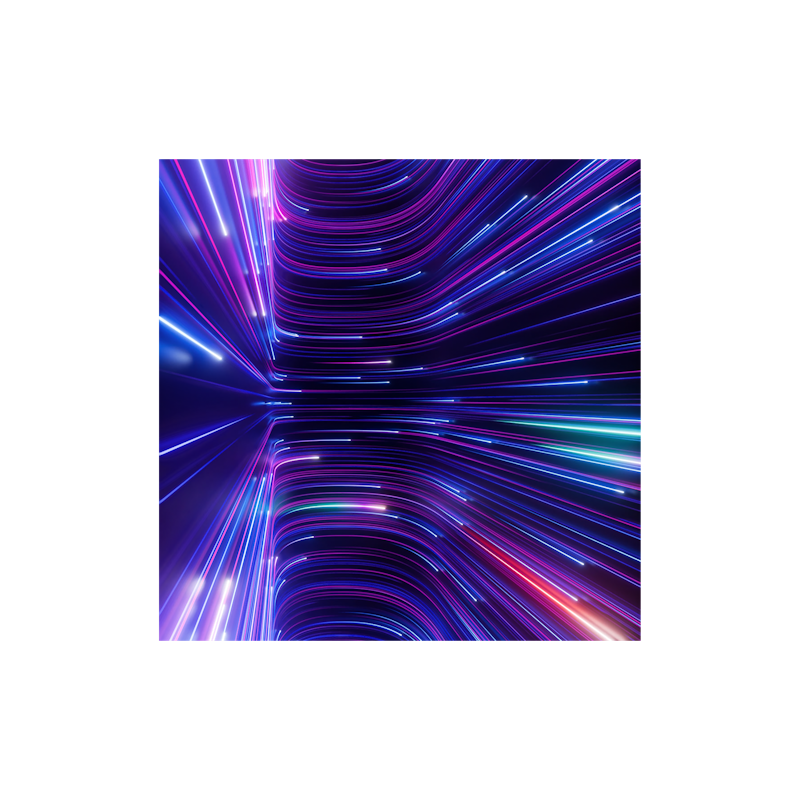

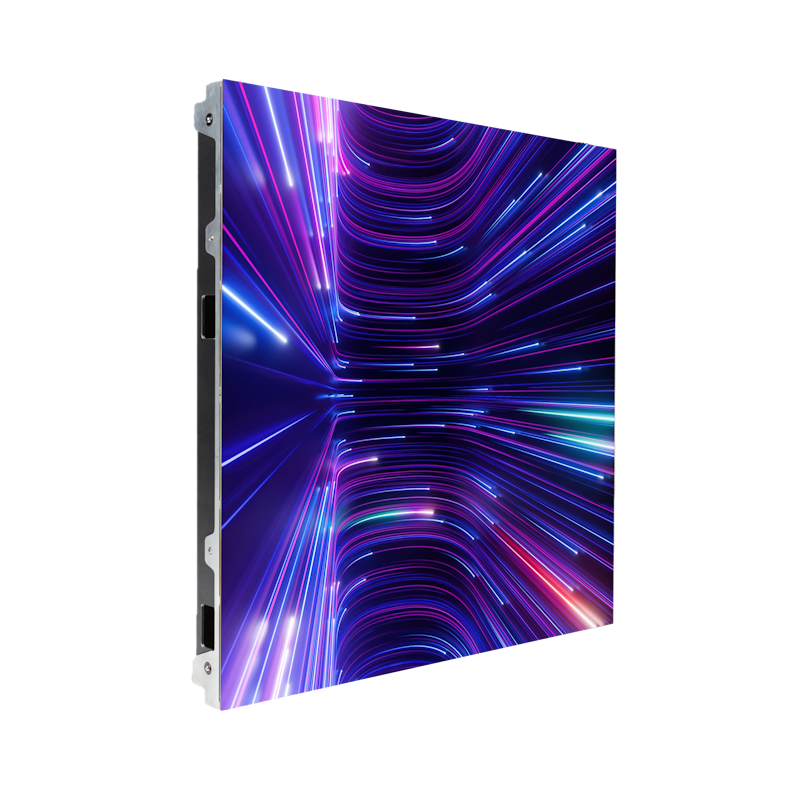

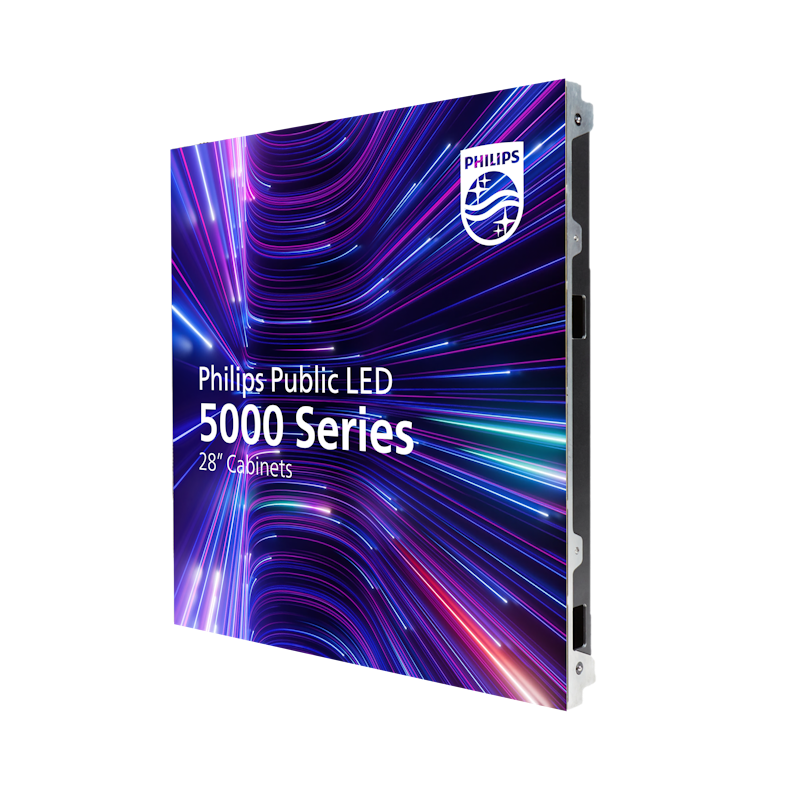

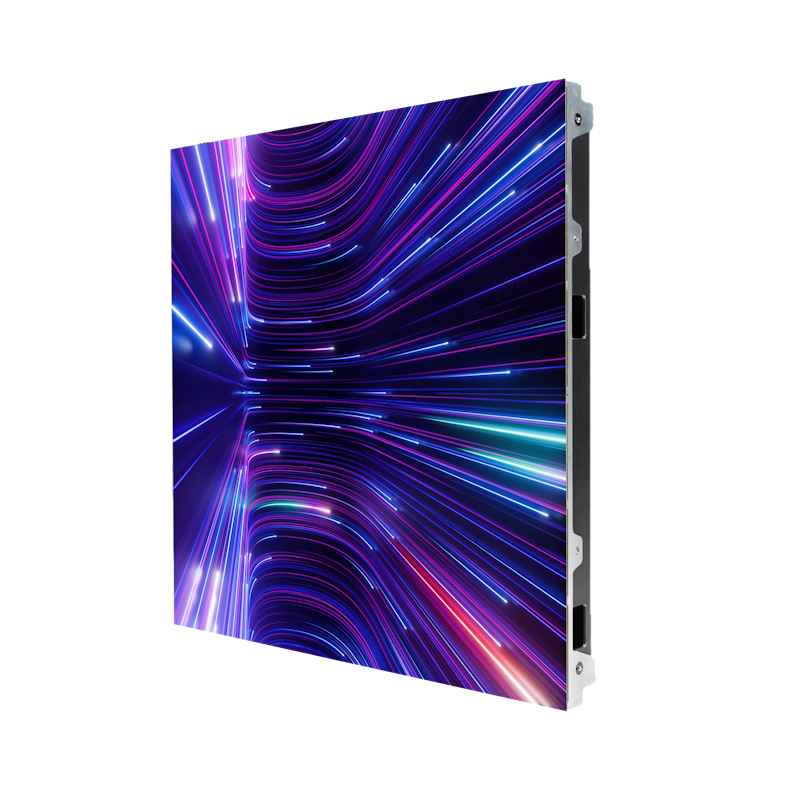

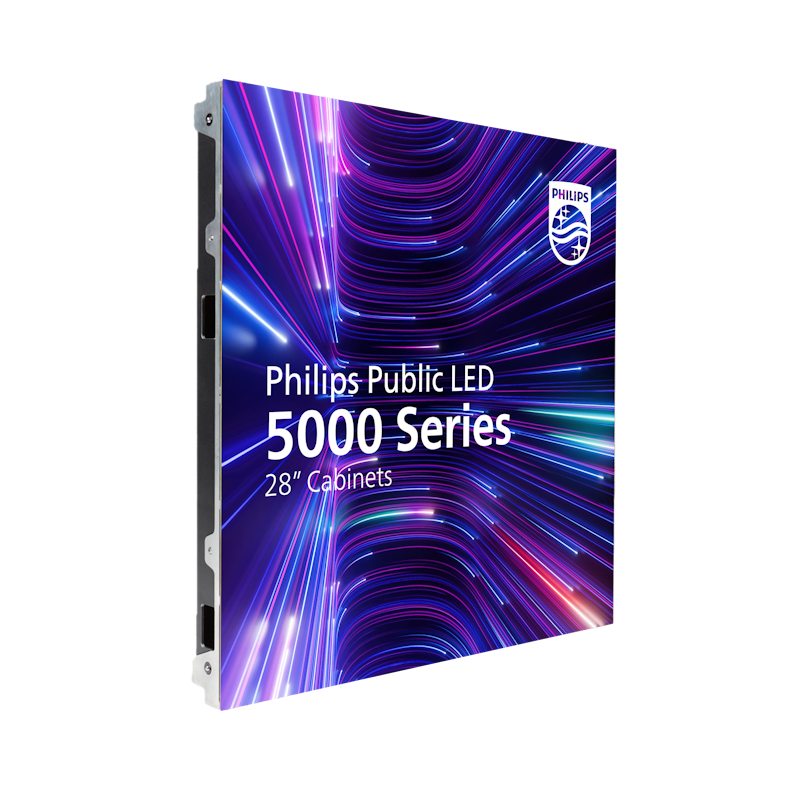

Public LED 5000 Series

28HDL5000PP/00

Empower uniquely crafted Public LED displays that redefine audience engagement. Deliver your immersive visual experiences with seamless connectivity, variable sizing and customisable curvature, allowing you to design a breathtaking display.

Get a quote

Technical Specifications

Convenience

Power loop through	- for 230 V environments: 8 cabinets or fewer - for 110 V environments: 4 cabinets or fewer
Signal control loop through	RJ45
Ease of installation	Guide pins
	Light weight
	Locking mechanism for cabinet

Accessories

LAN cable (RJ45, CAT-5)	1 pcs
QSG	1 pcs

Cabinet

Receiving card brand	Novastar

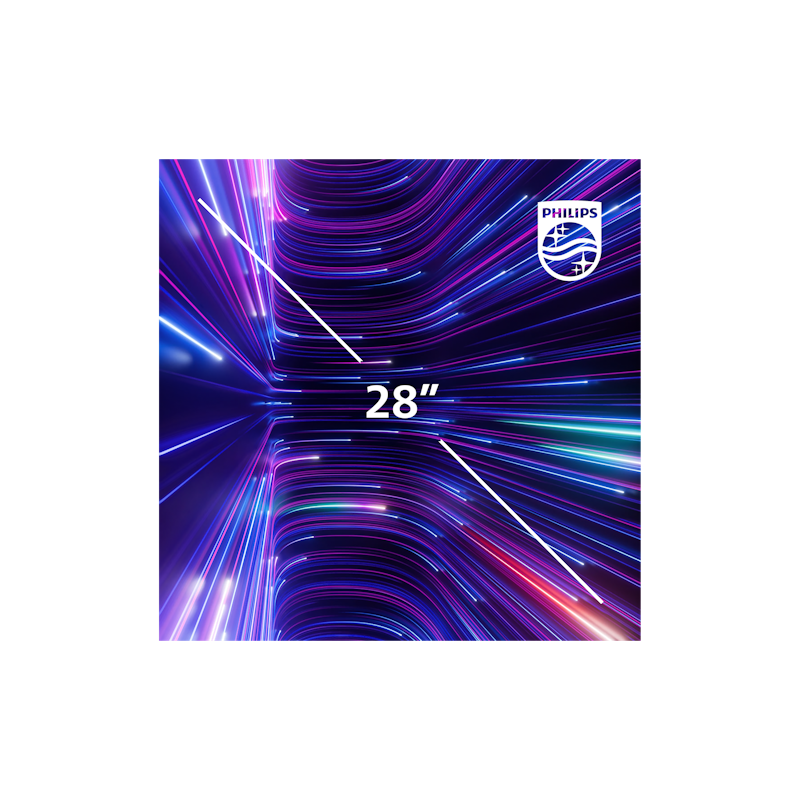

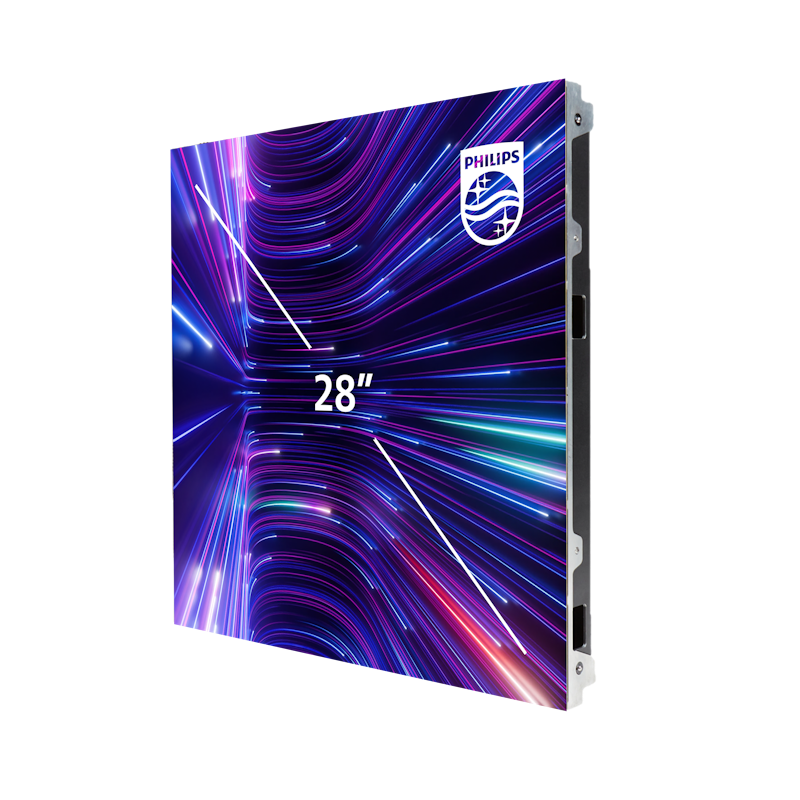

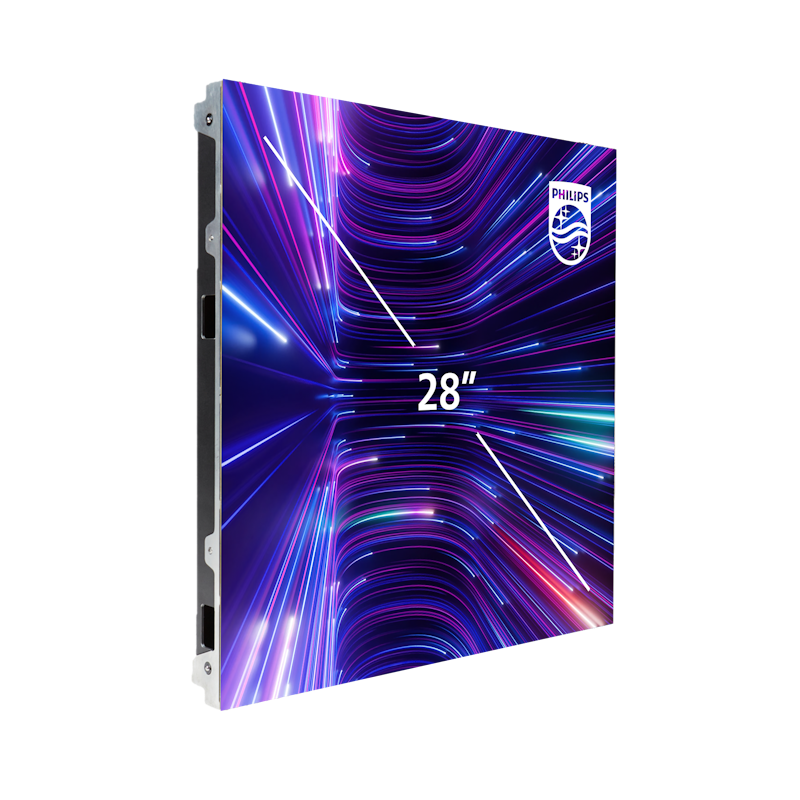

Cabinet diagonal (inch)	27.84
Power connector	In/Out (C14/C13)
Cabinet size (mm)	500 x 500 x 40
Weight (kg)	6.3
Cabinet area (m2)	0.25
Data connector	RJ45
Cabinet construction	Die-cast aluminium

Power

Input voltage	AC100~240 V (50 and 60 Hz)

Specific module 14HDL5019PM/00

Cabinet resolution (W x H)	256 x 256
Pixel pitch	1.9 mm
Consumption (Typical W/m²)	120 W
Cabinet pixels (Dot)	65,536
Max. power cons. BC (W/m²)	388 W
Brightness after calibration	≤ 500 nit
Module resolution (W x H)	128 x 128
Max. power cons. AC (W/m²)	340 W
Brightness before calibration	550 nit

Miscellaneous

Regulatory approvals	RoHS
	EAC
	EN61000-3-2
	EN61000-3-3
	IEC/UL60950
	IEC/UL62368
	IEC62471
	EN55032
	EN55035
	FCC SDOC, Part 15, Class A
Warranty	2 years

Operating conditions

Temperature range (storage)	-20~50 °C
Humidity range (storage) [RH]	10~85%
Humidity range (operation)[RH]	10~80%
LED Lifetime	TBD
Temperature range (operation)	-20~45 °C

Picture/Display

Colour temperature adjust range	4000~9500 K (by software)
Calibration (brightness/colour)	Supported
Three specific modules of pixel pitch	1.9 mm, 2.5 mm and 3.9 mm
Viewing angle (horizontal)	150 degree
Aspect ratio	1:1
Refresh rate (Hz)	Up to 3840 Hz
Picture enhancement	Wide colour gamut display
Brightness uniformity	>=97%
Frame frequency (Hz)	50 & 60
Placement	Landscape
Colour temperature default	6500±500 K
Viewing angle (vertical)	150 degree
Contrast ratio (typical)	>=3000:1

Specific module 14HDL5039PM/00

Brightness before calibration	550 nit
Module resolution (W x H)	64 x 64
Pixel pitch	3.9 mm
Cabinet pixels (Dot)	16,384
Max. power cons. BC (W/m²)	340 W
Cabinet resolution (W x H)	128 x 128
Brightness after calibration	≤ 500 nit
Consumption (Typical W/m²)	100 W
Max. power cons. AC (W/m²)	300 W

Specific module 14HDL5025PM/00

Brightness after calibration	≤ 500 nit
Brightness before calibration	550 nit
Cabinet resolution (W x H)	200 x 200
Consumption (Typical W/m²)	100 W
Max. power cons. AC (W/m²)	300 W
Module resolution (W x H)	100 x 100
Max. power cons. BC (W/m²)	340 W
Cabinet pixels (Dot)	10.000
Pixel pitch	2.5 mm
