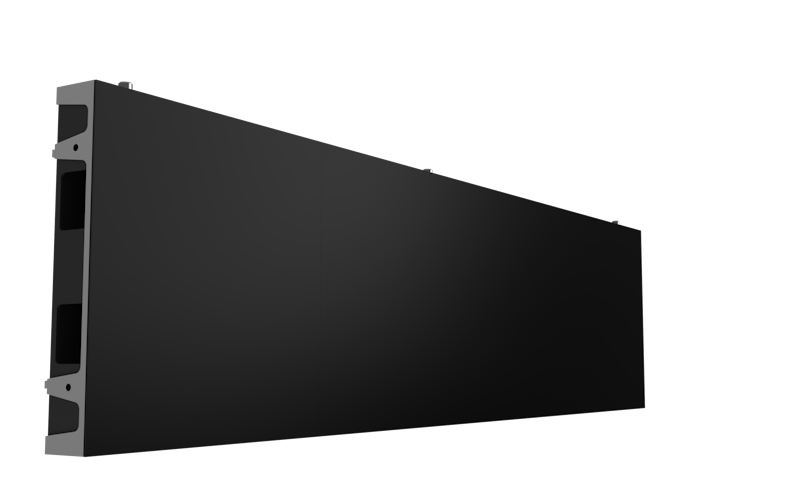

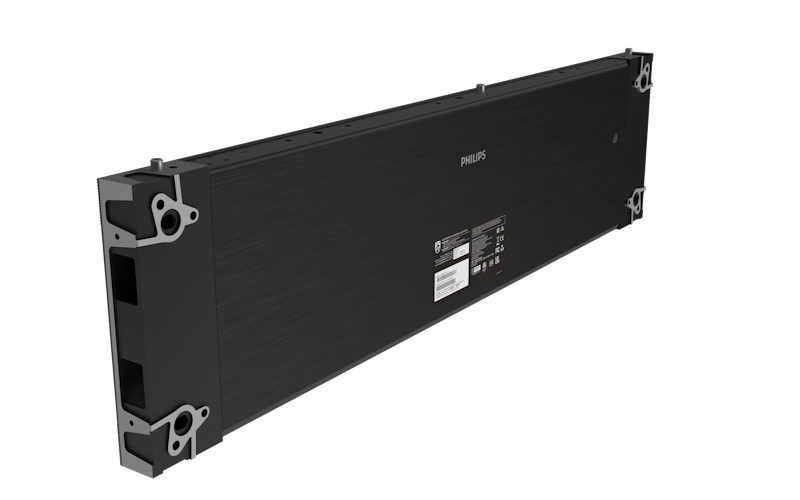

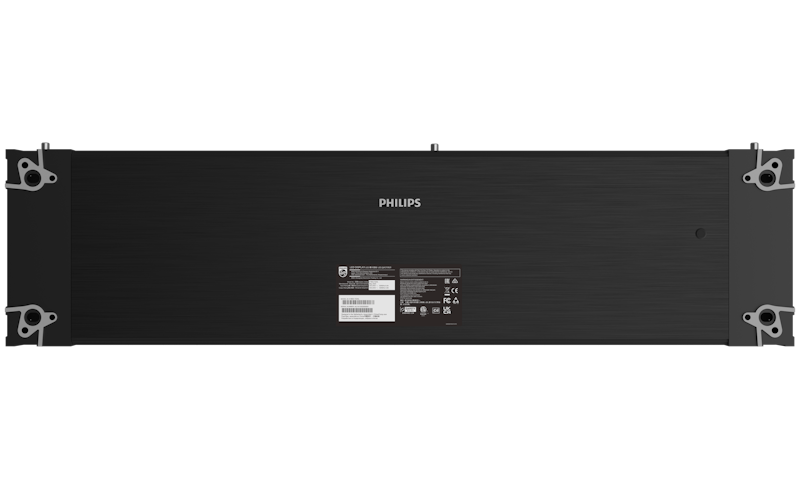

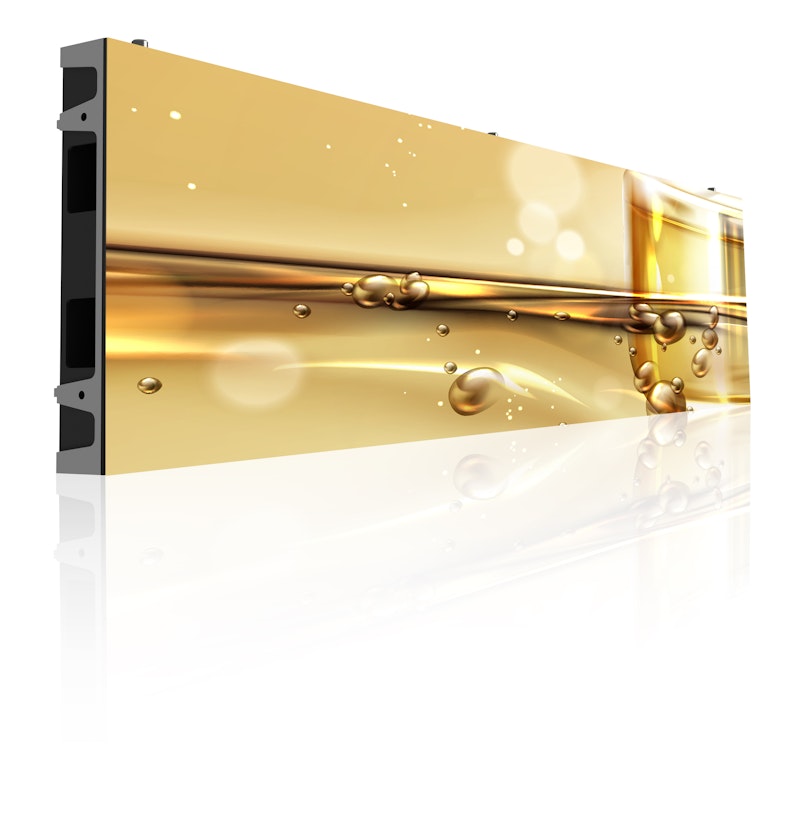

Philips L-Line 7000 Series

41BDL7219L/00

No limits. No boundaries. The Philips L-Line 7000 series is an LED signage solution for endless possibilities in shape and size. Seamless linking and multiple size options enable truly unique displays of any dimension for perfect results.

Get a quote

Technical Specifications

Convenience

Power loop through	For 230 V environments: 8 cabinets or less, for 110 V environments: 4 cabinets or less
Signal control loop through	RJ45
Ease of installation	Guide pins
	Light weight

Accessories

Power cable	2 pcs
LAN cable (RJ45, CAT-5)	2 pcs
QSG	1 pcs

Cabinet

Side angle (degree)	90
Receiving card spec.	A5S Plus
Receiving card quantity	1 pcs
Receiving card brand	Novastar
Cabinet pixels (Dot)	65336
IP rating	IP30
Cabinet diagonal (inch)	40.6"
Cabinet resolution (W x H)	512 x 128
Cabinet size (mm)	1000 x 250 x 40
Power connector	3 core socket (C14 in, C13 out)
Weight (kg)	6.25 kg (±313 g)
Cabinet area (m2)	0.25
Data connector	RJ45
Cabinet construction	Die-Casting Aluminium

Power

Typical power cons. (W)	<41.67
Input voltage	AC100~240 V (50 and 60 Hz)
Max. power cons. AC (W)	<125
Black screen power cons. (W)	<11
Max. power cons. BC (W)	<150

Operating conditions

Temperature range (storage)	-20~50 °C
Humidity range (operation)[RH]	10~80%
Humidity range (storage) [RH]	10~85%
Temperature range (operation)	-20~45 °C

Miscellaneous

Conformal coating	Yes (LED Module Bottom side and HUB board)
Fire retardancy certification	BS 476 Part7:1997
	UL94
	DIN4102-1
Regulatory approvals	RoHS
	EAC
	EN61000-3-2
	EN61000-3-3
	IEC/UL60950
	IEC/UL62368
	IEC62471
	EN55032
	EN55035
	FCC SDOC, Part 15, Class A
Warranty	2 years

Picture/Display

Colour temperature adjust range	4000~9500 K (by software)
Calibration (brightness/colour)	Supported
Viewing angle (horizontal)	160 degree
Aspect ratio	4:1
Refresh rate (Hz)	2100~3900 (14 bits:3900 Hz)
Picture enhancement	Wide colour gamut display
Brightness uniformity	>=97%
Frame frequency (Hz)	50 & 60
Usage	Indoor
Placement	Landscape
Brightness after calibration	900 nits
Colour temperature default	6500±500 K
Contrast ratio (typical)	3500:1
Viewing angle (vertical)	160 degree
Brightness before calibration	1200 nits

Module

LED type	SMD 1515 Copper wire
Module size (W x H in mm)	249.9 x 249.9 (tolerance: +0.05 / -0.1)
LED lifetime(Hrs)	100,000 at half brightness
Pixel pitch (mm)	1.9
Pixel constitution	1R1G1B
Module resolution (WxH pixels)	128 x 128
