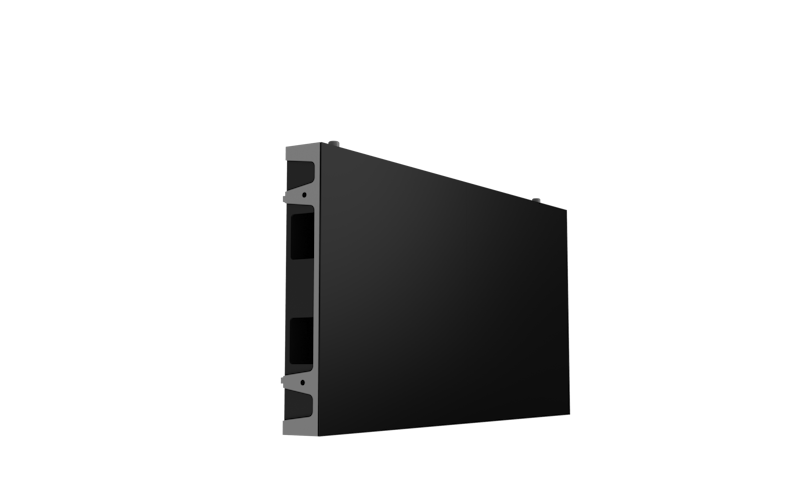

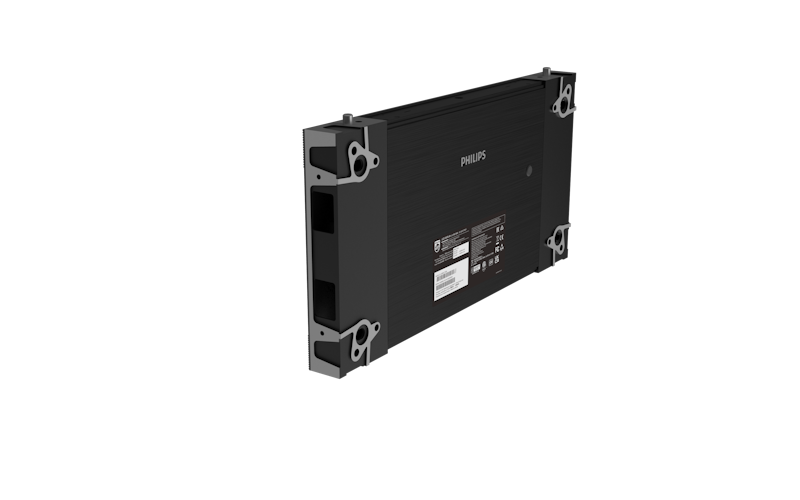

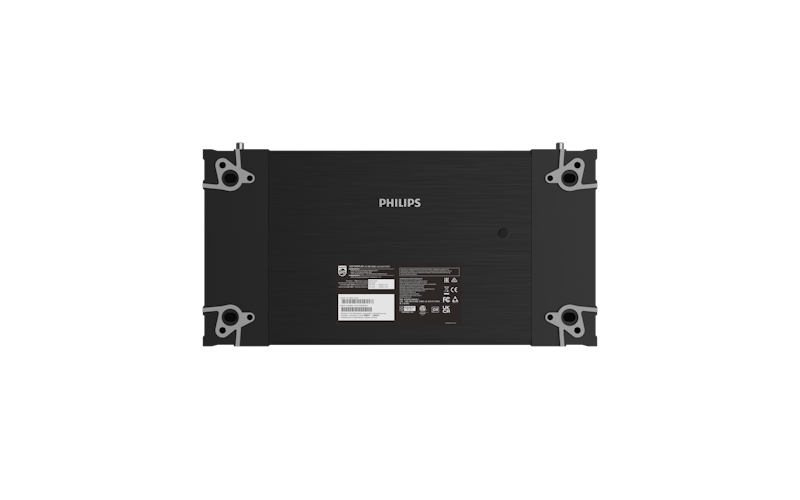

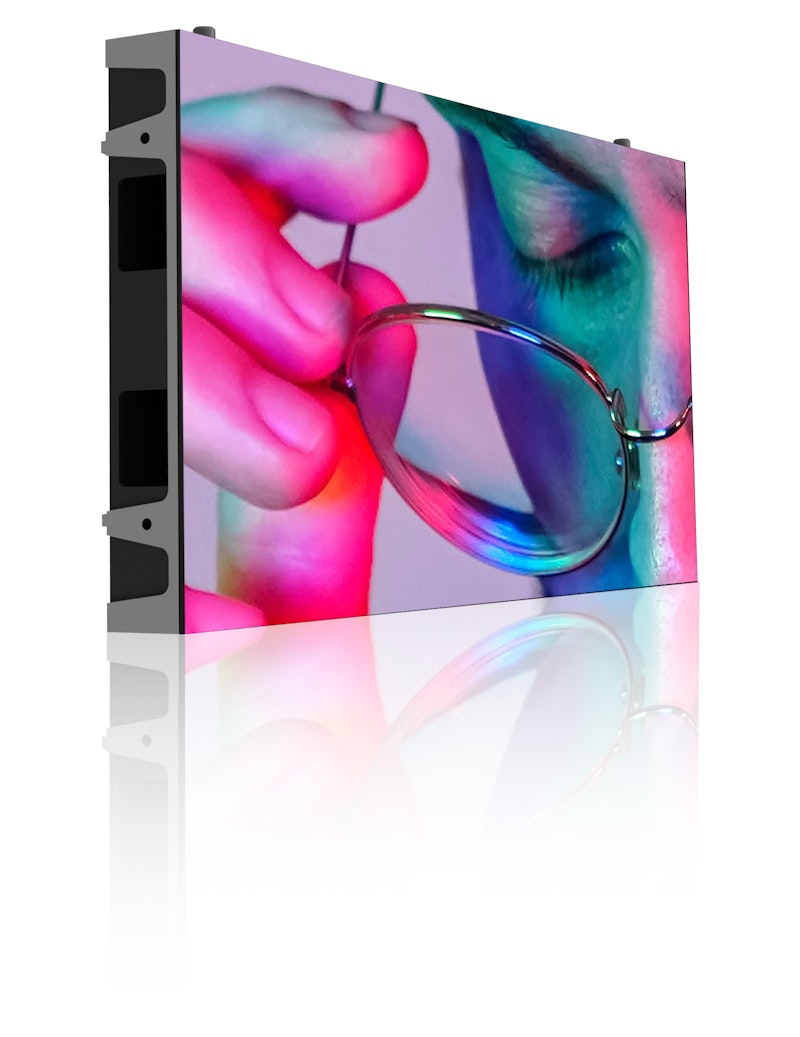

Philips L-Line 7000 Series

22BDL7219L/00

No limits. No boundaries. The Philips L-Line 7000 series is an LED signage solution for endless possibilities in shape and size. Seamless linking and multiple size options enable truly unique displays of any dimension for perfect results.

Get a quote

Technical Specifications

Convenience

Power loop through	For 230 V environments: 16 cabinets or less; for 110 V environments: 8 cabinets or less
Signal control loop through	RJ45
Ease of installation	Guide pins
	Light weight

Accessories

Power cable	1 pcs
LAN cable (RJ45, CAT-5)	1 pcs
QSG	1 pcs

Cabinet

Receiving card spec.	A5S Plus
Side angle (degree)	90
Receiving card quantity	1 pcs
Receiving card brand	Novastar
Cabinet pixels (Dot)	32768
IP rating	IP30
Cabinet diagonal (inch)	22"
Cabinet resolution (W x H)	256 x 128
Cabinet size (mm)	500 x 250 x 40
Power connector	3 core socket (C14 in, C13 out)
Weight (kg)	3.43 (±172 g)
Cabinet area (m2)	0.125
Data connector	RJ45
Cabinet construction	Die-Casting Aluminium

Power

Typical power cons. (W)	<21.67
Input voltage	AC100~240 V (50 and 60 Hz)
Max. power cons. AC (W)	<65
Black screen power cons. (W)	<9
Max. power cons. BC (W)	<85

Operating conditions

Temperature range (storage)	-20~50 °C
Humidity range (operation)[RH]	10~80%
Temperature range (operation)	-20~45 °C
Humidity range (storage) [RH]	10~85%

Miscellaneous

Conformal coating	Yes (LED Module Bottom side and HUB board)
Fire retardancy certification	BS 476 Part7:1997
	DIN4102-1
	UL94
Regulatory approvals	EN55032
	EN55035
	EN61000-3-2
	EN61000-3-3
	IEC/UL60950
	IEC/UL62368
	IEC62471
	RoHS
	FCC SDOC, Part 15, Class A
	EAC
Warranty	2 years

Picture/Display

Colour temperature adjust range	4000~9500 K (by software)
Calibration (brightness/colour)	Supported
Viewing angle (horizontal)	160 degree
Aspect ratio	2:1
Picture enhancement	Wide colour gamut display
Refresh rate (Hz)	2100~3900 (14 bits:3900 Hz)
Brightness uniformity	>=97%
Frame frequency (Hz)	50 & 60
Usage	Indoor
Placement	Landscape
Brightness after calibration	900 nits
Brightness before calibration	1200 nits
Viewing angle (vertical)	160 degree
Contrast ratio (typical)	3500:1
Colour temperature default	6500±500 K

Module

LED type	SMD 1515 Copper wire
LED lifetime(Hrs)	100,000 at half brightness
Module size (W x H in mm)	249.9 x 249.9 (tolerance: +0.05 / -0.1)
Pixel pitch (mm)	1.9
Pixel constitution	1R1G1B
Module resolution (WxH pixels)	128 x 128
