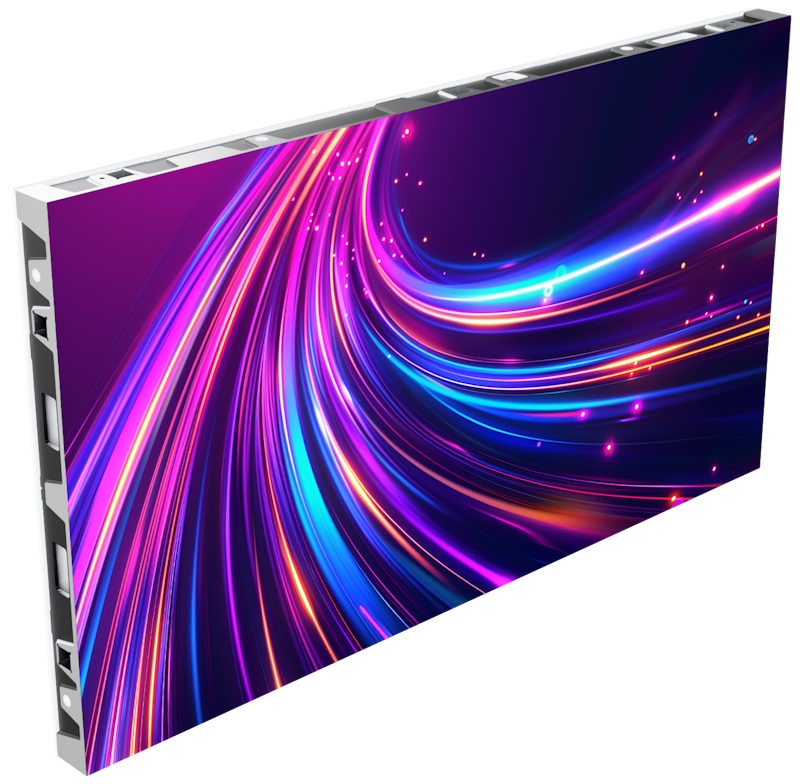

Unite LED 5000 Series

27HDL5118IP/00

Your essential range of investment-friendly flip chip COB panels delivering on quality, resolution, and reliability, as well as efficiency. With low power consumption for reduced cost of ownership and an easy-to-maintain flat matt surface.

Get a quote

Technical Specifications

Accessories

QSG (Quick Start Guide)	Printed on carton
Screws (type / length mm)	Hex M6, 22mm
LAN cable (type/length)	RJ45 75cm/RJ45 15cm

Cabinet

Cabinet pixels ( Dot )	57,600
Weight (KG)	4.7±0.2
Receving card brand	Novastar A8S-N
Power connector	3 pin connector
Cabinet construction	Die cast
Data connector	RJ45
Cabinet resolution (W x H)	320x180
Cabinet Size (WxHxD in mm)	600x337.5x33.6
Cabinet area (m2)	0.2052
Cabinet size (inch)	27.1”

Power

Max cabinets power daisy chain	16
Cabinet Max Power consumption (W) (AC):	<50
Cabinet Typical Power consumption (W) (AC)	<30
Power consumption/M2 (W)(AC)	285
Input voltage	AC100~240V (50 & 60Hz)
Cabinet Max Power consumption (W) (BC)	<65
BTU/M2 (BC)	1153
BTU/M2 (AC)	972
Power consumption/M2 (W)(BC)	338

Miscellaneous

Regulatory approvals	CE
	UKCA
	FCC
	ETL
	RoHS
	CCC
	SASO
Warranty	36 months

Operating conditions

Temperature range (operation)	-10 - 45 °C
Humidity range (storage) [RH]	10%-70%RH
Humidity range (operation)[RH]	10%-90%RH
Temperature range (storage)	-40 - 60 °C
Working environment (indoor/outdoor)	Indoor

Picture/Display

Brightness Uniformity	>=97%
Frame frequency (Hz)	50-60
Refresh rate(Hz)	1920-3840 Hz
Color temperature default	6500K±500
Viewing angle (°) H/V	160°
Calibration(brightness/color)	Color and Brightness
Brightness (nits)	600 nit
Colour temperature (K) adjust range (by software)	3000-10000
Bit-depth(bit)	13
Contrast ratio (typical)	5000:1

Module

Black screen power saving	Yes
Module size (WxH in mm)	150x168.75
LED type	COB
LED lifetime(Hrs)	100,000
LED Pole type	Common Anode
Pixel pitch (mm)	1.875
Pixel constitution	1R1G1B Flip Chip
Weight(KG)	0.137
Module resolution (WxH pixels)	80x90

Packaging Data

Package size (WxHxD mm)	822x461x99
Gross weight (full product, incl. accessories and packaging KG)	6.3±0.2
Packing Total weight Cardboard/paper (in Gram)	1100±100
Nett Weight (Product excluding accessories and packing in KG)	<4.8kg
Packing Total weight Plastics (LDPE/EPE/HDPE/PVC/ in Gram)	400±100
