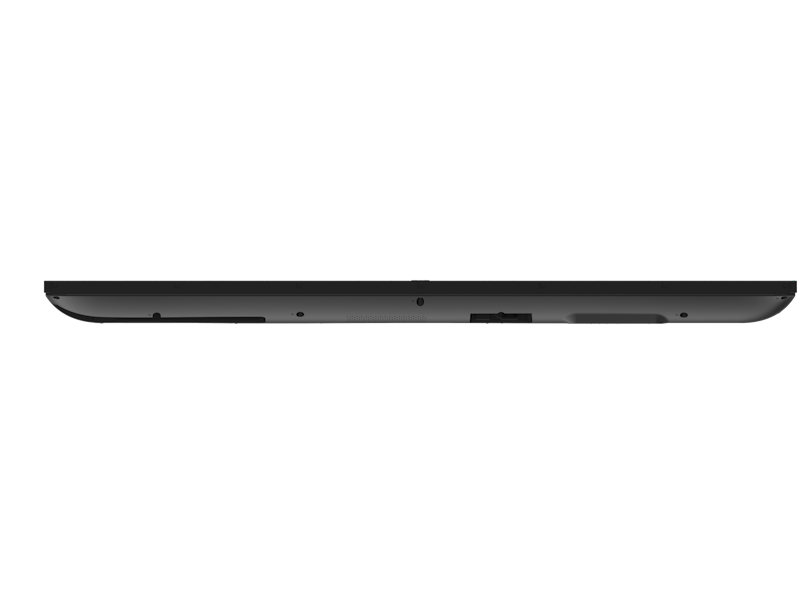

QE-Line
Engage your audience with this environmentally conscious 4K Ultra HD digital display. Delivering uncompromised 4K UHD performance while running on half the power compared to other market models, with the very latest PPDS EcoDesign.
Features
Technical Specifications
Connectivity
| Other connections | micro SD |
|---|---|
| OPS | |
| Audio output | 3.5mm jack |
| Video input | HDMI 2.0 (x2) |
| DVI-I (x 1) | |
| USB 2.0 (x2) | |
| USB 3.0 (x2) | |
| Audio input | 3.5 mm jack |
| External control | RJ45 |
| RS232C (in/out) 2.5 mm jack | |
| IR (in/out) 3.5 mm jack | |
| Optional WiFi functionality | CRD22 wifi dongle |
Convenience
| Tiled Matrix | Up to 15 x 15 |
|---|---|
| Energy saving functions | Smart Power |
| Remote control signal | Lockable |
| Signal loop through | RS232 |
| IR Loopthrough | |
| Network controllable | RS232 |
| RJ45 | |
| Keyboard control | Lockable |
| Hidden | |
| Placement | Landscape (18/7) |
| Portrait (18/7) |
Accessories
| Included Accessories | IR sensor cable (1.8 m) (x1) |
|---|---|
| RS232 daisy-chain cable | |
| Philips logo (x1) | |
| AC Power Cord | |
| AC Switch Cover | |
| Cable clip (x2) | |
| Quick start guide | |
| RS232 cable | |
| USB Cover (x1) |
Dimensions
| Set Width | 1128.4 mm |
|---|---|
| Product weight | 14.25 kg |
| Set Height | 649.0 mm |
| Set Depth (inch) | 2.50 inch |
| Product weight (lb) | 31.42 lb |
| Wall Mount | 400mm x 400mm , M6 |
| Bezel width | 14.9 mm (Even bezel) |
| Set Width (inch) | 44.43 inch |
| Set Depth | 63.5 mm |
| Set Height (inch) | 25.55 inch |
Internal Player
| GPU | G52 MC1 |
|---|---|
| Memory | 16GB |
| 3GB DDR | |
| CPU | Dual core cortex A53 1.1G Hz |
| Dual core cortex A73 1.15G Hz | |
| Quad Core Cortex A55 |
Sound
| Built-in speakers | 2 x 10W RMS |
|---|
Power
| Standby power consumption | <0.5W |
|---|---|
| Mains power | 100 - 240V~, 50/60Hz |
| Consumption (Typical) | 56 W |
| Consumption (Max) | 103 W |
| Power Saving Features | Smart Power |
| Energy Label Class | E |
Multimedia Applications
| USB Playback Video | H.263 |
|---|---|
| H.264 | |
| H.265 | |
| MPEG1/2 | |
| MPEG4 | |
| VP8 | |
| VP9 | |
| USB Playback Picture | JPEG |
| BMP | |
| PNG | |
| USB Playback Audio | AAC |
| HEAAC | |
| MPEG |
Operating conditions
| MTBF | 30,000 hour(s) |
|---|---|
| Humidity range (operation)[RH] | 20 ~ 80% RH (No condensation) |
| Humidity range (storage) [RH] | 5 ~ 95% RH (No condensation) |
| Altitude | 0 ~ 3000 m |
| Temperature range (storage) | -20 ~ 60 °C |
| Temperature range (operation) | 0 ~ 40 °C |
Miscellaneous
| On-Screen Display Languages | English |
|---|---|
| French | |
| German | |
| Italian | |
| Polish | |
| Russian | |
| Spanish | |
| Turkish | |
| Simplified Chinese | |
| Traditional Chinese | |
| Arabic | |
| Japanese | |
| Warranty | 3 year warranty |
| Regulatory approvals | CE |
| CB | |
| BSMI | |
| FCC, Class A | |
| VCCI | |
| J-Moss | |
| ETL | |
| RoHS |
Picture/Display
| Viewing angle (vertical) | 178 degree |
|---|---|
| Contrast ratio (typical) | 4000:1 |
| Viewing angle (horizontal) | 178 degree |
| Response time (typical) | 8 ms |
| Picture enhancement | 3/2 - 2/2 motion pull down |
| Dynamic contrast enhancement | |
| Motion compens. deinterlacing | |
| Progressive scan | |
| Diagonal screen size (inch) | 49.5 inch |
| Aspect ratio | 16:9 |
| Operating system | Android 10 |
| Dynamic contrast ratio | 500,000:1 |
| Optimum resolution | 3840 x 2160 @ 60 Hz |
| Diagonal screen size (metric) | 125.7 cm |
| Display colors | 1.06 Billion |
| Panel resolution | 3840 x 2160 |
| Pixel pitch | 0.2854 x 0.2854 mm |
| Brightness | 350 cd/m² |
| Panel technology | VA |
Supported Display Resolution
| Computer formats | 832 x 624, 75Hz |
|---|---|
| 1024 x 768, 60, 70, 75Hz | |
| 1152 x 864, 75Hz | |
| 1152 x 870, 75Hz | |
| 1280 x 1024, 60Hz | |
| 1280 x 720, 60Hz | |
| 1280 x 800, 60Hz | |
| 1440 x 900, 60Hz | |
| 1600 x 1200, 60Hz | |
| 1680 x 1050, 60Hz | |
| 1920 x 1080, 60Hz | |
| 3840 x 2160, 24,25,30,60Hz | |
| 640 x 480, 60, 67, 72, 75Hz | |
| 720 x 400, 70Hz | |
| 800 x 600, 56, 60, 72, 75Hz | |
| Video formats | 1080p, 50, 60Hz |
| 1080i, 50, 60Hz | |
| 3840 x 2160p,24,25,30,60Hz | |
| 480i, 60Hz | |
| 480p, 60Hz | |
| 720p, 50,60 Hz |
