P-Line

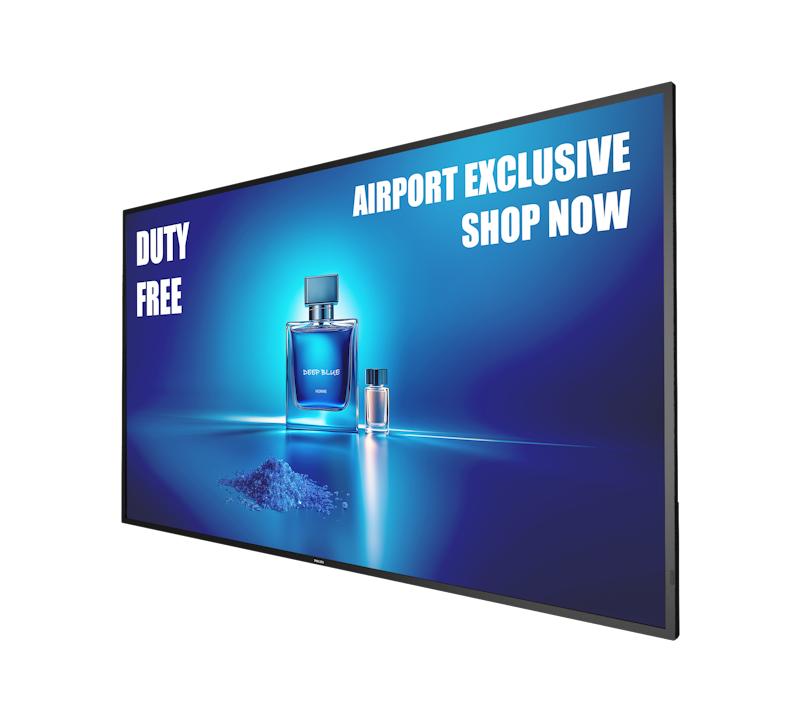

55BDL6017P/00

Outperform in challenging environments with the robust 24/7 Philips Signage 6000 Series. With enhanced brightness up to 800 nits and an option to add Philips Wave remote management, ideal for kitchens through to transport hubs, and beyond.

Get a quote

Technical Specifications

Connectivity

Audio output	3.5mm jack
Video input	Display Port1.2 (x1)
	DVI-I (x 1)
	HDMI 2.0 (x3)
Audio input	3.5 mm jack
External control	IR (in/out) 3.5 mm jack
	RJ45
	RS232C (in/out) 2.5 mm jack
	Ambient Light Sensor
Video output	DisplayPort 1.2 (x1)
	HDMI 2.0 (x1)
Other connections	USB 2.0 (x2)
	OPS
	Thermal sensor

Convenience

Network controllable	RS232
	RJ45
Tiled Matrix	Up to 15 x 15
Energy saving functions	Smart Power
Ease of installation	Carrying Handles
	Conformal Coating
	Edge Alignment Kit
Signal loop through	DisplayPort
	RS232
	HDMI
	IR Loopthrough
Placement	Landscape (24/7)
	Portrait (24/7)
Screen saving functions	Pixel Shift, Low Bright

Accessories

Stand	BM05922(optional)
Included Accessories	AC Switch Cover
	Philips logo (x1)
	Power cable (x3)
	Quick start guide (x1)
	Remote control & AAA batteries
	RS232 cable (3 m) (x1)
	RS232 daisy chain cable (x1)
	USB Cover (x1)
	Edge Alignment Kit (x2)

Dimensions

Set Depth	76.80 mm (at handle),64.0 (at wall mount) mm
Set Width (inch)	48.89 inch
Bezel width	13.9mm (Even bezel)
Set Height	712.60 mm
Set Width	1241.80 mm
Product weight	20.50 kg
Product weight (lb)	45.149 lb
Wall Mount	400 x 400 mm, M6
Set Depth (inch)	3.02 inch (at handle), 2.52 (at wall mount) inch
Set Height (inch)	28.06 inch

Sound

Built-in speakers	2 x 10W RMS

Power

Consumption (Max)	204 W
Standby power consumption	<0.5 W
Consumption (Typical)	142 W
Mains power	100 ~ 240 VAC, 50 ~ 60 Hz
Energy Label Class	G

Multimedia Applications

USB Playback Audio	AAC
	MPEG
	HEAAC
USB Playback Picture	BMP
	JPEG
	PNG
USB Playback Video	H.264
	H.265
	Motion JPEG
	MPEG1/2
	WMV3

Miscellaneous

On-Screen Display Languages	Arabic
	Dutch
	Danish
	English
	French
	Finnish
	German
	Italian
	Japanese
	Norwegian
	Polish
	Portuguese
	Russian
	Spanish
	Swedish
	Simplified Chinese
	Turkish
	Traditional Chinese
Regulatory approvals	CE
	FCC, Class A
	CB
	BSMI
	EAC
	EMF
	VCCI
	PSB
	EnergyStar 8.0
	ETL
	EPA
Warranty	3 year warranty

Picture/Display

Panel technology	VA
Pixel pitch	0.315 x 0.315 mm
Viewing angle (horizontal)	178 degree
Panel resolution	3840 x 2160
Dynamic contrast ratio	500,000:1
Aspect ratio	16:9
Haze	25 %
Diagonal screen size (inch)	54.6 inch
Optimum resolution	3840 x 2160 @ 60Hz
Display colors	1.07 billion
Diagonal screen size (metric)	138.7 cm
Brightness	800 cd/m²
Viewing angle (vertical)	178 degree
Response time (typical)	8 ms
Contrast ratio (typical)	5000:1

Operating conditions

Temperature range (operation)	0 ~ 40 °C
Humidity range (storage) [RH]	5 ~ 95% RH (No condensation)
Ingress protection	IP5X
MTBF	50,000 hour(s)
Humidity range (operation)[RH]	20 ~ 80% RH (No condensation)
Altitude	0 ~ 5000 m
Temperature range (storage)	-20 ~ 60 °C

Supported Display Resolution

Computer formats	640 x 480, 60, 67, 72, 75Hz
	720 x 400, 70Hz
	800 x 600, 56, 60, 72, 75Hz
	1024 x 768, 60, 70, 75Hz
	1152 x 864, 75Hz
	1152 x 870, 75Hz
	1280 x 720, 60Hz
	1280 x 800, 60Hz
	1280 x 1024, 60Hz
	1440 x 900, 60Hz
	1600 x 1200, 60Hz
	1680 x 1050, 60Hz
	1920 x 1080, 60Hz
Video formats	480p, 60Hz
	576p, 50Hz
	720p, 50, 60Hz
	1080i, 50, 60Hz
	1080p, 50, 60Hz
	3840 x 2160, 30Hz
	3840 x 2160, 60Hz
