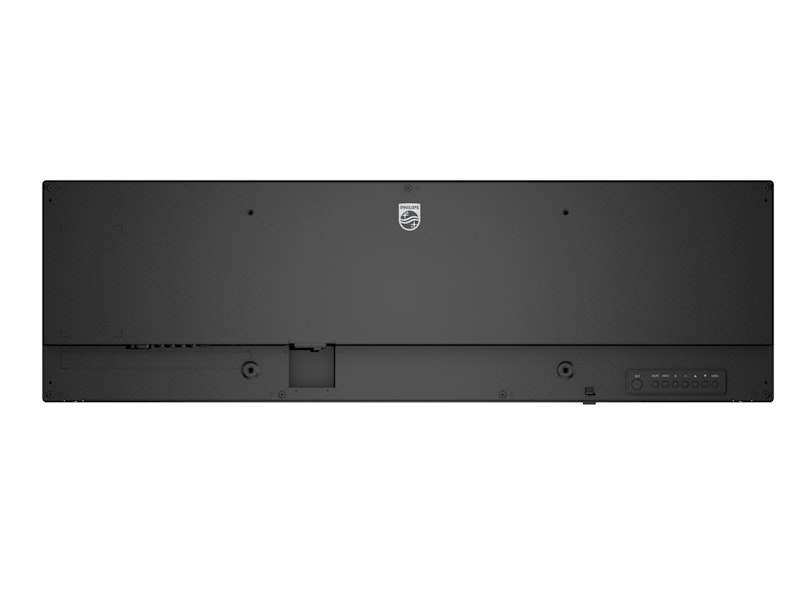

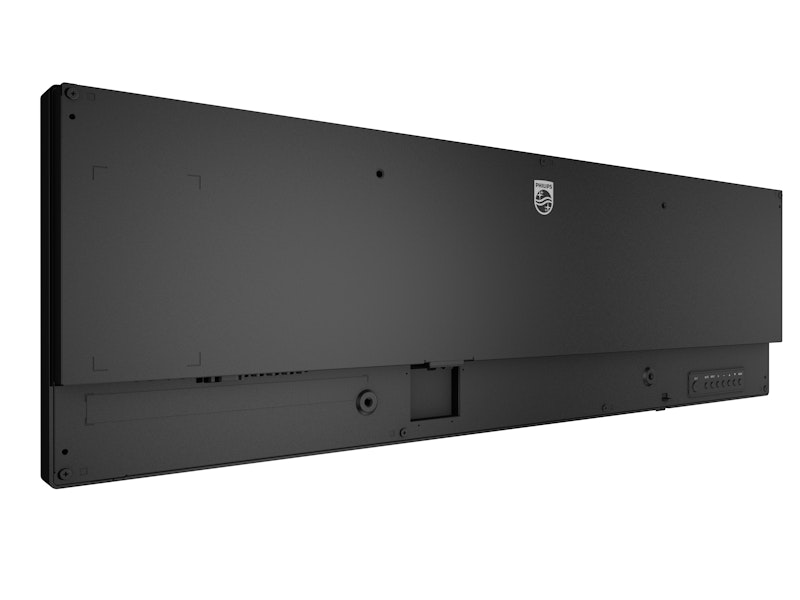

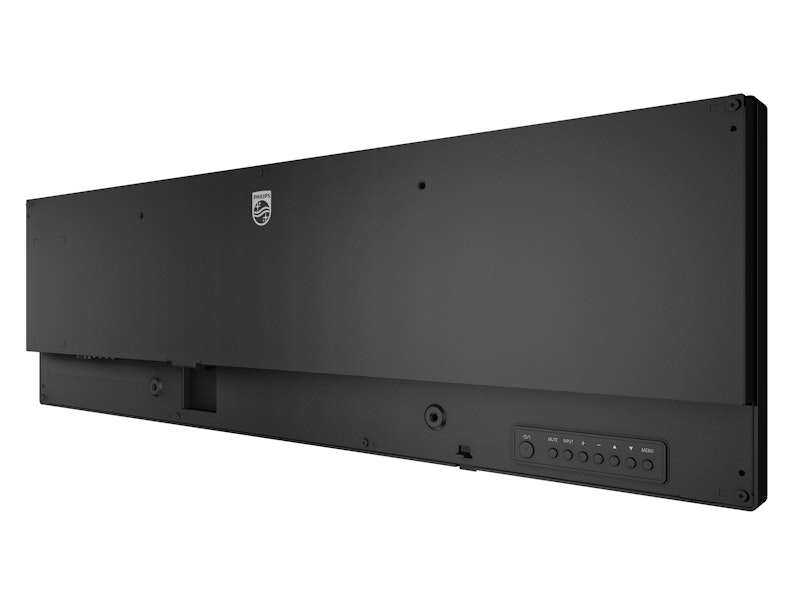

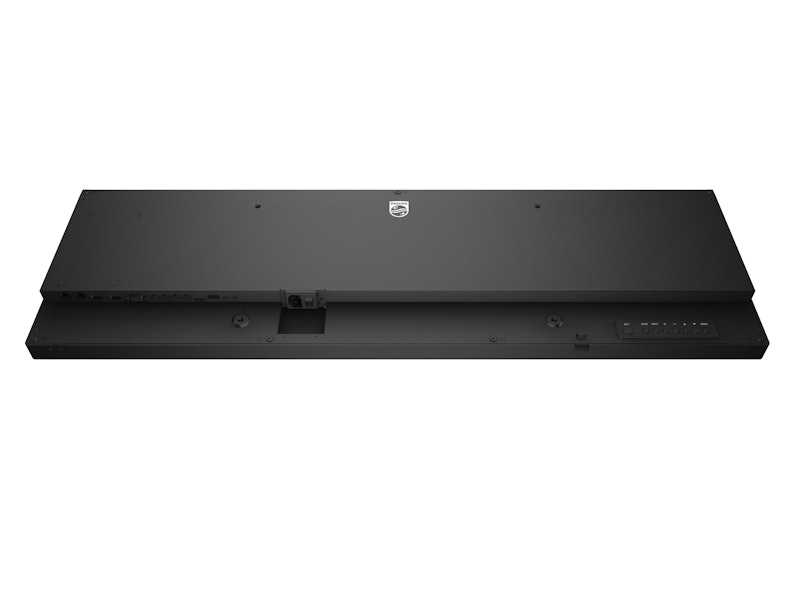

S-Line

37BDL3050S/00

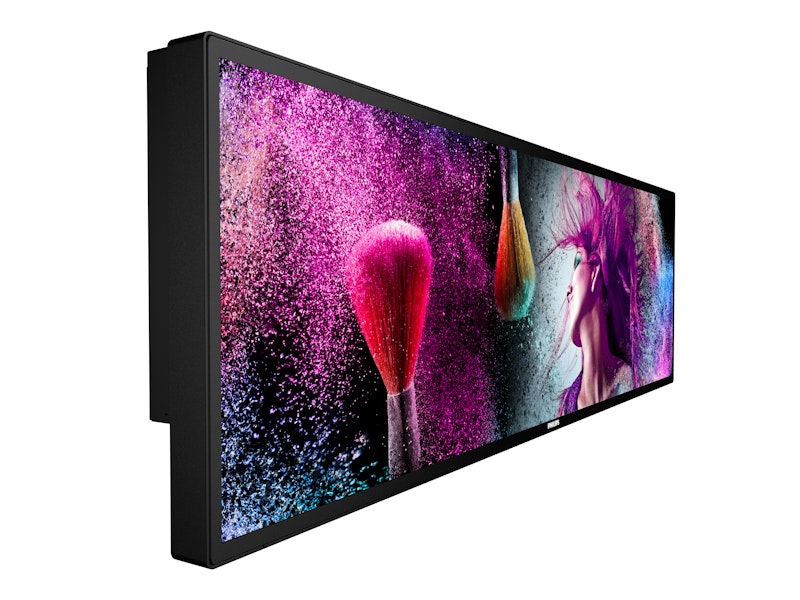

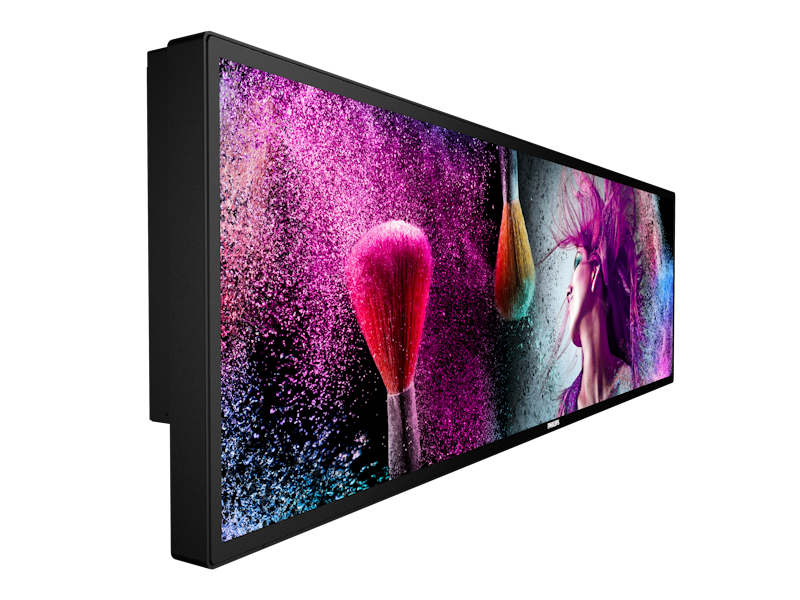

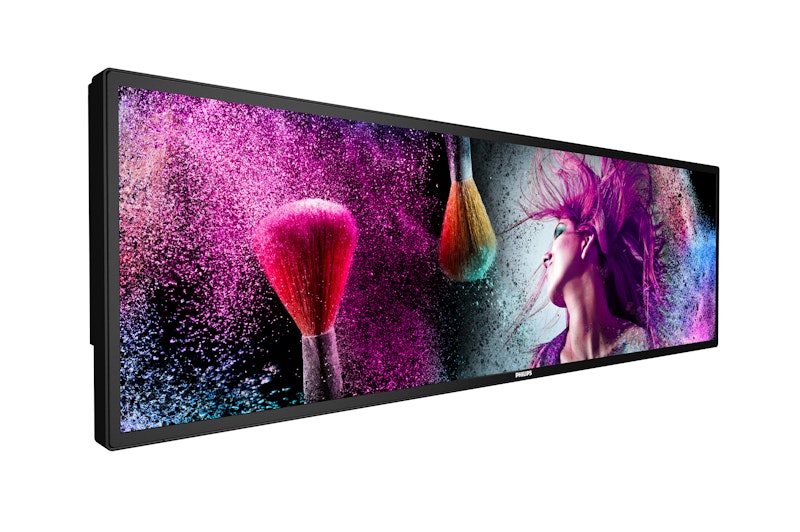

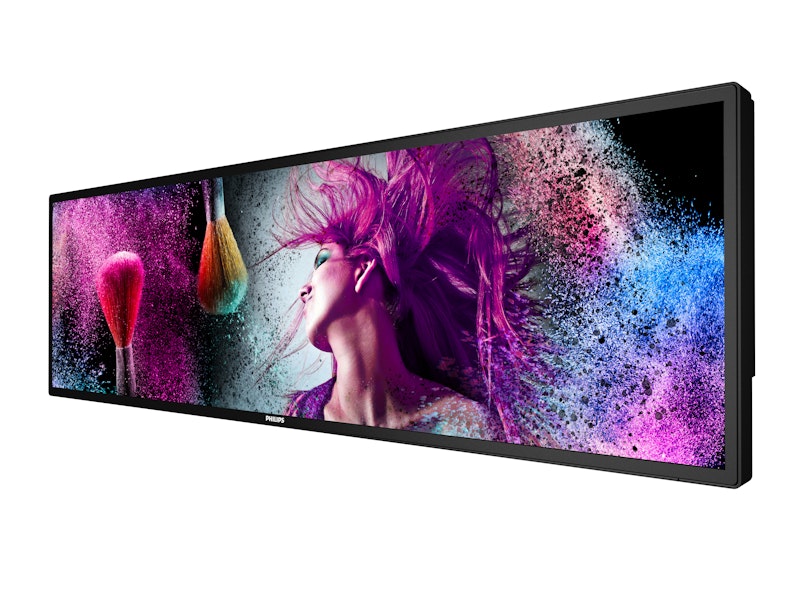

Widen the view. Widen your opportunities with Philips S-Line. With its unique 32:9 design and 1920x540 resolution, high-brightness output and versatile linking, the new stretched digital signage display shows more in less space.

Get a quote

Technical Specifications

Picture/Display

Diagonal screen size (inch)	37
Panel resolution	1920 x 540
Optimum resolution	1920 x 540 @ 60 Hz
Brightness	700
Response time (typical)	8
Aspect ratio	32:9
Viewing angle (horizontal)	178
Viewing angle (vertical)	178
Pixel pitch	0.47 x 0.47 mm
Display colors	Normally Black
Picture enhancement	3/2 - 2/2 motion pull down
	3D Combfilter
	De-interlacer
	Progressive scan
	3D MA deinterlacing
	Smart Picture
	Color Temperature Adjustment
	Color Enhancement
	Noise Reduction
Panel technology	AG
Contrast ratio (typical)	4000:1
Operating system	Android 8.0
Placement	Landscape (24/7)
	Portrait (24/7)

Supported Display Resolution

Computer formats	640 x 480, 60,67,75Hz
	720 x 400, 70Hz
	800 x 600, 60Hz
	832 x 624, 75Hz
	1024 x 768, 60Hz
	1152 x 870, 75Hz
	1280 x 720, 60Hz
	1280 x 1024, 60Hz
	1440 x 900, 60Hz
	1680 x 1050, 60Hz
	1920 x 1080, 60Hz
Video formats	480i, 60Hz
	480p, 60Hz
	576p, 50Hz
	576i, 50Hz
	720p, 50, 60Hz
	1080i, 50, 60Hz
	1080p, 50, 60Hz

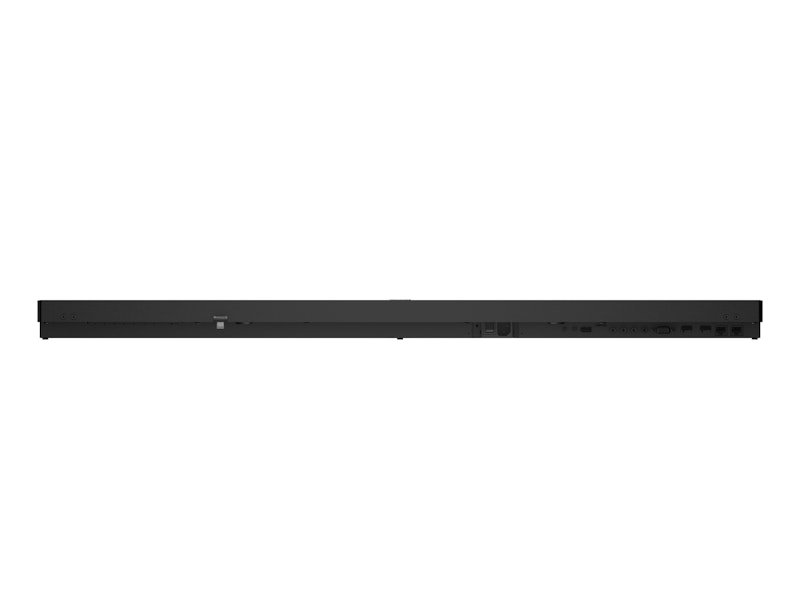

Connectivity

Video input	HDMI 2.0 (x1)
	USB 2.0 ( x1)
	VGA (Analog D-Sub) (x1)
Audio input	3.5 mm jack
Video output	HDMI 2.0 (x1)
Audio output	3.5mm jack
External control	IR (in/out) 3.5 mm jack
	RJ45
	RS232C (in/out) 2.5 mm jack

Convenience

Signal loop through	RS232
	HDMI
	IR Loopthrough
Network controllable	LAN (RJ45)

Operating conditions

Temperature range (operation)	0~ 40
Temperature range (storage)	-20 ~ 60
Altitude	0 ~ 3000 m
MTBF	50,000
Humidity range (operation)[RH]	20 - 80% RH (No condensation)
Humidity range (storage) [RH]	5 - 95% RH (No condensation)

Power

Consumption (Typical)	70
Consumption (Max)	85 W
Standby power consumption	<0.5W
Mains power	100 ~ 240 VAC, 50 ~ 60 Hz

Accessories

Included Accessories	AC Switch Cover
	IR sensor cable (1.8 m) (x1)
	Philips logo (x1)
	Quick start guide (x1)
	Remote control & AAA batteries
	RS232 daisy chain cable
	AC power cord
	RS232 cable
	HDMI cable
	Wall mount bolt x2

Miscellaneous

On-Screen Display Languages	Arabic
	Dutch
	Danish
	English
	French
	Finnish
	German
	Italian
	Japanese
	Norwegian
	Polish
	Portuguese
	Russian
	Spanish
	Swedish
	Simplified Chinese
	Turkish
	Traditional Chinese
	Czech
Regulatory approvals	CE
	FCC, Class A
	CB
Warranty	3 years warranty

Internal Player

CPU	2 x A53 + 2 x A73
GPU	ARM Mali G51
Memory	2GB DDR3
Storage	8GB eMMC

Dimensions

Set Width	928.5
Set Height	282.3
Set Depth	48.7
Bezel width	12.4mm(T/B); 10.5mm(R/L)
Wall Mount	400mm x 200mm , M6
Product weight	7.76
