Philips L-Line 7000 Series

22BDL7224L/00

No limits. No boundaries. Philips L-Line 7000 series is an LED signage solution for endless possibilities in shape and size. Seamless linking and multiple size options enable truly unique displays of any dimension for perfect results.

Get a quote

Active Health Monitoring

Achieve perfection through precision. Active Health Monitoring makes maintenance fast and simple by displaying the exact location should it experience a failure. Utilising this real-time software, replacing the relevant part becomes an efficient procedure.

Factory calibrated

Calibrated in our factory under perfect conditions, Philips direct view LED installations are more efficient, with no need for on-site calibration. For fast and effective maintenance, all configuration files are available online.

Dynamic Panel Connect

Mix and match panel sizes to form a single LED wall of any shape and size. Dynamic flexible alignment ensures a perfect fit and a smooth, seamless surface. For added efficiency, each panel features openings on either side for versatile wired connections between panels and any external input connection.

Unique in every way

Go with the flow with a modular Philips LED display that can adapt to any shape, size or resolution. Build vast installations or assemble intriguing patterns. Flex seamlessly around doorways and openings, and move elegantly through corners and curves.

Built-in cable and data wiring

Your Philips professional LED Display features built-in cable wiring to keep power and data cables tidy. Display cabinets are daisy-chained for both power and data, allowing you to minimise clutter and speed up installation.

High performance displays

Achieve perfection through precision. Quality and performance go hand-in-hand with Philips professional displays designed, manufactured, calibrated and thoroughly tested in-house.

IP30 rated conformal coating

Dust, dirt, fungus and moisture resistant conformal coating protects this product and enables easier maintenance. IP30 rated and certified against ingress for reduced chance of short circuit from dust and corrosion.

Certified fire retardancy

Fire retardant design slows down the spread of flames in the event of fire. Tested and certified with British standard (BS476), B1 DIN4102, and UL94.

Active Health Monitoring

Achieve perfection through precision. Active Health Monitoring makes maintenance fast and simple by displaying the exact location should it experience a failure. Utilising this real-time software, replacing the relevant part becomes an efficient procedure.

Factory calibrated

Calibrated in our factory under perfect conditions, Philips direct view LED installations are more efficient, with no need for on-site calibration. For fast and effective maintenance, all configuration files are available online.

Dynamic Panel Connect

Mix and match panel sizes to form a single LED wall of any shape and size. Dynamic flexible alignment ensures a perfect fit and a smooth, seamless surface. For added efficiency, each panel features openings on either side for versatile wired connections between panels and any external input connection.

Unique in every way

Go with the flow with a modular Philips LED display that can adapt to any shape, size or resolution. Build vast installations or assemble intriguing patterns. Flex seamlessly around doorways and openings, and move elegantly through corners and curves.

Built-in cable and data wiring

Your Philips professional LED Display features built-in cable wiring to keep power and data cables tidy. Display cabinets are daisy-chained for both power and data, allowing you to minimise clutter and speed up installation.

High performance displays

Achieve perfection through precision. Quality and performance go hand-in-hand with Philips professional displays designed, manufactured, calibrated and thoroughly tested in-house.

IP30 rated conformal coating

Dust, dirt, fungus and moisture resistant conformal coating protects this product and enables easier maintenance. IP30 rated and certified against ingress for reduced chance of short circuit from dust and corrosion.

Certified fire retardancy

Fire retardant design slows down the spread of flames in the event of fire. Tested and certified with British standard (BS476), B1 DIN4102, and UL94.

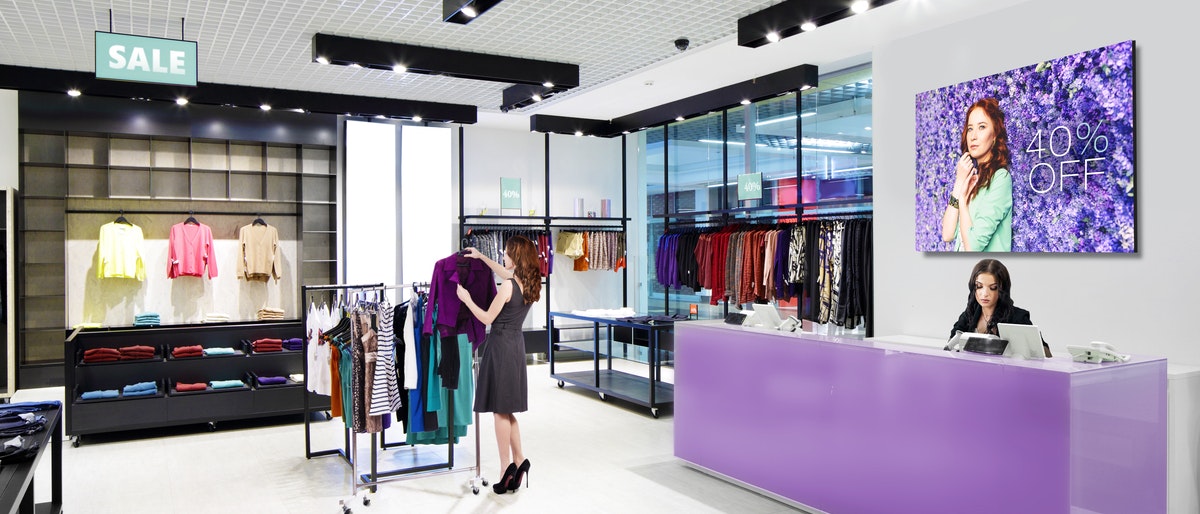

Limitless videowall

L-Line creates an LED videowall of any shape or size for a truly unique experience.

Technical Specifications

Convenience

Ease of installation	Guide pins
	Light weight
Signal control loop through	RJ45
Power loop through	For 230V environments: 16 cabinets or less, for 110V environments: 8 cabinets or less, 10A max
Max. daisy chain current	10 Amp

Accessories

QSG	1 pcs
Power cable	2 pcs
LAN cable (RJ45, CAT-5)	1 pcs

Cabinet

Cabinet diagonal (inch)	22"
Weight (KG)	3.4 (±170g)
Receving card brand	NovaStar
Cabinet pixels ( Dot )	21.632
Power connector	3 core socket (C14 in, C13 out)
Side angle (degree)	90
Cabinet construction	Die-Casting Aluminum
Receiving card spec.	A5S plus
Data connector	RJ45
Receiving card quantity	1 pcs
Cabinet resolution (W x H)	208x104
Cabinet area (m2)	0.125
Cabinet size (mm)	500x250x40

Power

Black screen power cons. (W)	<9
Max. power cons. AC (W)	<65
Input voltage	AC100~240V (50 & 60Hz)
Max. power cons. BC (W)	<85
Typical power cons. (W)	<21.67

Miscellaneous

Fire retardancy certification	BS 476 Part7:1997
	UL94
	DIN4102-1
Regulatory approvals	EN55032
	EN55035
	EN61000-3-2
	EN61000-3-3
	IEC/UL60950
	IEC/UL62368
	IEC62471
	RoHS
	FCC SDOC, Part 15, Class A
Warranty	2 years
Conformal coating	hub board, backside LED module

Operating conditions

Temperature range (operation)	-20~45 °C
Humidity range (storage) [RH]	10~85%
Humidity range (operation)[RH]	10~80%
Temperature range (storage)	-20~50 °C

Picture/Display

Brightness after calibration	900 nits
Refresh rate(Hz)	2100~3900 (14 bits: 3900Hz)
Frame frequency (Hz)	50 & 60
Viewing angle (horizontal)	160 degree
Color temperature default	6500±500 K
Calibration(brightness/color)	Supported
Aspect ratio	2:1
Brightness uniformity	>=97%
Color temperature adjust range	4000~9500 K (by software)
Brightness before calibration	1200 nits
Viewing angle (vertical)	160 degree
Picture enhancement	Wide color gamut display
Contrast ratio (typical)	3500:1
Placement	Landscape
Usage	Indoor

Module

Module size (WxH in mm)	249.9*249.9
LED type	SMD 1515 Copper wire
LED lifetime(Hrs)	100,000 at half brightness
Pixel pitch (mm)	2.4
Pixel constitution	1R1G1B
Module resolution (WxH pixels)	104x104
