49BDL5057P/00

49″
Philips P-Line
Meet the demands of challenging environments with a robust P-Line professional Full HD display. Tough components keep this display working from kitchen to engine room. The wide viewing angle ensures crucial information is clear.
P-Line

Robust performance

Engaging performance

P-Line keeps people entertained, engaged, and informed at all times.

Features

Technical Specifications

Picture/Display

Diagonal screen size (inch) 48.5
Diagonal screen size (metric) 123.2
Panel resolution 1920x1080p
Optimum resolution 1920 x 1080 @ 60Hz
Brightness 700
Contrast ratio (typical) 1300:1
Dynamic contrast ratio 500,000:1
Aspect ratio 16:9
Response time (typical) 8
Pixel pitch 0.55926 x 0.55926 mm
Display colors 1.07 billion
Viewing angle (horizontal) 178
Viewing angle (vertical) 178
Operating system Android 5.1.1

Connectivity

Video input Display Port1.2 (x1)
DVI-I (x 1)
HDMI 1.4 (x2)
USB 2.0 (x2)
USB 2.0 (x1)
Video output DVI-I (x1)
DisplayPort 1.2 (x1)
Audio input 3.5 mm jack
Audio output 3.5mm jack
Other connections Micro SD (x1)
Micro USB(type B)x1
OPS
Optional WiFi functionality requires WiFi module and external antennas
External control RJ45
RS232C (in/out) 2.5 mm jack
IR (in/out) 3.5 mm jack

Supported Display Resolution

Computer formats 1920 x 1080, 60Hz
1360 x 768, 60Hz
1280 x 800, 60Hz
1280 x 768, 60Hz
1024 x 768, 60, 75Hz
1280 x 1024, 60Hz
1600 x 1200, 60Hz
640 x 480, 60, 72, 75Hz
720 x 400, 70Hz
800 x 600, 60, 75Hz
Video formats 1080p, 50, 60Hz
720p, 50, 60Hz
576p, 50Hz
480p, 60Hz
1080i, 25, 30Hz
480I, 30Hz
576i, 25Hz

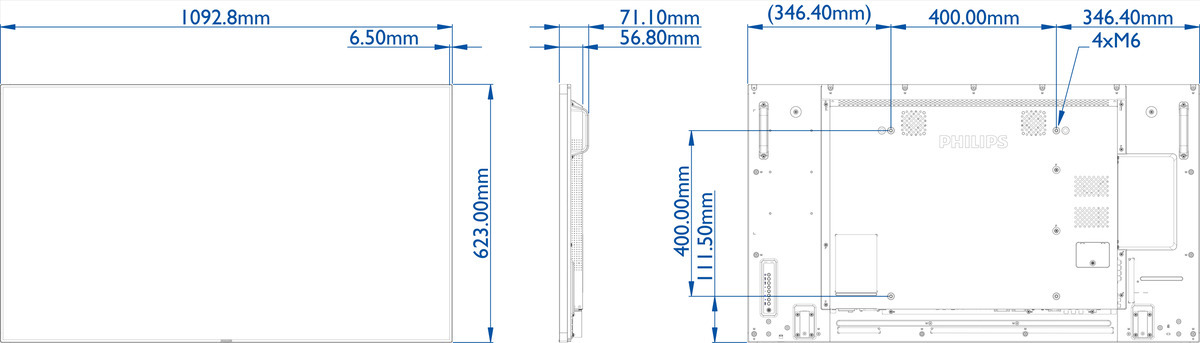

Dimensions

Set Width 1092.8
Set Height 623.0
Set Depth 71.1
Set Width (inch) 43.0
Set Height (inch) 24.5
Set Depth (inch) 2.80
Bezel width 6.5 mm
Product weight (lb) 41.9
Product weight 19.0
VESA Mount 400 x 400 mm, M6

Convenience

Placement Landscape
Portrait
Tiled Matrix Up to 15 x 15
Keyboard control Hidden
Lockable
Signal loop through DVI
VGA
RS232
IR Loopthrough
DisplayPort
Network controllable RJ45
RS232
HDMI (One Wire)
Energy saving functions Smart Power
Screen saving functions Pixel Shift, Low Bright
Ease of installation AC Out
Carrying Handles
Other convenience G sensor

Power

Standby power consumption <0.5 W
Mains power 100 ~ 240 VAC, 50 ~ 60 Hz
Consumption (Typical) 95
Comsumption (Max) 240 W
Energy Label Class G

Operating conditions

Temperature range (operation) 0 ~ 40
Temperature range (storage) -20 ~ 60
Relative humidity 20 ~ 80
Altitude 0 ~ 3000 m
MTBF 60,000

Sound

Built-in speakers 2 x 10W RMS

Accessories

Included accessories Remote Control
Batteries for remote control
Quick start guide
AC Power Cord
RS232 cable
Included Accessories Edge Alignment Kit (1 )-2pcs
Edge Alignment Kit (2)-1pcs
Logo guide
Philips logo (x1)
Thumbscrew (8pcs)
RS232 daisy-chain cable
Stand BM04642/00( optional)

Multimedia Applications

USB Playback Audio AAC
M4A
MP3
WMA
MP1
MP2
USB Playback Picture BMP
GIF
JPEG
JPG
PNG
USB Playback Video MKV
MP4
MPG
TS
VOB
3GP
AVI
DAT
FLV
MOV
WEBM

Miscellaneous

On-Screen Display Languages English
French
German
Spanish
Polish
Turkish
Russian
Italian
Simplified Chinese
Traditional Chinese
Arabic
Japanese
Danish
Dutch
Finnish
Norwegian
Portuguese
Swedish
Regulatory approvals CE
CCC
CB
CECP
BSMI
EAC
EnergyStar 7.0
UL/cUL
VCCI
EMF
PSB
FCC, Class A
PSE
Warranty 3 year warranty

Internal Player

CPU Octacore Cortex A53 1.5GHz
GPU PowerVR SGX6110
Memory 2GB DDR3
Storage 16GB EMMC
