D-Line
D-Line
Bigger impact
CMND & Control
Run your display network over a local (LAN or RF) connection. CMND & Control allows you to perform vital functions like updating software and settings, as well as monitoring display status. Whether you’re in charge of one TV or more, CMND & Control makes managing your fleet easy.
CMND & Create
Take control of your content with CMND and Create. A drag-and-drop interface makes it simple to publish your own content, whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure that your stills, text and video will be up and running in no time.
FailOver
From waiting room to meeting room, never show a blank screen. FailOver lets your Philips professional display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on.
Integrated HTML5 browser
Connect and control your content over the internet with the integrated HTML5 browser. Using the Chromium-based browser, design your content online and connect a single display or your complete network. Show content in both landscape and portrait mode, with full-HD resolution. Streaming content can also be shown in a PIP (picture-in-picture) window. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlist
Powered by Android
Android-powered Philips professional displays are fast, versatile and easy to navigate. All displays are optimized for native Android apps and you can install web apps directly to the display too. Automatic updates ensure apps stay up to date.
CMND & Deploy
Quickly install and launch any app - even when you're off site and working remotely. CMND & Deploy lets you add and update your own apps, as well as apps from the PPDS App Store. Simply scan the QR code, log in to the store and click on the app you want to install. The app will be automatically downloaded and launched.
Integrated mPCIe slot
Easily connect 4G/LTE modules to your Philips professional display. The integrated mPCIe slot enables your display to communicate with other devices that share the same wireless connectivity. Invaluable if you're installing displays in locations such as banks or government buildings, where you cannot access the local network.
Proof of Play
Be sure your Android-powered Philips professional display is showing the right content-even when you're not there. When playing content via the embedded media player, you can set up your display to take automatic screenshots at regular intervals. Screenshots are stored on the display's internal memory, and you can choose to receive them via email.
Powerful performance
D-Line delivers versatility and performance designed for impact.
Features
Technical Specifications
Picture/Display
| Diagonal screen size (inch) | 48.5 |
|---|---|
| Diagonal screen size (metric) | 123.2 |
| Panel resolution | 1920x1080p |
| Optimum resolution | 1920 x 1080 @ 60Hz |
| Brightness | 450 |
| Contrast ratio (typical) | 1100:1 |
| Dynamic contrast ratio | 500,000:1 |
| Aspect ratio | 16:9 |
| Response time (typical) | 12 |
| Pixel pitch | 0.55926 x 0.55926 mm |
| Display colors | 16.7 million |
| Viewing angle (horizontal) | 178 |
| Viewing angle (vertical) | 178 |
| Picture enhancement | 3/2 - 2/2 motion pull down |
| 3D Combfilter | |
| Motion compens. deinterlacing | |
| 3D MA deinterlacing | |
| Progressive scan | |
| Panel technology | IPS |
| Placement | Landscape |
| Portrait | |
| Operating system | Android 7.1.2 |
Connectivity
| Video input | Display Port1.2 (x1) |
|---|---|
| DVI-I (x 1) | |
| HDMI 2.0 (x2) | |
| Video output | DisplayPort 1.2 (x1) |
| DVI-I (x1) | |
| Audio input | 3.5 mm jack |
| Audio output | 3.5mm jack |
| External control | RJ45 |
| RS232C (in/out) 2.5 mm jack | |
| IR (in/out) 3.5 mm jack | |
| Other connections | micro USB |
| USB 3.0 | |
| USB 2.0 | |
| micro SD | |
| mPCIe |
Supported Display Resolution
| Computer formats | 1920 x 1200, 60Hz |
|---|---|
| 1920 x 1080, 60Hz | |
| 1680 x 1050, 60Hz | |
| 1600 x 1200, 60Hz | |
| 1600 x 900, 60Hz | |
| 1400 x 1050 ,60, 75Hz | |
| 1440 x 1050, 60Hz | |
| 1440 x 900, 60, 75Hz | |
| 1366 x 768, 60Hz | |
| 1360 x 768, 60Hz | |
| 1280x1024, 60,67,75Hz | |
| 1280 x 720, 60,70Hz | |
| 1280 x 800, 60,75Hz | |
| 1280 x 768, 60Hz, 75Hz | |
| 1024x768, 60,70Hz | |
| 1152 x 864, 60, 70, 75Hz | |
| 1152 x 900, 66Hz | |
| 1280 x 960, 60Hz | |
| 960x720, 75Hz | |
| 848 x 480, 60Hz | |
| 832 x 624, 75Hz | |
| 800 x 600, 56, 60, 72, 75Hz | |
| 720 x 400, 70Hz | |
| 640 x 480, 60, 67, 72, 75Hz | |
| 640 x 350, 70Hz | |
| Video formats | 1080p, 50, 60Hz |
| 1080i, 50, 60Hz | |
| 720p, 50, 60Hz | |
| 576i, 50Hz | |
| 576p, 50Hz | |
| 480p, 60Hz | |
| 480i, 60Hz |

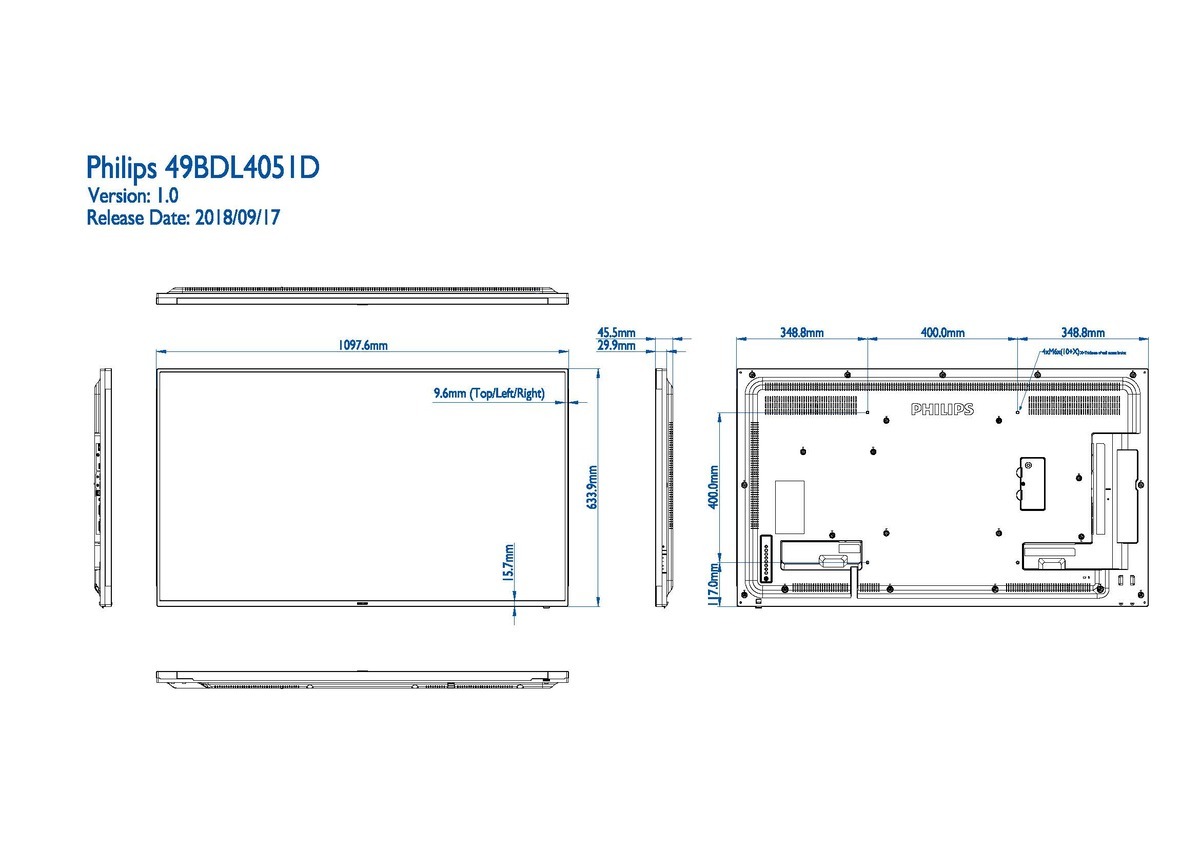

Dimensions
| Set Width | 1097.6 |
|---|---|
| Set Height | 633.9 |
| Set Depth | 45.5 |
| Set Width (inch) | 43.21 |
| Set Height (inch) | 24.96 |
| Set Depth (inch) | 1.79 |
| Bezel width | 9.6 mm (T/L/R), 15.7 mm (B) |
| Product weight (lb) | 32.63 |
| Product weight | 14.80 |
| Wall Mount | 400 x 400 mm, M6 |
Convenience
| Tiled Matrix | Up to 15 x 15 |
|---|---|
| Keyboard control | Hidden |
| Lockable | |
| Signal loop through | IR Loopthrough |
| DisplayPort | |
| DVI | |
| RS232 | |
| Network controllable | RJ45 |
| RS232 | |
| Screen saving functions | Pixel Shift |
| Picture in picture | PIP |
Power
| Standby power consumption | <0.5 W |
|---|---|
| Mains power | AC (100 ~ 240 V) , 2.5A |
| Consumption (Typical) | 75 |
| Consumption (On mode) | 130W (max) |
| Energy Label Class | G |
Operating conditions
| Temperature range (operation) | 0 ~ 40 |
|---|---|
| Temperature range (storage) | -20 ~ 60 |
| Altitude | 0 ~ 3000 m |
| MTBF | 50,000 |
| Humidity range (operation)[RH] | 20 ~ 80% RH (No condensation) |
| Humidity range (storage) [RH] | 5 ~ 95% RH (No condensation) |
Sound
| Built-in speakers | 2 x 10W RMS |
|---|
Accessories
| Included accessories | Remote Control |
|---|---|
| Batteries for remote control | |
| Quick start guide | |
| RS232 cable | |
| AC Power Cord | |
| Stand | Universal Stand-L (BM05922)(Optional) |
| Included Accessories | Edge Alignment Kit (1 )-2pcs |
| Edge Alignment Kit (2)-1pcs | |
| M2 Screw (x2) | |
| M3 screw (x1) | |
| Philips logo (x1) | |
| RS232 daisy-chain cable | |
| SD card cover (x1) | |
| Thumb Screw (x8) |
Multimedia Applications
| USB Playback Audio | AAC |
|---|---|
| M4A | |
| MP3 | |
| WMA | |
| USB Playback Picture | BMP |
| JPEG | |
| JPG | |
| PNG | |
| USB Playback Video | MKV |
| MP4 | |
| MPEG | |
| MPG | |
| TS | |
| VOB | |
| WMV | |
| ASF | |
| AVI | |
| DAT | |
| FLV |
Miscellaneous
| On-Screen Display Languages | English |
|---|---|
| French | |
| German | |
| Spanish | |
| Polish | |
| Turkish | |
| Russian | |
| Italian | |
| Simplified Chinese | |
| Traditional Chinese | |
| Arabic | |
| Japanese | |
| Danish | |
| Dutch | |
| Finnish | |
| Norwegian | |
| Portuguese | |
| Swedish | |
| Regulatory approvals | CE |
| BSMI | |
| CB | |
| EAC | |
| EnergyStar 7.0 | |
| FCC, Class A | |
| PSB | |
| UL/cUL | |
| CECP | |
| EPA | |
| Warranty | 3 year warranty |
Internal Player
| CPU | Dual-Core Cortex-A72 @2GHz |
|---|---|
| Quad-Core Cortex-A53 @ 1.5GHz | |
| RK3399 | |
| GPU | ARM Mali-T860 MP4 |
| Memory | 4GB DDR3 |
| Storage | 16GB EMMC |
| Wifi | 2T2R |
| 802.11 ac/a/b/g/n | |
| WCT07R2201 | |
| Operating system | Android 7.1.2 |
